IslandPathversion 1.0

IslandPath Analysis: Synechocystis sp. PCC 6803

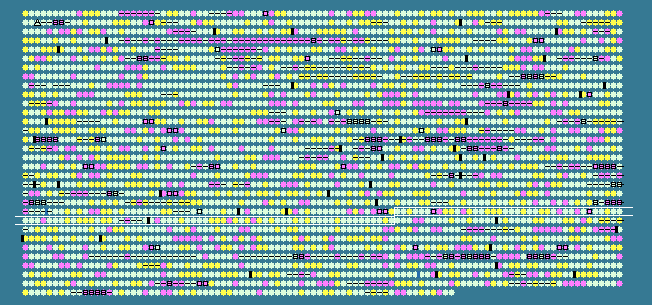

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2263	 46.38	0	2526633..2528081	+	482	16331430	-	slr0226	-	hypothetical protein
2264	 48.09	0	2528160..2528735	-	191	16331431	-	sll0198	-	hypothetical protein
2265	 52.34	0	2529009..2530892	+	627	16331432	ftsH	slr0228	-	cell division protein; FtsH
2266	 51.01	0	2530968..2531612	-	214	16331433	-	sll0195	-	ATP-dependent proteinase; BsgA
2267	 50.85	0	2531666..2532430	-	254	16331434	ycf43	sll0194	-	hypothetical protein
2268	 46.96	0	2532823..2533695	+	290	16331435	mmsB	slr0229	-	3-hydroxyisobutyrate dehydrogenase
2269	 36.63	-2	2534106..2534954	+	282	16331436	-	slr0230	-	transposase
2270	 42.48	-1	2534997..2535455	+	152	16331437	-	slr0231	-	hypothetical protein
2271	 51.97	0	2535487..2536758	-	423	16331438	-	sll0192	-	hypothetical protein
2272	 52.97	0	2536824..2537480	+	218	16331439	-	slr0232	-	hypothetical protein
2273	 50.94	0	2537521..2537838	+	105	16331440	trxM	slr0233	-	thioredoxin M
2274	 37.61	-2	2537896..2538807	-	303	16331441	-	sll0191	-	hypothetical protein
2275	 52.20	0	2539000..2540658	-	552	16331442	groEL-2	sll0416	-	60kD chaperonin 2
2276	 48.83	0	2540821..2541885	-	354	16331443	-	sll0415	-	ABC transporter
2277	 45.88	0	2541864..2542724	-	286	16331444	-	sll0414	-	hypothetical protein
2278	 52.99	0	2542935..2543687	+	250	16331445	-	slr0431	-	hypothetical protein
2279	 57.82	+1	2543725..2544018	-	97	16331446	-	ssl0788	-	hypothetical protein
2280	 57.33	+1	2544024..2544323	-	99	16331447	-	ssl0787	-	hypothetical protein
2281	 51.12	0	2544374..2544997	-	207	16331448	-	sll0413	-	hypothetical protein
2282	 49.21	0	2545122..2546381	-	419	16331449	-	sll0412	-	hypothetical protein
2283	 51.70	0	2546527..2547027	-	166	16331450	-	sll0410	-	hypothetical protein
2284	 52.23	0	2547067..2548029	-	320	16331451	-	sll0409	-	O-succinylbenzoate synthase
2285	 50.37	0	2548133..2549341	-	402	16331452	-	sll0408	-	hypothetical protein
2286	 50.71	0	2549388..2549951	+	187	16331453	efp	slr0434	-	elongation factor P
2287	 54.19	+1	2550059..2550523	+	154	16331454	accB	slr0435	-	biotin carboxyl carrier protein of acetyl-CoA carboxylase
2288	 52.80	0	2550753..2551646	+	297	16331455	ccmK	slr0436	-	carbon dioxide concentrating mechanism protein; CcmK
2289	 45.27	0	2551682..2552167	-	161	16331456	-	sll0406	-	hypothetical protein
2290	 43.77	0	2552177..2552962	-	261	16331457	-	sll0405	-	hypothetical protein
2291	 48.88	0	2553961..2555439	-	492	16331458	glcD	sll0404	-	glycolate oxidase subunit; GlcD
2292	 47.53	0	2555593..2555916	+	107	16331459	-	slr0438	-	hypothetical protein
2293	 31.68	-2	2556081..2556503	-	140	16331460	-	sll0403	-	hypothetical protein
2294	 48.87	0	2556814..2558319	+	501	16331461	-	slr0439	-	hypothetical protein
2295	 39.49	-1	2558423..2558617	-	64	16331462	-	ssl0769	-	transposase
2296	 51.11	0	2558820..2559989	-	389	16331463	aspC	sll0402	-	aspartate aminotransferase
2297	 50.42	0	2560112..2561305	-	397	16331464	gltA	sll0401	-	methylcitrate synthase
2298	 51.92	0	2561499..2561993	-	164	16331465	-	sll0400	-	hypothetical protein
2299	 44.90	0	2562056..2562859	+	267	16331466	-	slr0440	-	hypothetical protein
2300	 50.63	0	2562953..2564149	+	398	16331467	-	slr0049	-	hypothetical protein
2301	 49.07	0	2564175..2564390	+	71	16331468	ycf40	ssr0102	-	hypothetical protein
2302	 51.07	0	2564465..2565445	+	326	16331469	-	slr0050	-	ribonuclease Z
2303	 48.98	0	2565427..2566110	-	227	16331470	-	sll0072	-	hypothetical protein
2304	 40.02	-1	2566142..2567143	-	333	16331471	-	sll0071	-	hypothetical protein
2305	 45.85	0	2567237..2568091	-	284	16331472	purU	sll0070	-	formyltetrahydrofolate deformylase
2306	 48.23	0	2568182..2568973	+	263	16331473	icfA	slr0051	-	carbonic anhydrase
2307	 48.90	0	2568975..2569745	-	256	16331474	-	sll0069	-	hypothetical protein
2308	 52.31	0	2569772..2573491	-	1239	16331475	-	sll0068	-	hypothetical protein
2309	 49.55	0	2573649..2574203	-	184	16331476	gst	sll0067	-	glutathione S-transferase
2310	 52.85	0	2574297..2575244	-	315	16331477	-	sll0066	-	hypothetical protein
2311	 53.09	0	2575344..2575910	-	188	16331478	ilvH	sll0065	-	acetolactate synthase 3 regulatory subunit
2312	 54.50	+1	2576092..2576280	+	62	16331479	-	ssr0109	-	hypothetical protein
2313	 50.56	0	2576285..2576824	+	179	16331480	-	slr0053	-	putative metalloprotease
2314	 53.03	0	2576889..2577416	+	175	16331481	dgkA	slr0054	-	diacylglycerol kinase
2315	 54.47	+1	2577552..2578043	+	163	16331482	trpG	slr0055	-	anthranilate synthase component II
2316	 51.18	0	2578187..2579161	+	324	16331483	chlG	slr0056	-	bacteriochlorophyll/chlorophyll a synthase
2317	 50.00	0	2579308..2580135	-	275	16331484	-	sll0064	-	hypothetical protein
2318	 40.07	-1	2580291..2580557	-	88	109150012	-	sll0063a	-	hypothetical protein
2319	 51.26	0	2580710..2581897	-	395	16331485	-	sll0063	-	hypothetical protein
2320	 50.00	0	2581944..2582393	-	149	16331486	-	sll0062	-	hypothetical protein
2321	 48.25	0	2582441..2582869	+	142	16331487	-	slr0058	-	hypothetical protein
2322	 45.10	0	2583030..2583335	+	101	16331488	-	slr0059	-	hypothetical protein
2323	 41.71	-1	2583410..2584519	+	369	16331489	-	slr0060	-	hypothetical protein
2324	 46.40	0	2584793..2585458	+	221	16331490	-	slr0061	-	hypothetical protein
2325	 45.41	0	2585489..2586523	-	344	16331491	-	sll0060	-	hypothetical protein
2326	 50.55	0	2586572..2588650	-	692	16331492	dnaK	sll0058	-	molecular chaperone DnaK
2327	 52.67	0	2588884..2589633	-	249	16331493	grpE	sll0057	-	heat shock protein; GrpE
2328	 51.56	0	2589851..2591869	+	672	16331494	gspE	slr0063	-	general secretion pathway protein E
2329	 50.22	0	2591953..2593107	+	384	16331495	-	slr0064	-	hypothetical protein
2330	 50.08	0	2593329..2593967	+	212	16331496	-	slr0065	-	hypothetical protein
2331	 51.13	0	2594055..2595161	+	368	16331497	ribG	slr0066	-	riboflavin biosynthesis protein
2332	 51.75	0	2595280..2596566	-	428	16331498	-	sll0055	-	processing protease
2333	 54.14	+1	2596787..2597848	+	353	16331499	-	slr0067	-	put. ATPase
2334	 52.04	0	2597851..2599197	-	448	16331500	accC	sll0053	-	acetyl-CoA carboxylase biotin carboxylase subunit
2335	 41.97	-1	2599315..2599974	+	219	16331501	-	slr0069	-	hypothetical protein
2336	 52.08	0	2600012..2600491	-	159	16331502	-	sll0051	-	hypothetical protein
2337	 50.96	0	2600705..2601697	+	330	16331503	fmt	slr0070	-	methionyl-tRNA formyltransferase
2338	 51.87	0	2601733..2602536	+	267	16331504	natA	slr0467	-	component of ABC transporter for natural amino acids
2339	 35.39	-2	2602472..2603782	+	436	16331505	-	slr0468	-	hypothetical protein
2340	 51.72	0	2603947..2604555	+	202	16331506	rpsD	slr0469	-	30S ribosomal protein S4
2341	 49.50	0	2604794..2605894	-	366	16331507	-	sll0462	-	hypothetical protein
2342	 52.81	0	2606095..2607357	-	420	16331508	proA	sll0461	-	gamma-glutamyl phosphate reductase
2343	 50.11	0	2607812..2610058	+	748	16331509	phy	slr0473	-	phytochrome
2344	 45.95	0	2610073..2610516	+	147	16331510	-	slr0474	-	CheY family protein
2345	 44.93	0	2610706..2612715	-	669	16331511	uvrB	sll0459	-	excinuclease ABC subunit B
2346	 55.96	+1	2612907..2613317	+	136	16331512	-	slr0476	-	hypothetical protein
2347	 49.17	0	2613481..2613600	-	39	16331513	psbX	sml0002	-	photosystem II PsbX protein
2348	 52.29	0	2613717..2614370	+	217	16331514	purN	slr0477	-	phosphoribosylglycinamide formyltransferase
2349	 50.90	0	2614367..2615089	+	240	16331515	-	slr0479	-	hypothetical protein
2350	 51.13	0	2615100..2616599	+	499	16331516	ycf46	slr0480	-	hypothetical protein
2351	 49.67	0	2616624..2617382	+	252	16331517	-	slr0482	-	hypothetical protein
2352	 46.89	0	2617440..2617889	+	149	16331518	-	slr0483	-	hypothetical protein
2353	 51.92	0	2618067..2620094	+	675	16331519	-	slr0484	-	sensory transduction histidine kinase
2354	 50.81	0	2620171..2620662	+	163	16331520	-	slr0487	-	hypothetical protein
2355	 51.25	0	2620798..2622399	+	533	16331521	-	slr0488	-	hypothetical protein
2356	 49.12	0	2622526..2622981	+	151	16331522	-	slr0489	-	hypothetical protein
2357	 50.57	0	2622968..2623402	+	144	16331523	-	slr0491	-	hypothetical protein
2358	 49.26	0	2623414..2624907	+	497	16331524	menE	slr0492	-	O-succinylbenzoic acid--CoA ligase
2359	 50.65	0	2625095..2625481	+	128	16331525	rfbM	slr0493	-	phosphomannose isomerase
2360	 49.70	0	2625478..2626479	-	333	16331526	-	sll0456	-	hypothetical protein
2361	 53.07	0	2626573..2627874	-	433	16331527	thrA	sll0455	-	homoserine dehydrogenase
2362	 46.83	0	2628002..2628742	+	246	16331528	-	slr0495	-	lipopeptide antibiotics iturin a biosynthesis protein
48.22	MEAN

4.98	STD DEV
