IslandPathversion 1.0

IslandPath Analysis: Synechocystis sp. PCC 6803

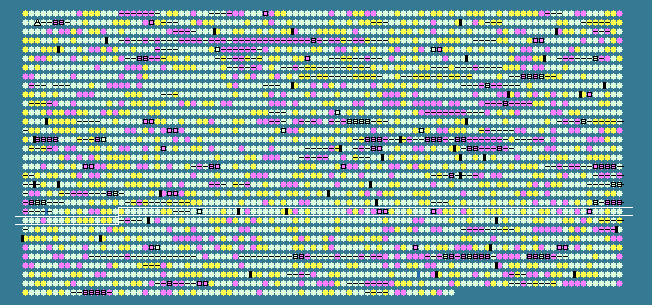

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2217	 53.04	0	2466407..2468872	-	821	16331384	clpC	sll0020	-	ATP-dependent Clp protease regulatory subunit
2218	 49.54	0	2469245..2470429	-	394	16331385	-	sll0019	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
2219	 51.57	0	2470591..2471670	-	359	16331386	cbbA	sll0018	-	fructose-1,6-bisphosphate aldolase
2220	 51.08	0	2471954..2473255	-	433	161344754	hemL	sll0017	-	glutamate-1-semialdehyde aminotransferase
2221	 49.91	0	2473645..2474796	-	383	16331388	mltA	sll0016	-	membrane-bound lytic transglycosylase A
2222	 48.17	0	2475195..2475848	+	217	16331389	-	slr0006	-	hypothetical protein
2223	 50.79	0	2476020..2476781	+	253	16331390	-	slr0007	-	hypothetical protein
2224	 52.80	0	2476853..2478136	+	427	16331391	ctpA	slr0008	-	carboxyl-terminal processing protease
2225	 53.08	0	2478414..2479826	+	470	16331392	rbcL	slr0009	-	ribulose bisophosphate carboxylase
2226	 47.96	0	2480028..2480444	+	138	16331393	rbcX	slr0011	-	unknown function
2227	 47.66	0	2480477..2480818	+	113	16331394	rbcS	slr0012	-	ribulose bisphosphate carboxylase small subunit
2228	 50.19	0	2481361..2481888	+	175	16331395	-	slr0013	-	hypothetical protein
2229	 49.08	0	2481984..2482688	+	234	16331396	mgtC	slr0014	-	Mg2+ transport ATPase
2230	 45.80	0	2482743..2483528	-	261	16331397	-	sll0012	-	transposase
2231	 49.37	0	2483643..2484827	+	394	16331398	lpxB	slr0015	-	lipid-A-disaccharide synthase
2232	 48.98	0	2484890..2485183	-	97	16331399	petF	ssl0020	-	ferredoxin
2233	 50.46	0	2485646..2486194	+	182	16331400	-	slr0016	-	hypothetical protein
2234	 54.59	+1	2486607..2487923	+	438	16331401	murZ	slr0017	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
2235	 50.11	0	2488028..2489428	+	466	16331402	fumC	slr0018	-	fumarate hydratase
2236	 45.67	0	2489484..2489864	-	126	16331403	-	sll0010	-	hypothetical protein
2237	 49.31	0	2490326..2493004	+	892	16331404	-	slr0019	-	hypothetical protein
2238	 37.25	-2	2493033..2493542	-	169	16331405	-	sll0008	-	hypothetical protein
2239	 47.22	0	2493578..2494153	-	191	16331406	-	sll0007	-	hypothetical protein
2240	 50.04	0	2494205..2495389	-	394	16331407	aspC	sll0006	-	aspartate aminotransferase
2241	 47.75	0	2495493..2497538	-	681	16331408	-	sll0005	-	ABC1-like
2242	 44.83	0	2497726..2500221	+	831	16331409	recG	slr0020	-	DNA recombinase
2243	 49.04	0	2500322..2501155	+	277	16331410	sppA	slr0021	-	protease IV
2244	 54.06	+1	2501221..2503878	-	885	16331411	ponA	sll0002	-	penicillin-binding protein 1A
2245	 51.81	0	2504415..2506043	+	542	16331412	guaA	slr0213	-	bifunctional GMP synthase/glutamine amidotransferase protein
2246	 43.37	0	2506131..2507405	+	424	16331413	-	slr0214	-	cytosine-specific methyltransferase
2247	 47.91	0	2507382..2508362	-	326	16331414	uppP	sll0210	-	undecaprenyl pyrophosphate phosphatase
2248	 52.51	0	2508477..2509034	+	185	16331415	cobU	slr0216	-	adenosylcobinamide kinase/adenosylcobinamide-phosphate guanylyltransferase
2249	 50.12	0	2509162..2509584	+	140	16331416	-	slr0217	-	hypothetical protein
2250	 50.00	0	2509823..2510014	+	63	16331417	-	ssr0349	-	hypothetical protein
2251	 47.21	0	2510273..2511295	-	340	16331418	-	sll0209	-	hypothetical protein
2252	 49.43	0	2511514..2512209	-	231	16331419	-	sll0208	-	hypothetical protein
2253	 49.49	0	2512467..2513648	-	393	16331420	rfbA	sll0207	-	glucose-1-phosphate thymidylyltransferase
2254	 50.99	0	2513806..2515974	+	722	16331421	glyS	slr0220	-	glycyl-tRNA synthetase subunit beta
2255	 36.77	-2	2516150..2516527	-	125	16331422	-	sll0205	-	hypothetical protein
2256	 52.15	0	2516814..2518184	-	456	16331423	gidA	sll0204	-	tRNA (uracil-5-)-methyltransferase Gid
2257	 39.33	-1	2518321..2521857	+	1178	16331424	-	slr0222	-	hybrid sensory kinase
2258	 49.06	0	2521830..2523737	-	635	16331425	gidA	sll0202	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
2259	 36.21	-2	2523867..2524562	+	231	16331426	-	slr0224	-	hypothetical protein
2260	 36.77	-2	2524573..2525067	-	164	16331427	-	sll0201	-	transposase
2261	 36.39	-2	2525061..2525420	-	119	16331428	-	sll0200	-	transposase
2262	 51.97	0	2525827..2526207	-	126	16331429	petE	sll0199	-	plastocyanin
2263	 46.38	0	2526633..2528081	+	482	16331430	-	slr0226	-	hypothetical protein
2264	 48.09	0	2528160..2528735	-	191	16331431	-	sll0198	-	hypothetical protein
2265	 52.34	0	2529009..2530892	+	627	16331432	ftsH	slr0228	-	cell division protein; FtsH
2266	 51.01	0	2530968..2531612	-	214	16331433	-	sll0195	-	ATP-dependent proteinase; BsgA
2267	 50.85	0	2531666..2532430	-	254	16331434	ycf43	sll0194	-	hypothetical protein
2268	 46.96	0	2532823..2533695	+	290	16331435	mmsB	slr0229	-	3-hydroxyisobutyrate dehydrogenase
2269	 36.63	-2	2534106..2534954	+	282	16331436	-	slr0230	-	transposase
2270	 42.48	-1	2534997..2535455	+	152	16331437	-	slr0231	-	hypothetical protein
2271	 51.97	0	2535487..2536758	-	423	16331438	-	sll0192	-	hypothetical protein
2272	 52.97	0	2536824..2537480	+	218	16331439	-	slr0232	-	hypothetical protein
2273	 50.94	0	2537521..2537838	+	105	16331440	trxM	slr0233	-	thioredoxin M
2274	 37.61	-2	2537896..2538807	-	303	16331441	-	sll0191	-	hypothetical protein
2275	 52.20	0	2539000..2540658	-	552	16331442	groEL-2	sll0416	-	60kD chaperonin 2
2276	 48.83	0	2540821..2541885	-	354	16331443	-	sll0415	-	ABC transporter
2277	 45.88	0	2541864..2542724	-	286	16331444	-	sll0414	-	hypothetical protein
2278	 52.99	0	2542935..2543687	+	250	16331445	-	slr0431	-	hypothetical protein
2279	 57.82	+1	2543725..2544018	-	97	16331446	-	ssl0788	-	hypothetical protein
2280	 57.33	+1	2544024..2544323	-	99	16331447	-	ssl0787	-	hypothetical protein
2281	 51.12	0	2544374..2544997	-	207	16331448	-	sll0413	-	hypothetical protein
2282	 49.21	0	2545122..2546381	-	419	16331449	-	sll0412	-	hypothetical protein
2283	 51.70	0	2546527..2547027	-	166	16331450	-	sll0410	-	hypothetical protein
2284	 52.23	0	2547067..2548029	-	320	16331451	-	sll0409	-	O-succinylbenzoate synthase
2285	 50.37	0	2548133..2549341	-	402	16331452	-	sll0408	-	hypothetical protein
2286	 50.71	0	2549388..2549951	+	187	16331453	efp	slr0434	-	elongation factor P
2287	 54.19	+1	2550059..2550523	+	154	16331454	accB	slr0435	-	biotin carboxyl carrier protein of acetyl-CoA carboxylase
2288	 52.80	0	2550753..2551646	+	297	16331455	ccmK	slr0436	-	carbon dioxide concentrating mechanism protein; CcmK
2289	 45.27	0	2551682..2552167	-	161	16331456	-	sll0406	-	hypothetical protein
2290	 43.77	0	2552177..2552962	-	261	16331457	-	sll0405	-	hypothetical protein
2291	 48.88	0	2553961..2555439	-	492	16331458	glcD	sll0404	-	glycolate oxidase subunit; GlcD
2292	 47.53	0	2555593..2555916	+	107	16331459	-	slr0438	-	hypothetical protein
2293	 31.68	-2	2556081..2556503	-	140	16331460	-	sll0403	-	hypothetical protein
2294	 48.87	0	2556814..2558319	+	501	16331461	-	slr0439	-	hypothetical protein
2295	 39.49	-1	2558423..2558617	-	64	16331462	-	ssl0769	-	transposase
2296	 51.11	0	2558820..2559989	-	389	16331463	aspC	sll0402	-	aspartate aminotransferase
2297	 50.42	0	2560112..2561305	-	397	16331464	gltA	sll0401	-	methylcitrate synthase
2298	 51.92	0	2561499..2561993	-	164	16331465	-	sll0400	-	hypothetical protein
2299	 44.90	0	2562056..2562859	+	267	16331466	-	slr0440	-	hypothetical protein
2300	 50.63	0	2562953..2564149	+	398	16331467	-	slr0049	-	hypothetical protein
2301	 49.07	0	2564175..2564390	+	71	16331468	ycf40	ssr0102	-	hypothetical protein
2302	 51.07	0	2564465..2565445	+	326	16331469	-	slr0050	-	ribonuclease Z
2303	 48.98	0	2565427..2566110	-	227	16331470	-	sll0072	-	hypothetical protein
2304	 40.02	-1	2566142..2567143	-	333	16331471	-	sll0071	-	hypothetical protein
2305	 45.85	0	2567237..2568091	-	284	16331472	purU	sll0070	-	formyltetrahydrofolate deformylase
2306	 48.23	0	2568182..2568973	+	263	16331473	icfA	slr0051	-	carbonic anhydrase
2307	 48.90	0	2568975..2569745	-	256	16331474	-	sll0069	-	hypothetical protein
2308	 52.31	0	2569772..2573491	-	1239	16331475	-	sll0068	-	hypothetical protein
2309	 49.55	0	2573649..2574203	-	184	16331476	gst	sll0067	-	glutathione S-transferase
2310	 52.85	0	2574297..2575244	-	315	16331477	-	sll0066	-	hypothetical protein
2311	 53.09	0	2575344..2575910	-	188	16331478	ilvH	sll0065	-	acetolactate synthase 3 regulatory subunit
2312	 54.50	+1	2576092..2576280	+	62	16331479	-	ssr0109	-	hypothetical protein
2313	 50.56	0	2576285..2576824	+	179	16331480	-	slr0053	-	putative metalloprotease
2314	 53.03	0	2576889..2577416	+	175	16331481	dgkA	slr0054	-	diacylglycerol kinase
2315	 54.47	+1	2577552..2578043	+	163	16331482	trpG	slr0055	-	anthranilate synthase component II
2316	 51.18	0	2578187..2579161	+	324	16331483	chlG	slr0056	-	bacteriochlorophyll/chlorophyll a synthase
48.22	MEAN

4.98	STD DEV
