IslandPath Analysis: Synechocystis sp. PCC 6803

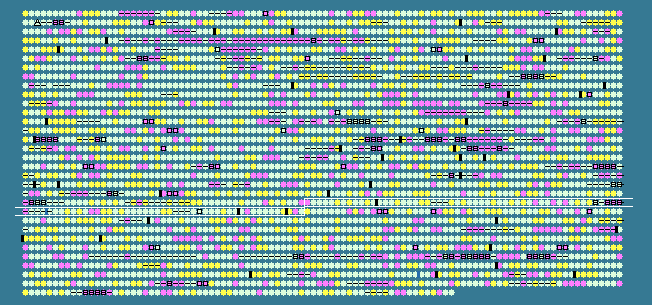

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2148	 39.58	-1	2394536..2394871	+	111	16331315	-	slr0771	-	hypothetical protein
2149	 50.10	0	2395103..2396629	+	508	16331316	chlB	slr0772	-	light-independent protochlorophyllide reductase subunit B
2150	 50.07	0	2396761..2397441	+	226	16331317	-	slr0773	-	hypothetical protein
2151	 50.09	0	2397478..2399118	-	546	16331318	-	sll0772	-	hypothetical protein
2152	 51.17	0	2399210..2400616	-	468	16331319	glcP	sll0771	-	glucose transport protein
2153	 53.49	+1	2400914..2402332	+	472	16331320	secD	slr0774	-	preprotein translocase subunit SecD
2154	 47.78	0	2402393..2403340	+	315	16331321	secF	slr0775	-	preprotein translocase subunit SecF
2155	 53.91	+1	2403473..2404507	+	344	16331322	lpxD	slr0776	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
2156	 50.85	0	2404615..2404968	-	117	16331323	rplT	sll0767	-	50S ribosomal protein L20
2157	 45.10	0	2405109..2405312	-	67	16331324	rpmI	ssl1426	-	50S ribosomal protein L35
2158	 52.73	0	2405409..2406140	-	243	16331325	radC	sll0766	-	DNA repair protein RadC
2159	 49.82	0	2406130..2406966	-	278	16331326	-	sll0765	-	hypothetical protein
2160	 49.29	0	2407565..2408686	-	373	16331327	livG	sll0764	-	high-affinity branched-chain amino acid transport ATP-binding protein
2161	 50.83	0	2408869..2409228	-	119	16331328	-	sll0763	-	hypothetical protein
2162	 51.00	0	2409194..2409544	-	116	16331329	-	sll0762	-	hypothetical protein
2163	 53.33	+1	2409572..2409931	-	119	16331330	-	sll0761	-	hypothetical protein
2164	 48.70	0	2410030..2410914	-	294	16331331	ycf38	sll0760	-	Ycf38
2165	 50.00	0	2411067..2412110	-	347	16331332	-	sll0759	-	ABC transporter
2166	 50.08	0	2412178..2412798	+	206	16331333	-	slr0779	-	hypothetical protein
2167	 51.88	0	2412826..2414313	-	495	16331334	purF	sll0757	-	amidophosphoribosyltransferase
2168	 52.08	0	2414584..2414679	+	31	16331335	psbT	smr0001	-	photosystem II reaction center protein T
2169	 47.94	0	2414833..2415318	+	161	16331336	-	slr0780	-	transcriptional regulator NrdR
2170	 46.47	0	2415410..2416018	-	202	16331337	-	sll0756	-	hypothetical protein
2171	 50.41	0	2416091..2416693	-	200	16331338	-	sll0755	-	thiol-specific antioxidant protein
2172	 54.23	+1	2416806..2417207	-	133	16331339	rbfA	sll0754	-	ribosome-binding factor A
2173	 48.26	0	2417266..2417466	-	66	16331340	ycf33	ssl1417	-	ycf33 gene product
2174	 52.88	0	2417577..2418461	-	294	16331341	folD	sll0753	-	methylenetetrahydrofolate dehydrogenase /methenyltetrahydrofolate cyclohydrolase
2175	 48.38	0	2418535..2419398	-	287	16331342	-	sll0752	-	hypothetical protein
2176	 49.41	0	2419385..2419894	-	169	16331343	ycf22	sll0751	-	hypothetical protein
2177	 49.72	0	2420030..2421445	+	471	16331344	-	slr0782	-	amine oxidase
2178	 46.35	0	2421536..2422687	-	383	16331345	sarA	sll0750	-	adaptive-response sensory kinase
2179	 52.00	0	2422833..2423432	-	199	16331346	-	sll0749	-	hypothetical protein
2180	 50.89	0	2423621..2424349	+	242	16331347	tpiA	slr0783	-	triosephosphate isomerase
2181	 47.21	0	2424368..2425390	+	340	16331348	-	slr0784	-	hypothetical protein
2182	 52.35	0	2425387..2426343	+	318	16331349	-	slr0341	-	hypothetical protein
2183	 50.97	0	2426297..2427787	-	496	16331350	-	sll0325	-	hypothetical protein
2184	 51.72	0	2428010..2428678	+	222	16331351	petB	slr0342	-	cytochrome b6
2185	 49.69	0	2428809..2429291	+	160	16331352	petD	slr0343	-	cytochrome b6-f complex subunit IV
2186	 38.19	-2	2429543..2430964	+	473	16331353	rfbW	slr0344	-	mannosyl transferase
2187	 50.49	0	2431092..2431499	+	135	16331354	-	slr0345	-	hypothetical protein
2188	 48.84	0	2431704..2432438	+	244	16331355	rnc	slr0346	-	ribonuclease III
2189	 42.40	-1	2432459..2434762	-	767	16331356	hypF	sll0322	-	transcriptional regulatory protein; HypF
2190	 47.09	0	2434808..2436304	-	498	16331357	-	sll0321	-	hypothetical protein
2191	 44.27	0	2436443..2437228	+	261	16331358	-	slr0347	-	hypothetical protein
2192	 48.17	0	2437235..2437888	-	217	16331359	rnd	sll0320	-	ribonuclease D
2193	 53.69	+1	2437922..2438815	-	297	16331360	-	sll0319	-	hypothetical protein
2194	 47.91	0	2439092..2440312	+	406	16331361	-	slr0348	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
2195	 52.58	0	2440295..2440933	-	212	16331362	-	sll0318	-	hypothetical protein
2196	 45.93	0	2441098..2441883	+	261	16331363	-	slr0350	-	transposase
2197	 50.44	0	2442058..2443308	+	416	16331364	-	slr0351	-	hypothetical protein
2198	 30.83	-2	2443461..2443859	-	132	16331365	-	sll0317	-	transposase
2199	 36.63	-2	2443999..2444847	+	282	16331366	-	slr0352	-	transposase
2200	 35.53	-2	2444743..2445426	-	227	16331367	-	sll0315	-	transposase
2201	 39.34	-1	2445550..2445915	+	121	16331368	-	slr0353	-	hypothetical protein
2202	 46.56	0	2446395..2447339	-	314	16331369	-	sll0314	-	hypothetical protein
2203	 50.39	0	2447491..2448123	+	210	16331370	-	slr0354	-	ABC transporter
2204	 46.45	0	2448222..2448404	-	60	16331371	rps21	ssl0601	-	30S ribosomal protein S21
2205	 51.51	0	2454087..2455082	+	331	16331372	-	slr0355	-	hypothetical protein
2206	 50.08	0	2455121..2455711	+	196	16331373	-	slr0356	-	hypothetical protein
2207	 48.22	0	2455755..2456768	-	337	16331374	-	sll0312	-	OppB in a binding protein-dependent transport system
2208	 51.71	0	2456935..2458278	+	447	16331375	hisS	slr0357	-	histidyl-tRNA synthetase
2209	 48.80	0	2458253..2459377	+	374	16331376	-	slr0358	-	hypothetical protein
2210	 52.70	0	2459374..2460282	-	302	16331377	-	sll0310	-	hypothetical protein
2211	 49.36	0	2460360..2461058	-	232	16331378	-	sll0309	-	hypothetical protein
2212	 37.35	-2	2461358..2462179	-	273	16331379	-	sll0024	-	hypothetical protein
2213	 43.82	0	2462212..2463555	-	447	16331380	-	sll0023	-	hypothetical protein
2214	 52.00	0	2463555..2464304	-	249	16331381	-	sll0022	-	hypothetical protein
2215	 52.38	0	2464527..2465009	+	160	16331382	-	slr0001	-	hypothetical protein
2216	 49.88	0	2465076..2466326	-	416	16331383	-	sll0021	-	hypothetical protein
2217	 53.04	0	2466407..2468872	-	821	16331384	clpC	sll0020	-	ATP-dependent Clp protease regulatory subunit
2218	 49.54	0	2469245..2470429	-	394	16331385	-	sll0019	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
2219	 51.57	0	2470591..2471670	-	359	16331386	cbbA	sll0018	-	fructose-1,6-bisphosphate aldolase
2220	 51.08	0	2471954..2473255	-	433	161344754	hemL	sll0017	-	glutamate-1-semialdehyde aminotransferase
2221	 49.91	0	2473645..2474796	-	383	16331388	mltA	sll0016	-	membrane-bound lytic transglycosylase A
2222	 48.17	0	2475195..2475848	+	217	16331389	-	slr0006	-	hypothetical protein
2223	 50.79	0	2476020..2476781	+	253	16331390	-	slr0007	-	hypothetical protein
2224	 52.80	0	2476853..2478136	+	427	16331391	ctpA	slr0008	-	carboxyl-terminal processing protease
2225	 53.08	0	2478414..2479826	+	470	16331392	rbcL	slr0009	-	ribulose bisophosphate carboxylase
2226	 47.96	0	2480028..2480444	+	138	16331393	rbcX	slr0011	-	unknown function
2227	 47.66	0	2480477..2480818	+	113	16331394	rbcS	slr0012	-	ribulose bisphosphate carboxylase small subunit
2228	 50.19	0	2481361..2481888	+	175	16331395	-	slr0013	-	hypothetical protein
2229	 49.08	0	2481984..2482688	+	234	16331396	mgtC	slr0014	-	Mg2+ transport ATPase
2230	 45.80	0	2482743..2483528	-	261	16331397	-	sll0012	-	transposase
2231	 49.37	0	2483643..2484827	+	394	16331398	lpxB	slr0015	-	lipid-A-disaccharide synthase
2232	 48.98	0	2484890..2485183	-	97	16331399	petF	ssl0020	-	ferredoxin
2233	 50.46	0	2485646..2486194	+	182	16331400	-	slr0016	-	hypothetical protein
2234	 54.59	+1	2486607..2487923	+	438	16331401	murZ	slr0017	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
2235	 50.11	0	2488028..2489428	+	466	16331402	fumC	slr0018	-	fumarate hydratase
2236	 45.67	0	2489484..2489864	-	126	16331403	-	sll0010	-	hypothetical protein
2237	 49.31	0	2490326..2493004	+	892	16331404	-	slr0019	-	hypothetical protein
2238	 37.25	-2	2493033..2493542	-	169	16331405	-	sll0008	-	hypothetical protein
2239	 47.22	0	2493578..2494153	-	191	16331406	-	sll0007	-	hypothetical protein
2240	 50.04	0	2494205..2495389	-	394	16331407	aspC	sll0006	-	aspartate aminotransferase
2241	 47.75	0	2495493..2497538	-	681	16331408	-	sll0005	-	ABC1-like
2242	 44.83	0	2497726..2500221	+	831	16331409	recG	slr0020	-	DNA recombinase
2243	 49.04	0	2500322..2501155	+	277	16331410	sppA	slr0021	-	protease IV
2244	 54.06	+1	2501221..2503878	-	885	16331411	ponA	sll0002	-	penicillin-binding protein 1A
2245	 51.81	0	2504415..2506043	+	542	16331412	guaA	slr0213	-	bifunctional GMP synthase/glutamine amidotransferase protein
2246	 43.37	0	2506131..2507405	+	424	16331413	-	slr0214	-	cytosine-specific methyltransferase
2247	 47.91	0	2507382..2508362	-	326	16331414	uppP	sll0210	-	undecaprenyl pyrophosphate phosphatase
48.22	MEAN

4.98	STD DEV
