IslandPathversion 1.0

IslandPath Analysis: Synechocystis sp. PCC 6803

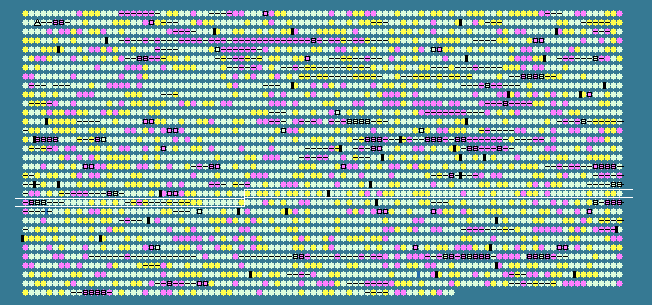

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2038	 53.10	0	2248578..2250176	+	532	16331205	yibO	slr1945	-	phosphoglyceromutase
2039	 47.86	0	2250241..2250474	+	77	16331206	secG	ssr3307	-	preprotein translocase subunit SecG
2040	 51.91	0	2250711..2251496	+	261	16331207	-	slr1946	-	hypothetical protein
2041	 52.61	0	2251657..2252958	-	433	16331208	odhB	sll1841	-	branched-chain alpha-keto acid dehydrogenase subunit E2
2042	 50.86	0	2253169..2253807	+	212	16331209	-	slr1949	-	hypothetical protein
2043	 53.35	+1	2254112..2256454	+	780	16331210	-	slr1950	-	cation-transporting ATPase; E1-E2 ATPase
2044	 48.95	0	2256697..2257170	+	157	16331211	-	slr1951	-	hypothetical protein
2045	 53.28	+1	2257203..2257964	+	253	16331212	-	slr0989	-	hypothetical protein
2046	 52.56	0	2258074..2259243	+	389	16331213	-	slr0990	-	hypothetical protein
2047	 49.78	0	2259402..2259863	+	153	16331214	-	slr0992	-	hypothetical protein
2048	 55.54	+1	2260429..2262576	+	715	16331215	nlpD	slr0993	-	lipoprotein; NlpD
2049	 45.49	0	2262805..2263380	-	191	16331216	lrtA	sll0947	-	light repressed protein
2050	 52.49	0	2263827..2264510	+	227	16331217	lipB	slr0994	-	lipoyltransferase
2051	 48.80	0	2264491..2264781	-	96	16331218	-	ssl1807	-	hypothetical protein
2052	 51.19	0	2265213..2266646	-	477	16331219	glgA	sll0945	-	glycogen synthase
2053	 45.05	0	2266850..2267344	-	164	16331220	-	sll0944	-	hypothetical protein
2054	 48.81	0	2267490..2269085	+	531	16331221	-	slr0320	-	hypothetical protein
2055	 52.12	0	2269126..2270163	-	345	16331222	rpoD	sll0306	-	RNA polymerase sigma factor
2056	 50.00	0	2270624..2271571	+	315	16331223	era	slr0321	-	GTP-binding protein Era
2057	 51.73	0	2271581..2274868	+	1095	16331224	-	slr0322	-	CheA like protein
2058	 39.98	-1	2274868..2277996	+	1042	16331225	ams1	slr0323	-	alpha-mannosidase
2059	 45.65	0	2277989..2278873	+	294	16331226	-	slr0324	-	OppC in a binding protein-dependent transport system
2060	 43.00	-1	2278921..2279406	+	161	16331227	-	slr0325	-	hypothetical protein
2061	 53.14	0	2279497..2280006	-	169	16331228	-	sll0301	-	hypothetical protein
2062	 52.86	0	2280267..2280947	-	226	16331229	ribC	sll0300	-	riboflavin synthase subunit alpha
2063	 45.72	0	2280998..2281441	+	147	16331230	-	slr0326	-	hypothetical protein
2064	 51.31	0	2281509..2283182	+	557	16331231	hitB	slr0327	-	iron utilization protein
2065	 45.78	0	2283232..2283705	+	157	16331232	-	slr0328	-	low molecular weight phosphotyrosine protein phosphatase
2066	 53.86	+1	2283794..2284777	+	327	16331233	xylR	slr0329	-	xylose repressor
2067	 52.29	0	2284791..2285423	-	210	16331234	-	sll0298	-	hypothetical protein
2068	 52.55	0	2285410..2285997	-	195	16331235	-	sll0297	-	hypothetical protein
2069	 46.52	0	2286186..2286746	-	186	16331236	-	sll0296	-	hypothetical protein
2070	 49.26	0	2286798..2287067	-	89	16331237	-	ssl0564	-	response regulator like protein
2071	 49.59	0	2287334..2287579	-	81	16331238	psaC	ssl0563	-	photosystem I subunit VII
2072	 50.06	0	2287948..2289525	+	525	16331239	ndhD	slr0331	-	NAD(P)H-quinone oxidoreductase subunit 4
2073	 45.17	0	2289704..2290024	+	106	16331240	-	slr0333	-	hypothetical protein
2074	 42.34	-1	2290089..2290421	+	110	16331241	-	slr0334	-	hypothetical protein
2075	 47.06	0	2290705..2290959	+	84	16331242	-	ssr0536	-	hypothetical protein
2076	 46.59	0	2291091..2291897	-	268	16331243	-	sll0295	-	hypothetical protein
2077	 51.95	0	2292188..2294878	+	896	16331244	apcE	slr0335	-	phycobilisome LCM core-membrane linker polypeptide
2078	 50.68	0	2295152..2297341	+	729	16331245	-	slr0337	-	hypothetical protein
2079	 52.78	0	2297368..2298570	-	400	16331246	-	sll0294	-	hypothetical protein
2080	 49.51	0	2298606..2299118	-	170	16331247	-	sll0293	-	hypothetical protein
2081	 50.32	0	2299347..2300441	+	364	16331248	-	slr0338	-	hypothetical protein
2082	 49.84	0	2300515..2302446	+	643	16331249	-	slr0168	-	hypothetical protein
2083	 52.96	0	2302638..2303279	+	213	16331250	-	slr0169	-	hypothetical protein
2084	 39.02	-1	2303507..2304034	+	175	16331251	ycf37	slr0171	-	ycf37 gene product
2085	 51.71	0	2304094..2304561	+	155	16331252	guaB	slr0172	-	IMP dehydrogenase
2086	 52.60	0	2304558..2305886	-	442	16331253	-	sll0177	-	hypothetical protein
2087	 49.60	0	2305907..2306410	-	167	16331254	-	sll0176	-	hypothetical protein
2088	 44.28	0	2306600..2306800	-	66	16331255	-	ssl0312	-	hypothetical protein
2089	 47.44	0	2306850..2308472	-	540	16331256	-	sll0175	-	putative; ORF1
2090	 47.60	0	2308517..2309371	-	284	16331257	-	sll0174	-	hypothetical protein
2091	 47.69	0	2309413..2310471	-	352	16331258	-	sll0173	-	virginiamycin B hydrolase; Vgb
2092	 47.71	0	2310533..2310991	-	152	16331259	-	sll0172	-	hypothetical protein
2093	 46.65	0	2311377..2312495	-	372	16331260	gcvT	sll0171	-	glycine cleavage system aminomethyltransferase T
2094	 51.39	0	2312664..2314574	-	636	16331261	dnaK	sll0170	-	molecular chaperone DnaK
2095	 51.75	0	2314780..2316924	-	714	16331262	-	sll0169	-	hypothetical protein
2096	 51.49	0	2317112..2317447	-	111	16331263	-	sll0168	-	hypothetical protein
2097	 50.10	0	2317536..2318030	-	164	16331264	-	sll0167	-	hypothetical protein
2098	 52.63	0	2318011..2319627	-	538	16331265	hemD	sll0166	-	uroporphyrin-III synthase
2099	 52.74	0	2319555..2324636	-	1693	16331266	-	sll0163	-	beta transducin-like protein
2100	 50.26	0	2325045..2325629	-	194	16331267	-	sll0162	-	hypothetical protein
2101	 36.96	-2	2325864..2326937	+	357	16331268	-	slr0179	-	hypothetical protein
2102	 32.25	-2	2327013..2328029	+	338	16331269	-	slr0180	-	transposase
2103	 47.85	0	2328393..2328695	-	100	16331270	-	sll0161	-	transposase
2104	 46.27	0	2328616..2328870	-	84	16331271	-	ssl0296	-	transposase
2105	 49.51	0	2329304..2330119	+	271	161344755	recO	slr0181	-	DNA repair protein RecO
2106	 47.42	0	2330147..2330359	-	70	16331273	-	ssl0294	-	hypothetical protein
2107	 51.56	0	2330788..2331462	-	224	16331274	-	sll0160	-	hypothetical protein
2108	 48.38	0	2331505..2333817	-	770	16331275	glgB	sll0158	-	glycogen branching enzyme
2109	 51.36	0	2334042..2334812	-	256	16331276	-	sll0157	-	hypothetical protein
2110	 51.20	0	2334877..2335503	-	208	16331277	-	sll0156	-	hypothetical protein
2111	 46.38	0	2335706..2336326	+	206	16331278	-	slr0184	-	hypothetical protein
2112	 52.26	0	2336427..2337023	+	198	16331279	pyrE	slr0185	-	orotate phosphoribosyltransferase
2113	 51.69	0	2337062..2338450	-	462	16331280	-	sll0154	-	hypothetical protein
2114	 51.81	0	2338636..2340237	+	533	16331281	leuA	slr0186	-	2-isopropylmalate synthase
2115	 49.18	0	2340322..2344056	+	1244	16331282	-	slr0359	-	hypothetical protein
2116	 52.05	0	2344152..2345759	+	535	16331283	-	slr0360	-	hypothetical protein
2117	 50.80	0	2345797..2346546	+	249	16331284	-	slr0361	-	hypothetical protein
2118	 50.63	0	2346573..2347127	+	184	16331285	-	slr0362	-	hypothetical protein
2119	 52.32	0	2347500..2349911	-	803	16331286	-	sll0350	-	hypothetical protein
2120	 41.88	-1	2350140..2350256	-	38	16331287	psbI	sml0001	-	photosystem II reaction center I protein I
2121	 54.25	+1	2350372..2350983	+	203	16331288	-	slr0363	-	hypothetical protein
2122	 49.71	0	2351323..2360412	+	3029	16331289	-	slr0364	-	hypothetical protein
2123	 51.48	0	2360457..2365685	+	1742	16331290	-	slr0366	-	hypothetical protein
2124	 49.91	0	2365930..2369181	+	1083	16331291	-	slr0369	-	cation or drug efflux system protein
2125	 52.38	0	2369282..2370646	+	454	16331292	gabD	slr0370	-	succinate-semialdehyde dehydrogenase (NADP+)
2126	 48.57	0	2370818..2372110	-	430	16331293	sphS	sll0337	-	regulation of the phosphate regulon
2127	 51.99	0	2372249..2373229	-	326	16331294	accD	sll0336	-	acetyl-CoA carboxylase subunit beta
2128	 52.63	0	2373343..2374788	-	481	16331295	-	sll0335	-	hypothetical protein
2129	 52.23	0	2375068..2375448	+	126	16331296	-	slr0373	-	hypothetical protein
2130	 54.78	+1	2375539..2377044	+	501	16331297	-	slr0374	-	cell division cycle protein
2131	 48.15	0	2377177..2377527	+	116	16331298	-	slr0376	-	hypothetical protein
2132	 49.27	0	2377709..2378938	+	409	16331299	-	slr0377	-	hypothetical protein
2133	 50.97	0	2378981..2381095	+	704	16331300	-	slr0378	-	7-beta-(4-carbaxybutanamido)cephalosporanic acid acylase
2134	 50.77	0	2381041..2381751	+	236	16331301	-	slr0379	-	hypothetical protein
2135	 49.71	0	2381748..2383127	+	459	16331302	-	slr0380	-	hypothetical protein
2136	 46.46	0	2383241..2383636	+	131	16331303	-	slr0381	-	hypothetical protein
2137	 53.72	+1	2383949..2384728	-	259	16331304	fabG	sll0330	-	3-ketoacyl-acyl carrier protein reductase
48.22	MEAN

4.98	STD DEV
