IslandPath Analysis: Synechocystis sp. PCC 6803

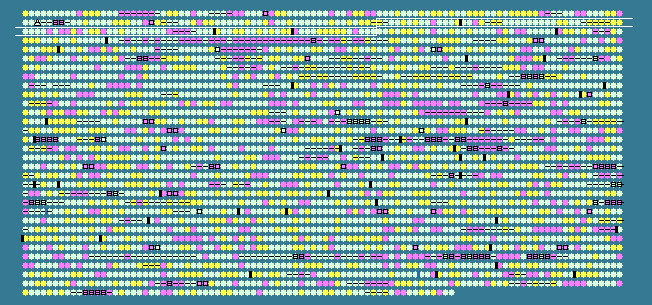

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
160	 52.08	0	175708..176139	-	143	16329330	atpG	sll1323	-	F0F1 ATP synthase subunit B'
161	 50.81	0	176256..176501	-	81	16329331	atpH	ssl2615	-	F0F1 ATP synthase subunit C
162	 49.58	0	176693..177523	-	276	16329332	atpI	sll1322	-	F0F1 ATP synthase subunit A
163	 48.99	0	177592..178038	-	148	16329333	atp1	sll1321	-	hypothetical protein
164	 53.25	+1	178237..179682	+	481	16329334	-	slr1413	-	hypothetical protein
165	 47.34	0	179734..181047	+	437	16329335	-	slr1414	-	sensory transduction histidine kinase
166	 52.31	0	181073..182221	+	382	16329336	-	slr1415	-	hypothetical protein
167	 51.53	0	182354..183298	+	314	16329337	morR	slr1416	-	MorR protein
168	 47.62	0	183493..183849	+	118	16329338	-	slr1417	-	hypothetical protein
169	 42.93	-1	183935..184924	-	329	16329339	-	sll1319	-	hypothetical protein
170	 50.37	0	184968..185636	-	222	16329340	-	sll1318	-	hypothetical protein
171	 49.17	0	185772..186554	-	260	16329341	-	sll1041	-	ABC transporter
172	 48.69	0	186601..188898	-	765	16329342	-	sll1040	-	hypothetical protein
173	 54.59	+1	189128..189715	+	195	16329343	folK	slr1093	-	7,8-dihydro-6-hydroxymethylpterin-pyrophosphokin ase
174	 49.49	0	190033..190818	+	261	16329344	-	slr1094	-	hypothetical protein
175	 49.30	0	190815..191954	-	379	16329345	-	sll1039	-	hypothetical protein
176	 43.98	0	192136..192783	+	215	16329346	-	slr1095	-	hypothetical protein
177	 52.47	0	192870..194306	+	478	16329347	phdD	slr1096	-	dihydrolipoamide dehydrogenase
178	 50.20	0	194310..194801	+	163	16329348	-	slr1097	-	hypothetical protein
179	 54.68	+1	194859..195617	+	252	16329349	-	slr1098	-	hypothetical protein
180	 55.56	+1	195685..196305	+	206	16329350	ubiX	slr1099	-	aromatic acid decarboxylase
181	 45.67	0	196611..196991	+	126	16329351	-	slr1100	-	hypothetical protein
182	 51.68	0	197231..197557	+	108	16329352	-	slr1101	-	hypothetical protein
183	 49.88	0	197624..200185	+	853	16329353	-	slr1102	-	hypothetical protein
184	 46.68	0	200405..202525	+	706	16329354	-	slr1103	-	hypothetical protein
185	 46.47	0	202554..204395	+	613	16329355	-	slr1104	-	hypothetical protein
186	 51.39	0	204604..206397	+	597	16329356	fus	slr1105	-	elongation factor EF-G
187	 48.44	0	206863..208338	-	491	16329357	-	sll1037	-	hypothetical protein
188	 49.60	0	208549..209427	-	292	16329358	-	sll1036	-	hypothetical protein
189	 46.67	0	209527..209826	-	99	16329359	-	ssl2009	-	hypothetical protein
190	 52.38	0	209896..210546	-	216	16329360	upp	sll1035	-	uracil phosphoribosyltransferase
191	 52.89	0	210781..211629	+	282	16329361	phb	slr1106	-	prohibitin
192	 48.61	0	211734..213068	+	444	16329362	-	slr1107	-	hypothetical protein
193	 49.93	0	213031..215037	-	668	16329363	-	sll1033	-	hypothetical protein
194	 50.69	0	215504..216229	-	241	16329364	ccmN	sll1032	-	hypothetical protein
195	 54.60	+1	216264..218327	-	687	16329365	ccmM	sll1031	-	carbon dioxide concentrating mechanism protein; CcmM
196	 54.46	+1	218407..218709	-	100	16329366	ccmL	sll1030	-	carbon dioxide concentrating mechanism protein; CcmL
197	 54.76	+1	218742..219077	-	111	16329367	ccmK	sll1028	-	carbon dioxide concentrating mechanism protein; CcmK
198	 52.56	0	219206..219517	-	103	16329368	ccmK	sll1029	-	carbon dioxide concentrating mechanism protein; CcmK
199	 53.74	+1	219979..221463	-	494	16329369	gltD	sll1027	-	NADH-glutamate synthase small subunit
200	 52.87	0	221742..223067	+	441	16329370	ank	slr1109	-	erythroid ankyrin
201	 50.95	0	223018..223596	+	192	16329371	-	slr1110	-	hypothetical protein
202	 48.24	0	223673..224806	+	377	16329372	-	slr1772	-	hypothetical protein
203	 48.19	0	224897..226363	-	488	16329373	-	sll1686	-	hypothetical protein
204	 47.95	0	226928..227098	+	56	16329374	-	ssr2972	-	hypothetical protein
205	 40.80	-1	227123..227899	+	258	16329375	-	slr1773	-	hypothetical protein
206	 50.92	0	227943..228812	+	289	16329376	-	slr1774	-	hypothetical protein
207	 44.15	0	228866..230566	+	566	16329377	-	slr1776	-	high affinity sulfate transporter
208	 37.14	-2	230658..231839	-	393	16329378	ycf10	sll1685	-	proton extrusion protein PcxA
209	 52.98	0	232008..234038	+	676	16329379	chlD	slr1777	-	Mg chelatase subunit; ChlD
210	 36.33	-2	234305..234838	+	177	16329380	-	slr1778	-	hypothetical protein
211	 46.49	0	234905..236356	-	483	16329381	cad	sll1683	-	lysine decarboxylase
212	 52.26	0	236356..237438	-	360	16329382	-	sll1682	-	alanine dehydrogenase
213	 54.82	+1	237600..238325	+	241	161344770	pdxJ	slr1779	-	pyridoxal phosphate biosynthetic protein PdxJ
214	 41.29	-1	238344..238745	+	133	16329384	-	slr1780	-	hypothetical protein
215	 49.21	0	238804..240327	-	507	16329385	-	sll1681	-	hypothetical protein
216	 46.70	0	240299..240829	-	176	16329386	-	sll1680	-	methionine sulfoxide reductase B
217	 55.53	+1	240863..242047	-	394	16329387	hhoA	sll1679	-	protease; HhoA
218	 50.41	0	242246..243094	+	282	16329388	-	slr1783	-	NarL subfamily protein
219	 46.61	0	243158..244144	+	328	16329389	bvdR	slr1784	-	biliverdin reductase
220	 46.45	0	244160..244708	-	182	16329390	-	sll1678	-	spore maturation protein A
221	 46.79	0	244783..245436	-	217	16329391	-	sll1677	-	spore maturation protein B
222	 51.52	0	245502..247019	-	505	16329392	malQ	sll1676	-	4-alpha-glucanotransferase
223	 50.55	0	247117..247569	-	150	16329393	-	sll1675	-	hypothetical protein
224	 50.96	0	247619..248713	+	364	16329394	-	slr1787	-	thiamine monophosphate kinase
225	 41.76	-1	249062..250117	+	351	16329395	-	slr1788	-	hypothetical protein
226	 41.23	-1	250160..251641	+	493	16329396	-	slr1789	-	hypothetical protein
227	 40.54	-1	251758..253116	-	452	16329397	-	sll1673	-	regulatory components of sensory transduction system
228	 38.56	-1	253125..255629	-	834	16329398	-	sll1672	-	hybrid sensory kinase
229	 49.07	0	255823..256305	-	160	16329399	-	sll1671	-	hypothetical protein
230	 47.08	0	256647..257279	+	210	16329400	-	slr1790	-	hypothetical protein
231	 49.87	0	257426..258175	+	249	16329401	cysH	slr1791	-	phosphoadenosine phosphosulfate reductase
232	 48.37	0	258227..259363	-	378	16329402	hrcA	sll1670	-	heat-inducible transcription repressor
233	 53.33	+1	259702..260271	-	189	16329403	aroK	sll1669	-	shikimate kinase
234	 50.00	0	260463..261638	+	391	16329404	talB	slr1793	-	transaldolase/EF-hand domain-containing protein
235	 46.97	0	261863..262060	+	65	16329405	-	ssr2998	-	hypothetical protein
236	 53.54	+1	262177..263265	+	362	16329406	-	slr1794	-	hypothetical protein
237	 52.87	0	263321..263965	+	214	16329407	msrA	slr1795	-	methionine sulfoxide reductase A
238	 46.18	0	264190..264477	+	95	16329408	-	ssr3000	-	hypothetical protein
239	 48.69	0	264516..265316	-	266	16329409	mom72	sll1667	-	mitochondrial outer membrane 72K protein
240	 53.14	0	265414..265938	-	174	16329410	dnaJ	sll1666	-	DnaJ protein
241	 47.03	0	265995..266600	+	201	16329411	-	slr1796	-	hypothetical protein
242	 51.86	0	266702..268471	-	589	16329412	-	sll1665	-	hypothetical protein
243	 49.09	0	268789..269727	-	312	16329413	-	sll1664	-	hypothetical protein
244	 53.54	+1	269773..270435	-	220	16329414	-	sll1663	-	hypothetical protein
245	 53.02	0	270476..271369	-	297	16329415	pheA	sll1662	-	prephenate dehydratase
246	 43.57	0	271600..273357	+	585	16329416	pleD	slr1798	-	PleD gene product
247	 50.26	0	273802..274386	-	194	16329417	-	sll1660	-	hypothetical protein
248	 50.64	0	274502..275680	-	392	16329418	-	sll1659	-	FO synthase subunit 2
249	 48.43	0	275807..276283	-	158	16329419	-	sll1658	-	hypothetical protein
250	 52.51	0	276429..278342	+	637	16329420	-	slr1799	-	hypothetical protein
251	 52.43	0	278494..279561	+	355	16329421	-	slr1800	-	hypothetical protein
252	 53.12	0	279512..280087	-	191	16329422	-	sll1656	-	hypothetical protein
253	 52.85	0	280127..280951	-	274	16329423	birA	sll1655	-	biotin [acetyl-CoA-carboxylase] ligase
254	 53.38	+1	280970..281443	-	157	16329424	-	sll1654	-	hypothetical protein
255	 51.19	0	281507..282223	-	238	16329425	ubiE	sll1653	-	ubiquinone/menaquinone biosynthesis methyltransferase
256	 41.61	-1	282290..282700	-	136	16329426	-	sll1652	-	hypothetical protein
257	 50.21	0	283060..284487	+	475	16329427	icd	slr1289	-	isocitrate dehydrogenase
258	 45.55	0	284508..285080	+	190	16329428	-	slr1290	-	hypothetical protein
259	 45.79	0	285144..285938	-	264	16329429	-	sll1201	-	hypothetical protein
48.22	MEAN

4.98	STD DEV
