IslandPathversion 1.0

IslandPath Analysis: Synechocystis sp. PCC 6803

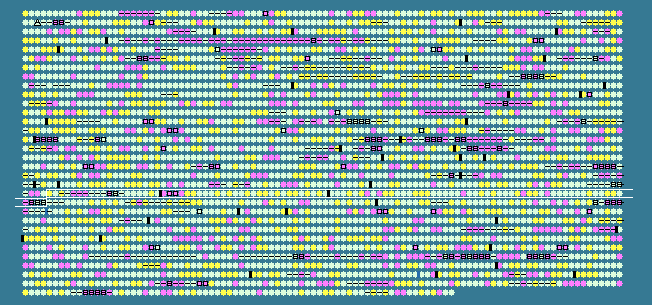

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2005	 52.78	0	2216476..2219175	-	899	16331172	-	sll1864	-	chloride channel protein
2006	 48.36	0	2219122..2219793	+	223	16331173	-	slr1926	-	hypothetical protein
2007	 51.76	0	2219741..2220961	+	406	16331174	-	slr1927	-	hypothetical protein
2008	 47.18	0	2221047..2221631	+	194	16331175	-	slr1928	-	hypothetical protein
2009	 43.48	0	2221648..2222199	+	183	16331176	-	slr1929	-	hypothetical protein
2010	 42.60	-1	2222316..2222876	+	186	16331177	-	slr1930	-	hypothetical protein
2011	 43.25	0	2222898..2223815	+	305	16331178	-	slr1931	-	hypothetical protein
2012	 48.42	0	2223873..2224568	+	231	16331179	-	slr1932	-	hypothetical protein
2013	 45.37	0	2224789..2225112	-	107	16331180	-	sll1863	-	hypothetical protein
2014	 45.83	0	2225278..2225709	-	143	16331181	-	sll1862	-	hypothetical protein
2015	 43.40	0	2225766..2226530	-	254	16331182	-	sll1861	-	transposase
2016	 45.80	0	2226619..2227404	-	261	16331183	-	sll1860	-	transposase
2017	 50.46	0	2227829..2228377	+	182	16331184	rfbC	slr1933	-	dTDP-4-dehydrorhamnose 3,5-epimerase
2018	 51.01	0	2228445..2230328	-	627	16331185	-	sll1858	-	hypothetical protein
2019	 51.51	0	2230487..2231515	+	342	16331186	-	slr1934	-	pyruvate dehydrogenase E1 component, alpha subunit
2020	 50.64	0	2231639..2233036	+	465	16331187	-	slr1935	-	hypothetical protein
2021	 49.03	0	2233037..2233864	-	275	16331188	xthA	sll1854	-	exodeoxyribonuclease III
2022	 52.47	0	2233809..2234273	-	154	16331189	-	sll1853	-	hypothetical protein
2023	 48.00	0	2234304..2234753	-	149	16331190	ndkR	sll1852	-	nucleoside diphosphate kinase
2024	 40.57	-1	2235072..2235458	-	128	16331191	-	sll1851	-	hypothetical protein
2025	 36.39	-2	2235561..2235920	+	119	16331192	-	slr1936	-	transposase
2026	 36.77	-2	2235914..2236408	+	164	16331193	-	slr1937	-	transposase
2027	 44.65	0	2236419..2237054	-	211	16331194	-	sll1849	-	hypothetical protein
2028	 51.99	0	2237134..2238189	+	351	16331195	mtnA	slr1938	-	methylthioribose-1-phosphate isomerase
2029	 55.60	+1	2238277..2238954	-	225	16331196	-	sll1848	-	hypothetical protein
2030	 50.75	0	2239239..2241248	+	669	16331197	-	slr1939	-	hypothetical protein
2031	 50.45	0	2241340..2242788	+	482	16331198	-	slr1940	-	hypothetical protein
2032	 46.03	0	2242886..2243137	+	83	16331199	-	ssr3300	-	hypothetical protein
2033	 51.88	0	2243250..2243729	-	159	16331200	-	sll1845	-	hypothetical protein
2034	 48.88	0	2243851..2245368	+	505	16331201	-	slr1942	-	circadian clock protein KaiC
2035	 52.54	0	2245407..2245583	+	58	16331202	-	ssr3304	-	hypothetical protein
2036	 48.39	0	2245636..2246631	+	331	16331203	dpm1	slr1943	-	dolichol phosphate mannose synthase
2037	 45.83	0	2246867..2248483	+	538	16331204	-	slr1944	-	hypothetical protein
2038	 53.10	0	2248578..2250176	+	532	16331205	yibO	slr1945	-	phosphoglyceromutase
2039	 47.86	0	2250241..2250474	+	77	16331206	secG	ssr3307	-	preprotein translocase subunit SecG
2040	 51.91	0	2250711..2251496	+	261	16331207	-	slr1946	-	hypothetical protein
2041	 52.61	0	2251657..2252958	-	433	16331208	odhB	sll1841	-	branched-chain alpha-keto acid dehydrogenase subunit E2
2042	 50.86	0	2253169..2253807	+	212	16331209	-	slr1949	-	hypothetical protein
2043	 53.35	+1	2254112..2256454	+	780	16331210	-	slr1950	-	cation-transporting ATPase; E1-E2 ATPase
2044	 48.95	0	2256697..2257170	+	157	16331211	-	slr1951	-	hypothetical protein
2045	 53.28	+1	2257203..2257964	+	253	16331212	-	slr0989	-	hypothetical protein
2046	 52.56	0	2258074..2259243	+	389	16331213	-	slr0990	-	hypothetical protein
2047	 49.78	0	2259402..2259863	+	153	16331214	-	slr0992	-	hypothetical protein
2048	 55.54	+1	2260429..2262576	+	715	16331215	nlpD	slr0993	-	lipoprotein; NlpD
2049	 45.49	0	2262805..2263380	-	191	16331216	lrtA	sll0947	-	light repressed protein
2050	 52.49	0	2263827..2264510	+	227	16331217	lipB	slr0994	-	lipoyltransferase
2051	 48.80	0	2264491..2264781	-	96	16331218	-	ssl1807	-	hypothetical protein
2052	 51.19	0	2265213..2266646	-	477	16331219	glgA	sll0945	-	glycogen synthase
2053	 45.05	0	2266850..2267344	-	164	16331220	-	sll0944	-	hypothetical protein
2054	 48.81	0	2267490..2269085	+	531	16331221	-	slr0320	-	hypothetical protein
2055	 52.12	0	2269126..2270163	-	345	16331222	rpoD	sll0306	-	RNA polymerase sigma factor
2056	 50.00	0	2270624..2271571	+	315	16331223	era	slr0321	-	GTP-binding protein Era
2057	 51.73	0	2271581..2274868	+	1095	16331224	-	slr0322	-	CheA like protein
2058	 39.98	-1	2274868..2277996	+	1042	16331225	ams1	slr0323	-	alpha-mannosidase
2059	 45.65	0	2277989..2278873	+	294	16331226	-	slr0324	-	OppC in a binding protein-dependent transport system
2060	 43.00	-1	2278921..2279406	+	161	16331227	-	slr0325	-	hypothetical protein
2061	 53.14	0	2279497..2280006	-	169	16331228	-	sll0301	-	hypothetical protein
2062	 52.86	0	2280267..2280947	-	226	16331229	ribC	sll0300	-	riboflavin synthase subunit alpha
2063	 45.72	0	2280998..2281441	+	147	16331230	-	slr0326	-	hypothetical protein
2064	 51.31	0	2281509..2283182	+	557	16331231	hitB	slr0327	-	iron utilization protein
2065	 45.78	0	2283232..2283705	+	157	16331232	-	slr0328	-	low molecular weight phosphotyrosine protein phosphatase
2066	 53.86	+1	2283794..2284777	+	327	16331233	xylR	slr0329	-	xylose repressor
2067	 52.29	0	2284791..2285423	-	210	16331234	-	sll0298	-	hypothetical protein
2068	 52.55	0	2285410..2285997	-	195	16331235	-	sll0297	-	hypothetical protein
2069	 46.52	0	2286186..2286746	-	186	16331236	-	sll0296	-	hypothetical protein
2070	 49.26	0	2286798..2287067	-	89	16331237	-	ssl0564	-	response regulator like protein
2071	 49.59	0	2287334..2287579	-	81	16331238	psaC	ssl0563	-	photosystem I subunit VII
2072	 50.06	0	2287948..2289525	+	525	16331239	ndhD	slr0331	-	NAD(P)H-quinone oxidoreductase subunit 4
2073	 45.17	0	2289704..2290024	+	106	16331240	-	slr0333	-	hypothetical protein
2074	 42.34	-1	2290089..2290421	+	110	16331241	-	slr0334	-	hypothetical protein
2075	 47.06	0	2290705..2290959	+	84	16331242	-	ssr0536	-	hypothetical protein
2076	 46.59	0	2291091..2291897	-	268	16331243	-	sll0295	-	hypothetical protein
2077	 51.95	0	2292188..2294878	+	896	16331244	apcE	slr0335	-	phycobilisome LCM core-membrane linker polypeptide
2078	 50.68	0	2295152..2297341	+	729	16331245	-	slr0337	-	hypothetical protein
2079	 52.78	0	2297368..2298570	-	400	16331246	-	sll0294	-	hypothetical protein
2080	 49.51	0	2298606..2299118	-	170	16331247	-	sll0293	-	hypothetical protein
2081	 50.32	0	2299347..2300441	+	364	16331248	-	slr0338	-	hypothetical protein
2082	 49.84	0	2300515..2302446	+	643	16331249	-	slr0168	-	hypothetical protein
2083	 52.96	0	2302638..2303279	+	213	16331250	-	slr0169	-	hypothetical protein
2084	 39.02	-1	2303507..2304034	+	175	16331251	ycf37	slr0171	-	ycf37 gene product
2085	 51.71	0	2304094..2304561	+	155	16331252	guaB	slr0172	-	IMP dehydrogenase
2086	 52.60	0	2304558..2305886	-	442	16331253	-	sll0177	-	hypothetical protein
2087	 49.60	0	2305907..2306410	-	167	16331254	-	sll0176	-	hypothetical protein
2088	 44.28	0	2306600..2306800	-	66	16331255	-	ssl0312	-	hypothetical protein
2089	 47.44	0	2306850..2308472	-	540	16331256	-	sll0175	-	putative; ORF1
2090	 47.60	0	2308517..2309371	-	284	16331257	-	sll0174	-	hypothetical protein
2091	 47.69	0	2309413..2310471	-	352	16331258	-	sll0173	-	virginiamycin B hydrolase; Vgb
2092	 47.71	0	2310533..2310991	-	152	16331259	-	sll0172	-	hypothetical protein
2093	 46.65	0	2311377..2312495	-	372	16331260	gcvT	sll0171	-	glycine cleavage system aminomethyltransferase T
2094	 51.39	0	2312664..2314574	-	636	16331261	dnaK	sll0170	-	molecular chaperone DnaK
2095	 51.75	0	2314780..2316924	-	714	16331262	-	sll0169	-	hypothetical protein
2096	 51.49	0	2317112..2317447	-	111	16331263	-	sll0168	-	hypothetical protein
2097	 50.10	0	2317536..2318030	-	164	16331264	-	sll0167	-	hypothetical protein
2098	 52.63	0	2318011..2319627	-	538	16331265	hemD	sll0166	-	uroporphyrin-III synthase
2099	 52.74	0	2319555..2324636	-	1693	16331266	-	sll0163	-	beta transducin-like protein
2100	 50.26	0	2325045..2325629	-	194	16331267	-	sll0162	-	hypothetical protein
2101	 36.96	-2	2325864..2326937	+	357	16331268	-	slr0179	-	hypothetical protein
2102	 32.25	-2	2327013..2328029	+	338	16331269	-	slr0180	-	transposase
2103	 47.85	0	2328393..2328695	-	100	16331270	-	sll0161	-	transposase
2104	 46.27	0	2328616..2328870	-	84	16331271	-	ssl0296	-	transposase
48.22	MEAN

4.98	STD DEV
