IslandPath Analysis: Synechocystis sp. PCC 6803

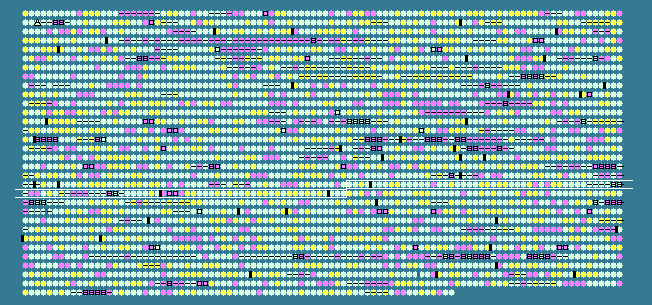

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1955	 50.21	0	2147548..2148033	+	161	16331122	-	slr0398	-	hypothetical protein
1956	 50.05	0	2148253..2149233	+	326	16331123	ycf39	slr0399	-	ycf39 gene product
1957	 52.83	0	2149333..2150250	+	305	16331124	ppnK	slr0400	-	inorganic polyphosphate/ATP-NAD kinase
1958	 50.22	0	2150247..2151401	+	384	16331125	-	slr0401	-	spermidine/putrescine-binding periplasmic protein
1959	 47.86	0	2151606..2152190	+	194	16331126	-	slr0402	-	putative deoxyribonucleotide triphosphate pyrophosphatase
1960	 48.84	0	2152291..2152548	-	85	16331127	glnB	ssl0707	-	nitrogen regulatory protein P-II
1961	 51.70	0	2152932..2153933	+	333	16331128	-	slr0404	-	hypothetical protein
1962	 54.76	+1	2154205..2154498	+	97	16331129	-	ssr0657	-	hypothetical protein
1963	 52.51	0	2154516..2155172	-	218	16331130	trpF	sll0356	-	N-(5'-phosphoribosyl)anthranilate isomerase
1964	 49.45	0	2155273..2156265	-	330	16331131	-	sll0355	-	hypothetical protein
1965	 49.03	0	2156497..2156961	-	154	16331132	-	sll0354	-	hypothetical protein
1966	 46.94	0	2157442..2158470	+	342	16331133	pyrC	slr0406	-	dihydroorotase
1967	 45.02	0	2158543..2159355	+	270	16331134	-	slr0407	-	hypothetical protein
1968	 46.06	0	2159620..2172219	+	4199	16331135	-	slr0408	-	integrin alpha subunit protein
1969	 42.45	-1	2172365..2173099	+	244	16331136	-	slr0142	-	hypothetical protein
1970	 51.31	0	2173197..2176772	+	1191	16331137	-	slr0143	-	beta transducin-like protein
1971	 46.89	0	2177115..2177903	+	262	16331138	-	slr0144	-	hypothetical protein
1972	 52.31	0	2177900..2178310	+	136	16331139	-	slr0145	-	hypothetical protein
1973	 51.07	0	2178325..2178837	+	170	16331140	-	slr0146	-	hypothetical protein
1974	 51.19	0	2178627..2179505	+	292	16331141	-	slr0147	-	hypothetical protein
1975	 50.09	0	2179459..2180019	+	186	16331142	-	slr0148	-	ferredoxin
1976	 47.56	0	2180073..2180543	+	156	16331143	-	slr0149	-	hypothetical protein
1977	 51.92	0	2180577..2180888	+	103	16331144	petF	slr0150	-	ferredoxin
1978	 53.06	0	2181013..2181975	+	320	16331145	-	slr0151	-	hypothetical protein
1979	 49.26	0	2182063..2183958	+	631	16331146	-	slr0152	-	serine/threonine protein kinase
1980	 51.79	0	2184030..2185784	-	584	16331147	-	sll0149	-	hypothetical protein
1981	 53.89	+1	2185870..2188077	-	735	16331148	-	sll0148	-	hypothetical protein
1982	 46.59	0	2188230..2190236	-	668	16331149	-	sll0147	-	hypothetical protein
1983	 46.47	0	2190933..2192051	-	372	16331150	-	sll0146	-	high-affinity branched-chain amino acid transport protein; BraE
1984	 48.82	0	2192133..2192681	-	182	16331151	frr	sll0145	-	ribosome recycling factor
1985	 54.08	+1	2192668..2193390	-	240	161344756	pyrH	sll0144	-	uridylate kinase
1986	 41.44	-1	2193591..2193812	-	73	16331153	-	ssl0259	-	hypothetical protein
1987	 47.83	0	2194405..2197101	+	898	16331154	clpB	slr0156	-	ClpB protein
1988	 37.63	-2	2197132..2197620	+	162	16331155	-	slr0157	-	hypothetical protein
1989	 51.86	0	2197732..2200959	-	1075	16331156	-	sll0142	-	cation or drug efflux system protein
1990	 53.13	0	2201147..2202550	-	467	16331157	-	sll0141	-	hypothetical protein
1991	 50.63	0	2202944..2204053	+	369	16331158	pilT	slr0161	-	twitching motility protein
1992	 49.20	0	2204157..2204654	+	165	16331159	gspF	slr0162	-	general secretion pathway protein F
1993	 46.60	0	2204476..2205372	+	298	16331160	pilC	slr0163	-	pilin biogenesis protein
1994	 50.44	0	2205774..2206451	+	225	16331161	clpP	slr0164	-	ATP-dependent Clp protease-like protein
1995	 48.93	0	2206551..2207159	+	202	16331162	clpP	slr0165	-	ATP-dependent Clp protease proteolytic subunit
1996	 51.21	0	2207370..2208695	-	441	16331163	pepP	sll0136	-	aminopeptidase P
1997	 51.27	0	2208778..2209758	-	326	16331164	-	sll0135	-	5'-methylthioadenosine phosphorylase
1998	 48.10	0	2209703..2209939	-	78	16331165	-	ssl0242	-	hypothetical protein
1999	 46.67	0	2210451..2210705	+	84	16331166	-	ssr0256	-	transposase
2000	 47.52	0	2210626..2210928	+	100	16331167	-	slr0166	-	transposase
2001	 47.95	0	2211283..2212479	+	398	16331168	-	slr1923	-	hypothetical protein
2002	 43.23	-1	2212505..2213707	+	400	16331169	-	slr1924	-	D-alanyl-D-alanine carboxypeptidase
2003	 43.93	0	2213707..2214735	+	342	16331170	cobD	slr1925	-	cobalamin biosynthesis protein
2004	 50.75	0	2214685..2215551	-	288	16331171	prfB	sll1865	-	peptide chain release factor 2
2005	 52.78	0	2216476..2219175	-	899	16331172	-	sll1864	-	chloride channel protein
2006	 48.36	0	2219122..2219793	+	223	16331173	-	slr1926	-	hypothetical protein
2007	 51.76	0	2219741..2220961	+	406	16331174	-	slr1927	-	hypothetical protein
2008	 47.18	0	2221047..2221631	+	194	16331175	-	slr1928	-	hypothetical protein
2009	 43.48	0	2221648..2222199	+	183	16331176	-	slr1929	-	hypothetical protein
2010	 42.60	-1	2222316..2222876	+	186	16331177	-	slr1930	-	hypothetical protein
2011	 43.25	0	2222898..2223815	+	305	16331178	-	slr1931	-	hypothetical protein
2012	 48.42	0	2223873..2224568	+	231	16331179	-	slr1932	-	hypothetical protein
2013	 45.37	0	2224789..2225112	-	107	16331180	-	sll1863	-	hypothetical protein
2014	 45.83	0	2225278..2225709	-	143	16331181	-	sll1862	-	hypothetical protein
2015	 43.40	0	2225766..2226530	-	254	16331182	-	sll1861	-	transposase
2016	 45.80	0	2226619..2227404	-	261	16331183	-	sll1860	-	transposase
2017	 50.46	0	2227829..2228377	+	182	16331184	rfbC	slr1933	-	dTDP-4-dehydrorhamnose 3,5-epimerase
2018	 51.01	0	2228445..2230328	-	627	16331185	-	sll1858	-	hypothetical protein
2019	 51.51	0	2230487..2231515	+	342	16331186	-	slr1934	-	pyruvate dehydrogenase E1 component, alpha subunit
2020	 50.64	0	2231639..2233036	+	465	16331187	-	slr1935	-	hypothetical protein
2021	 49.03	0	2233037..2233864	-	275	16331188	xthA	sll1854	-	exodeoxyribonuclease III
2022	 52.47	0	2233809..2234273	-	154	16331189	-	sll1853	-	hypothetical protein
2023	 48.00	0	2234304..2234753	-	149	16331190	ndkR	sll1852	-	nucleoside diphosphate kinase
2024	 40.57	-1	2235072..2235458	-	128	16331191	-	sll1851	-	hypothetical protein
2025	 36.39	-2	2235561..2235920	+	119	16331192	-	slr1936	-	transposase
2026	 36.77	-2	2235914..2236408	+	164	16331193	-	slr1937	-	transposase
2027	 44.65	0	2236419..2237054	-	211	16331194	-	sll1849	-	hypothetical protein
2028	 51.99	0	2237134..2238189	+	351	16331195	mtnA	slr1938	-	methylthioribose-1-phosphate isomerase
2029	 55.60	+1	2238277..2238954	-	225	16331196	-	sll1848	-	hypothetical protein
2030	 50.75	0	2239239..2241248	+	669	16331197	-	slr1939	-	hypothetical protein
2031	 50.45	0	2241340..2242788	+	482	16331198	-	slr1940	-	hypothetical protein
2032	 46.03	0	2242886..2243137	+	83	16331199	-	ssr3300	-	hypothetical protein
2033	 51.88	0	2243250..2243729	-	159	16331200	-	sll1845	-	hypothetical protein
2034	 48.88	0	2243851..2245368	+	505	16331201	-	slr1942	-	circadian clock protein KaiC
2035	 52.54	0	2245407..2245583	+	58	16331202	-	ssr3304	-	hypothetical protein
2036	 48.39	0	2245636..2246631	+	331	16331203	dpm1	slr1943	-	dolichol phosphate mannose synthase
2037	 45.83	0	2246867..2248483	+	538	16331204	-	slr1944	-	hypothetical protein
2038	 53.10	0	2248578..2250176	+	532	16331205	yibO	slr1945	-	phosphoglyceromutase
2039	 47.86	0	2250241..2250474	+	77	16331206	secG	ssr3307	-	preprotein translocase subunit SecG
2040	 51.91	0	2250711..2251496	+	261	16331207	-	slr1946	-	hypothetical protein
2041	 52.61	0	2251657..2252958	-	433	16331208	odhB	sll1841	-	branched-chain alpha-keto acid dehydrogenase subunit E2
2042	 50.86	0	2253169..2253807	+	212	16331209	-	slr1949	-	hypothetical protein
2043	 53.35	+1	2254112..2256454	+	780	16331210	-	slr1950	-	cation-transporting ATPase; E1-E2 ATPase
2044	 48.95	0	2256697..2257170	+	157	16331211	-	slr1951	-	hypothetical protein
2045	 53.28	+1	2257203..2257964	+	253	16331212	-	slr0989	-	hypothetical protein
2046	 52.56	0	2258074..2259243	+	389	16331213	-	slr0990	-	hypothetical protein
2047	 49.78	0	2259402..2259863	+	153	16331214	-	slr0992	-	hypothetical protein
2048	 55.54	+1	2260429..2262576	+	715	16331215	nlpD	slr0993	-	lipoprotein; NlpD
2049	 45.49	0	2262805..2263380	-	191	16331216	lrtA	sll0947	-	light repressed protein
2050	 52.49	0	2263827..2264510	+	227	16331217	lipB	slr0994	-	lipoyltransferase
2051	 48.80	0	2264491..2264781	-	96	16331218	-	ssl1807	-	hypothetical protein
2052	 51.19	0	2265213..2266646	-	477	16331219	glgA	sll0945	-	glycogen synthase
2053	 45.05	0	2266850..2267344	-	164	16331220	-	sll0944	-	hypothetical protein
2054	 48.81	0	2267490..2269085	+	531	16331221	-	slr0320	-	hypothetical protein
48.22	MEAN

4.98	STD DEV
