IslandPathversion 1.0

IslandPath Analysis: Synechocystis sp. PCC 6803

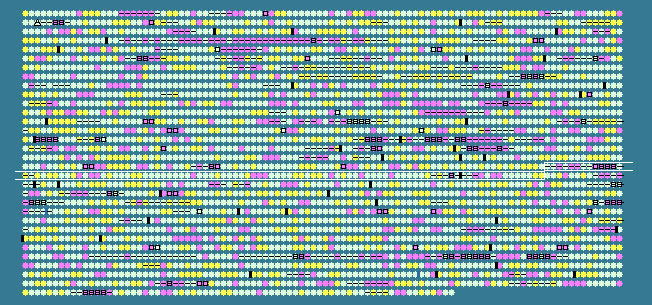

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1788	 51.28	0	1959436..1961079	-	547	16330955	leuA	sll1564	-	alpha-isopropylmalate/homocitrate synthase family transferase
1789	 45.06	0	1961439..1961600	+	53	16330956	-	ssr2802	-	ABC transporter
1790	 44.05	0	1961625..1961876	+	83	16330957	-	ssr2803	-	hypothetical protein
1791	 48.33	0	1962366..1962545	+	59	16330958	-	ssr2806	-	hypothetical protein
1792	 36.84	-2	1962705..1965524	-	939	16330959	-	sll1563	-	hypothetical protein
1793	 38.92	-1	1965485..1965949	-	154	16330960	-	sll1562	-	hypothetical protein
1794	 50.76	0	1966146..1969118	-	990	16330961	putA	sll1561	-	delta-1-pyrroline-5-carboxylate dehydrogenase
1795	 46.11	0	1969468..1970430	+	320	16330962	-	slr1681	-	hypothetical protein
1796	 32.11	-2	1970581..1970988	+	135	16330963	-	slr1682	-	transposase
1797	 32.06	-2	1970952..1971968	-	338	16330964	-	sll1560	-	transposase
1798	 35.35	-2	1972154..1972549	+	131	16330965	-	slr1683	-	transposase
1799	 30.46	-2	1972609..1973061	+	150	16330966	-	slr1684	-	transposase
1800	 51.00	0	1973611..1974765	-	384	16330967	-	sll1559	-	soluble hydrogenase 42 kD subunit
1801	 51.88	0	1975056..1975481	+	141	16330968	-	slr1686	-	hypothetical protein
1802	 48.67	0	1975575..1975874	-	99	16330969	-	ssl3044	-	hydrogenase component
1803	 53.85	+1	1976019..1976720	+	233	16330970	-	slr1687	-	hypothetical protein
1804	 50.21	0	1976799..1977965	-	388	16330971	-	sll1558	-	mannose-1-phosphate guanyltransferase
1805	 53.47	+1	1978131..1979039	-	302	16330972	sucD	sll1557	-	succinyl-CoA synthetase
1806	 53.81	+1	1979144..1980193	-	349	16330973	-	sll1556	-	isopentenyl pyrophosphate isomerase
1807	 50.32	0	1980365..1981471	-	368	16330974	-	sll1555	-	hybrid sensory kinase
1808	 49.33	0	1982049..1982273	+	74	16330975	psaE	ssr2831	-	photosystem I reaction center subunit IV
1809	 52.55	0	1982308..1983171	+	287	16330976	mutM	slr1689	-	formamidopyrimidine-DNA glycosylase
1810	 43.77	0	1983147..1983932	+	261	16330977	-	slr1690	-	hypothetical protein
1811	 47.58	0	1983982..1985658	+	558	16330978	nadE	slr1691	-	NAD synthetase
1812	 42.34	-1	1985874..1986872	+	332	16330979	-	slr1692	-	hypothetical protein
1813	 43.13	-1	1987100..1988242	+	380	16330980	-	slr1693	-	PatA subfamily protein
1814	 45.47	0	1988385..1988837	+	150	16330981	-	slr1694	-	activator of photopigment and puc expression
1815	 53.10	0	1988834..1991266	-	810	16330982	pheT	sll1553	-	phenylalanyl-tRNA synthetase subunit beta
1816	 50.61	0	1991550..1993274	+	574	16330983	pknA	slr1697	-	eukariotic protein kinase
1817	 51.57	0	1993377..1994045	-	222	16330984	-	sll0921	-	NarL subfamily protein
1818	 50.47	0	1994147..1997251	-	1034	16330985	ppc	sll0920	-	phosphoenolpyruvate carboxylase
1819	 53.59	+1	1997993..1998451	+	152	16330986	-	slr0935	-	hypothetical protein
1820	 52.48	0	1998460..1999347	+	295	16330987	nadC	slr0936	-	nicotinate-nucleotide pyrophosphorylase
1821	 49.84	0	1999477..2000730	+	417	16330988	-	slr0937	-	hypothetical protein
1822	 49.35	0	2000815..2002194	+	459	16330989	-	slr0938	-	hypothetical protein
1823	 50.76	0	2002241..2002894	-	217	16330990	cbiC	sll0916	-	precorrin-8X methylmutase
1824	 50.22	0	2002891..2004465	-	524	16330991	pqqE	sll0915	-	protease
1825	 50.41	0	2004626..2006095	+	489	16330992	crtQ	slr0940	-	zeta-carotene desaturase precursor
1826	 49.55	0	2006120..2006563	+	147	16330993	-	slr0941	-	hypothetical protein
1827	 49.39	0	2006824..2007807	+	327	16330994	-	slr0942	-	aldehyde reductase
1828	 49.72	0	2007850..2008752	+	300	16330995	fda	slr0943	-	fructose-1,6-bisphosphate aldolase
1829	 39.96	-1	2008874..2010004	-	376	16330996	-	sll0914	-	hypothetical protein
1830	 46.18	0	2010218..2011369	+	383	16330997	-	slr0944	-	hypothetical protein
1831	 50.08	0	2011521..2012141	+	206	16330998	-	slr0945	-	hypothetical protein
1832	 50.51	0	2012231..2012626	+	131	16330999	arsC	slr0946	-	arsenate reductase
1833	 54.61	+1	2012781..2013485	+	234	16331000	-	slr0947	-	OmpR subfamily
1834	 49.38	0	2013538..2014185	+	215	16331001	-	slr0948	-	hypothetical protein
1835	 45.21	0	2014182..2014787	-	201	16331002	-	sll0913	-	hypothetical protein
1836	 45.84	0	2014908..2016818	-	636	16331003	-	sll0912	-	ABC transporter
1837	 50.06	0	2017104..2017964	+	286	16331004	livH	slr0949	-	high-affinity branched-chain amino acid transport permease protein
1838	 52.85	0	2017964..2018788	+	274	16331005	-	slr0950	-	hypothetical protein
1839	 36.18	-2	2018851..2019237	-	128	16331006	-	sll0911	-	hypothetical protein
1840	 30.59	-2	2019253..2020344	-	363	16331007	-	sll0910	-	hypothetical protein
1841	 43.67	0	2020349..2021035	-	228	16331008	-	sll0909	-	hypothetical protein
1842	 51.66	0	2021252..2021944	+	230	16331009	ispD	slr0951	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
1843	 49.23	0	2022028..2023071	+	347	16331010	fbp	slr0952	-	fructose-1,6-bisphosphatase
1844	 50.88	0	2023278..2024012	+	244	16331011	-	slr0953	-	hypothetical protein
1845	 48.36	0	2024264..2024476	+	70	16331012	-	ssr1600	-	hypothetical protein
1846	 53.01	0	2024549..2024980	+	143	16331013	-	slr0954	-	hypothetical protein
1847	 53.16	0	2024993..2026147	+	384	16331014	-	slr0955	-	hypothetical protein
1848	 50.64	0	2026227..2026538	+	103	16331015	-	slr0957	-	hypothetical protein
1849	 52.62	0	2026675..2028126	+	483	16331016	cysS	slr0958	-	cysteinyl-tRNA synthetase
1850	 53.91	+1	2028157..2028744	-	195	16331017	maf	sll0905	-	Maf-like protein
1851	 48.99	0	2028832..2030421	+	529	16331018	-	slr0959	-	hypothetical protein
1852	 38.78	-1	2030534..2030974	+	146	16331019	-	slr0960	-	hypothetical protein
1853	 50.71	0	2031001..2032473	-	490	16331020	-	sll1541	-	lignostilbene-alpha,beta-dioxygenase
1854	 52.58	0	2032601..2032891	+	96	16331021	clpS	ssr2723	-	ATP-dependent Clp protease adaptor protein ClpS
1855	 51.24	0	2032951..2034123	-	390	16331022	dpm1	sll1540	-	dolichyl-phosphate-mannose synthase
1856	 49.07	0	2034162..2034803	+	213	161344757	ppa	slr1622	-	inorganic pyrophosphatase
1857	 44.26	0	2035067..2035432	+	121	16331024	-	slr1623	-	hypothetical protein
1858	 51.20	0	2035474..2036850	+	458	16331025	-	slr1624	-	hypothetical protein
1859	 49.54	0	2036911..2038527	-	538	16331026	bgl	sll1538	-	beta-glucosidase
1860	 46.90	0	2038644..2039063	-	139	16331027	-	sll1537	-	hypothetical protein
1861	 46.36	0	2039078..2039530	+	150	16331028	-	slr1626	-	hypothetical protein
1862	 40.90	-1	2039541..2040161	+	206	16331029	-	slr1627	-	hypothetical protein
1863	 50.98	0	2040280..2041458	-	392	16331030	moeB	sll1536	-	hypothetical protein
1864	 51.60	0	2041594..2041998	+	134	16331031	-	slr1628	-	hypothetical protein
1865	 50.61	0	2041999..2042982	+	327	16331032	-	slr1629	-	hypothetical protein
1866	 49.04	0	2043107..2043838	-	243	16331033	rfbP	sll1535	-	galactosyl-1-phosphate transferase
1867	 49.96	0	2043938..2045074	-	378	16331034	-	sll1534	-	hypothetical protein
1868	 53.61	+1	2045078..2046364	-	428	16331035	pilT	sll1533	-	twitching mobility protein
1869	 47.73	0	2046961..2047335	+	124	16331036	-	slr1634	-	hypothetical protein
1870	 53.93	+1	2047495..2048130	-	211	16331037	-	sll1532	-	hypothetical protein
1871	 46.75	0	2048144..2048374	-	76	16331038	-	ssl2982	-	DNA-directed RNA polymerase subunit omega
1872	 32.35	-2	2048497..2049513	+	338	16331039	-	slr1635	-	transposase
1873	 46.22	0	2049510..2050130	+	206	16331040	-	slr1636	-	hypothetical protein
1874	 45.99	0	2050496..2050819	+	107	16331041	-	slr1638	-	hypothetical protein
1875	 45.38	0	2050948..2051412	+	154	16331042	smpB	slr1639	-	SsrA-binding protein
1876	 39.57	-1	2051479..2053305	-	608	16331043	-	sll1531	-	hypothetical protein
1877	 42.38	-1	2053319..2054479	-	386	16331044	-	sll1530	-	hypothetical protein
1878	 44.83	0	2054482..2057472	-	996	16331045	-	sll1528	-	hypothetical protein
1879	 41.57	-1	2057469..2060975	-	1168	16331046	-	sll1527	-	hypothetical protein
1880	 42.14	-1	2061101..2062621	-	506	16331047	-	sll1526	-	hypothetical protein
1881	 45.78	0	2062905..2065523	+	872	16331048	clpB	slr1641	-	ClpB protein
1882	 49.00	0	2065509..2065808	-	99	16331049	-	ssl2971	-	hypothetical protein
1883	 49.15	0	2066001..2066999	-	332	16331050	prk	sll1525	-	phosphoribulokinase
1884	 49.84	0	2067522..2068763	+	413	16331051	petH	slr1643	-	ferredoxin-NADP oxidoreductase
1885	 51.55	0	2068855..2069694	-	279	16331052	-	sll1524	-	hypothetical protein
1886	 53.84	+1	2070019..2070891	+	290	16331053	-	slr1644	-	hypothetical protein
1887	 54.66	+1	2070975..2071382	+	135	16331054	psbZ	slr1645	-	photosystem II 11 kD protein
48.22	MEAN

4.98	STD DEV
