IslandPath Analysis: Synechocystis sp. PCC 6803

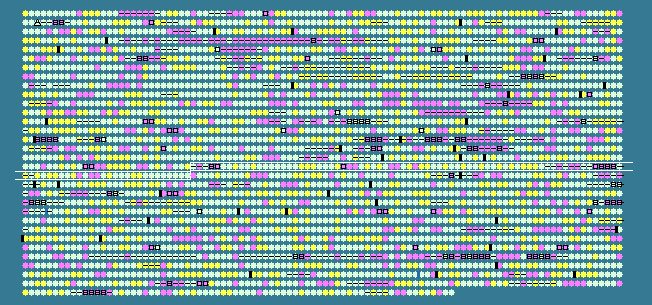

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1729	 45.79	0	1897570..1898412	+	280	16330896	-	slr1530	-	hypothetical protein
1730	 32.71	-2	1898437..1899240	-	267	16330897	-	sll1439	-	hypothetical protein
1731	 51.41	0	1899700..1901148	+	482	16330898	ffh	slr1531	-	signal recognition particle protein
1732	 36.77	-2	1901385..1901879	-	164	16330899	-	sll1437	-	transposase
1733	 36.39	-2	1901873..1902232	-	119	16330900	-	sll1436	-	transposase
1734	 50.06	0	1902437..1903996	-	519	16330901	gatB	sll1435	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
1735	 51.00	0	1904025..1905977	-	650	16330902	mrcA	sll1434	-	penicillin-binding protein 1B
1736	 54.03	+1	1906170..1907744	-	524	16330903	-	sll1433	-	hypothetical protein
1737	 50.47	0	1907764..1908621	-	285	16330904	hypB	sll1432	-	hydrogenase isoenzyme formation protein; HypB
1738	 48.56	0	1908804..1909151	+	115	16330905	-	slr1533	-	hypothetical protein
1739	 53.42	+1	1909190..1910095	+	301	16330906	-	slr1534	-	hypothetical protein
1740	 51.20	0	1910499..1911494	+	331	16330907	-	slr1152	-	hypothetical protein
1741	 51.39	0	1911570..1911785	-	71	16330908	-	ssl2162	-	hypothetical protein
1742	 48.26	0	1911896..1912786	-	296	16330909	glnH	sll1104	-	glutamine-binding protein
1743	 48.88	0	1912776..1914113	-	445	16330910	-	sll1103	-	hypothetical protein
1744	 45.93	0	1914113..1914652	-	179	16330911	-	sll1102	-	hypothetical protein
1745	 49.69	0	1914818..1915135	-	105	16330912	rpsJ	sll1101	-	30S ribosomal protein S10
1746	 51.33	0	1915274..1916473	-	399	16330913	tuf	sll1099	-	elongation factor Tu
1747	 52.17	0	1916533..1918608	-	691	16330914	fus	sll1098	-	elongation factor G
1748	 52.87	0	1918815..1919285	-	156	16330915	rps7	sll1097	-	30S ribosomal protein S7
1749	 54.59	+1	1919436..1919816	-	126	16330916	rpsL	sll1096	-	30S ribosomal protein S12
1750	 49.53	0	1919913..1920548	-	211	16330917	-	sll1095	-	hypothetical protein
1751	 51.19	0	1920660..1921919	+	419	16330918	purD	slr1159	-	phosphoribosylamine--glycine ligase
1752	 49.59	0	1922124..1922738	+	204	16330919	-	slr1160	-	hypothetical protein
1753	 51.85	0	1922791..1923087	-	98	16330920	rpiB	ssl2153	-	ribose phosphate isomerase B
1754	 39.27	-1	1923170..1923472	-	100	16330921	-	sll1094	-	transposase
1755	 39.17	-1	1924251..1924850	+	199	16330922	-	slr1161	-	hypothetical protein
1756	 33.97	-2	1924999..1925943	+	314	16330923	-	slr1162	-	hypothetical protein
1757	 46.02	0	1926030..1927700	+	556	16330924	-	slr1163	-	hypothetical protein
1758	 52.86	0	1927725..1928021	-	98	16330925	-	ssl2148	-	hypothetical protein
1759	 49.57	0	1928323..1930626	+	767	16330926	nrdA	slr1164	-	ribonucleotide reductase subunit alpha
1760	 54.65	+1	1931139..1932311	+	390	16330927	sat	slr1165	-	sulfate adenylyltransferase
1761	 50.80	0	1932354..1933418	+	354	16330928	-	slr1166	-	hypothetical protein
1762	 34.63	-2	1933468..1933854	-	128	16330929	-	sll1092	-	hypothetical protein
1763	 36.71	-2	1933854..1934060	-	68	16330930	-	ssl2138	-	hypothetical protein
1764	 51.57	0	1934307..1935386	-	359	16330931	-	sll1091	-	43 kD bacteriochlorophyll synthase subunit
1765	 51.90	0	1935912..1937069	+	385	16330932	gldA	slr1167	-	glycerol dehydrogenase
1766	 41.99	-1	1937086..1937397	+	103	16330933	-	slr1168	-	hypothetical protein
1767	 53.05	0	1937474..1938310	+	278	16330934	-	slr1169	-	hypothetical protein
1768	 51.98	0	1938429..1938782	+	117	16330935	-	slr1170	-	hypothetical protein
1769	 47.25	0	1938985..1939494	+	169	16330936	-	slr1171	-	glutathione peroxidase
1770	 49.84	0	1939865..1940506	-	213	16330937	-	sll1089	-	hypothetical protein
1771	 51.85	0	1940549..1942087	-	512	16330938	-	sll1087	-	sodium-coupled permease
1772	 50.43	0	1942234..1942701	-	155	16330939	-	sll1086	-	hypothetical protein
1773	 48.20	0	1942923..1944314	+	463	16330940	-	slr1173	-	hypothetical protein
1774	 53.11	0	1944345..1944521	+	58	16330941	-	ssr1951	-	hypothetical protein
1775	 49.05	0	1944586..1945374	+	262	16330942	-	slr1174	-	hypothetical protein
1776	 50.84	0	1945518..1947179	-	553	16330943	glpD	sll1085	-	glycerol-3-phosphate dehydrogenase
1777	 52.40	0	1947325..1948824	-	499	16330944	otsA	sll1566	-	alpha,alpha-trehalose-phosphate synthase
1778	 50.71	0	1949613..1952270	+	885	16330945	-	slr1670	-	hypothetical protein
1779	 51.55	0	1952323..1953810	+	495	16330946	glpK	slr1672	-	glycerol kinase
1780	 54.06	+1	1953791..1954615	+	274	16330947	spoU	slr1673	-	rRNA methylase
1781	 48.72	0	1954721..1955071	+	116	16330948	-	slr1674	-	hypothetical protein
1782	 52.05	0	1955221..1955562	+	113	16330949	hypA	slr1675	-	hydrogenase expression/formation protein; HypA
1783	 48.17	0	1955690..1956181	+	163	16330950	-	slr1676	-	hypothetical protein
1784	 52.24	0	1956260..1957486	+	408	16330951	-	slr1677	-	hypothetical protein
1785	 53.60	+1	1957758..1958132	+	124	16330952	rplU	slr1678	-	50S ribosomal protein L21
1786	 54.17	+1	1958240..1958503	+	87	16330953	rpmA	ssr2799	-	50S ribosomal protein L27
1787	 48.66	0	1958582..1959325	+	247	16330954	-	slr1679	-	hypothetical protein
1788	 51.28	0	1959436..1961079	-	547	16330955	leuA	sll1564	-	alpha-isopropylmalate/homocitrate synthase family transferase
1789	 45.06	0	1961439..1961600	+	53	16330956	-	ssr2802	-	ABC transporter
1790	 44.05	0	1961625..1961876	+	83	16330957	-	ssr2803	-	hypothetical protein
1791	 48.33	0	1962366..1962545	+	59	16330958	-	ssr2806	-	hypothetical protein
1792	 36.84	-2	1962705..1965524	-	939	16330959	-	sll1563	-	hypothetical protein
1793	 38.92	-1	1965485..1965949	-	154	16330960	-	sll1562	-	hypothetical protein
1794	 50.76	0	1966146..1969118	-	990	16330961	putA	sll1561	-	delta-1-pyrroline-5-carboxylate dehydrogenase
1795	 46.11	0	1969468..1970430	+	320	16330962	-	slr1681	-	hypothetical protein
1796	 32.11	-2	1970581..1970988	+	135	16330963	-	slr1682	-	transposase
1797	 32.06	-2	1970952..1971968	-	338	16330964	-	sll1560	-	transposase
1798	 35.35	-2	1972154..1972549	+	131	16330965	-	slr1683	-	transposase
1799	 30.46	-2	1972609..1973061	+	150	16330966	-	slr1684	-	transposase
1800	 51.00	0	1973611..1974765	-	384	16330967	-	sll1559	-	soluble hydrogenase 42 kD subunit
1801	 51.88	0	1975056..1975481	+	141	16330968	-	slr1686	-	hypothetical protein
1802	 48.67	0	1975575..1975874	-	99	16330969	-	ssl3044	-	hydrogenase component
1803	 53.85	+1	1976019..1976720	+	233	16330970	-	slr1687	-	hypothetical protein
1804	 50.21	0	1976799..1977965	-	388	16330971	-	sll1558	-	mannose-1-phosphate guanyltransferase
1805	 53.47	+1	1978131..1979039	-	302	16330972	sucD	sll1557	-	succinyl-CoA synthetase
1806	 53.81	+1	1979144..1980193	-	349	16330973	-	sll1556	-	isopentenyl pyrophosphate isomerase
1807	 50.32	0	1980365..1981471	-	368	16330974	-	sll1555	-	hybrid sensory kinase
1808	 49.33	0	1982049..1982273	+	74	16330975	psaE	ssr2831	-	photosystem I reaction center subunit IV
1809	 52.55	0	1982308..1983171	+	287	16330976	mutM	slr1689	-	formamidopyrimidine-DNA glycosylase
1810	 43.77	0	1983147..1983932	+	261	16330977	-	slr1690	-	hypothetical protein
1811	 47.58	0	1983982..1985658	+	558	16330978	nadE	slr1691	-	NAD synthetase
1812	 42.34	-1	1985874..1986872	+	332	16330979	-	slr1692	-	hypothetical protein
1813	 43.13	-1	1987100..1988242	+	380	16330980	-	slr1693	-	PatA subfamily protein
1814	 45.47	0	1988385..1988837	+	150	16330981	-	slr1694	-	activator of photopigment and puc expression
1815	 53.10	0	1988834..1991266	-	810	16330982	pheT	sll1553	-	phenylalanyl-tRNA synthetase subunit beta
1816	 50.61	0	1991550..1993274	+	574	16330983	pknA	slr1697	-	eukariotic protein kinase
1817	 51.57	0	1993377..1994045	-	222	16330984	-	sll0921	-	NarL subfamily protein
1818	 50.47	0	1994147..1997251	-	1034	16330985	ppc	sll0920	-	phosphoenolpyruvate carboxylase
1819	 53.59	+1	1997993..1998451	+	152	16330986	-	slr0935	-	hypothetical protein
1820	 52.48	0	1998460..1999347	+	295	16330987	nadC	slr0936	-	nicotinate-nucleotide pyrophosphorylase
1821	 49.84	0	1999477..2000730	+	417	16330988	-	slr0937	-	hypothetical protein
1822	 49.35	0	2000815..2002194	+	459	16330989	-	slr0938	-	hypothetical protein
1823	 50.76	0	2002241..2002894	-	217	16330990	cbiC	sll0916	-	precorrin-8X methylmutase
1824	 50.22	0	2002891..2004465	-	524	16330991	pqqE	sll0915	-	protease
1825	 50.41	0	2004626..2006095	+	489	16330992	crtQ	slr0940	-	zeta-carotene desaturase precursor
1826	 49.55	0	2006120..2006563	+	147	16330993	-	slr0941	-	hypothetical protein
1827	 49.39	0	2006824..2007807	+	327	16330994	-	slr0942	-	aldehyde reductase
1828	 49.72	0	2007850..2008752	+	300	16330995	fda	slr0943	-	fructose-1,6-bisphosphate aldolase
48.22	MEAN

4.98	STD DEV
