IslandPath Analysis: Synechocystis sp. PCC 6803

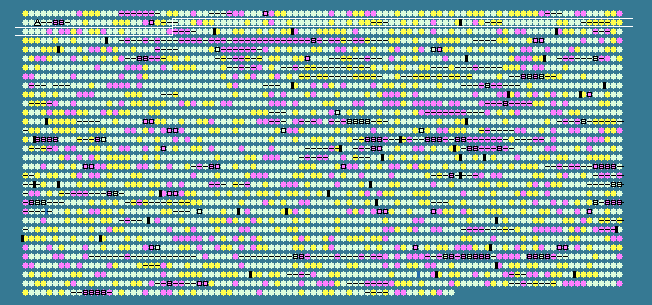

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
126	 45.13	0	144061..144543	+	160	16329296	bcp	slr0242	-	bacterioferritin comigratory protein
127	 44.89	0	144554..145081	+	175	16329297	-	slr0243	-	hypothetical protein
128	 51.37	0	145164..145529	-	121	16329298	-	sll0230	-	hypothetical protein
129	 51.81	0	145761..146615	+	284	16329299	-	slr0244	-	hypothetical protein
130	 37.96	-2	146724..146831	-	35	16329300	psbM	sml0003	-	photosystem II reaction center protein M
131	 52.79	0	146980..147894	+	304	16329301	-	slr0245	-	acetylpolyamine aminohydolase
132	 51.79	0	148022..148942	-	306	16329302	-	sll0228	-	arginase
133	 49.53	0	148943..149683	-	246	16329303	ppiB	sll0227	-	peptidyl-prolyl cis-trans isomerase B
134	 50.97	0	149889..150455	-	188	16329304	ycf4	sll0226	-	photosystem I assembly protein Ycf4
135	 45.81	0	150594..152132	-	512	16329305	-	sll0225	-	hypothetical protein
136	 47.94	0	152154..153050	-	298	16329306	-	sll0224	-	hypothetical protein
137	 50.67	0	153622..153996	+	124	16329307	-	slr0249	-	hypothetical protein
138	 55.31	+1	154143..154679	+	178	16329308	-	slr0250	-	hypothetical protein
139	 51.65	0	154703..155461	+	252	16329309	-	slr0251	-	ABC transporter
140	 49.75	0	155473..156258	+	261	16329310	-	slr0252	-	cobalt-precorrin-6x reductase
141	 52.49	0	156391..156651	+	86	16329311	psaK	ssr0390	-	photosystem I reaction center subunit X
142	 42.86	-1	156741..157013	-	90	16329312	-	ssl0410	-	hypothetical protein
143	 50.70	0	157050..158615	-	521	16329313	ndhB	sll0223	-	NAD(P)H-quinone oxidoreductase subunit 2
144	 50.87	0	158757..159737	-	326	16329314	phoA	sll0222	-	alkaline phosphatase
145	 54.00	+1	159812..159961	-	49	16329315	-	sgl0002	-	hypothetical protein
146	 48.89	0	160004..160093	-	29	16329316	ycf6	sml0004	-	hypothetical protein
147	 48.81	0	160258..161058	+	266	16329317	-	slr0254	-	hypothetical protein
148	 51.53	0	161088..161642	-	184	16329318	bcp	sll0221	-	bacterioferritin comigratory protein
149	 51.05	0	161768..163663	-	631	16329319	glmS	sll0220	-	D-fructose-6-phosphate amidotransferase
150	 50.08	0	164037..165821	-	594	16329320	-	sll0219	-	potential FMN-protein
151	 49.13	0	165871..166389	-	172	16329321	-	sll0218	-	hypothetical protein
152	 51.76	0	166416..168152	-	578	16329322	-	sll0217	-	potential FMN-protein
153	 51.69	0	168533..169921	+	462	16329323	ctpB	slr0257	-	carboxyl-terminal protease
154	 48.97	0	169934..170566	-	210	16329324	-	sll0216	-	hypothetical protein
155	 51.85	0	170572..171840	+	422	16329325	-	slr1411	-	hypothetical protein
156	 50.69	0	171939..172883	-	314	16329326	atpC	sll1327	-	F0F1 ATP synthase subunit gamma
157	 52.05	0	173014..174525	-	503	16329327	atpA	sll1326	-	F0F1 ATP synthase subunit alpha
158	 52.69	0	174586..175143	-	185	16329328	atpD	sll1325	-	F0F1 ATP synthase subunit delta
159	 52.41	0	175143..175682	-	179	16329329	atpF	sll1324	-	F0F1 ATP synthase subunit B
160	 52.08	0	175708..176139	-	143	16329330	atpG	sll1323	-	F0F1 ATP synthase subunit B'
161	 50.81	0	176256..176501	-	81	16329331	atpH	ssl2615	-	F0F1 ATP synthase subunit C
162	 49.58	0	176693..177523	-	276	16329332	atpI	sll1322	-	F0F1 ATP synthase subunit A
163	 48.99	0	177592..178038	-	148	16329333	atp1	sll1321	-	hypothetical protein
164	 53.25	+1	178237..179682	+	481	16329334	-	slr1413	-	hypothetical protein
165	 47.34	0	179734..181047	+	437	16329335	-	slr1414	-	sensory transduction histidine kinase
166	 52.31	0	181073..182221	+	382	16329336	-	slr1415	-	hypothetical protein
167	 51.53	0	182354..183298	+	314	16329337	morR	slr1416	-	MorR protein
168	 47.62	0	183493..183849	+	118	16329338	-	slr1417	-	hypothetical protein
169	 42.93	-1	183935..184924	-	329	16329339	-	sll1319	-	hypothetical protein
170	 50.37	0	184968..185636	-	222	16329340	-	sll1318	-	hypothetical protein
171	 49.17	0	185772..186554	-	260	16329341	-	sll1041	-	ABC transporter
172	 48.69	0	186601..188898	-	765	16329342	-	sll1040	-	hypothetical protein
173	 54.59	+1	189128..189715	+	195	16329343	folK	slr1093	-	7,8-dihydro-6-hydroxymethylpterin-pyrophosphokin ase
174	 49.49	0	190033..190818	+	261	16329344	-	slr1094	-	hypothetical protein
175	 49.30	0	190815..191954	-	379	16329345	-	sll1039	-	hypothetical protein
176	 43.98	0	192136..192783	+	215	16329346	-	slr1095	-	hypothetical protein
177	 52.47	0	192870..194306	+	478	16329347	phdD	slr1096	-	dihydrolipoamide dehydrogenase
178	 50.20	0	194310..194801	+	163	16329348	-	slr1097	-	hypothetical protein
179	 54.68	+1	194859..195617	+	252	16329349	-	slr1098	-	hypothetical protein
180	 55.56	+1	195685..196305	+	206	16329350	ubiX	slr1099	-	aromatic acid decarboxylase
181	 45.67	0	196611..196991	+	126	16329351	-	slr1100	-	hypothetical protein
182	 51.68	0	197231..197557	+	108	16329352	-	slr1101	-	hypothetical protein
183	 49.88	0	197624..200185	+	853	16329353	-	slr1102	-	hypothetical protein
184	 46.68	0	200405..202525	+	706	16329354	-	slr1103	-	hypothetical protein
185	 46.47	0	202554..204395	+	613	16329355	-	slr1104	-	hypothetical protein
186	 51.39	0	204604..206397	+	597	16329356	fus	slr1105	-	elongation factor EF-G
187	 48.44	0	206863..208338	-	491	16329357	-	sll1037	-	hypothetical protein
188	 49.60	0	208549..209427	-	292	16329358	-	sll1036	-	hypothetical protein
189	 46.67	0	209527..209826	-	99	16329359	-	ssl2009	-	hypothetical protein
190	 52.38	0	209896..210546	-	216	16329360	upp	sll1035	-	uracil phosphoribosyltransferase
191	 52.89	0	210781..211629	+	282	16329361	phb	slr1106	-	prohibitin
192	 48.61	0	211734..213068	+	444	16329362	-	slr1107	-	hypothetical protein
193	 49.93	0	213031..215037	-	668	16329363	-	sll1033	-	hypothetical protein
194	 50.69	0	215504..216229	-	241	16329364	ccmN	sll1032	-	hypothetical protein
195	 54.60	+1	216264..218327	-	687	16329365	ccmM	sll1031	-	carbon dioxide concentrating mechanism protein; CcmM
196	 54.46	+1	218407..218709	-	100	16329366	ccmL	sll1030	-	carbon dioxide concentrating mechanism protein; CcmL
197	 54.76	+1	218742..219077	-	111	16329367	ccmK	sll1028	-	carbon dioxide concentrating mechanism protein; CcmK
198	 52.56	0	219206..219517	-	103	16329368	ccmK	sll1029	-	carbon dioxide concentrating mechanism protein; CcmK
199	 53.74	+1	219979..221463	-	494	16329369	gltD	sll1027	-	NADH-glutamate synthase small subunit
200	 52.87	0	221742..223067	+	441	16329370	ank	slr1109	-	erythroid ankyrin
201	 50.95	0	223018..223596	+	192	16329371	-	slr1110	-	hypothetical protein
202	 48.24	0	223673..224806	+	377	16329372	-	slr1772	-	hypothetical protein
203	 48.19	0	224897..226363	-	488	16329373	-	sll1686	-	hypothetical protein
204	 47.95	0	226928..227098	+	56	16329374	-	ssr2972	-	hypothetical protein
205	 40.80	-1	227123..227899	+	258	16329375	-	slr1773	-	hypothetical protein
206	 50.92	0	227943..228812	+	289	16329376	-	slr1774	-	hypothetical protein
207	 44.15	0	228866..230566	+	566	16329377	-	slr1776	-	high affinity sulfate transporter
208	 37.14	-2	230658..231839	-	393	16329378	ycf10	sll1685	-	proton extrusion protein PcxA
209	 52.98	0	232008..234038	+	676	16329379	chlD	slr1777	-	Mg chelatase subunit; ChlD
210	 36.33	-2	234305..234838	+	177	16329380	-	slr1778	-	hypothetical protein
211	 46.49	0	234905..236356	-	483	16329381	cad	sll1683	-	lysine decarboxylase
212	 52.26	0	236356..237438	-	360	16329382	-	sll1682	-	alanine dehydrogenase
213	 54.82	+1	237600..238325	+	241	161344770	pdxJ	slr1779	-	pyridoxal phosphate biosynthetic protein PdxJ
214	 41.29	-1	238344..238745	+	133	16329384	-	slr1780	-	hypothetical protein
215	 49.21	0	238804..240327	-	507	16329385	-	sll1681	-	hypothetical protein
216	 46.70	0	240299..240829	-	176	16329386	-	sll1680	-	methionine sulfoxide reductase B
217	 55.53	+1	240863..242047	-	394	16329387	hhoA	sll1679	-	protease; HhoA
218	 50.41	0	242246..243094	+	282	16329388	-	slr1783	-	NarL subfamily protein
219	 46.61	0	243158..244144	+	328	16329389	bvdR	slr1784	-	biliverdin reductase
220	 46.45	0	244160..244708	-	182	16329390	-	sll1678	-	spore maturation protein A
221	 46.79	0	244783..245436	-	217	16329391	-	sll1677	-	spore maturation protein B
222	 51.52	0	245502..247019	-	505	16329392	malQ	sll1676	-	4-alpha-glucanotransferase
223	 50.55	0	247117..247569	-	150	16329393	-	sll1675	-	hypothetical protein
224	 50.96	0	247619..248713	+	364	16329394	-	slr1787	-	thiamine monophosphate kinase
225	 41.76	-1	249062..250117	+	351	16329395	-	slr1788	-	hypothetical protein
48.22	MEAN

4.98	STD DEV
