IslandPathversion 1.0

IslandPath Analysis: Synechocystis sp. PCC 6803

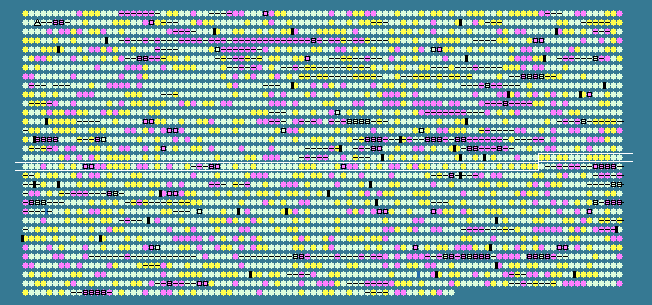

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1687	 53.83	+1	1846949..1848241	-	430	16330854	-	sll1369	-	hypothetical protein
1688	 51.74	0	1848301..1848702	-	133	16330855	petC	sll1182	-	cytochrome b6/f complex iron-sulfur subunit
1689	 50.46	0	1848799..1850550	-	583	16330856	hlyD	sll1181	-	HlyD family secretion protein
1690	 52.17	0	1850707..1853742	-	1011	16330857	hlyB	sll1180	-	HlyB family protein
1691	 51.94	0	1854102..1855982	+	626	16330858	rpoC1	slr1265	-	DNA-directed RNA polymerase subunit gamma
1692	 48.05	0	1856070..1857917	-	615	16330859	-	sll1178	-	nodulation protein
1693	 51.08	0	1858047..1858604	+	185	16330860	-	slr1266	-	hypothetical protein
1694	 50.76	0	1858609..1859790	+	393	16330861	mrdB	slr1267	-	rod-shape-determining protein
1695	 53.69	+1	1859816..1861372	+	518	16330862	ggt	slr1269	-	gamma-glutamyltranspeptidase
1696	 52.81	0	1861469..1863049	+	526	16330863	-	slr1270	-	hypothetical protein
1697	 52.36	0	1863247..1863987	+	246	16330864	rffM	slr1271	-	UDP-N-acetyl-D-mannosaminuronic acid transferase
1698	 52.42	0	1864239..1865003	+	254	16330865	-	slr1272	-	hypothetical protein
1699	 51.70	0	1865033..1865473	+	146	16330866	-	slr1273	-	hypothetical protein
1700	 50.36	0	1865658..1866761	+	367	16330867	pilM	slr1274	-	membrane protein
1701	 49.36	0	1866843..1867697	+	284	16330868	-	slr1275	-	hypothetical protein
1702	 47.83	0	1867737..1868564	+	275	16330869	-	slr1276	-	hypothetical protein
1703	 46.35	0	1868645..1871002	+	785	16330870	gspD	slr1277	-	general secretion pathway protein D
1704	 40.61	-1	1871011..1871835	-	274	16330871	-	sll1174	-	hypothetical protein
1705	 45.44	0	1871855..1872589	-	244	16330872	-	sll1173	-	hypothetical protein
1706	 47.63	0	1872656..1873648	+	330	16330873	-	slr1278	-	hypothetical protein
1707	 51.96	0	1873698..1874846	-	382	16330874	thrC	sll1172	-	threonine synthase
1708	 49.86	0	1875129..1875491	+	120	16330875	ndhC	slr1279	-	NADH dehydrogenase subunit A
1709	 53.28	+1	1875563..1876309	+	248	16330876	ndhK	slr1280	-	NADH dehydrogenase subunit B
1710	 51.48	0	1876302..1876841	+	179	16330877	ndhJ	slr1281	-	NADH dehydrogenase subunit J
1711	 37.22	-2	1877208..1877567	+	119	16330878	-	slr1282	-	transposase
1712	 36.50	-2	1877582..1878055	+	157	16330879	-	slr1283	-	transposase
1713	 40.97	-1	1878099..1879682	-	527	16330880	-	sll1170	-	hypothetical protein
1714	 44.63	0	1879983..1880699	-	238	16330881	-	sll1169	-	hypothetical protein
1715	 51.83	0	1881917..1883311	+	464	16330882	-	slr1285	-	sensory transduction histidine kinase
1716	 52.21	0	1883329..1884573	-	414	16330883	pbp	sll1167	-	penicillin-binding protein 4
1717	 54.50	+1	1884739..1884927	+	62	16330884	-	ssr2130	-	hypothetical protein
1718	 54.50	+1	1885136..1886146	+	336	16330885	-	slr1287	-	hypothetical protein
1719	 50.43	0	1886153..1886737	+	194	16330886	-	slr1288	-	hypothetical protein
1720	 42.39	-1	1887159..1888262	-	367	16330887	-	sll1166	-	hypothetical protein
1721	 44.62	0	1888398..1888778	-	126	16330888	-	sll1447	-	hypothetical protein
1722	 47.77	0	1888778..1889740	-	320	16330889	-	sll1446	-	hypothetical protein
1723	 52.74	0	1889872..1890474	-	200	16330890	leuD	sll1444	-	isopropylmalate isomerase small subunit
1724	 51.60	0	1890461..1892119	-	552	16330891	pyrG	sll1443	-	CTP synthetase
1725	 40.52	-1	1892478..1892825	-	115	16330892	-	sll1442	-	hypothetical protein
1726	 45.85	0	1892918..1895425	+	835	16330893	-	slr1529	-	nitrogen assimilation regulatory protein
1727	 46.11	0	1895520..1896599	-	359	16330894	desB	sll1441	-	delta 15 desaturase
1728	 53.39	+1	1896869..1897561	-	230	16330895	pdxH	sll1440	-	pyridoxamine 5'-phosphate oxidase
1729	 45.79	0	1897570..1898412	+	280	16330896	-	slr1530	-	hypothetical protein
1730	 32.71	-2	1898437..1899240	-	267	16330897	-	sll1439	-	hypothetical protein
1731	 51.41	0	1899700..1901148	+	482	16330898	ffh	slr1531	-	signal recognition particle protein
1732	 36.77	-2	1901385..1901879	-	164	16330899	-	sll1437	-	transposase
1733	 36.39	-2	1901873..1902232	-	119	16330900	-	sll1436	-	transposase
1734	 50.06	0	1902437..1903996	-	519	16330901	gatB	sll1435	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
1735	 51.00	0	1904025..1905977	-	650	16330902	mrcA	sll1434	-	penicillin-binding protein 1B
1736	 54.03	+1	1906170..1907744	-	524	16330903	-	sll1433	-	hypothetical protein
1737	 50.47	0	1907764..1908621	-	285	16330904	hypB	sll1432	-	hydrogenase isoenzyme formation protein; HypB
1738	 48.56	0	1908804..1909151	+	115	16330905	-	slr1533	-	hypothetical protein
1739	 53.42	+1	1909190..1910095	+	301	16330906	-	slr1534	-	hypothetical protein
1740	 51.20	0	1910499..1911494	+	331	16330907	-	slr1152	-	hypothetical protein
1741	 51.39	0	1911570..1911785	-	71	16330908	-	ssl2162	-	hypothetical protein
1742	 48.26	0	1911896..1912786	-	296	16330909	glnH	sll1104	-	glutamine-binding protein
1743	 48.88	0	1912776..1914113	-	445	16330910	-	sll1103	-	hypothetical protein
1744	 45.93	0	1914113..1914652	-	179	16330911	-	sll1102	-	hypothetical protein
1745	 49.69	0	1914818..1915135	-	105	16330912	rpsJ	sll1101	-	30S ribosomal protein S10
1746	 51.33	0	1915274..1916473	-	399	16330913	tuf	sll1099	-	elongation factor Tu
1747	 52.17	0	1916533..1918608	-	691	16330914	fus	sll1098	-	elongation factor G
1748	 52.87	0	1918815..1919285	-	156	16330915	rps7	sll1097	-	30S ribosomal protein S7
1749	 54.59	+1	1919436..1919816	-	126	16330916	rpsL	sll1096	-	30S ribosomal protein S12
1750	 49.53	0	1919913..1920548	-	211	16330917	-	sll1095	-	hypothetical protein
1751	 51.19	0	1920660..1921919	+	419	16330918	purD	slr1159	-	phosphoribosylamine--glycine ligase
1752	 49.59	0	1922124..1922738	+	204	16330919	-	slr1160	-	hypothetical protein
1753	 51.85	0	1922791..1923087	-	98	16330920	rpiB	ssl2153	-	ribose phosphate isomerase B
1754	 39.27	-1	1923170..1923472	-	100	16330921	-	sll1094	-	transposase
1755	 39.17	-1	1924251..1924850	+	199	16330922	-	slr1161	-	hypothetical protein
1756	 33.97	-2	1924999..1925943	+	314	16330923	-	slr1162	-	hypothetical protein
1757	 46.02	0	1926030..1927700	+	556	16330924	-	slr1163	-	hypothetical protein
1758	 52.86	0	1927725..1928021	-	98	16330925	-	ssl2148	-	hypothetical protein
1759	 49.57	0	1928323..1930626	+	767	16330926	nrdA	slr1164	-	ribonucleotide reductase subunit alpha
1760	 54.65	+1	1931139..1932311	+	390	16330927	sat	slr1165	-	sulfate adenylyltransferase
1761	 50.80	0	1932354..1933418	+	354	16330928	-	slr1166	-	hypothetical protein
1762	 34.63	-2	1933468..1933854	-	128	16330929	-	sll1092	-	hypothetical protein
1763	 36.71	-2	1933854..1934060	-	68	16330930	-	ssl2138	-	hypothetical protein
1764	 51.57	0	1934307..1935386	-	359	16330931	-	sll1091	-	43 kD bacteriochlorophyll synthase subunit
1765	 51.90	0	1935912..1937069	+	385	16330932	gldA	slr1167	-	glycerol dehydrogenase
1766	 41.99	-1	1937086..1937397	+	103	16330933	-	slr1168	-	hypothetical protein
1767	 53.05	0	1937474..1938310	+	278	16330934	-	slr1169	-	hypothetical protein
1768	 51.98	0	1938429..1938782	+	117	16330935	-	slr1170	-	hypothetical protein
1769	 47.25	0	1938985..1939494	+	169	16330936	-	slr1171	-	glutathione peroxidase
1770	 49.84	0	1939865..1940506	-	213	16330937	-	sll1089	-	hypothetical protein
1771	 51.85	0	1940549..1942087	-	512	16330938	-	sll1087	-	sodium-coupled permease
1772	 50.43	0	1942234..1942701	-	155	16330939	-	sll1086	-	hypothetical protein
1773	 48.20	0	1942923..1944314	+	463	16330940	-	slr1173	-	hypothetical protein
1774	 53.11	0	1944345..1944521	+	58	16330941	-	ssr1951	-	hypothetical protein
1775	 49.05	0	1944586..1945374	+	262	16330942	-	slr1174	-	hypothetical protein
1776	 50.84	0	1945518..1947179	-	553	16330943	glpD	sll1085	-	glycerol-3-phosphate dehydrogenase
1777	 52.40	0	1947325..1948824	-	499	16330944	otsA	sll1566	-	alpha,alpha-trehalose-phosphate synthase
1778	 50.71	0	1949613..1952270	+	885	16330945	-	slr1670	-	hypothetical protein
1779	 51.55	0	1952323..1953810	+	495	16330946	glpK	slr1672	-	glycerol kinase
1780	 54.06	+1	1953791..1954615	+	274	16330947	spoU	slr1673	-	rRNA methylase
1781	 48.72	0	1954721..1955071	+	116	16330948	-	slr1674	-	hypothetical protein
1782	 52.05	0	1955221..1955562	+	113	16330949	hypA	slr1675	-	hydrogenase expression/formation protein; HypA
1783	 48.17	0	1955690..1956181	+	163	16330950	-	slr1676	-	hypothetical protein
1784	 52.24	0	1956260..1957486	+	408	16330951	-	slr1677	-	hypothetical protein
1785	 53.60	+1	1957758..1958132	+	124	16330952	rplU	slr1678	-	50S ribosomal protein L21
1786	 54.17	+1	1958240..1958503	+	87	16330953	rpmA	ssr2799	-	50S ribosomal protein L27
48.22	MEAN

4.98	STD DEV
