IslandPathversion 1.0

IslandPath Analysis: Synechocystis sp. PCC 6803

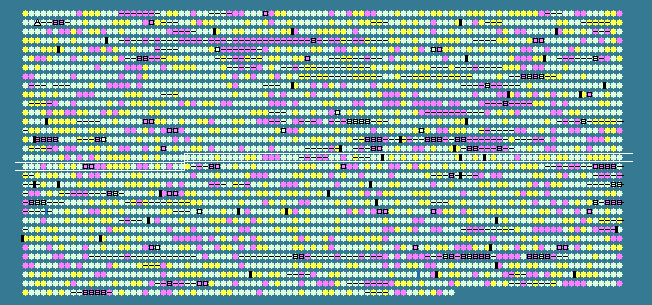

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1628	 49.63	0	1783855..1784934	+	359	16330795	-	slr1972	-	hypothetical protein
1629	 51.50	0	1784994..1785560	-	188	16330796	-	sll1886	-	hypothetical protein
1630	 45.94	0	1785835..1788372	-	845	16330797	-	sll1885	-	hypothetical protein
1631	 51.21	0	1788550..1789908	+	452	16330798	engA	slr1974	-	GTP-binding protein EngA
1632	 47.11	0	1790235..1791359	-	374	16330799	-	sll1884	-	hypothetical protein
1633	 55.79	+1	1791417..1792676	-	419	16330800	argJ	sll1883	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1634	 51.03	0	1792784..1793608	-	274	16330801	-	sll1882	-	hypothetical protein
1635	 51.11	0	1793852..1795027	+	391	16330802	-	slr1975	-	renin-binding protein
1636	 48.87	0	1795121..1795564	-	147	16330803	-	sll1880	-	hypothetical protein
1637	 50.21	0	1795778..1797466	-	562	16330804	-	sll1879	-	hypothetical protein
1638	 52.39	0	1797552..1798658	-	368	16330805	-	sll1878	-	ABC transporter
1639	 52.79	0	1798804..1799538	+	244	16330806	-	slr1977	-	hypothetical protein
1640	 45.43	0	1799608..1800483	+	291	16330807	-	slr1978	-	hypothetical protein
1641	 44.10	0	1800387..1801844	+	485	16330808	trpE	slr1979	-	anthranilate synthase component I-like protein
1642	 38.70	-1	1801787..1802680	+	297	16330809	-	slr1980	-	hypothetical protein
1643	 41.68	-1	1802742..1804142	-	466	16330810	hemN	sll1876	-	coproporphyrinogen III oxidase
1644	 45.02	0	1804403..1805155	-	250	16330811	ho2	sll1875	-	heme oxygenase
1645	 45.03	0	1805220..1806296	-	358	16330812	AT103	sll1874	-	magnesium-protoporphyrin IX monomethyl ester cyclase
1646	 51.09	0	1806871..1807236	-	121	16330813	-	sll1873	-	hypothetical protein
1647	 51.15	0	1807333..1808724	-	463	16330814	lytR	sll1872	-	membrane bound protein; LytR
1648	 37.23	-2	1808922..1810946	-	674	16330815	-	sll1871	-	sensory transduction histidine kinase
1649	 49.73	0	1811130..1811501	+	123	16330816	-	slr1982	-	CheY family protein
1650	 40.12	-1	1811746..1813557	+	603	16330817	-	slr1983	-	regulatory components of sensory transduction system
1651	 40.53	-1	1813554..1814234	-	226	16330818	-	sll1870	-	ABC transporter
1652	 46.65	0	1814231..1815304	-	357	16330819	cbaB	sll1869	-	3-chlorobenzoate-3,4-dioxygenase
1653	 49.35	0	1815454..1816371	+	305	16330820	rps1	slr1984	-	30S ribosomal protein S1
1654	 43.19	-1	1816855..1818762	-	635	16330821	dnaG	sll1868	-	DNA primase
1655	 51.25	0	1818915..1819997	-	360	16330822	psbA3	sll1867	-	photosystem II D1 protein
1656	 53.17	0	1820238..1820837	-	199	16330823	-	sll1866	-	hypothetical protein
1657	 50.53	0	1820889..1821638	-	249	16330824	-	sll1390	-	hypothetical protein
1658	 47.89	0	1821824..1822036	-	70	16330825	-	ssl2717	-	hypothetical protein
1659	 50.09	0	1822054..1822620	-	188	16330826	-	sll1389	-	hypothetical protein
1660	 49.68	0	1822666..1823130	-	154	16330827	-	sll1388	-	hypothetical protein
1661	 51.28	0	1823570..1823686	+	38	16330828	petG	smr0010	-	cytochrome b6-f complex subunit PetG
1662	 52.16	0	1823968..1824732	-	254	16330829	-	sll1387	-	hypothetical protein
1663	 49.42	0	1824953..1825468	-	171	16330830	-	sll1386	-	hypothetical protein
1664	 52.02	0	1825558..1826226	+	222	16330831	-	slr1467	-	precorrin-8X methylmutase
1665	 50.44	0	1826259..1826708	+	149	16330832	-	slr1468	-	tymocyte protein cThy28kD
1666	 55.80	+1	1826764..1826901	+	45	16330833	rpmH	smr0011	-	50S ribosomal protein L34
1667	 45.33	0	1826911..1827285	+	124	16330834	rnpA	slr1469	-	ribonuclease P
1668	 53.03	0	1827257..1827652	+	131	16330835	-	slr1470	-	hypothetical protein
1669	 48.23	0	1827753..1828907	+	384	16330836	-	slr1471	-	putative inner membrane protein translocase component YidC
1670	 49.49	0	1828997..1829491	+	164	16330837	-	slr1472	-	hypothetical protein
1671	 48.04	0	1829553..1830497	-	314	16330838	-	sll1384	-	hypothetical protein
1672	 51.50	0	1830628..1831491	-	287	16330839	suhB	sll1383	-	extragenic suppressor; SuhB
1673	 51.76	0	1831561..1831929	-	122	16330840	petF	sll1382	-	ferredoxin
1674	 46.17	0	1832360..1833169	+	269	16330841	-	slr1474	-	hypothetical protein
1675	 45.41	0	1833176..1833589	-	137	16330842	-	sll1381	-	hypothetical protein
1676	 51.94	0	1833655..1834299	-	214	16330843	-	sll1380	-	hypothetical protein
1677	 50.90	0	1834508..1835503	+	331	16330844	pyrB	slr1476	-	aspartate carbamoyltransferase catalytic subunit
1678	 50.50	0	1835747..1836649	-	300	16330845	-	sll1378	-	hypothetical protein
1679	 53.47	+1	1836691..1838130	-	479	16330846	-	sll1377	-	hypothetical protein
1680	 51.68	0	1838299..1839252	+	317	16330847	-	slr1478	-	hypothetical protein
1681	 50.12	0	1839259..1840491	-	410	16330848	-	sll1376	-	bifunctional sterol desaturase/short chain dehydrogenase
1682	 47.89	0	1841056..1842690	-	544	16330849	melB	sll1374	-	melibiose carrier protein
1683	 43.30	0	1842983..1843534	-	183	16330850	-	sll1373	-	hypothetical protein
1684	 46.98	0	1843610..1844437	-	275	16330851	-	sll1372	-	hypothetical protein
1685	 50.93	0	1844568..1845266	-	232	16330852	-	sll1371	-	catabolite gene activator protein
1686	 50.00	0	1845795..1846898	-	367	16330853	rfbM	sll1370	-	GDP-mannose pyrophosphorylase
1687	 53.83	+1	1846949..1848241	-	430	16330854	-	sll1369	-	hypothetical protein
1688	 51.74	0	1848301..1848702	-	133	16330855	petC	sll1182	-	cytochrome b6/f complex iron-sulfur subunit
1689	 50.46	0	1848799..1850550	-	583	16330856	hlyD	sll1181	-	HlyD family secretion protein
1690	 52.17	0	1850707..1853742	-	1011	16330857	hlyB	sll1180	-	HlyB family protein
1691	 51.94	0	1854102..1855982	+	626	16330858	rpoC1	slr1265	-	DNA-directed RNA polymerase subunit gamma
1692	 48.05	0	1856070..1857917	-	615	16330859	-	sll1178	-	nodulation protein
1693	 51.08	0	1858047..1858604	+	185	16330860	-	slr1266	-	hypothetical protein
1694	 50.76	0	1858609..1859790	+	393	16330861	mrdB	slr1267	-	rod-shape-determining protein
1695	 53.69	+1	1859816..1861372	+	518	16330862	ggt	slr1269	-	gamma-glutamyltranspeptidase
1696	 52.81	0	1861469..1863049	+	526	16330863	-	slr1270	-	hypothetical protein
1697	 52.36	0	1863247..1863987	+	246	16330864	rffM	slr1271	-	UDP-N-acetyl-D-mannosaminuronic acid transferase
1698	 52.42	0	1864239..1865003	+	254	16330865	-	slr1272	-	hypothetical protein
1699	 51.70	0	1865033..1865473	+	146	16330866	-	slr1273	-	hypothetical protein
1700	 50.36	0	1865658..1866761	+	367	16330867	pilM	slr1274	-	membrane protein
1701	 49.36	0	1866843..1867697	+	284	16330868	-	slr1275	-	hypothetical protein
1702	 47.83	0	1867737..1868564	+	275	16330869	-	slr1276	-	hypothetical protein
1703	 46.35	0	1868645..1871002	+	785	16330870	gspD	slr1277	-	general secretion pathway protein D
1704	 40.61	-1	1871011..1871835	-	274	16330871	-	sll1174	-	hypothetical protein
1705	 45.44	0	1871855..1872589	-	244	16330872	-	sll1173	-	hypothetical protein
1706	 47.63	0	1872656..1873648	+	330	16330873	-	slr1278	-	hypothetical protein
1707	 51.96	0	1873698..1874846	-	382	16330874	thrC	sll1172	-	threonine synthase
1708	 49.86	0	1875129..1875491	+	120	16330875	ndhC	slr1279	-	NADH dehydrogenase subunit A
1709	 53.28	+1	1875563..1876309	+	248	16330876	ndhK	slr1280	-	NADH dehydrogenase subunit B
1710	 51.48	0	1876302..1876841	+	179	16330877	ndhJ	slr1281	-	NADH dehydrogenase subunit J
1711	 37.22	-2	1877208..1877567	+	119	16330878	-	slr1282	-	transposase
1712	 36.50	-2	1877582..1878055	+	157	16330879	-	slr1283	-	transposase
1713	 40.97	-1	1878099..1879682	-	527	16330880	-	sll1170	-	hypothetical protein
1714	 44.63	0	1879983..1880699	-	238	16330881	-	sll1169	-	hypothetical protein
1715	 51.83	0	1881917..1883311	+	464	16330882	-	slr1285	-	sensory transduction histidine kinase
1716	 52.21	0	1883329..1884573	-	414	16330883	pbp	sll1167	-	penicillin-binding protein 4
1717	 54.50	+1	1884739..1884927	+	62	16330884	-	ssr2130	-	hypothetical protein
1718	 54.50	+1	1885136..1886146	+	336	16330885	-	slr1287	-	hypothetical protein
1719	 50.43	0	1886153..1886737	+	194	16330886	-	slr1288	-	hypothetical protein
1720	 42.39	-1	1887159..1888262	-	367	16330887	-	sll1166	-	hypothetical protein
1721	 44.62	0	1888398..1888778	-	126	16330888	-	sll1447	-	hypothetical protein
1722	 47.77	0	1888778..1889740	-	320	16330889	-	sll1446	-	hypothetical protein
1723	 52.74	0	1889872..1890474	-	200	16330890	leuD	sll1444	-	isopropylmalate isomerase small subunit
1724	 51.60	0	1890461..1892119	-	552	16330891	pyrG	sll1443	-	CTP synthetase
1725	 40.52	-1	1892478..1892825	-	115	16330892	-	sll1442	-	hypothetical protein
1726	 45.85	0	1892918..1895425	+	835	16330893	-	slr1529	-	nitrogen assimilation regulatory protein
1727	 46.11	0	1895520..1896599	-	359	16330894	desB	sll1441	-	delta 15 desaturase
48.22	MEAN

4.98	STD DEV
