IslandPathversion 1.0

IslandPath Analysis: Synechocystis sp. PCC 6803

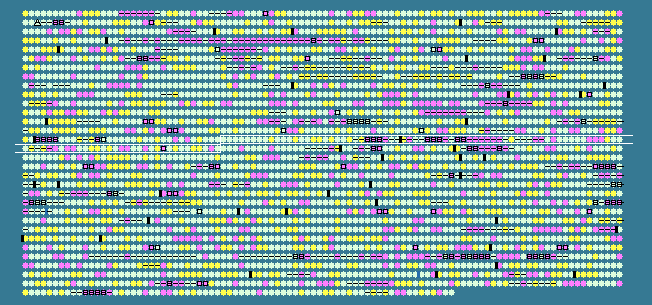

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1434	 49.32	0	1587899..1589374	-	491	16330602	-	sll1424	-	hypothetical protein
1435	 50.00	0	1589384..1590061	-	225	16330603	ntcA	sll1423	-	global nitrogen regulator
1436	 47.39	0	1590134..1590382	-	82	16330604	-	ssl2781	-	hypothetical protein
1437	 50.56	0	1590496..1592364	+	622	16330605	-	slr1506	-	hypothetical protein
1438	 50.05	0	1592918..1594000	+	360	16330606	-	slr1507	-	hypothetical protein
1439	 51.28	0	1594119..1595288	+	389	16330607	-	slr1508	-	hypothetical protein
1440	 48.69	0	1595285..1596619	+	444	16330608	ntpJ	slr1509	-	Na+ -ATPase subunit J
1441	 50.53	0	1596795..1597841	+	348	16330609	plsX	slr1510	-	putative glycerol-3-phosphate acyltransferase PlsX
1442	 53.17	0	1597936..1598928	+	330	161344761	fabH	slr1511	-	3-oxoacyl-(acyl carrier protein) synthase III
1443	 50.62	0	1598972..1599538	-	188	16330611	-	sll1418	-	hypothetical protein
1444	 49.33	0	1600659..1601783	+	374	16330612	-	slr1512	-	hypothetical protein
1445	 45.35	0	1601869..1602201	+	110	16330613	-	slr1513	-	hypothetical protein
1446	 51.95	0	1602482..1603405	-	307	16330614	ppnK	sll1415	-	inorganic polyphosphate/ATP-NAD kinase
1447	 49.38	0	1603437..1604159	-	240	16330615	-	sll1414	-	Thf1-like protein
1448	 47.95	0	1604293..1604463	+	56	16330616	-	ssr2549	-	hypothetical protein
1449	 52.84	0	1604863..1606287	+	474	16330617	-	slr1515	-	hypothetical protein
1450	 54.74	+1	1606361..1606645	+	94	16330618	-	ssr2551	-	hypothetical protein
1451	 50.17	0	1607353..1607952	+	199	16330619	sodB	slr1516	-	superoxide dismutase
1452	 52.71	0	1608232..1609320	+	362	16330620	leuB	slr1517	-	3-isopropylmalate dehydrogenase
1453	 51.69	0	1609539..1609805	+	88	16330621	-	ssr2554	-	hypothetical protein
1454	 50.43	0	1609826..1610749	+	307	16330622	menA	slr1518	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
1455	 52.17	0	1610727..1611464	+	245	16330623	hglK	slr1519	-	HglK
1456	 48.67	0	1611574..1612629	+	351	16330624	-	slr1520	-	hypothetical protein
1457	 53.83	+1	1612797..1614401	+	534	16330625	hflX	slr1521	-	GTP-binding protein; HflX
1458	 35.10	-2	1614572..1615648	+	358	16330626	-	slr1522	-	transposase
1459	 36.06	-2	1615869..1616528	+	219	16330627	-	slr1523	-	transposase
1460	 36.24	-2	1616904..1617419	+	171	16330628	-	slr1524	-	transposase
1461	 42.01	-1	1617376..1617813	-	145	16330629	-	sll1411	-	hypothetical protein
1462	 45.36	0	1617806..1618096	-	96	16330630	-	ssl2749	-	hypothetical protein
1463	 50.69	0	1618127..1619653	-	508	16330631	lap	sll2001	-	leucyl aminopeptidase
1464	 52.15	0	1620037..1620222	+	61	16330632	-	ssr3570	-	hypothetical protein
1465	 35.23	-2	1620276..1620539	+	87	16330633	-	ssr3571	-	hypothetical protein
1466	 50.17	0	1620973..1621881	+	302	16330634	kpsM	slr2107	-	polysialic acid transport protein; KpsM
1467	 45.34	0	1621978..1623093	+	371	16330635	kpsT	slr2108	-	polysialic acid transport ATP-binding protein; KpsT
1468	 29.48	-2	1623130..1623648	-	172	16330636	-	sll1999	-	transposase
1469	 36.63	-2	1623723..1624571	-	282	16330637	-	sll1998	-	transposase
1470	 34.19	-2	1624628..1625095	-	155	16330638	-	sll1997	-	transposase
1471	 28.95	-2	1625291..1625632	+	113	16330639	-	slr2110	-	hypothetical protein
1472	 45.36	0	1625622..1626095	+	157	16330640	-	slr2111	-	hypothetical protein
1473	 36.11	-2	1626165..1626524	+	119	16330641	-	slr2112	-	transposase
1474	 36.77	-2	1626518..1627012	+	164	16330642	-	slr2113	-	transposase
1475	 38.44	-1	1626981..1628018	+	345	16330643	spsC	slr2114	-	spore coat polysaccharide biosynthesis protein; SpsC
1476	 31.55	-2	1628039..1629607	+	522	16330644	-	slr2115	-	hypothetical protein
1477	 30.57	-2	1629604..1630434	+	276	16330645	spsA	slr2116	-	spore coat polysaccharide biosynthesis protein; SpsA
1478	 30.40	-2	1630460..1631005	+	181	16330646	-	slr2117	-	hypothetical protein
1479	 32.86	-2	1631265..1632530	+	421	16330647	-	slr2118	-	hypothetical protein
1480	 40.86	-1	1632538..1633374	+	278	16330648	-	slr2119	-	hypothetical protein
1481	 51.16	0	1633422..1634414	+	330	16330649	-	slr2120	-	hypothetical protein
1482	 52.93	0	1634411..1635058	+	215	16330650	-	slr2121	-	hypothetical protein
1483	 45.72	0	1635072..1635749	+	225	16330651	-	slr2122	-	hypothetical protein
1484	 48.69	0	1635746..1636702	+	318	16330652	-	slr2123	-	D-isomer specific 2-hydroxyacid dehydrogenase family protein
1485	 50.40	0	1636705..1637454	+	249	16330653	-	slr2124	-	short-chain alcohol dehydrogenase family protein
1486	 36.98	-2	1637476..1638270	+	264	16330654	-	slr2125	-	hypothetical protein
1487	 33.56	-2	1638381..1639247	+	288	16330655	-	slr2126	-	hypothetical protein
1488	 47.92	0	1639944..1640519	+	191	16330656	-	slr2127	-	hypothetical protein
1489	 39.74	-1	1640786..1641238	+	150	16330657	-	slr2128	-	hypothetical protein
1490	 48.82	0	1641278..1642207	-	309	16330658	-	sll1995	-	hypothetical protein
1491	 50.81	0	1642288..1643271	-	327	16330659	hemB	sll1994	-	delta-aminolevulinic acid dehydratase
1492	 46.46	0	1643502..1643600	-	32	109150014	petL	sll1994a	-	cytochrome b6f complex subunit PetL
1493	 50.74	0	1643682..1644767	+	361	16330660	aroB	slr2130	-	3-dehydroquinate synthase
1494	 50.44	0	1644905..1648090	+	1061	16330661	-	slr2131	-	cation or drug efflux system protein
1495	 33.07	-2	1648681..1649439	-	252	16330662	-	sll1241	-	hypothetical protein
1496	 28.90	-2	1649441..1649914	-	157	16330663	-	sll1240	-	hypothetical protein
1497	 31.10	-2	1649907..1650443	-	178	16330664	-	sll1239	-	hypothetical protein
1498	 51.90	0	1650889..1652358	+	489	16330665	-	slr1322	-	hypothetical protein
1499	 51.22	0	1652397..1653296	-	299	16330666	hemK	sll1237	-	protoporphyrinogen oxidase
1500	 49.56	0	1653402..1654664	+	420	16330667	-	slr1324	-	hybrid sensory kinase
1501	 47.47	0	1654943..1655140	+	65	16330668	-	ssr2194	-	hypothetical protein
1502	 52.08	0	1655289..1655672	-	127	16330669	-	sll1236	-	hypothetical protein
1503	 49.85	0	1656043..1658325	+	760	16330670	spoT	slr1325	-	(p)ppGpp 3'-pyrophosphohydrolase
1504	 53.36	+1	1658511..1659788	-	425	16330671	ahcY	sll1234	-	S-adenosyl-L-homocysteine hydrolase
1505	 32.88	-2	1660069..1660287	+	72	16330672	-	ssr2201	-	hypothetical protein
1506	 33.79	-2	1660277..1660711	+	144	16330673	-	slr1327	-	hypothetical protein
1507	 51.30	0	1660739..1661623	-	294	16330674	-	sll1233	-	hypothetical protein
1508	 40.07	-1	1661722..1662285	-	187	16330675	-	sll1232	-	hypothetical protein
1509	 41.67	-1	1662306..1663505	-	399	16330676	mtfB	sll1231	-	mannosyltransferase B
1510	 49.78	0	1663554..1664690	-	378	16330677	-	sll1229	-	hybrid sensory kinase
1511	 51.31	0	1664798..1666699	-	633	16330678	-	sll1228	-	hybrid sensory kinase
1512	 52.89	0	1666932..1668383	+	483	16330679	atpB	slr1329	-	F0F1 ATP synthase subunit beta
1513	 53.77	+1	1668531..1668941	+	136	161344760	atpC	slr1330	-	F0F1 ATP synthase subunit epsilon
1514	 51.23	0	1669101..1670642	+	513	16330681	ymxG	slr1331	-	processing protease
1515	 52.51	0	1670650..1671864	+	404	16330682	fabF	slr1332	-	3-oxoacyl-(acyl carrier protein) synthase II
1516	 45.61	0	1672071..1673495	-	474	16330683	hoxH	sll1226	-	hydrogenase large subunit
1517	 34.44	-2	1673585..1674034	-	149	16330684	-	sll1225	-	hypothetical protein
1518	 37.25	-2	1674044..1674298	-	84	16330685	-	ssl2420	-	hypothetical protein
1519	 47.72	0	1674350..1674898	-	182	16330686	hoxY	sll1224	-	hydrogenase small subunit
1520	 46.72	0	1674944..1675660	-	238	16330687	hoxU	sll1223	-	bidirectional hydrogenase complex protein HoxU
1521	 38.81	-1	1675687..1676325	-	212	16330688	-	sll1222	-	hypothetical protein
1522	 49.69	0	1676366..1677967	-	533	16330689	hoxF	sll1221	-	hydrogenase subunit
1523	 51.72	0	1678044..1678565	-	173	16330690	-	sll1220	-	bidirectional hydrogenase complex protein HoxE
1524	 41.32	-1	1679517..1679804	+	95	16330691	-	ssr2227	-	transposase
1525	 50.78	0	1680662..1682134	+	490	16330692	-	slr1334	-	hypothetical protein
1526	 56.57	+1	1682001..1682327	-	108	16330693	-	sll1219	-	hypothetical protein
1527	 49.09	0	1682870..1683529	-	219	16330694	ycf39	sll1218	-	hypothetical protein
1528	 47.49	0	1683583..1684260	-	225	16330695	-	sll1217	-	hypothetical protein
1529	 55.90	+1	1684497..1684691	+	64	16330696	-	ssr1375	-	hypothetical protein
1530	 53.33	+1	1684928..1685872	+	314	16330697	dacB	slr0804	-	D-alanyl-D-alanine carboxypeptidase
1531	 49.09	0	1685899..1687218	+	439	16330698	-	slr0806	-	hypothetical protein
1532	 42.28	-1	1687326..1687448	-	40	16330699	psaJ	sml0008	-	photosystem I reaction center subunit IX
1533	 49.40	0	1687556..1688053	-	165	16330700	psaF	sll0819	-	photosystem I subunit III
48.22	MEAN

4.98	STD DEV
