IslandPath Analysis: Synechocystis sp. PCC 6803

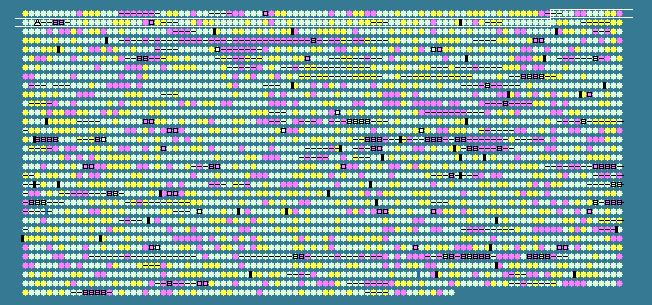

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
89	 47.95	0	107471..108325	-	284	16329260	ksgA	sll0708	-	dimethyladenosine transferase
90	 51.43	0	108290..109201	+	303	16329261	-	slr0722	-	hypothetical protein
91	 50.00	0	109222..110313	+	363	16329262	-	slr0723	-	hypothetical protein
92	 47.45	0	110392..110724	+	110	16329263	sohA	slr0724	-	putative regulator PrlF
93	 40.29	-1	110808..111224	+	138	16329264	-	slr0725	-	hypothetical protein
94	 31.59	-2	111585..112559	+	324	16329265	-	slr0727	-	hypothetical protein
95	 51.55	0	113025..114188	+	387	16329266	-	slr0728	-	hypothetical protein
96	 50.33	0	114319..114624	+	101	16329267	-	slr0729	-	hypothetical protein
97	 49.87	0	114874..115272	+	132	16329268	-	slr0730	-	hypothetical protein
98	 52.94	0	115269..116477	+	402	16329269	-	slr0731	-	hypothetical protein
99	 54.51	+1	116518..117693	-	391	16329270	nifS	sll0704	-	NifS protein
100	 36.11	-2	117869..118336	+	155	16329271	-	slr0732	-	hypothetical protein
101	 48.92	0	118333..119532	-	399	16329272	-	sll0703	-	hypothetical protein
102	 50.89	0	119570..119962	-	130	16329273	-	sll0702	-	hypothetical protein
103	 49.47	0	120719..121660	+	313	16329274	xerC	slr0733	-	integrase-recombinase protein
104	 45.61	0	121706..121990	-	94	16329275	-	ssl1326	-	hypothetical protein
105	 51.39	0	122287..123405	+	372	16329276	-	slr0734	-	hypothetical protein
106	 36.77	-2	123501..123995	-	164	16329277	-	sll0700	-	transposase
107	 36.39	-2	123989..124348	-	119	16329278	-	sll0699	-	transposase
108	 47.79	0	124452..126443	-	663	16329279	dfr	sll0698	-	drug sensory protein A
109	 50.23	0	126639..127064	+	141	16329280	psaD	slr0737	-	photosystem I subunit II
110	 50.62	0	127186..128712	+	508	16329281	trpE	slr0738	-	anthranilate synthase component I
111	 54.35	+1	128802..129710	+	302	16329282	crtE	slr0739	-	geranylgeranyl pyrophosphate synthase
112	 51.01	0	129791..130186	+	131	16329283	-	slr0740	-	hypothetical protein
113	 49.94	0	130167..131039	-	290	16329284	-	sll0696	-	hypothetical protein
114	 51.41	0	131116..131790	+	224	16329285	phoU	slr0741	-	a negative regulator of pho regulon
115	 50.09	0	131877..132407	+	176	16329286	-	slr0742	-	hypothetical protein
116	 53.52	+1	132483..133859	+	458	16329287	nusA	slr0743	-	transcription elongation factor NusA
117	 54.90	+1	133923..134177	+	84	109150011	-	slr0743a	-	hypothetical protein
118	 55.46	+1	134437..137442	+	1001	16329288	infB	slr0744	-	translation initiation factor IF-2
119	 50.22	0	137444..138112	+	222	16329289	-	slr0236	-	hypothetical protein
120	 51.18	0	138295..140535	+	746	16329290	glgX	slr0237	-	glycogen operon protein; GlgX
121	 44.68	0	140585..141007	+	140	16329291	-	slr0238	-	hypothetical protein
122	 38.44	-1	141123..141416	-	97	16329292	-	ssl0426	-	transposase
123	 51.95	0	141648..142442	+	264	16329293	cbiF	slr0239	-	precorrin methylase
124	 53.90	+1	142559..142981	+	140	16329294	-	slr0240	-	hypothetical protein
125	 49.53	0	142981..143826	+	281	16329295	-	slr0241	-	hypothetical protein
126	 45.13	0	144061..144543	+	160	16329296	bcp	slr0242	-	bacterioferritin comigratory protein
127	 44.89	0	144554..145081	+	175	16329297	-	slr0243	-	hypothetical protein
128	 51.37	0	145164..145529	-	121	16329298	-	sll0230	-	hypothetical protein
129	 51.81	0	145761..146615	+	284	16329299	-	slr0244	-	hypothetical protein
130	 37.96	-2	146724..146831	-	35	16329300	psbM	sml0003	-	photosystem II reaction center protein M
131	 52.79	0	146980..147894	+	304	16329301	-	slr0245	-	acetylpolyamine aminohydolase
132	 51.79	0	148022..148942	-	306	16329302	-	sll0228	-	arginase
133	 49.53	0	148943..149683	-	246	16329303	ppiB	sll0227	-	peptidyl-prolyl cis-trans isomerase B
134	 50.97	0	149889..150455	-	188	16329304	ycf4	sll0226	-	photosystem I assembly protein Ycf4
135	 45.81	0	150594..152132	-	512	16329305	-	sll0225	-	hypothetical protein
136	 47.94	0	152154..153050	-	298	16329306	-	sll0224	-	hypothetical protein
137	 50.67	0	153622..153996	+	124	16329307	-	slr0249	-	hypothetical protein
138	 55.31	+1	154143..154679	+	178	16329308	-	slr0250	-	hypothetical protein
139	 51.65	0	154703..155461	+	252	16329309	-	slr0251	-	ABC transporter
140	 49.75	0	155473..156258	+	261	16329310	-	slr0252	-	cobalt-precorrin-6x reductase
141	 52.49	0	156391..156651	+	86	16329311	psaK	ssr0390	-	photosystem I reaction center subunit X
142	 42.86	-1	156741..157013	-	90	16329312	-	ssl0410	-	hypothetical protein
143	 50.70	0	157050..158615	-	521	16329313	ndhB	sll0223	-	NAD(P)H-quinone oxidoreductase subunit 2
144	 50.87	0	158757..159737	-	326	16329314	phoA	sll0222	-	alkaline phosphatase
145	 54.00	+1	159812..159961	-	49	16329315	-	sgl0002	-	hypothetical protein
146	 48.89	0	160004..160093	-	29	16329316	ycf6	sml0004	-	hypothetical protein
147	 48.81	0	160258..161058	+	266	16329317	-	slr0254	-	hypothetical protein
148	 51.53	0	161088..161642	-	184	16329318	bcp	sll0221	-	bacterioferritin comigratory protein
149	 51.05	0	161768..163663	-	631	16329319	glmS	sll0220	-	D-fructose-6-phosphate amidotransferase
150	 50.08	0	164037..165821	-	594	16329320	-	sll0219	-	potential FMN-protein
151	 49.13	0	165871..166389	-	172	16329321	-	sll0218	-	hypothetical protein
152	 51.76	0	166416..168152	-	578	16329322	-	sll0217	-	potential FMN-protein
153	 51.69	0	168533..169921	+	462	16329323	ctpB	slr0257	-	carboxyl-terminal protease
154	 48.97	0	169934..170566	-	210	16329324	-	sll0216	-	hypothetical protein
155	 51.85	0	170572..171840	+	422	16329325	-	slr1411	-	hypothetical protein
156	 50.69	0	171939..172883	-	314	16329326	atpC	sll1327	-	F0F1 ATP synthase subunit gamma
157	 52.05	0	173014..174525	-	503	16329327	atpA	sll1326	-	F0F1 ATP synthase subunit alpha
158	 52.69	0	174586..175143	-	185	16329328	atpD	sll1325	-	F0F1 ATP synthase subunit delta
159	 52.41	0	175143..175682	-	179	16329329	atpF	sll1324	-	F0F1 ATP synthase subunit B
160	 52.08	0	175708..176139	-	143	16329330	atpG	sll1323	-	F0F1 ATP synthase subunit B'
161	 50.81	0	176256..176501	-	81	16329331	atpH	ssl2615	-	F0F1 ATP synthase subunit C
162	 49.58	0	176693..177523	-	276	16329332	atpI	sll1322	-	F0F1 ATP synthase subunit A
163	 48.99	0	177592..178038	-	148	16329333	atp1	sll1321	-	hypothetical protein
164	 53.25	+1	178237..179682	+	481	16329334	-	slr1413	-	hypothetical protein
165	 47.34	0	179734..181047	+	437	16329335	-	slr1414	-	sensory transduction histidine kinase
166	 52.31	0	181073..182221	+	382	16329336	-	slr1415	-	hypothetical protein
167	 51.53	0	182354..183298	+	314	16329337	morR	slr1416	-	MorR protein
168	 47.62	0	183493..183849	+	118	16329338	-	slr1417	-	hypothetical protein
169	 42.93	-1	183935..184924	-	329	16329339	-	sll1319	-	hypothetical protein
170	 50.37	0	184968..185636	-	222	16329340	-	sll1318	-	hypothetical protein
171	 49.17	0	185772..186554	-	260	16329341	-	sll1041	-	ABC transporter
172	 48.69	0	186601..188898	-	765	16329342	-	sll1040	-	hypothetical protein
173	 54.59	+1	189128..189715	+	195	16329343	folK	slr1093	-	7,8-dihydro-6-hydroxymethylpterin-pyrophosphokin ase
174	 49.49	0	190033..190818	+	261	16329344	-	slr1094	-	hypothetical protein
175	 49.30	0	190815..191954	-	379	16329345	-	sll1039	-	hypothetical protein
176	 43.98	0	192136..192783	+	215	16329346	-	slr1095	-	hypothetical protein
177	 52.47	0	192870..194306	+	478	16329347	phdD	slr1096	-	dihydrolipoamide dehydrogenase
178	 50.20	0	194310..194801	+	163	16329348	-	slr1097	-	hypothetical protein
179	 54.68	+1	194859..195617	+	252	16329349	-	slr1098	-	hypothetical protein
180	 55.56	+1	195685..196305	+	206	16329350	ubiX	slr1099	-	aromatic acid decarboxylase
181	 45.67	0	196611..196991	+	126	16329351	-	slr1100	-	hypothetical protein
182	 51.68	0	197231..197557	+	108	16329352	-	slr1101	-	hypothetical protein
183	 49.88	0	197624..200185	+	853	16329353	-	slr1102	-	hypothetical protein
184	 46.68	0	200405..202525	+	706	16329354	-	slr1103	-	hypothetical protein
185	 46.47	0	202554..204395	+	613	16329355	-	slr1104	-	hypothetical protein
186	 51.39	0	204604..206397	+	597	16329356	fus	slr1105	-	elongation factor EF-G
187	 48.44	0	206863..208338	-	491	16329357	-	sll1037	-	hypothetical protein
188	 49.60	0	208549..209427	-	292	16329358	-	sll1036	-	hypothetical protein
48.22	MEAN

4.98	STD DEV
