IslandPathversion 1.0

IslandPath Analysis: Synechocystis sp. PCC 6803

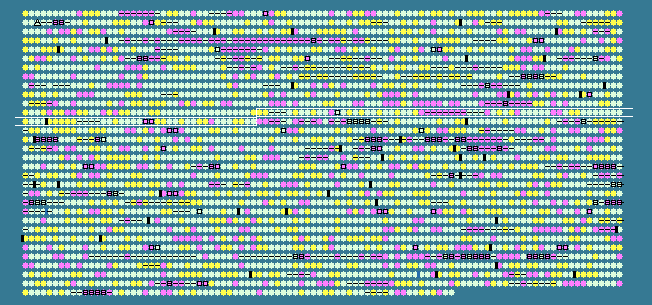

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1140	 52.90	0	1261217..1261993	+	258	16330308	hupE	slr2135	-	hydrogenase accessory protein
1141	 52.39	0	1262049..1263260	+	403	16330309	ispG	slr2136	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
1142	 47.24	0	1263414..1263830	-	138	16330310	-	sll2007	-	hypothetical protein
1143	 48.46	0	1263823..1264179	-	118	16330311	-	sll2006	-	hypothetical protein
1144	 45.51	0	1264328..1267564	-	1078	16330312	gyrB	sll2005	-	DNA gyrase B subunit
1145	 50.39	0	1267693..1267950	-	85	16330313	-	ssl3829	-	hypothetical protein
1146	 55.00	+1	1268189..1268308	-	39	16330314	ycf32	sml0007	-	ycf32 gene product
1147	 51.42	0	1268388..1269410	+	340	16330315	-	slr2141	-	hypothetical protein
1148	 48.72	0	1269407..1270738	-	443	16330316	-	sll2003	-	hypothetical protein
1149	 52.90	0	1271069..1272274	+	401	16330317	cefD	slr2143	-	isopenicillin N epimerase
1150	 50.51	0	1272370..1273248	-	292	16330318	-	sll2002	-	hypothetical protein
1151	 50.44	0	1273408..1274313	+	301	16330319	-	slr2144	-	hypothetical protein
1152	 35.16	-2	1274352..1275281	+	309	16330320	mbpA	slr1803	-	adenine-specific DNA metylase
1153	 45.93	0	1275372..1276157	-	261	16330321	-	sll1710	-	transposase
1154	 49.40	0	1276236..1276982	-	248	16330322	gdh	sll1709	-	glucose dehydrogenase
1155	 54.74	+1	1277108..1277392	-	94	16330323	-	ssl3291	-	hypothetical protein
1156	 50.51	0	1277442..1278122	-	226	16330324	-	sll1708	-	NarL subfamily protein
1157	 54.49	+1	1278293..1280542	+	749	16330325	-	slr1805	-	sensory transduction histidine kinase
1158	 45.91	0	1280567..1281337	-	256	16330326	csgA	sll1704	-	cell-cell signaling protein, C-factor
1159	 48.55	0	1281361..1283193	-	610	16330327	sppA	sll1703	-	protease IV
1160	 52.44	0	1283190..1283702	-	170	16330328	-	sll1702	-	hypothetical protein
1161	 51.15	0	1283741..1284526	+	261	16330329	-	slr1807	-	hypothetical protein
1162	 51.32	0	1284660..1285943	+	427	161344763	hemA	slr1808	-	glutamyl-tRNA reductase
1163	 51.88	0	1286105..1286902	+	265	16330331	-	slr1809	-	hypothetical protein
1164	 46.31	0	1286868..1288763	-	631	16330332	-	sll1699	-	extracellular solute-binding protein
1165	 50.13	0	1288732..1289112	-	126	16330333	-	sll1698	-	hypothetical protein
1166	 53.00	0	1289389..1290354	-	321	16330334	-	sll1697	-	hypothetical protein
1167	 41.25	-1	1290478..1290957	+	159	16330335	-	slr1811	-	hypothetical protein
1168	 36.90	-2	1291080..1291556	+	158	16330336	-	slr1812	-	hypothetical protein
1169	 38.96	-1	1291631..1292092	+	153	16330337	-	slr1813	-	hypothetical protein
1170	 38.06	-2	1292215..1292679	+	154	16330338	-	slr1814	-	hypothetical protein
1171	 37.62	-2	1292820..1293356	+	178	16330339	-	slr1815	-	hypothetical protein
1172	 36.82	-2	1293398..1295551	+	717	16330340	-	slr1816	-	hypothetical protein
1173	 38.50	-1	1295568..1296380	-	270	16330341	-	sll1696	-	hypothetical protein
1174	 41.52	-1	1296382..1296894	-	170	16330342	hofG	sll1695	-	general secretion pathway protein G
1175	 46.94	0	1296993..1297499	-	168	16330343	hofG	sll1694	-	general secretion pathway protein G
1176	 46.11	0	1297643..1298965	-	440	16330344	-	sll1693	-	hypothetical protein
1177	 45.87	0	1299120..1299725	+	201	16330345	-	slr1818	-	hypothetical protein
1178	 43.38	0	1299729..1300166	-	145	16330346	-	sll1692	-	hypothetical protein
1179	 48.79	0	1300159..1300611	-	150	16330347	-	sll1691	-	hypothetical protein
1180	 52.41	0	1300661..1301656	+	331	16330348	-	slr1819	-	hypothetical protein
1181	 51.62	0	1301671..1302780	-	369	16330349	rpoD	sll1689	-	RNA polymerase sigma factor
1182	 53.00	0	1303295..1304596	-	433	16330350	thrC	sll1688	-	threonine synthase
1183	 42.29	-1	1304971..1306443	+	490	16330351	-	slr1820	-	hypothetical protein
1184	 47.41	0	1306436..1309348	-	970	16330352	-	sll1687	-	hypothetical protein
1185	 51.59	0	1309482..1310582	+	366	16330353	-	slr1821	-	hypothetical protein
1186	 51.21	0	1310575..1311234	+	219	16330354	nth	slr1822	-	endonuclease III
1187	 48.22	0	1311828..1312277	+	149	16330355	-	slr1732	-	hypothetical protein
1188	 51.31	0	1312309..1312803	-	164	16330356	-	sll1631	-	hypothetical protein
1189	 38.73	-1	1312843..1313268	-	141	16330357	-	sll1630	-	hypothetical protein
1190	 42.22	-1	1313278..1314639	-	453	16330358	phr	sll1629	-	DNA photolyase
1191	 51.08	0	1314909..1316063	-	384	16330359	-	sll1628	-	hypothetical protein
1192	 52.94	0	1316227..1317654	+	475	16330360	opcA	slr1734	-	OxPPCycle gene
1193	 52.44	0	1317712..1318470	+	252	16330361	-	slr1735	-	ABC transporter
1194	 49.35	0	1318719..1319330	-	203	16330362	lexA	sll1626	-	SOS function regulatory protein
1195	 50.80	0	1319546..1320541	-	331	16330363	sdhB	sll1625	-	succinate dehydrogenase iron-sulfur subunit
1196	 48.66	0	1320835..1321839	-	334	16330364	-	sll1624	-	regulatory components of sensory transduction system
1197	 51.64	0	1321852..1322523	-	223	16330365	-	sll1623	-	ABC transporter
1198	 45.31	0	1322687..1323613	+	308	16330366	ubiA	slr1736	-	tocopherol phytyltransferase
1199	 49.18	0	1323672..1324763	+	363	16330367	-	slr1737	-	hypothetical protein
1200	 49.30	0	1324835..1325404	-	189	16330368	-	sll1621	-	membrane protein
1201	 52.38	0	1325715..1326134	+	139	16330369	-	slr1738	-	hypothetical protein
1202	 50.31	0	1326150..1326626	-	158	16330370	-	sll1620	-	hypothetical protein
1203	 49.05	0	1326880..1327248	+	122	16330371	-	slr1739	-	photosystem II protein
1204	 50.83	0	1327367..1329115	+	582	16330372	-	slr1740	-	extracellular solute-binding protein
1205	 53.73	+1	1329388..1329990	-	200	16330373	-	sll1618	-	hypothetical protein
1206	 52.40	0	1330110..1330880	+	256	16330374	-	slr1742	-	hypothetical protein
1207	 52.51	0	1330930..1332144	+	404	16330375	ndh	slr1743	-	NADH dehydrogenase
1208	 53.74	+1	1332429..1334378	+	649	16330376	amiA	slr1744	-	N-acetylmuramoyl-L-alanine amidase
1209	 52.74	0	1334522..1335361	+	279	16330377	murI	slr1746	-	glutamate racemase
1210	 48.16	0	1335571..1336980	+	469	16330378	-	slr1747	-	hypothetical protein
1211	 50.82	0	1337299..1338636	+	445	16330379	ndh	slr0851	-	NADH dehydrogenase
1212	 45.92	0	1338727..1339155	+	142	16330380	-	slr0852	-	hypothetical protein
1213	 51.57	0	1339155..1339631	+	158	16330381	rimI	slr0853	-	ribosomal-protein-alanine acetyltransferase
1214	 51.26	0	1339656..1341122	+	488	16330382	phr	slr0854	-	deoxyribopyrimidine photolyase
1215	 46.80	0	1341131..1341724	-	197	16330383	-	sll0858	-	hypothetical protein
1216	 55.40	+1	1341694..1342110	-	138	16330384	-	sll0857	-	hypothetical protein
1217	 49.73	0	1342052..1342612	-	186	16330385	rpoE	sll0856	-	RNA polymerase sigma factor
1218	 49.93	0	1342775..1344130	-	451	16330386	-	sll0855	-	chloride channel protein
1219	 50.81	0	1344140..1345066	-	308	16330387	-	sll0854	-	hypothetical protein
1220	 46.88	0	1345117..1345677	-	186	16330388	-	sll0853	-	hypothetical protein
1221	 35.83	-2	1346197..1346556	+	119	16330389	-	slr0856	-	transposase
1222	 36.77	-2	1346550..1347044	+	164	16330390	-	slr0857	-	transposase
1223	 52.71	0	1347474..1348892	-	472	16330391	psbC	sll0851	-	photosystem II CP43 protein
1224	 53.26	+1	1348840..1349898	-	352	16330392	psbD	sll0849	-	photosystem II D2 protein
1225	 51.56	0	1350236..1351579	-	447	16330393	dnaA	sll0848	-	chromosomal replication initiation protein
1226	 47.69	0	1351634..1352239	-	201	16330394	-	sll0847	-	hypothetical protein
1227	 53.15	0	1352256..1353431	+	391	16330395	purT	slr0861	-	phosphoribosylglycinamide formyltransferase 2
1228	 50.16	0	1353596..1353904	-	102	16330396	-	sll0846	-	hypothetical protein
1229	 46.38	0	1354094..1355074	+	326	16330397	lmbP	slr0862	-	LmbP protein
1230	 53.23	+1	1355162..1356553	+	463	16330398	-	slr0863	-	hypothetical protein
1231	 53.39	+1	1356550..1357626	-	358	16330399	trmU	sll0844	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1232	 41.99	-1	1357740..1358837	-	365	16330400	-	sll0843	-	hypothetical protein
1233	 48.85	0	1358846..1360372	-	508	16330401	nplT	sll0842	-	neopullulanase
1234	 47.42	0	1360434..1362158	+	574	16330402	-	slr0864	-	ABC transporter
1235	 45.46	0	1362259..1363272	+	337	16330403	-	slr0865	-	hypothetical protein
1236	 52.53	0	1363265..1363858	-	197	16330404	-	sll0839	-	hypothetical protein
1237	 54.60	+1	1363837..1364532	-	231	16330405	pyrF	sll0838	-	orotidine 5'-phosphate decarboxylase
1238	 51.07	0	1364579..1365463	-	294	16330406	-	sll0837	-	hypothetical protein
1239	 49.92	0	1365571..1366215	+	214	16330407	-	slr0867	-	hypothetical protein
48.22	MEAN

4.98	STD DEV
