IslandPathversion 1.0

IslandPath Analysis: Synechocystis sp. PCC 6803

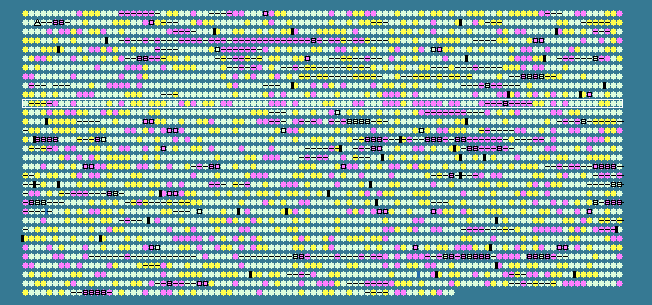

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.22 STD DEV: 4.98
Synechocystis sp. PCC 6803, complete genome - 1..3573470
3172 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1001	 49.70	0	1105666..1107168	+	500	16330169	-	slr1363	-	hypothetical protein
1002	 53.26	+1	1107242..1108330	+	362	16330170	bioB	slr1364	-	biotin synthetase
1003	 53.67	+1	1108314..1108967	+	217	16330171	bioY	slr1365	-	BioY protein
1004	 52.06	0	1108967..1109452	+	161	16330172	lspA	slr1366	-	lipoprotein signal peptidase
1005	 39.37	-1	1109620..1111044	-	474	16330173	-	sll1273	-	hypothetical protein
1006	 42.80	-1	1111185..1111955	-	256	16330174	-	sll1272	-	hypothetical protein
1007	 48.57	0	1112531..1114249	-	572	16330175	-	sll1271	-	hypothetical protein
1008	 50.09	0	1114429..1116021	-	530	16330176	glnH/glnP	sll1270	-	glutamine-binding periplasmic protein/glutamine transport system permease protein
1009	 42.96	-1	1116360..1116629	-	89	16330177	-	ssl2501	-	hypothetical protein
1010	 49.42	0	1117107..1119674	+	855	16330178	glgP	slr1367	-	glycogen phosphorylase
1011	 51.18	0	1119916..1120509	+	197	161344766	cbiT	slr1368	-	precorrin-6B methylase
1012	 50.45	0	1120643..1121524	+	293	16330180	cdsA	slr1369	-	phosphatidate cytidylyltransferase
1013	 46.14	0	1121627..1123180	-	517	16330181	-	sll1268	-	hypothetical protein
1014	 48.73	0	1123441..1124031	-	196	16330182	-	sll1267	-	hypothetical protein
1015	 52.43	0	1124071..1130007	-	1978	16330183	-	sll1265	-	hypothetical protein
1016	 46.32	0	1130313..1131683	-	456	16330184	-	sll0877	-	hypothetical protein
1017	 43.61	0	1131810..1132247	+	145	16330185	mscL	slr0875	-	large-conductance mechanosensitive channel
1018	 50.63	0	1132264..1132899	-	211	16330186	ruvA	sll0876	-	Holliday junction DNA helicase motor protein
1019	 52.25	0	1132914..1133690	-	258	16330187	-	sll0875	-	hypothetical protein
1020	 52.11	0	1133879..1135108	+	409	16330188	-	slr0876	-	hypothetical protein
1021	 49.21	0	1135337..1135588	+	83	16330189	-	ssr1480	-	RNA-binding protein
1022	 53.24	+1	1135716..1137167	+	483	16330190	gatA	slr0877	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
1023	 53.25	+1	1137375..1138112	+	245	16330191	-	slr0878	-	hypothetical protein
1024	 52.63	0	1138210..1138608	+	132	16330192	gcvH	slr0879	-	glycine decarboxylase complex H-protein
1025	 48.56	0	1138702..1140474	+	590	16330193	-	slr0880	-	secreted protein MPB70 precursor
1026	 50.69	0	1140497..1141660	-	387	16330194	napC	sll0873	-	carboxynorspermidine decarboxylase
1027	 44.13	0	1141803..1142015	-	70	16330195	-	ssl1633	-	high light inducible protein
1028	 54.49	+1	1142101..1142412	+	103	16330196	-	slr0881	-	hypothetical protein
1029	 40.20	-1	1142501..1142893	-	130	16330197	-	sll0872	-	hypothetical protein
1030	 50.38	0	1143047..1144231	+	394	16330198	-	slr0882	-	hypothetical protein
1031	 52.84	0	1144728..1146173	+	481	16330199	psr	slr0883	-	regulation of penicillin binding protein 5 production
1032	 52.68	0	1146290..1146718	-	142	16330200	-	sll0871	-	hypothetical protein
1033	 50.80	0	1147034..1148098	+	354	16330201	gap1	slr0884	-	glyceraldehyde-3-phosphate dehydrogenase
1034	 40.62	-1	1148722..1149297	+	191	16330202	-	slr0885	-	hypothetical protein
1035	 44.22	0	1149471..1150067	-	198	16330203	aat	sll0869	-	leucyl/phenylalanyl-tRNA--protein transferase
1036	 48.36	0	1150122..1151033	-	303	16330204	lipA	sll0868	-	lipoyl synthase
1037	 48.96	0	1151139..1152431	-	430	16330205	-	sll0867	-	hypothetical protein
1038	 50.40	0	1152549..1153292	+	247	16330206	fabG	slr0886	-	3-ketoacyl-(acyl-carrier-protein) reductase
1039	 49.51	0	1153292..1154101	+	269	16330207	-	slr0887	-	hypothetical protein
1040	 50.10	0	1154330..1154836	+	168	16330208	-	slr0888	-	hypothetical protein
1041	 46.37	0	1154857..1156083	+	408	16330209	-	slr0889	-	ABC1-like
1042	 44.07	0	1156234..1156503	+	89	16330210	-	ssr1499	-	hypothetical protein
1043	 41.67	-1	1156580..1156975	+	131	16330211	-	slr0890	-	hypothetical protein
1044	 43.65	0	1157029..1158909	-	626	16330212	uvrC	sll0865	-	excinuclease ABC subunit C
1045	 50.17	0	1159029..1160804	+	591	16330213	amiA	slr0891	-	N-acetylmuramoyl-L-alanine amidase
1046	 43.25	0	1160787..1161260	-	157	16330214	-	sll0864	-	hypothetical protein
1047	 47.01	0	1161441..1161842	-	133	16330215	-	sll0863	-	hypothetical protein
1048	 50.13	0	1161856..1163367	-	503	16330216	-	sll0862	-	hypothetical protein
1049	 51.31	0	1163421..1164338	-	305	16330217	murQ	sll0861	-	N-acetylmuramic acid-6-phosphate etherase
1050	 50.19	0	1164496..1165017	-	173	16330218	-	sll0860	-	hypothetical protein
1051	 51.98	0	1165087..1166073	-	328	16330219	petA	sll1317	-	apocytochrome f
1052	 53.02	0	1166186..1166764	-	192	16330220	petC	sll1316	-	cytochrome b6-f complex iron-sulfur subunit
1053	 48.21	0	1167053..1167247	-	64	16330221	psbH	ssl2598	-	photosystem II reaction center protein H
1054	 50.00	0	1167333..1167464	+	43	16330222	psbN	smr0009	-	photosystem II reaction center protein N
1055	 47.41	0	1167510..1167779	-	89	16330223	-	ssl2595	-	YciI-like protein
1056	 39.75	-1	1167961..1169019	-	352	16330224	-	sll1315	-	hypothetical protein
1057	 41.98	-1	1169078..1170187	-	369	16330225	dctP	sll1314	-	C4-dicarboxylase binding protein
1058	 47.65	0	1170571..1179621	+	3016	16330226	-	slr1403	-	integrin alpha- and beta4- subunit
1059	 50.33	0	1179926..1180672	-	248	16330227	-	sll1308	-	short chain dehydrogenase
1060	 47.99	0	1181064..1181609	+	181	16330228	-	slr1406	-	hypothetical protein
1061	 43.33	0	1181716..1182585	+	289	16330229	-	slr1407	-	hypothetical protein
1062	 43.53	0	1182665..1183645	+	326	16330230	-	slr1409	-	beta transducin-like protein
1063	 43.48	0	1183660..1184664	+	334	16330231	-	slr1410	-	beta transducin-like protein
1064	 52.27	0	1184711..1185238	-	175	16330232	-	sll1307	-	hypothetical protein
1065	 46.63	0	1185300..1186307	-	335	16330233	-	sll1306	-	hypothetical protein
1066	 44.37	0	1186311..1187198	-	295	16330234	-	sll1305	-	hypothetical protein
1067	 42.94	-1	1187219..1188082	-	287	16330235	-	sll1304	-	hypothetical protein
1068	 43.37	0	1188079..1188885	-	268	16330236	-	sll1785	-	hypothetical protein
1069	 43.16	-1	1189110..1189913	-	267	16330237	-	sll1784	-	hypothetical protein
1070	 40.77	-1	1189940..1190383	-	147	16330238	-	sll1783	-	hypothetical protein
1071	 47.27	0	1190867..1191433	+	188	16330239	-	slr1852	-	hypothetical protein
1072	 44.44	0	1191445..1191786	+	113	16330240	-	slr1853	-	hypothetical protein
1073	 44.72	0	1191856..1192452	+	198	16330241	-	slr1854	-	hypothetical protein
1074	 48.74	0	1192485..1194308	+	607	16330242	-	slr1855	-	hypothetical protein
1075	 51.52	0	1194314..1194643	+	109	16330243	-	slr1856	-	anti-sigma B factor antagonist
1076	 49.58	0	1194653..1196776	+	707	16330244	glgX	slr1857	-	glycogen operon protein; GlgX
1077	 37.31	-2	1196836..1197162	+	108	16330245	-	slr1859	-	hypothetical protein
1078	 38.74	-1	1197262..1199166	+	634	16330246	ICFG	slr1860	-	ICFG protein
1079	 38.89	-1	1199172..1199603	+	143	16330247	-	slr1861	-	hypothetical protein
1080	 39.72	-1	1199708..1200412	+	234	16330248	-	slr1862	-	hypothetical protein
1081	 32.35	-2	1200376..1201392	-	338	16330249	-	sll1780	-	transposase
1082	 36.09	-2	1201494..1203014	+	506	16330250	-	slr1863	-	hypothetical protein
1083	 40.43	-1	1203028..1204098	+	356	16330251	-	slr1864	-	hypothetical protein
1084	 40.38	-1	1204276..1205538	+	420	16330252	-	slr1865	-	hypothetical protein
1085	 39.02	-1	1205546..1206547	+	333	16330253	-	slr1866	-	hypothetical protein
1086	 55.68	+1	1206947..1207993	+	348	16330254	trpD	slr1867	-	anthranilate phosphoribosyltransferase
1087	 52.21	0	1208020..1208697	-	225	16330255	deoC	sll1776	-	deoxyribose-phosphate aldolase
1088	 50.86	0	1208749..1211202	-	817	16330256	-	sll1775	-	hypothetical protein
1089	 44.57	0	1211638..1212420	-	260	16330257	-	sll1774	-	hypothetical protein
1090	 45.85	0	1212600..1213358	+	252	16330258	-	slr1869	-	hypothetical protein
1091	 42.40	-1	1214188..1214937	+	249	16330259	-	slr1870	-	hypothetical protein
1092	 49.36	0	1215453..1216151	-	232	16330260	-	sll1773	-	hypothetical protein
1093	 47.64	0	1216281..1217168	+	295	16330261	-	slr1871	-	transcriptional regulator
1094	 51.32	0	1217156..1219624	-	822	16330262	mutS	sll1772	-	recombination and DNA strand exchange inhibitor protein
1095	 50.07	0	1219654..1220418	-	254	16330263	-	sll1771	-	hypothetical protein
1096	 49.72	0	1220473..1222230	-	585	16330264	-	sll1770	-	ABC1-like
1097	 54.09	+1	1222610..1222927	-	105	16330265	-	sll1769	-	hypothetical protein
1098	 56.41	+1	1222937..1223209	-	90	16330266	-	ssl3383	-	hypothetical protein
1099	 48.59	0	1223255..1223431	-	58	16330267	-	ssl3382	-	hypothetical protein
1100	 49.24	0	1223666..1224646	-	326	16330268	-	sll1768	-	OppB in a binding protein-dependent transport system
48.22	MEAN

4.98	STD DEV
