IslandPath Analysis: Synechococcus elongatus PCC 6301

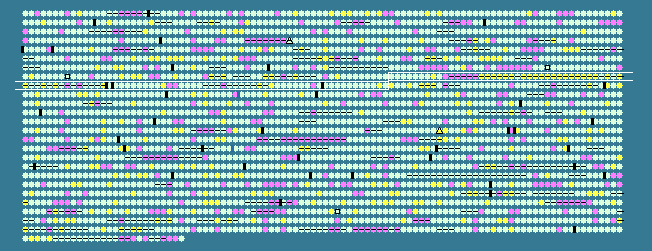

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
762	 57.88	0	853765..854652	-	295	56750771	-	syc0762_c	-	esterase
763	 55.13	0	854644..855276	+	210	56750772	ycf52	syc0763_d	-	hypothetical protein
764	 56.06	0	855291..855884	+	197	56750773	-	syc0764_d	-	hypothetical protein
765	 58.11	0	856014..857228	+	404	56750774	-	syc0765_d	-	hypothetical protein
766	 56.57	0	857225..858739	-	504	56750775	-	syc0766_c	-	hypothetical protein
767	 55.81	0	858740..859651	-	303	56750776	-	syc0767_c	-	hypothetical protein
768	 57.16	0	859690..860478	-	262	56750777	-	syc0768_c	-	hypothetical protein
769	 60.64	+1	861021..861617	-	198	56750778	-	syc0769_c	-	hypothetical protein
770	 58.80	0	861831..862478	-	215	56750779	-	syc0770_c	-	DNA-damage-inducible protein
771	 50.00	-1	863273..863512	+	79	56750780	-	syc0771_d	-	hypothetical protein
772	 49.37	-1	863481..863879	+	132	56750781	-	syc0772_d	-	transcriptional regulator
773	 43.30	-2	864307..864858	+	183	56750782	-	syc0773_d	-	hypothetical protein
774	 37.86	-2	865361..866089	+	242	56750783	-	syc0774_d	-	hypothetical protein
775	 33.15	-2	866917..867447	-	176	56750784	-	syc0775_c	-	hypothetical protein
776	 35.96	-2	867614..868297	-	227	56750785	-	syc0776_c	-	hypothetical protein
777	 60.65	+1	870001..870465	-	154	56750786	-	syc0777_c	-	chain A, D20c mutant of T4 lysozyme
778	 60.45	+1	870862..871440	-	192	56750787	-	syc0778_c	-	hypothetical protein
779	 62.65	+1	871710..873152	-	480	56750788	-	syc0779_c	-	phage late control gene D protein GPD
780	 62.44	+1	873149..873361	-	70	56750789	-	syc0780_c	-	hypothetical protein
781	 67.75	+2	873361..874281	-	306	56750790	-	syc0781_c	-	hypothetical protein
782	 63.58	+1	874281..877133	-	950	56750791	-	syc0782_c	-	putative bacteriophage protein
783	 57.74	0	877551..878054	-	167	56750792	-	syc0783_c	-	phage tail tube protein FII
784	 62.95	+1	878051..879475	-	474	56750793	-	syc0784_c	-	hypothetical protein
785	 65.48	+2	879583..880089	-	168	56750794	-	syc0785_c	-	hypothetical protein
786	 66.75	+2	880093..881256	-	387	56750795	-	syc0786_c	-	hypothetical protein
787	 62.53	+1	881261..882712	-	483	56750796	-	syc0787_c	-	hypothetical protein
788	 60.96	+1	882716..884731	-	671	56750797	-	syc0788_c	-	hypothetical protein
789	 63.37	+1	884735..885220	-	161	56750798	-	syc0789_c	-	hypothetical protein
790	 60.95	+1	885319..886158	-	279	56750799	-	syc0790_c	-	hypothetical protein
791	 63.21	+1	886155..886994	-	279	56750800	-	syc0791_c	-	GPJ of phage P2
792	 62.61	+1	886991..887335	-	114	56750801	-	syc0792_c	-	hypothetical protein
793	 61.85	+1	887335..887604	-	89	56750802	-	syc0793_c	-	hypothetical protein
794	 63.64	+1	888495..889154	-	219	56750803	-	syc0794_c	-	hypothetical protein
795	 60.26	+1	889126..889437	-	103	56750804	-	syc0795_c	-	electron transfer protein
796	 60.61	+1	889443..889772	-	109	56750805	-	syc0796_c	-	hypothetical protein
797	 57.23	0	889820..891694	-	624	56750806	-	syc0797_c	-	hypothetical protein
798	 60.31	+1	891717..893180	-	487	56750807	-	syc0798_c	-	hypothetical protein
799	 57.62	0	893180..893389	-	69	56750808	-	syc0799_c	-	hypothetical protein
800	 62.15	+1	893517..895397	-	626	56750809	-	syc0800_c	-	putative phage terminase large subunit
801	 60.00	0	895706..896245	-	179	56750810	-	syc0801_c	-	hypothetical protein
802	 59.08	0	896460..897065	-	201	56750811	-	syc0802_c	-	hypothetical protein
803	 55.86	0	897090..897635	-	181	56750812	-	syc0803_c	-	hypothetical protein
804	 61.89	+1	897905..900457	-	850	56750813	-	syc0804_c	-	hypothetical protein
805	 59.23	0	900441..900803	-	120	56750814	-	syc0805_c	-	hypothetical protein
806	 60.57	+1	900796..902205	-	469	56750815	-	syc0806_c	-	putative helicase
807	 53.60	0	902424..902867	-	147	56750816	-	syc0807_c	-	hypothetical protein
808	 51.75	-1	902866..903549	+	227	56750817	-	syc0808_d	-	hypothetical protein
809	 57.80	0	903845..904927	+	360	56750818	-	syc0809_d	-	hypothetical protein
810	 51.62	-1	905481..905819	+	112	56750819	-	syc0810_d	-	hypothetical protein
811	 54.96	0	906039..906542	+	167	56750820	-	syc0811_d	-	hypothetical protein
812	 58.87	0	906539..907192	+	217	56750821	-	syc0812_d	-	hypothetical protein
813	 57.71	0	907219..907743	+	174	56750822	dcd	syc0813_d	-	dCTP deaminase
814	 59.48	0	908324..909367	-	347	56750823	-	syc0814_c	-	hypothetical protein
815	 58.92	0	909691..910878	-	395	56750824	murZ	syc0815_c	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
816	 58.82	0	911420..913126	+	568	56750825	amiA	syc0816_d	-	N-acetylmuramoyl-L-alanine amidase
817	 55.88	0	913197..914420	+	407	56750826	ispG	syc0817_d	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
818	 53.76	0	914520..915797	+	425	56750827	-	syc0818_d	-	periplasmic carboxyl-terminal protease
819	 58.11	0	915973..919266	-	1097	56750828	carB	syc0819_c	-	carbamoyl phosphate synthase large subunit
820	 54.89	0	919332..920027	+	231	56750829	-	syc0820_d	-	hypothetical protein
821	 56.06	0	920030..920359	-	109	56750830	-	syc0821_c	-	hypothetical protein
822	 53.25	0	920411..922162	-	583	56750831	-	syc0822_c	-	hypothetical protein
823	 58.37	0	922229..923698	+	489	56750832	ldcC	syc0823_d	-	lysine decarboxylase
824	 59.51	0	923679..924293	+	204	56750833	cobL	syc0824_d	-	precorrin-6B methylase
825	 51.73	-1	924300..924935	-	211	56750834	-	syc0825_c	-	hypothetical protein
826	 45.13	-2	924922..925557	-	211	56750835	act	syc0826_c	-	acetyltransferase
827	 55.61	0	925590..926810	-	406	56750836	smf	syc0827_c	-	DNA processing protein
828	 58.56	0	926825..927613	-	262	56750837	-	syc0828_c	-	hypothetical protein
829	 58.23	0	927610..928071	-	153	56750838	-	syc0829_c	-	hypothetical protein
830	 55.52	0	928213..929046	+	277	56750839	-	syc0830_d	-	hypothetical protein
831	 52.78	0	929144..929251	-	35	56750840	psbM	syc0831_c	-	photosystem II reaction center protein M
832	 57.01	0	929351..929785	-	144	56750841	-	syc0832_c	-	ferredoxin
833	 57.76	0	930122..931648	+	508	56750842	psbB	syc0833_d	-	photosystem II core light harvesting protein
834	 51.04	-1	931725..931820	+	31	56750843	psbT	syc0834_d	-	photosystem II reaction center protein T
835	 54.04	0	932030..932536	+	168	56750844	-	syc0835_d	-	transcriptional regulator NrdR
836	 55.19	0	932814..933737	+	307	56750845	rps1	syc0836_d	-	30S ribosomal protein S1
837	 57.89	0	933838..934623	+	261	56750846	-	syc0837_d	-	hypothetical protein
838	 58.92	0	934685..935239	+	184	56750847	-	syc0838_d	-	hypothetical protein
839	 54.35	0	935715..935990	+	91	56750848	clpS	syc0839_d	-	ATP-dependent Clp protease adaptor protein ClpS
840	 60.19	+1	936404..936820	+	138	56750849	-	syc0840_d	-	hypothetical protein
841	 59.00	0	936811..937149	-	112	56750850	-	syc0841_c	-	transcriptional regulator
842	 59.94	0	937124..938743	-	539	56750851	-	syc0842_c	-	hypothetical protein
843	 57.11	0	938733..939893	-	386	56750852	-	syc0843_c	-	FO synthase subunit 2
844	 58.39	0	940323..941990	-	555	56750853	groEL	syc0844_c	-	chaperonin GroEL
845	 58.13	0	942097..942846	-	249	56750854	fabG	syc0845_c	-	3-oxoacyl-[acyl-carrier protein] reductase
846	 56.04	0	942904..943929	-	341	56750855	-	syc0846_c	-	potassium channel protein
847	 57.60	0	943966..944925	-	319	56750856	-	syc0847_c	-	hypothetical protein
848	 57.94	0	945009..945707	+	232	56750857	ispD	syc0848_d	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
849	 47.79	-2	945722..946537	-	271	56750858	-	syc0849_c	-	sterol C5-desaturase
850	 57.72	0	946763..947086	-	107	56750859	rbp1	syc0850_c	-	RRM type RNA-binding protein
851	 55.82	0	947469..948104	-	211	56750860	rnd	syc0851_c	-	ribonuclease D
852	 55.03	0	948343..948789	+	148	56750861	pex	syc0852_d	-	circadian period extender gene
853	 57.17	0	948752..949972	-	406	56750862	-	syc0853_c	-	hypothetical protein
854	 56.51	0	950053..950574	+	173	56750863	-	syc0854_d	-	hypothetical protein
855	 59.28	0	950571..951599	-	342	56750864	hemF	syc0855_c	-	coproporphyrinogen III oxidase
856	 54.94	0	951940..953022	-	360	56750865	mutT	syc0856_c	-	mutator MutT protein
857	 55.05	0	953022..954002	-	326	56750866	rpoD3	syc0857_c	-	RNA polymerase sigma factor SigD
858	 58.68	0	954218..954718	-	166	56750867	-	syc0858_c	-	hypothetical protein
859	 57.72	0	954734..955750	-	338	56750868	pyrB	syc0859_c	-	aspartate carbamoyltransferase catalytic subunit
860	 60.00	0	955747..956346	-	199	56750869	mpg	syc0860_c	-	N-methylpurine-DNA glycosirase
861	 54.49	0	956575..956886	-	103	56750870	-	syc0861_c	-	hypothetical protein
55.98	MEAN

4.05	STD DEV
