IslandPath Analysis: Synechococcus elongatus PCC 6301

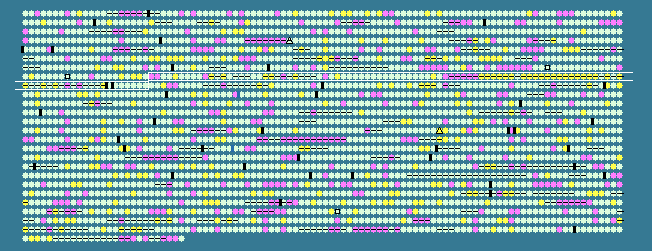

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
722	 49.62	-1	808145..808537	+	130	56750731	-	syc0722_d	-	ferric uptake regulation protein
723	 51.42	-1	808615..810687	+	690	56750732	-	syc0723_d	-	hypothetical protein
724	 56.01	0	810772..811503	-	243	56750733	livF	syc0724_c	-	branched-chain amino acid transport system ATP-binding protein
725	 56.89	0	811510..811734	-	74	56750734	-	syc0725_c	-	ferredoxin-like protein
726	 61.20	+1	811767..813029	-	420	56750735	hisZ	syc0726_c	-	ATP phosphoribosyltransferase regulatory subunit
727	 56.89	0	813055..813975	-	306	56750736	-	syc0727_c	-	DnaJ-class molecular chaperone
728	 54.86	0	814100..815683	-	527	56750737	-	syc0728_c	-	Na+/H+ antiporter
729	 59.11	0	816070..817671	-	533	56750738	-	syc0729_c	-	hypothetical protein
730	 53.62	0	817890..820019	+	709	56750739	sps	syc0730_d	-	sucrose phosphate synthase
731	 51.55	-1	820191..821030	-	279	56750740	-	syc0731_c	-	hypothetical protein
732	 59.97	0	821044..821775	-	243	56750741	-	syc0732_c	-	hypothetical protein
733	 57.83	0	821775..822521	-	248	56750742	-	syc0733_c	-	hypothetical protein
734	 59.89	0	822521..823582	-	353	56750743	pdxA	syc0734_c	-	4-hydroxythreonine-4-phosphate dehydrogenase
735	 55.68	0	823581..824363	+	260	56750744	-	syc0735_d	-	hypothetical protein
736	 52.94	0	824366..824518	-	50	56750745	-	syc0736_c	-	hypothetical protein
737	 56.23	0	825058..825747	-	229	56750746	sodB	syc0737_c	-	superoxide dismutase
738	 58.75	0	825822..826415	+	197	56750747	-	syc0738_d	-	hypothetical protein
739	 56.44	0	826486..828342	+	618	56750748	-	syc0739_d	-	hypothetical protein
740	 58.64	0	828066..828551	+	161	56750749	ruvC	syc0740_d	-	Holliday junction resolvase
741	 61.54	+1	829150..829695	-	181	56750750	-	syc0741_c	-	hypothetical protein
742	 59.97	0	829823..830434	+	203	56750751	-	syc0742_d	-	hypothetical protein
743	 56.59	0	830637..831410	+	257	56750752	-	syc0743_d	-	chloroplast membrane-associated 30 kD protein
744	 49.93	-1	831609..832277	+	222	56750753	-	syc0744_d	-	hypothetical protein
745	 58.91	0	832439..833779	+	446	56750754	-	syc0745_d	-	hypothetical protein
746	 61.19	+1	833803..834897	+	364	56750755	pcnB	syc0746_d	-	polyA polymerase
747	 57.11	0	835160..835588	+	142	56750756	rbp3	syc0747_d	-	RRM type RNA-binding protein
748	 54.94	0	835703..836026	+	107	56750757	-	syc0748_d	-	hypothetical protein
749	 58.24	0	836122..836916	+	264	56750758	gst1	syc0749_d	-	glutathione S-transferase
750	 55.75	0	836985..837863	-	292	56750759	phoA	syc0750_c	-	putative purple acid phosphatase
751	 51.44	-1	837928..838794	-	288	56750760	-	syc0751_c	-	hypothetical protein
752	 59.00	0	838905..840938	-	677	56750761	pbpA	syc0752_c	-	penicillin binding protein 1A
753	 62.58	+1	841021..841338	-	105	56750762	-	syc0753_c	-	hypothetical protein
754	 55.40	0	841624..842280	+	218	56750763	hisG	syc0754_d	-	ATP phosphoribosyltransferase catalytic subunit
755	 54.03	0	842313..844109	+	598	56750764	-	syc0755_d	-	ATP-binding protein of ABC transporter
756	 58.95	0	844349..846913	+	854	56750765	ppsA	syc0756_d	-	phosphoenolpyruvate synthase
757	 55.90	0	846910..848283	+	457	56750766	-	syc0757_d	-	serine/threonine kinase
758	 59.18	0	848275..850824	-	849	56750767	-	syc0758_c	-	hypothetical protein
759	 59.16	0	851441..852199	+	252	56750768	folD	syc0759_d	-	FolD bifunctional protein
760	 57.62	0	852242..853147	+	301	56750769	crtE	syc0760_d	-	geranylgeranyl pyrophosphate synthase
761	 59.17	0	853147..853626	+	159	56750770	-	syc0761_d	-	hypothetical protein
762	 57.88	0	853765..854652	-	295	56750771	-	syc0762_c	-	esterase
763	 55.13	0	854644..855276	+	210	56750772	ycf52	syc0763_d	-	hypothetical protein
764	 56.06	0	855291..855884	+	197	56750773	-	syc0764_d	-	hypothetical protein
765	 58.11	0	856014..857228	+	404	56750774	-	syc0765_d	-	hypothetical protein
766	 56.57	0	857225..858739	-	504	56750775	-	syc0766_c	-	hypothetical protein
767	 55.81	0	858740..859651	-	303	56750776	-	syc0767_c	-	hypothetical protein
768	 57.16	0	859690..860478	-	262	56750777	-	syc0768_c	-	hypothetical protein
769	 60.64	+1	861021..861617	-	198	56750778	-	syc0769_c	-	hypothetical protein
770	 58.80	0	861831..862478	-	215	56750779	-	syc0770_c	-	DNA-damage-inducible protein
771	 50.00	-1	863273..863512	+	79	56750780	-	syc0771_d	-	hypothetical protein
772	 49.37	-1	863481..863879	+	132	56750781	-	syc0772_d	-	transcriptional regulator
773	 43.30	-2	864307..864858	+	183	56750782	-	syc0773_d	-	hypothetical protein
774	 37.86	-2	865361..866089	+	242	56750783	-	syc0774_d	-	hypothetical protein
775	 33.15	-2	866917..867447	-	176	56750784	-	syc0775_c	-	hypothetical protein
776	 35.96	-2	867614..868297	-	227	56750785	-	syc0776_c	-	hypothetical protein
777	 60.65	+1	870001..870465	-	154	56750786	-	syc0777_c	-	chain A, D20c mutant of T4 lysozyme
778	 60.45	+1	870862..871440	-	192	56750787	-	syc0778_c	-	hypothetical protein
779	 62.65	+1	871710..873152	-	480	56750788	-	syc0779_c	-	phage late control gene D protein GPD
780	 62.44	+1	873149..873361	-	70	56750789	-	syc0780_c	-	hypothetical protein
781	 67.75	+2	873361..874281	-	306	56750790	-	syc0781_c	-	hypothetical protein
782	 63.58	+1	874281..877133	-	950	56750791	-	syc0782_c	-	putative bacteriophage protein
783	 57.74	0	877551..878054	-	167	56750792	-	syc0783_c	-	phage tail tube protein FII
784	 62.95	+1	878051..879475	-	474	56750793	-	syc0784_c	-	hypothetical protein
785	 65.48	+2	879583..880089	-	168	56750794	-	syc0785_c	-	hypothetical protein
786	 66.75	+2	880093..881256	-	387	56750795	-	syc0786_c	-	hypothetical protein
787	 62.53	+1	881261..882712	-	483	56750796	-	syc0787_c	-	hypothetical protein
788	 60.96	+1	882716..884731	-	671	56750797	-	syc0788_c	-	hypothetical protein
789	 63.37	+1	884735..885220	-	161	56750798	-	syc0789_c	-	hypothetical protein
790	 60.95	+1	885319..886158	-	279	56750799	-	syc0790_c	-	hypothetical protein
791	 63.21	+1	886155..886994	-	279	56750800	-	syc0791_c	-	GPJ of phage P2
792	 62.61	+1	886991..887335	-	114	56750801	-	syc0792_c	-	hypothetical protein
793	 61.85	+1	887335..887604	-	89	56750802	-	syc0793_c	-	hypothetical protein
794	 63.64	+1	888495..889154	-	219	56750803	-	syc0794_c	-	hypothetical protein
795	 60.26	+1	889126..889437	-	103	56750804	-	syc0795_c	-	electron transfer protein
796	 60.61	+1	889443..889772	-	109	56750805	-	syc0796_c	-	hypothetical protein
797	 57.23	0	889820..891694	-	624	56750806	-	syc0797_c	-	hypothetical protein
798	 60.31	+1	891717..893180	-	487	56750807	-	syc0798_c	-	hypothetical protein
799	 57.62	0	893180..893389	-	69	56750808	-	syc0799_c	-	hypothetical protein
800	 62.15	+1	893517..895397	-	626	56750809	-	syc0800_c	-	putative phage terminase large subunit
801	 60.00	0	895706..896245	-	179	56750810	-	syc0801_c	-	hypothetical protein
802	 59.08	0	896460..897065	-	201	56750811	-	syc0802_c	-	hypothetical protein
803	 55.86	0	897090..897635	-	181	56750812	-	syc0803_c	-	hypothetical protein
804	 61.89	+1	897905..900457	-	850	56750813	-	syc0804_c	-	hypothetical protein
805	 59.23	0	900441..900803	-	120	56750814	-	syc0805_c	-	hypothetical protein
806	 60.57	+1	900796..902205	-	469	56750815	-	syc0806_c	-	putative helicase
807	 53.60	0	902424..902867	-	147	56750816	-	syc0807_c	-	hypothetical protein
808	 51.75	-1	902866..903549	+	227	56750817	-	syc0808_d	-	hypothetical protein
809	 57.80	0	903845..904927	+	360	56750818	-	syc0809_d	-	hypothetical protein
810	 51.62	-1	905481..905819	+	112	56750819	-	syc0810_d	-	hypothetical protein
811	 54.96	0	906039..906542	+	167	56750820	-	syc0811_d	-	hypothetical protein
812	 58.87	0	906539..907192	+	217	56750821	-	syc0812_d	-	hypothetical protein
813	 57.71	0	907219..907743	+	174	56750822	dcd	syc0813_d	-	dCTP deaminase
814	 59.48	0	908324..909367	-	347	56750823	-	syc0814_c	-	hypothetical protein
815	 58.92	0	909691..910878	-	395	56750824	murZ	syc0815_c	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
816	 58.82	0	911420..913126	+	568	56750825	amiA	syc0816_d	-	N-acetylmuramoyl-L-alanine amidase
817	 55.88	0	913197..914420	+	407	56750826	ispG	syc0817_d	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
818	 53.76	0	914520..915797	+	425	56750827	-	syc0818_d	-	periplasmic carboxyl-terminal protease
819	 58.11	0	915973..919266	-	1097	56750828	carB	syc0819_c	-	carbamoyl phosphate synthase large subunit
820	 54.89	0	919332..920027	+	231	56750829	-	syc0820_d	-	hypothetical protein
821	 56.06	0	920030..920359	-	109	56750830	-	syc0821_c	-	hypothetical protein
55.98	MEAN

4.05	STD DEV
