IslandPath Analysis: Synechococcus elongatus PCC 6301

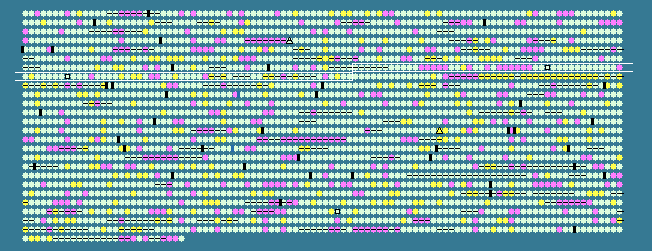

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
656	 56.67	0	729939..731168	+	409	56750665	tuf	syc0656_d	-	elongation factor Tu
657	 56.60	0	731242..731559	+	105	56750666	rpsJ	syc0657_d	-	30S ribosomal protein S10
658	 53.27	0	731769..732425	+	218	56750667	lon	syc0658_d	-	ATP-dependent Lon protease
659	 58.08	0	732438..733334	-	298	56750668	pheA	syc0659_c	-	prephenate dehydratase
660	 53.23	0	733393..733950	+	185	56750669	-	syc0660_d	-	hypothetical protein
661	 58.80	0	733973..734620	-	215	56750670	rnhB	syc0661_c	-	ribonuclease HII
662	 59.09	0	734604..737030	-	808	56750671	rne	syc0662_c	-	ribonuclease E
663	 59.18	0	737380..739998	-	872	56750672	-	syc0663_c	-	hypothetical protein
664	 58.38	0	740190..742868	-	892	56750673	alaS	syc0664_c	-	alanyl-tRNA synthetase
665	 57.74	0	742909..743412	+	167	56750674	-	syc0665_d	-	hypothetical protein
666	 56.99	0	743416..746475	+	1019	56750675	-	syc0666_d	-	putative SNF2 helicase
667	 39.21	-2	746669..747757	+	362	56750676	-	syc0667_d	-	hypothetical protein
668	 52.50	0	747925..748503	-	192	56750677	-	syc0668_c	-	hypothetical protein
669	 40.00	-2	748505..748759	+	84	56750678	-	syc0669_d	-	hypothetical protein
670	 44.74	-2	748752..748979	+	75	56750679	-	syc0670_d	-	hypothetical protein
671	 52.45	0	749013..749603	-	196	56750680	-	syc0671_c	-	hypothetical protein
672	 56.95	0	749612..751360	-	582	56750681	-	syc0672_c	-	hypothetical protein
673	 57.36	0	751361..751618	-	85	56750682	-	syc0673_c	-	hypothetical protein
674	 62.71	+1	751745..752326	-	193	56750683	-	syc0674_c	-	hypothetical protein
675	 52.44	0	752389..752880	-	163	56750684	-	syc0675_c	-	nucleotide-binding protein
676	 56.26	0	752953..753471	-	172	56750685	-	syc0676_c	-	hypothetical protein
677	 58.04	0	753658..754839	-	393	56750686	-	syc0677_c	-	hypothetical protein
678	 52.38	0	754893..755270	-	125	56750687	-	syc0678_c	-	hypothetical protein
679	 54.65	0	755397..756686	+	429	56750688	-	syc0679_d	-	bifunctional sterol desaturase/short chain dehydrogenase
680	 46.98	-2	756920..757879	-	319	56750689	-	syc0680_c	-	hypothetical protein
681	 48.32	-1	757890..760745	-	951	56750690	-	syc0681_c	-	two-component hybrid sensor and regulator
682	 50.41	-1	760754..764974	-	1406	56750691	pixJ	syc0682_c	-	methyl-accepting chemotaxis protein
683	 49.90	-1	765046..765552	-	168	56750692	-	syc0683_c	-	hypothetical protein
684	 46.83	-2	765572..765934	-	120	56750693	-	syc0684_c	-	CheY family two-component response regulator
685	 43.10	-2	765979..767238	-	419	56750694	pixG	syc0685_c	-	two-component response regulator rre36-like protein
686	 56.99	0	768238..770634	-	798	56750695	-	syc0686_c	-	hypothetical protein
687	 55.91	0	770762..771997	-	411	56750696	aspB	syc0687_c	-	L,L-diaminopimelate aminotransferase
688	 54.51	0	771984..772460	-	158	56750697	-	syc0688_c	-	pseudo transposase
689	 56.66	0	772609..773667	-	352	56750698	purM	syc0689_c	-	phosphoribosylaminoimidazole synthetase
690	 54.73	0	774188..774388	+	66	56750699	-	syc0690_d	-	hypothetical protein
691	 55.27	0	774458..775045	+	195	56750700	-	syc0691_d	-	hypothetical protein
692	 56.71	0	775520..778531	+	1003	56750701	uvrA	syc0692_d	-	excinuclease ABC subunit A
693	 54.54	0	778635..779747	+	370	56750702	pilT3	syc0693_d	-	twitching mobility protein
694	 58.12	0	779786..780604	+	272	56750703	-	syc0694_d	-	hypothetical protein
695	 53.63	0	780788..781186	-	132	56750704	-	syc0695_c	-	hypothetical protein
696	 59.34	0	781223..781768	+	181	56750705	-	syc0696_d	-	hypothetical protein
697	 52.55	0	781932..782363	+	143	56750706	-	syc0697_d	-	hypothetical protein
698	 55.63	0	782462..783802	+	446	56750707	gor	syc0698_d	-	glutathione reductase
699	 57.49	0	783856..785196	-	446	56750708	-	syc0699_c	-	hypothetical protein
700	 50.93	-1	785394..785876	+	160	56750709	-	syc0700_d	-	hypothetical protein
701	 56.02	0	785913..786917	+	334	56750710	merR	syc0701_d	-	aliphatic nitrilase
702	 59.84	0	786910..788007	+	365	56750711	-	syc0702_d	-	hypothetical protein
703	 56.99	0	788038..788688	+	216	56750712	-	syc0703_d	-	hypothetical protein
704	 57.82	0	788685..789701	+	338	56750713	-	syc0704_d	-	hypothetical protein
705	 57.80	0	790079..791206	-	375	56750714	ruvB	syc0705_c	-	Holliday junction DNA helicase B
706	 52.73	0	791632..792291	-	219	56750715	-	syc0706_c	-	hypothetical protein
707	 57.78	0	792692..793771	-	359	56750716	-	syc0707_c	-	hypothetical protein
708	 56.00	0	794244..794468	+	74	56750717	-	syc0708_d	-	pseudo transposase
709	 55.10	0	794863..795519	+	218	56750718	-	syc0709_d	-	hypothetical protein
710	 55.00	0	795538..796926	-	462	56750719	asnC	syc0710_c	-	asparaginyl-tRNA synthetase
711	 55.83	0	797627..797995	+	122	56750720	-	syc0711_d	-	hypothetical protein
712	 52.15	0	798065..799111	+	348	56750721	cobW	syc0712_d	-	cobalamin biosynthesis protein CobW
713	 53.21	0	799240..800175	-	311	56750722	-	syc0713_c	-	hypothetical protein
714	 55.15	0	800175..800912	+	245	56750723	-	syc0714_d	-	hypothetical protein
715	 54.66	0	800973..802679	-	568	56750724	-	syc0715_c	-	hypothetical protein
716	 54.50	0	802654..803697	-	347	56750725	-	syc0716_c	-	hypothetical protein
717	 60.72	+1	803779..804804	-	341	56750726	appB	syc0717_c	-	oligopeptide ABC transporter permease protein
718	 56.99	0	804791..806392	-	533	56750727	ddpA	syc0718_c	-	periplasmic oligopeptide-binding
719	 60.86	+1	806474..806869	-	131	56750728	-	syc0719_c	-	hypothetical protein
720	 60.21	+1	806982..807647	-	221	56750729	purL	syc0720_c	-	phosphoribosyl formylglycinamidine synthase
721	 57.33	0	807644..807868	-	74	56750730	-	syc0721_c	-	phosphoribosylformylglycinamidine synthase subunit PurS
722	 49.62	-1	808145..808537	+	130	56750731	-	syc0722_d	-	ferric uptake regulation protein
723	 51.42	-1	808615..810687	+	690	56750732	-	syc0723_d	-	hypothetical protein
724	 56.01	0	810772..811503	-	243	56750733	livF	syc0724_c	-	branched-chain amino acid transport system ATP-binding protein
725	 56.89	0	811510..811734	-	74	56750734	-	syc0725_c	-	ferredoxin-like protein
726	 61.20	+1	811767..813029	-	420	56750735	hisZ	syc0726_c	-	ATP phosphoribosyltransferase regulatory subunit
727	 56.89	0	813055..813975	-	306	56750736	-	syc0727_c	-	DnaJ-class molecular chaperone
728	 54.86	0	814100..815683	-	527	56750737	-	syc0728_c	-	Na+/H+ antiporter
729	 59.11	0	816070..817671	-	533	56750738	-	syc0729_c	-	hypothetical protein
730	 53.62	0	817890..820019	+	709	56750739	sps	syc0730_d	-	sucrose phosphate synthase
731	 51.55	-1	820191..821030	-	279	56750740	-	syc0731_c	-	hypothetical protein
732	 59.97	0	821044..821775	-	243	56750741	-	syc0732_c	-	hypothetical protein
733	 57.83	0	821775..822521	-	248	56750742	-	syc0733_c	-	hypothetical protein
734	 59.89	0	822521..823582	-	353	56750743	pdxA	syc0734_c	-	4-hydroxythreonine-4-phosphate dehydrogenase
735	 55.68	0	823581..824363	+	260	56750744	-	syc0735_d	-	hypothetical protein
736	 52.94	0	824366..824518	-	50	56750745	-	syc0736_c	-	hypothetical protein
737	 56.23	0	825058..825747	-	229	56750746	sodB	syc0737_c	-	superoxide dismutase
738	 58.75	0	825822..826415	+	197	56750747	-	syc0738_d	-	hypothetical protein
739	 56.44	0	826486..828342	+	618	56750748	-	syc0739_d	-	hypothetical protein
740	 58.64	0	828066..828551	+	161	56750749	ruvC	syc0740_d	-	Holliday junction resolvase
741	 61.54	+1	829150..829695	-	181	56750750	-	syc0741_c	-	hypothetical protein
742	 59.97	0	829823..830434	+	203	56750751	-	syc0742_d	-	hypothetical protein
743	 56.59	0	830637..831410	+	257	56750752	-	syc0743_d	-	chloroplast membrane-associated 30 kD protein
744	 49.93	-1	831609..832277	+	222	56750753	-	syc0744_d	-	hypothetical protein
745	 58.91	0	832439..833779	+	446	56750754	-	syc0745_d	-	hypothetical protein
746	 61.19	+1	833803..834897	+	364	56750755	pcnB	syc0746_d	-	polyA polymerase
747	 57.11	0	835160..835588	+	142	56750756	rbp3	syc0747_d	-	RRM type RNA-binding protein
748	 54.94	0	835703..836026	+	107	56750757	-	syc0748_d	-	hypothetical protein
749	 58.24	0	836122..836916	+	264	56750758	gst1	syc0749_d	-	glutathione S-transferase
750	 55.75	0	836985..837863	-	292	56750759	phoA	syc0750_c	-	putative purple acid phosphatase
751	 51.44	-1	837928..838794	-	288	56750760	-	syc0751_c	-	hypothetical protein
752	 59.00	0	838905..840938	-	677	56750761	pbpA	syc0752_c	-	penicillin binding protein 1A
753	 62.58	+1	841021..841338	-	105	56750762	-	syc0753_c	-	hypothetical protein
754	 55.40	0	841624..842280	+	218	56750763	hisG	syc0754_d	-	ATP phosphoribosyltransferase catalytic subunit
755	 54.03	0	842313..844109	+	598	56750764	-	syc0755_d	-	ATP-binding protein of ABC transporter
55.98	MEAN

4.05	STD DEV
