IslandPath Analysis: Synechococcus elongatus PCC 6301

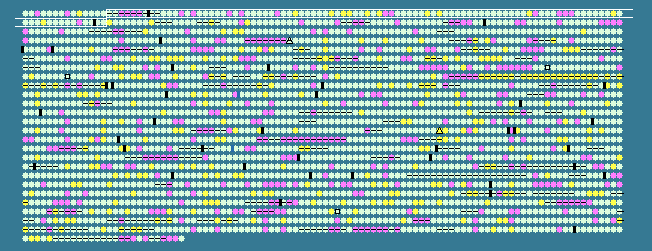

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
15	 57.24	0	16117..17241	+	374	56750025	-	syc0016_d	-	hypothetical protein
16	 57.48	0	17254..17928	+	224	56750026	-	syc0017_d	-	hypothetical protein
17	 49.69	-1	18104..18262	+	52	56750027	-	syc0018_d	-	hypothetical protein
18	 45.60	-2	19151..19696	-	181	56750028	-	syc0019_c	-	hypothetical protein
19	 51.18	-1	19770..20447	-	225	56750029	-	syc0020_c	-	hypothetical protein
20	 41.97	-2	22065..22481	-	138	56750030	-	syc0021_c	-	signal transduction inhibitor
21	 55.66	0	22872..23189	+	105	56750031	-	syc0022_d	-	hypothetical protein
22	 56.84	0	23912..24379	+	155	56750032	-	syc0023_d	-	hypothetical protein
23	 55.60	0	24418..26613	+	731	56750033	ppk	syc0024_d	-	polyphosphate kinase
24	 55.42	0	27326..27565	-	79	56750034	-	syc0025_c	-	hypothetical protein
25	 59.34	0	27623..28141	-	172	56750035	-	syc0026_c	-	hypothetical protein
26	 57.40	0	28175..30418	-	747	56750036	pacS	syc0027_c	-	copper transporting CPx-type ATPase PacS
27	 48.89	-1	31032..31841	+	269	56750037	-	syc0028_d	-	pore-forming membrane protein
28	 55.07	0	32308..33894	+	528	56750038	-	syc0029_d	-	dehydrogenase subunit-like protein
29	 49.94	-1	33963..34763	+	266	56750039	-	syc0030_d	-	3-oxoacyl-[acyl-carrier protein] reductase
30	 54.51	0	34864..37536	+	890	56750040	-	syc0031_d	-	glucosidase
31	 57.53	0	37549..39594	+	681	56750041	malQ	syc0032_d	-	glycogen debranching enzyme-related protein
32	 57.61	0	39637..41028	+	463	56750042	-	syc0033_d	-	chloride channel protein
33	 56.52	0	41230..42984	-	584	56750043	argS	syc0034_c	-	arginyl-tRNA synthetase
34	 57.74	0	43141..43980	-	279	56750044	tatC	syc0035_c	-	sec-independent protein translocase protein TatC
35	 49.64	-1	44376..44927	+	183	56750045	-	syc0036_d	-	hypothetical protein
36	 58.68	0	44981..45268	-	95	56750046	-	syc0037_c	-	hypothetical protein
37	 51.49	-1	46112..47791	+	559	56750047	-	syc0038_d	-	hypothetical protein
38	 56.18	0	47793..49241	-	482	56750048	trmE	syc0039_c	-	tRNA modification GTPase TrmE
39	 56.61	0	49210..49716	+	168	56750049	-	syc0040_d	-	hypothetical protein
40	 58.28	0	49652..51130	-	492	56750050	-	syc0041_c	-	hypothetical protein
41	 57.20	0	51171..51983	-	270	56750051	-	syc0042_c	-	hypothetical protein
42	 57.74	0	52329..53639	+	436	56750052	-	syc0043_d	-	two-component sensor histidine kinase
43	 50.45	-1	53702..54034	-	110	56750053	-	syc0044_c	-	hypothetical protein
44	 58.76	0	54225..56804	-	859	56750054	-	syc0045_c	-	chloride channel protein
45	 58.76	0	56951..58240	-	429	56750055	pmbA	syc0046_c	-	putative modulator of DNA gyrase
46	 60.02	0	58244..59101	-	285	56750056	-	syc0047_c	-	hypothetical protein
47	 56.98	0	59105..59992	-	295	56750057	nbp1	syc0048_c	-	nucleic acid binding protein
48	 58.33	0	60089..60904	+	271	56750058	-	syc0049_d	-	creatinine amidohydrolase
49	 54.25	0	60926..61690	+	254	56750059	-	syc0050_d	-	hypothetical protein
50	 55.85	0	61705..62730	+	341	56750060	-	syc0051_d	-	hypothetical protein
51	 57.62	0	62740..63723	+	327	56750061	accA	syc0052_d	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
52	 60.43	+1	63841..64578	+	245	56750062	acdS	syc0053_d	-	short chain dehydrogenase
53	 57.94	0	64627..65268	+	213	56750063	folE	syc0054_d	-	GTP cyclohydrolase I
54	 59.50	0	65276..66070	+	264	56750064	-	syc0055_d	-	hypothetical protein
55	 60.22	+1	66067..67152	+	361	56750065	-	syc0056_d	-	hypothetical protein
56	 56.94	0	67158..68000	+	280	56750066	-	syc0057_d	-	5'5'''-P-1P-4-tetraphosphate phosphorylase II
57	 57.47	0	68028..68201	-	57	56750067	-	syc0058_c	-	hypothetical protein
58	 59.83	0	68200..69003	+	267	56750068	-	syc0059_d	-	tRNA/rRNA methyltransferase
59	 56.81	0	69280..70233	+	317	56750069	ampC	syc0060_d	-	beta-lactamase
60	 60.83	+1	70243..71595	+	450	56750070	-	syc0061_d	-	hypothetical protein
61	 50.95	-1	71600..72178	-	192	56750071	-	syc0062_c	-	hypothetical protein
62	 45.99	-2	72421..72981	+	186	56750072	-	syc0063_d	-	hypothetical protein
63	 53.65	0	73113..74648	-	511	56750073	-	syc0064_c	-	porin; major outer membrane protein
64	 58.25	0	74889..76313	+	474	56750074	manC	syc0065_d	-	mannose-1-phosphate guanylyltransferase
65	 53.26	0	76425..79871	+	1148	56750075	-	syc0066_d	-	ribonucleoside triphosphate reductase B
66	 57.63	0	79947..81362	-	471	56750076	pntB	syc0067_c	-	pyridine nucleotide transhydrogenase beta subunit
67	 54.76	0	81359..81652	-	97	56750077	pntA	syc0068_c	-	NAD(P) transhydrogenase subunit alpha
68	 60.88	+1	81649..82875	-	408	56750078	pntA	syc0069_c	-	pyridine nucleotide transhydrogenase alpha subunit
69	 59.33	0	82988..83587	+	199	56750079	-	syc0070_d	-	hypothetical protein
70	 65.22	+2	83635..83772	+	45	56750080	rpmH	syc0071_d	-	50S ribosomal protein L34
71	 56.37	0	83778..84146	+	122	56750081	rnpA	syc0072_d	-	ribonuclease P
72	 58.14	0	84133..84519	+	128	56750082	-	syc0073_d	-	hypothetical protein
73	 56.32	0	84722..85900	+	392	56750083	yidC	syc0074_d	-	putative inner membrane protein translocase component YidC
74	 57.99	0	85897..86403	+	168	56750084	-	syc0075_d	-	hypothetical protein
75	 57.41	0	86406..86675	+	89	56750085	-	syc0076_d	-	hypothetical protein
76	 59.21	0	86686..86913	+	75	56750086	-	syc0077_d	-	hypothetical protein
77	 57.84	0	86910..88415	+	501	56750087	ycf46	syc0078_d	-	hypothetical protein
78	 55.58	0	88555..90123	-	522	56750088	-	syc0079_c	-	Fe-S oxidoreductase
79	 57.12	0	90692..93163	+	823	56750089	-	syc0080_d	-	proteinase
80	 56.71	0	93236..93928	+	230	56750090	-	syc0081_d	-	hypothetical protein
81	 56.21	0	93956..94615	-	219	161621824	ribC	syc0082_c	-	riboflavin synthase subunit alpha
82	 53.35	0	94669..95892	-	407	56750092	-	syc0083_c	-	glycosyltransferase
83	 57.56	0	96039..96521	-	160	56750093	-	syc0084_c	-	hypothetical protein
84	 54.68	0	96525..96866	-	113	56750094	-	syc0085_c	-	hypothetical protein
85	 59.83	0	96857..97822	-	321	56750095	-	syc0086_c	-	hypothetical protein
86	 49.44	-1	98222..98941	+	239	56750096	-	syc0087_d	-	hypothetical protein
87	 54.05	0	99041..99682	+	213	56750097	-	syc0088_d	-	hypothetical protein
88	 56.55	0	99903..100238	+	111	56750098	petJ	syc0089_d	-	cytochrome c6
89	 59.44	0	100239..101138	+	299	56750099	-	syc0090_d	-	CytB protein
90	 50.39	-1	101233..101742	+	169	56750100	-	syc0091_d	-	hypothetical protein
91	 49.79	-1	102339..103061	+	240	56750101	-	syc0092_d	-	hypothetical protein
92	 46.11	-2	103083..103622	-	179	56750102	-	syc0093_c	-	hypothetical protein
93	 54.36	0	103793..105433	-	546	56750103	-	syc0094_c	-	porin; major outer membrane protein
94	 56.49	0	105655..106725	+	356	56750104	-	syc0095_d	-	Iron-regulated protein A precursor
95	 58.39	0	107195..108088	+	297	56750105	-	syc0096_d	-	thiol oxidoreductase
96	 56.59	0	108219..108476	+	85	56750106	-	syc0097_d	-	hypothetical protein
97	 58.62	0	108585..109205	+	206	56750107	-	syc0098_d	-	hypothetical protein
98	 58.20	0	109269..109835	+	188	56750108	-	syc0099_d	-	hypothetical protein
99	 61.80	+1	109815..110492	-	225	56750109	plsC	syc0100_c	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
100	 57.71	0	110461..111342	-	293	56750110	-	syc0101_c	-	acyl-carrier-protein S-malonyltransferase
101	 57.14	0	111396..112403	-	335	56750111	fabH	syc0102_c	-	3-oxoacyl-(acyl carrier protein) synthase III
102	 59.46	0	112473..113513	-	346	161621823	plsX	syc0103_c	-	putative glycerol-3-phosphate acyltransferase PlsX
103	 57.99	0	113664..114320	-	218	56750113	-	syc0104_c	-	two-component response regulator for energy transfer from phycobilisomes to photosystems
104	 59.71	0	114603..116039	+	478	56750114	radA	syc0105_d	-	DNA repair protein RadA
105	 55.63	0	116036..116497	-	153	56750115	-	syc0106_c	-	hypothetical protein
106	 57.30	0	116540..117340	-	266	56750116	pstB	syc0107_c	-	phosphate transport system ATP-binding protein
107	 58.90	0	117405..118472	+	355	56750117	lpxD	syc0108_d	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
108	 57.11	0	118492..119454	-	320	56750118	nadA	syc0109_c	-	quinolinate synthetase
109	 56.53	0	119490..120308	-	272	56750119	icfA	syc0110_c	-	carbonic anhydrase
110	 50.62	-1	120395..120874	+	159	56750120	-	syc0111_d	-	hypothetical protein
111	 52.69	0	120980..122095	+	371	56750121	-	syc0112_d	-	hypothetical protein
112	 55.87	0	122508..123581	-	357	56750122	-	syc0113_c	-	fructose-1,6-bisphosphate aldolase
113	 55.86	0	123965..124399	-	144	56750123	-	syc0114_c	-	hypothetical protein
114	 59.41	0	124647..125624	+	325	56750124	cobD	syc0115_d	-	cobalamin biosynthesis protein
55.98	MEAN

4.05	STD DEV
