IslandPath Analysis: Synechococcus elongatus PCC 6301

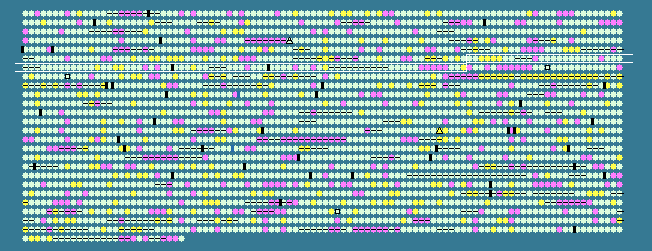

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
575	 58.98	0	645745..646707	-	320	161621822	hemC	syc0575_c	-	porphobilinogen deaminase
576	 57.82	0	646860..647447	+	195	56750585	-	syc0576_d	-	hypothetical protein
577	 60.23	+1	647456..648418	-	320	56750586	-	syc0577_c	-	ammonium transporter
578	 60.69	+1	648432..648950	-	172	56750587	-	syc0578_c	-	hypothetical protein
579	 60.37	+1	649167..649547	+	126	56750588	-	syc0579_d	-	methyltransferase
580	 59.52	0	649621..650838	+	405	56750589	sun	syc0580_d	-	sun protein
581	 57.99	0	650856..651869	-	337	56750590	-	syc0581_c	-	cell envelope-like transcriptional attenuator
582	 57.47	0	651958..653262	-	434	56750591	-	syc0582_c	-	ATP-binding protein of sugar ABC transporter
583	 57.85	0	653245..654276	+	343	56750592	obgE	syc0583_d	-	GTPase ObgE
584	 58.25	0	654451..655080	+	209	56750593	purN	syc0584_d	-	phosphoribosylglycinamide formyltransferase
585	 55.40	0	655087..655734	-	215	56750594	cobO	syc0585_c	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
586	 50.39	-1	655738..656880	-	380	56750595	-	syc0586_c	-	hypothetical protein
587	 56.65	0	657016..657534	+	172	56750596	-	syc0587_d	-	hypothetical protein
588	 58.07	0	657506..658540	+	344	56750597	-	syc0588_d	-	glycine cleavage T-protein
589	 55.27	0	658598..659062	+	154	56750598	-	syc0589_d	-	hypothetical protein
590	 53.28	0	659186..659977	+	263	56750599	-	syc0590_d	-	hypothetical protein
591	 56.40	0	660121..660987	-	288	56750600	nadC	syc0591_c	-	nicotinate-nucleotide pyrophosphorylase
592	 58.09	0	661069..662385	+	438	56750601	-	syc0592_d	-	hypothetical protein
593	 59.39	0	662382..663260	+	292	56750602	-	syc0593_d	-	permease protein of sugar ABC transporter
594	 57.64	0	663257..664087	+	276	56750603	-	syc0594_d	-	permease protein of sugar ABC transporter
595	 59.08	0	664092..665159	+	355	56750604	ggtA	syc0595_d	-	glucosylglycerol transport system ATP-binding protein
596	 57.46	0	665178..666665	-	495	56750605	-	syc0596_c	-	L-amino acid oxidase
597	 45.66	-2	667000..668013	+	337	56750606	-	syc0597_d	-	hypothetical protein
598	 55.37	0	668066..669304	-	412	56750607	folC	syc0598_c	-	folylpolyglutamate synthase
599	 58.39	0	669301..670569	-	422	56750608	argD	syc0599_c	-	acetylornithine aminotransferase
600	 57.74	0	670957..672849	+	630	56750609	ftsH	syc0600_d	-	ATP-dependent Zn protease
601	 52.75	0	673033..674742	+	569	56750610	-	syc0601_d	-	ATP-binding protein of ABC transporter
602	 54.99	0	675167..675517	+	116	56750611	-	syc0602_d	-	hypothetical protein
603	 56.30	0	675562..676188	-	208	56750612	cysC	syc0603_c	-	adenylylsulfate kinase
604	 57.49	0	676266..676592	-	108	56750613	-	syc0604_c	-	transcriptional regulator
605	 55.12	0	676679..677371	+	230	56750614	-	syc0605_d	-	hypothetical protein
606	 55.86	0	677418..677963	+	181	56750615	-	syc0606_d	-	hypothetical protein
607	 57.85	0	677968..678738	+	256	56750616	-	syc0607_d	-	hypothetical protein
608	 58.57	0	678750..679811	-	353	56750617	-	syc0608_c	-	hypothetical protein
609	 58.44	0	679911..680396	+	161	56750618	-	syc0609_d	-	hypothetical protein
610	 58.17	0	680414..681613	-	399	56750619	lpxB	syc0610_c	-	lipid-A-disaccharide synthase
611	 57.99	0	681614..682420	-	268	56750620	lpxA	syc0611_c	-	UDP-N-acetylglucosamine acyltransferase
612	 58.76	0	682427..682894	-	155	56750621	fabZ	syc0612_c	-	(3R)-hydroxymyristoyl-ACP dehydratase
613	 59.53	0	682913..683767	-	284	56750622	lpxC	syc0613_c	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
614	 56.93	0	683777..685594	-	605	56750623	-	syc0614_c	-	chloroplastic outer envelope membrane protein
615	 54.55	0	686060..686785	-	241	56750624	purC	syc0615_c	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
616	 59.84	0	686813..688072	-	419	56750625	-	syc0616_c	-	hypothetical protein
617	 61.14	+1	688227..689528	+	433	56750626	purD	syc0617_d	-	phosphoribosylamine--glycine ligase
618	 55.06	0	689700..691586	+	628	56750627	nblS	syc0618_d	-	two-component system sensor histidie kinase
619	 57.65	0	691638..692513	+	291	56750628	-	syc0619_d	-	5'-methylthioadenosine phosphorylase
620	 59.14	0	692513..693415	+	300	56750629	gltX	syc0620_d	-	glutamyl-tRNA synthetase
621	 52.48	0	693412..693714	+	100	56750630	-	syc0621_d	-	hypothetical protein
622	 54.12	0	693832..694086	+	84	56750631	psaK	syc0622_d	-	photosystem I reaction center subunit X
623	 46.87	-2	694283..694777	-	164	56750632	-	syc0623_c	-	hypothetical protein
624	 57.13	0	694778..696727	-	649	56750633	fadD	syc0624_c	-	long-chain-fatty-acid CoA ligase
625	 55.43	0	697014..697280	+	88	56750634	-	syc0625_d	-	hypothetical protein
626	 55.04	0	697831..697959	+	42	56750635	-	syc0626_d	-	hypothetical protein
627	 54.67	0	697970..698419	+	149	56750636	aroQ	syc0627_d	-	3-dehydroquinate dehydratase
628	 56.54	0	698416..699027	+	203	56750637	-	syc0628_d	-	tRNA-(MS[2]IO[6]A)-hydroxylase
629	 59.80	0	699027..699521	+	164	56750638	-	syc0629_d	-	putative acetyltransferase
630	 59.11	0	699524..701482	-	652	56750639	dnaX	syc0630_c	-	DNA polymerase III gamma and tau subunits
631	 58.33	0	701558..701809	-	83	56750640	-	syc0631_c	-	hypothetical protein
632	 57.11	0	701819..702247	-	142	56750641	-	syc0632_c	-	hypothetical protein
633	 54.06	0	702316..702672	-	118	56750642	ycf57	syc0633_c	-	hypothetical protein
634	 54.48	0	702820..703566	-	248	56750643	-	syc0634_c	-	hypothetical protein
635	 53.59	0	703641..704099	-	152	56750644	-	syc0635_c	-	hypothetical protein
636	 56.62	0	705705..706301	-	198	56750645	-	syc0636_c	-	hypothetical protein
637	 58.00	0	706522..709107	+	861	56750646	acnB	syc0637_d	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
638	 49.90	-1	709169..710128	+	319	56750647	-	syc0638_d	-	hypothetical protein
639	 57.66	0	710187..711041	-	284	56750648	-	syc0639_c	-	putative hydrolase
640	 55.39	0	711222..711425	+	67	56750649	-	syc0640_d	-	hypothetical protein
641	 57.64	0	711570..712367	+	265	56750650	-	syc0641_d	-	hypothetical protein
642	 56.49	0	712548..712940	-	130	56750651	-	syc0642_c	-	ferredoxin like protein
643	 53.62	0	712937..713212	-	91	56750652	minE	syc0643_c	-	septum site-determining protein MinE
644	 56.63	0	713227..714033	-	268	56750653	minD	syc0644_c	-	septum site-determining protein MinD
645	 58.74	0	714208..715380	+	390	56750654	-	syc0645_d	-	hypothetical protein
646	 52.01	0	715448..716020	+	190	56750655	aroK	syc0646_d	-	shikimate kinase
647	 56.51	0	716582..717664	-	360	56750656	psbAIII	syc0647_c	-	photosystem II D1 protein
648	 56.48	0	717746..718756	+	336	56750657	cofG	syc0648_d	-	FO synthase subunit 1
649	 47.33	-2	718830..719129	-	99	56750658	-	syc0649_c	-	hypothetical protein
650	 57.86	0	719507..724117	-	1536	56750659	glsF	syc0650_c	-	ferredoxin-dependent glutamate synthase
651	 59.96	0	724412..726229	+	605	56750660	-	syc0651_d	-	hypothetical protein
652	 59.17	0	726226..726585	+	119	56750661	-	syc0652_d	-	mannose-1-phosphate guanylyltransferase
653	 56.80	0	726741..727115	+	124	56750662	rpsL	syc0653_d	-	30S ribosomal protein S12
654	 57.32	0	727283..727753	+	156	56750663	rps7	syc0654_d	-	30S ribosomal protein S7
655	 54.39	0	727828..729912	+	694	56750664	fus	syc0655_d	-	elongation factor G
656	 56.67	0	729939..731168	+	409	56750665	tuf	syc0656_d	-	elongation factor Tu
657	 56.60	0	731242..731559	+	105	56750666	rpsJ	syc0657_d	-	30S ribosomal protein S10
658	 53.27	0	731769..732425	+	218	56750667	lon	syc0658_d	-	ATP-dependent Lon protease
659	 58.08	0	732438..733334	-	298	56750668	pheA	syc0659_c	-	prephenate dehydratase
660	 53.23	0	733393..733950	+	185	56750669	-	syc0660_d	-	hypothetical protein
661	 58.80	0	733973..734620	-	215	56750670	rnhB	syc0661_c	-	ribonuclease HII
662	 59.09	0	734604..737030	-	808	56750671	rne	syc0662_c	-	ribonuclease E
663	 59.18	0	737380..739998	-	872	56750672	-	syc0663_c	-	hypothetical protein
664	 58.38	0	740190..742868	-	892	56750673	alaS	syc0664_c	-	alanyl-tRNA synthetase
665	 57.74	0	742909..743412	+	167	56750674	-	syc0665_d	-	hypothetical protein
666	 56.99	0	743416..746475	+	1019	56750675	-	syc0666_d	-	putative SNF2 helicase
667	 39.21	-2	746669..747757	+	362	56750676	-	syc0667_d	-	hypothetical protein
668	 52.50	0	747925..748503	-	192	56750677	-	syc0668_c	-	hypothetical protein
669	 40.00	-2	748505..748759	+	84	56750678	-	syc0669_d	-	hypothetical protein
670	 44.74	-2	748752..748979	+	75	56750679	-	syc0670_d	-	hypothetical protein
671	 52.45	0	749013..749603	-	196	56750680	-	syc0671_c	-	hypothetical protein
672	 56.95	0	749612..751360	-	582	56750681	-	syc0672_c	-	hypothetical protein
673	 57.36	0	751361..751618	-	85	56750682	-	syc0673_c	-	hypothetical protein
674	 62.71	+1	751745..752326	-	193	56750683	-	syc0674_c	-	hypothetical protein
55.98	MEAN

4.05	STD DEV
