IslandPath Analysis: Synechococcus elongatus PCC 6301

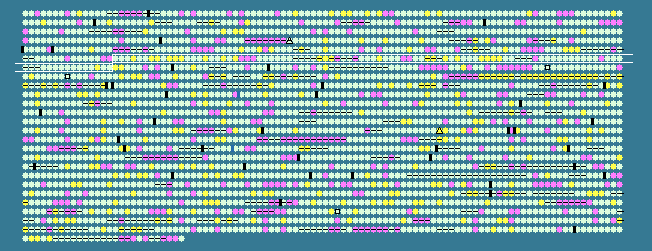

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
516	 55.70	0	574795..575916	-	373	56750525	hisC	syc0516_c	-	histidinol-phosphate aminotransferase
517	 54.54	0	575946..576860	-	304	56750526	livE	syc0517_c	-	branched-chain amino acid aminotransferase
518	 58.73	0	577464..578420	+	318	56750527	-	syc0518_d	-	hypothetical protein
519	 60.95	+1	578690..579004	-	104	56750528	-	syc0519_c	-	hypothetical protein
520	 57.89	0	579079..580833	+	584	56750529	-	syc0520_d	-	fibronectin binding protein
521	 55.88	0	581230..581637	-	135	56750530	-	syc0521_c	-	hypothetical protein
522	 60.62	+1	581707..582699	+	330	56750531	-	syc0522_d	-	hypothetical protein
523	 59.76	0	582719..582964	+	81	56750532	-	syc0523_d	-	hypothetical protein
524	 57.67	0	582968..583756	+	262	56750533	-	syc0524_d	-	hypothetical protein
525	 59.52	0	583731..585074	-	447	56750534	menE	syc0525_c	-	O-succinylbenzoic acid--CoA ligase
526	 59.52	0	585059..586009	-	316	56750535	menC	syc0526_c	-	O-succinylbenzoate synthase
527	 59.47	0	586006..587505	-	499	56750536	-	syc0527_c	-	4-alpha-glucanotransferase
528	 58.18	0	587593..588228	-	211	56750537	-	syc0528_c	-	hypothetical protein
529	 57.74	0	588347..589108	+	253	56750538	-	syc0529_d	-	hypothetical protein
530	 56.52	0	589370..589852	+	160	56750539	cheW	syc0530_d	-	purine-binding chemotaxis protein CheW
531	 59.76	0	589868..592387	+	839	56750540	-	syc0531_d	-	methyl-accepting chemotaxis protein
532	 57.27	0	592390..595176	+	928	56750541	-	syc0532_d	-	two-component hybrid sensor and regulator
533	 56.46	0	596063..596836	+	257	56750542	sphR	syc0533_d	-	phosphate sensor two-component response regulator
534	 60.63	+1	596849..598090	+	413	56750543	sphS	syc0534_d	-	phosphate sensor two-component sensor histidine kinase
535	 58.20	0	598105..598836	+	243	56750544	-	syc0535_d	-	ribosomal large subunit pseudouridine synthase B
536	 60.21	+1	599070..599456	+	128	56750545	-	syc0536_d	-	hypothetical protein
537	 50.76	-1	599621..600475	+	284	56750546	purU	syc0537_d	-	formyltetrahydrofolate deformylase
538	 49.35	-1	600512..601903	+	463	56750547	fumC	syc0538_d	-	fumarate hydratase
539	 52.41	0	602684..603763	-	359	56750548	-	syc0539_c	-	hypothetical protein
540	 53.02	0	603863..604492	-	209	56750549	-	syc0540_c	-	hypothetical protein
541	 54.40	0	604527..604844	+	105	56750550	-	syc0541_d	-	hypothetical protein
542	 57.66	0	604820..606373	-	517	56750551	trpE	syc0542_c	-	anthranilate synthase component I
543	 53.52	0	606592..606918	-	108	56750552	psaD	syc0543_c	-	photosystem I reaction center subunit II
544	 58.14	0	607127..608920	+	597	56750553	lysC	syc0544_d	-	aspartate kinase
545	 56.66	0	609401..612667	+	1088	56750554	-	syc0545_d	-	hypothetical protein
546	 55.24	0	613287..615185	-	632	56750555	ftsH	syc0546_c	-	ATP-dependent Zn protease
547	 54.24	0	615374..615550	+	58	56750556	rpmF	syc0547_d	-	50S ribosomal protein L32
548	 57.75	0	615566..616552	-	328	56750557	-	syc0548_c	-	hypothetical protein
549	 58.11	0	616602..616940	-	112	56750558	ycf20	syc0549_c	-	hypothetical protein
550	 62.46	+1	617060..617629	+	189	56750559	-	syc0550_d	-	hypothetical protein
551	 59.68	0	617652..619040	+	462	56750560	-	syc0551_d	-	hypothetical protein
552	 60.61	+1	619007..621004	-	665	56750561	-	syc0552_c	-	hypothetical protein
553	 51.50	-1	621077..622342	+	421	56750562	pxcA	syc0553_d	-	proton extrusion protein PcxA
554	 52.67	0	622352..622894	+	180	56750563	cobU	syc0554_d	-	adenosylcobinamide kinase/adenosylcobinamide-phosphate guanylyltransferase
555	 54.55	0	622933..623427	+	164	56750564	-	syc0555_d	-	hypothetical protein
556	 52.29	0	623532..623858	+	108	56750565	ycf54	syc0556_d	-	hypothetical protein
557	 52.70	0	624083..624526	+	147	56750566	fur	syc0557_d	-	ferric uptake regulation protein
558	 56.51	0	624575..625726	-	383	56750567	-	syc0558_c	-	glycosyltransferase
559	 56.25	0	625770..627152	-	460	56750568	-	syc0559_c	-	hypothetical protein
560	 60.05	+1	627136..627936	-	266	56750569	recO	syc0560_c	-	DNA repair protein RecO
561	 58.95	0	627933..628619	-	228	56750570	deoC	syc0561_c	-	deoxyribose-phosphate aldolase
562	 55.45	0	628639..629253	-	204	56750571	-	syc0562_c	-	hypothetical protein
563	 56.93	0	629312..631006	+	564	56750572	-	syc0563_d	-	hypothetical protein
564	 51.39	-1	631434..632153	+	239	56750573	-	syc0564_d	-	hypothetical protein
565	 52.18	0	632229..632732	+	167	56750574	-	syc0565_d	-	hypothetical protein
566	 55.45	0	633180..634391	-	403	56750575	petH	syc0566_c	-	ferredoxin-NADP oxidoreductase
567	 56.49	0	634796..635797	+	333	56750576	prk	syc0567_d	-	phosphoribulokinase
568	 59.74	0	635909..638638	-	909	56750577	-	syc0568_c	-	polyA polymerase
569	 59.93	0	638662..639552	+	296	56750578	mraW	syc0569_d	-	S-adenosyl-methyltransferase MraW
570	 57.10	0	639669..641048	+	459	56750579	ugd	syc0570_d	-	UDP-glucose dehydrogenase
571	 59.80	0	641045..641437	-	130	56750580	-	syc0571_c	-	hypothetical protein
572	 58.95	0	641647..642903	+	418	56750581	-	syc0572_d	-	hypothetical protein
573	 59.92	0	642924..644495	-	523	56750582	-	syc0573_c	-	to phytoene dehydrogenase
574	 57.49	0	644611..645438	+	275	56750583	-	syc0574_d	-	carboxymethylenebutenolidase
575	 58.98	0	645745..646707	-	320	161621822	hemC	syc0575_c	-	porphobilinogen deaminase
576	 57.82	0	646860..647447	+	195	56750585	-	syc0576_d	-	hypothetical protein
577	 60.23	+1	647456..648418	-	320	56750586	-	syc0577_c	-	ammonium transporter
578	 60.69	+1	648432..648950	-	172	56750587	-	syc0578_c	-	hypothetical protein
579	 60.37	+1	649167..649547	+	126	56750588	-	syc0579_d	-	methyltransferase
580	 59.52	0	649621..650838	+	405	56750589	sun	syc0580_d	-	sun protein
581	 57.99	0	650856..651869	-	337	56750590	-	syc0581_c	-	cell envelope-like transcriptional attenuator
582	 57.47	0	651958..653262	-	434	56750591	-	syc0582_c	-	ATP-binding protein of sugar ABC transporter
583	 57.85	0	653245..654276	+	343	56750592	obgE	syc0583_d	-	GTPase ObgE
584	 58.25	0	654451..655080	+	209	56750593	purN	syc0584_d	-	phosphoribosylglycinamide formyltransferase
585	 55.40	0	655087..655734	-	215	56750594	cobO	syc0585_c	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
586	 50.39	-1	655738..656880	-	380	56750595	-	syc0586_c	-	hypothetical protein
587	 56.65	0	657016..657534	+	172	56750596	-	syc0587_d	-	hypothetical protein
588	 58.07	0	657506..658540	+	344	56750597	-	syc0588_d	-	glycine cleavage T-protein
589	 55.27	0	658598..659062	+	154	56750598	-	syc0589_d	-	hypothetical protein
590	 53.28	0	659186..659977	+	263	56750599	-	syc0590_d	-	hypothetical protein
591	 56.40	0	660121..660987	-	288	56750600	nadC	syc0591_c	-	nicotinate-nucleotide pyrophosphorylase
592	 58.09	0	661069..662385	+	438	56750601	-	syc0592_d	-	hypothetical protein
593	 59.39	0	662382..663260	+	292	56750602	-	syc0593_d	-	permease protein of sugar ABC transporter
594	 57.64	0	663257..664087	+	276	56750603	-	syc0594_d	-	permease protein of sugar ABC transporter
595	 59.08	0	664092..665159	+	355	56750604	ggtA	syc0595_d	-	glucosylglycerol transport system ATP-binding protein
596	 57.46	0	665178..666665	-	495	56750605	-	syc0596_c	-	L-amino acid oxidase
597	 45.66	-2	667000..668013	+	337	56750606	-	syc0597_d	-	hypothetical protein
598	 55.37	0	668066..669304	-	412	56750607	folC	syc0598_c	-	folylpolyglutamate synthase
599	 58.39	0	669301..670569	-	422	56750608	argD	syc0599_c	-	acetylornithine aminotransferase
600	 57.74	0	670957..672849	+	630	56750609	ftsH	syc0600_d	-	ATP-dependent Zn protease
601	 52.75	0	673033..674742	+	569	56750610	-	syc0601_d	-	ATP-binding protein of ABC transporter
602	 54.99	0	675167..675517	+	116	56750611	-	syc0602_d	-	hypothetical protein
603	 56.30	0	675562..676188	-	208	56750612	cysC	syc0603_c	-	adenylylsulfate kinase
604	 57.49	0	676266..676592	-	108	56750613	-	syc0604_c	-	transcriptional regulator
605	 55.12	0	676679..677371	+	230	56750614	-	syc0605_d	-	hypothetical protein
606	 55.86	0	677418..677963	+	181	56750615	-	syc0606_d	-	hypothetical protein
607	 57.85	0	677968..678738	+	256	56750616	-	syc0607_d	-	hypothetical protein
608	 58.57	0	678750..679811	-	353	56750617	-	syc0608_c	-	hypothetical protein
609	 58.44	0	679911..680396	+	161	56750618	-	syc0609_d	-	hypothetical protein
610	 58.17	0	680414..681613	-	399	56750619	lpxB	syc0610_c	-	lipid-A-disaccharide synthase
611	 57.99	0	681614..682420	-	268	56750620	lpxA	syc0611_c	-	UDP-N-acetylglucosamine acyltransferase
612	 58.76	0	682427..682894	-	155	56750621	fabZ	syc0612_c	-	(3R)-hydroxymyristoyl-ACP dehydratase
613	 59.53	0	682913..683767	-	284	56750622	lpxC	syc0613_c	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
614	 56.93	0	683777..685594	-	605	56750623	-	syc0614_c	-	chloroplastic outer envelope membrane protein
615	 54.55	0	686060..686785	-	241	56750624	purC	syc0615_c	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
55.98	MEAN

4.05	STD DEV
