IslandPath Analysis: Synechococcus elongatus PCC 6301

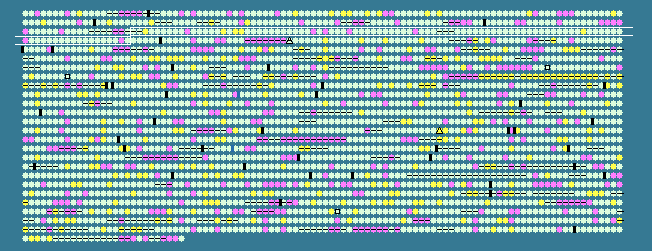

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
219	 57.11	0	253830..254624	-	264	56750228	-	syc0219_c	-	branched-chain amino acid aminotransferase
220	 58.23	0	254621..256018	-	465	56750229	trpE	syc0220_c	-	anthranilate synthetase alpha-subunit
221	 60.34	+1	256015..256710	-	231	56750230	-	syc0221_c	-	transcription regulator
222	 57.65	0	256710..257330	-	206	56750231	-	syc0222_c	-	hypothetical protein
223	 56.50	0	257335..257511	-	58	56750232	-	syc0223_c	-	CAB/ELIP/HLIP superfamily protein
224	 57.14	0	257726..258292	-	188	56750233	-	syc0224_c	-	hypothetical protein
225	 57.42	0	258295..258921	-	208	56750234	-	syc0225_c	-	hypothetical protein
226	 56.23	0	259241..259633	-	130	56750235	-	syc0226_c	-	hypothetical protein
227	 58.58	0	260107..263568	-	1153	56750236	-	syc0227_c	-	transcription-repair coupling factor
228	 52.06	0	263649..265010	-	453	56750237	dnaB	syc0228_c	-	replicative DNA helicase
229	 57.07	0	265212..267971	+	919	56750238	-	syc0229_d	-	putative helicase
230	 57.50	0	268003..268722	-	239	56750239	fpg	syc0230_c	-	formamidopyrimidine-DNA glycosylase
231	 55.70	0	268960..269187	-	75	56750240	psaE	syc0231_c	-	photosystem I reaction center subunit IV
232	 58.33	0	269367..270386	+	339	56750241	-	syc0232_d	-	hypothetical protein
233	 56.43	0	270504..271460	+	318	56750242	-	syc0233_d	-	hypothetical protein
234	 60.19	+1	271427..271966	-	179	56750243	-	syc0234_c	-	pyrimidine regulatory protein PyrR
235	 56.69	0	272032..272883	-	283	56750244	mntB	syc0235_c	-	manganese transport system membrane protein MntB
236	 59.49	0	272890..273627	-	245	56750245	mntA	syc0236_c	-	manganese transport system ATP-binding protein MntA
237	 60.69	+1	273686..274723	+	345	56750246	mntC	syc0237_d	-	Mn transporter MntC
238	 58.17	0	274817..276217	+	466	56750247	-	syc0238_d	-	tRNA (uracil-5-)-methyltransferase Gid
239	 56.53	0	276383..278266	+	627	56750248	ftsH	syc0239_d	-	ATP-dependent Zn protease
240	 57.17	0	278367..280166	-	599	56750249	aspS	syc0240_c	-	aspartyl-tRNA synthetase
241	 55.98	0	280573..282144	+	523	56750250	-	syc0241_d	-	ATP-binding protein of ABC transporter
242	 54.40	0	282204..282578	+	124	56750251	-	syc0242_d	-	hypothetical protein
243	 53.91	0	282753..283724	-	323	56750252	-	syc0243_c	-	ndhF3 operon transcriptional regulator
244	 57.13	0	283795..284727	-	310	56750253	-	syc0244_c	-	hypothetical protein
245	 56.41	0	284724..285737	-	337	56750254	trpS	syc0245_c	-	tryptophanyl-tRNA synthetase
246	 55.76	0	285804..286619	-	271	56750255	-	syc0246_c	-	hypothetical protein
247	 57.22	0	286718..287278	+	186	56750256	-	syc0247_d	-	hypothetical protein
248	 58.29	0	287356..288966	+	536	56750257	-	syc0248_d	-	ABC transporter ATP-binding protein
249	 51.12	-1	289062..289640	+	192	56750258	-	syc0249_d	-	hypothetical protein
250	 53.88	0	289650..290048	+	132	56750259	-	syc0250_d	-	hypothetical protein
251	 51.94	0	290074..290562	-	162	56750260	-	syc0251_c	-	hypothetical protein
252	 58.44	0	290659..292080	-	473	56750261	recQ	syc0252_c	-	ATP-dependent DNA helicase RecQ
253	 55.26	0	292138..292707	-	189	56750262	-	syc0253_c	-	hypothetical protein
254	 54.41	0	292946..293908	+	320	56750263	-	syc0254_d	-	hypothetical protein
255	 45.23	-2	293963..295693	-	576	56750264	-	syc0255_c	-	hypothetical protein
256	 56.52	0	296481..297890	-	469	56750265	-	syc0256_c	-	malic enzyme
257	 56.75	0	298207..298902	-	231	56750266	-	syc0257_c	-	hypothetical protein
258	 55.87	0	299042..300430	+	462	56750267	-	syc0258_d	-	hypothetical protein
259	 56.82	0	300498..302183	-	561	56750268	-	syc0259_c	-	serine/threonine kinase
260	 58.37	0	302202..304637	+	811	56750269	pheT	syc0260_d	-	phenylalanyl-tRNA synthetase subunit beta
261	 57.31	0	304780..306864	+	694	56750270	dnaG	syc0261_d	-	DNA primase
262	 55.28	0	306874..307242	-	122	56750271	ziaR	syc0262_c	-	zinc-responsive repressor ZiaR
263	 57.31	0	307343..307513	+	56	56750272	-	syc0263_d	-	SmtA metallothionein
264	 58.99	0	307622..308962	-	446	56750273	pmbA	syc0264_c	-	putative modulator of DNA gyrase
265	 54.24	0	309269..309775	-	168	56750274	-	syc0265_c	-	hypothetical protein
266	 42.94	-2	309941..311773	-	610	56750275	-	syc0266_c	-	S-layer-RTX protein
267	 58.50	0	312288..313523	-	411	56750276	moeA	syc0267_c	-	molybdopterin biosynthesis MoeA protein
268	 59.16	0	313603..314574	+	323	56750277	moaC	syc0268_d	-	bifunctional molybdenum cofactor biosynthesis protein C/molybdopterin-binding protein
269	 58.61	0	314571..314843	+	90	56750278	-	syc0269_d	-	molybdopterin converting factor subunit 1
270	 57.63	0	314846..315343	+	165	56750279	-	syc0270_d	-	molybdopterin converting factor subunit 2
271	 56.10	0	315340..316323	+	327	56750280	moaA	syc0271_d	-	molybdenum cofactor biosynthesis protein A
272	 56.71	0	316967..317659	+	230	56750281	-	syc0272_d	-	hypothetical protein
273	 57.35	0	317665..318759	+	364	56750282	-	syc0273_d	-	hypothetical protein
274	 55.72	0	319034..319234	+	66	56750283	rpmI	syc0274_d	-	50S ribosomal protein L35
275	 56.13	0	319279..319629	+	116	56750284	rplT	syc0275_d	-	50S ribosomal protein L20
276	 57.60	0	319640..320422	+	260	56750285	gtrC	syc0276_d	-	polar amino acid transport system substrate-binding proetin
277	 56.70	0	320453..321616	+	387	56750286	-	syc0277_d	-	hypothetical protein
278	 55.49	0	321646..322173	+	175	56750287	ycf37	syc0278_d	-	photosystem I assembly related protein
279	 59.38	0	322457..323992	-	511	56750288	-	syc0279_c	-	hypothetical protein
280	 57.20	0	324043..324570	+	175	56750289	-	syc0280_d	-	hypothetical protein
281	 54.20	0	324629..325366	+	245	56750290	-	syc0281_d	-	hypothetical protein
282	 55.51	0	325865..327262	-	465	56750291	-	syc0282_c	-	Mg2+ transport protein
283	 57.53	0	327573..329027	+	484	56750292	-	syc0283_d	-	phosphoglucomutase/phosphomannomutase
284	 57.82	0	329075..329854	+	259	56750293	-	syc0284_d	-	hypothetical protein
285	 58.74	0	329851..330342	+	163	56750294	-	syc0285_d	-	hypothetical protein
286	 57.14	0	330545..331258	+	237	56750295	-	syc0286_d	-	hypothetical protein
287	 58.32	0	331221..332825	-	534	56750296	-	syc0287_c	-	Na+/H+ antiporter
288	 57.04	0	333221..334093	+	290	56750297	-	syc0288_d	-	hypothetical protein
289	 55.19	0	334157..335776	+	539	56750298	-	syc0289_d	-	uncharacterized FAD-dependent dehydrogenase
290	 56.04	0	335820..336581	+	253	56750299	tpiA	syc0290_d	-	triosephosphate isomerase
291	 56.52	0	336733..337560	-	275	56750300	-	syc0291_c	-	hypothetical protein
292	 54.62	0	337633..338811	-	392	56750301	-	syc0292_c	-	putative arsenical pump-driving ATPase
293	 57.25	0	338859..339272	-	137	56750302	-	syc0293_c	-	hypothetical protein
294	 60.66	+1	339272..341119	-	615	56750303	-	syc0294_c	-	chloride channel
295	 58.92	0	341171..341725	-	184	56750304	gst	syc0295_c	-	glutathione S-transferase
296	 58.16	0	341789..342952	+	387	56750305	-	syc0296_d	-	L-cysteine/cystine lyase
297	 57.32	0	342949..343344	-	131	56750306	-	syc0297_c	-	hypothetical protein
298	 57.12	0	343971..345248	-	425	56750307	-	syc0298_c	-	DNA repair protein RAD32
299	 59.14	0	345317..346366	-	349	56750308	-	syc0299_c	-	O-sialoglycoprotein endopeptidase
300	 58.75	0	346544..347023	+	159	56750309	psaF	syc0300_d	-	photosystem I reaction center subunit III precursor
301	 45.93	-2	347049..347183	+	44	56750310	psaJ	syc0301_d	-	photosystem I reaction center subunit IX
302	 55.75	0	347576..348253	-	225	56750311	-	syc0302_c	-	hypothetical protein
303	 54.17	0	348243..348482	-	79	56750312	-	syc0303_c	-	hypothetical protein
304	 56.04	0	348487..350001	-	504	56750313	-	syc0304_c	-	carotene isomerase
305	 56.41	0	350459..350770	-	103	56750314	-	syc0305_c	-	hypothetical protein
306	 53.91	0	351141..352457	-	438	56750315	-	syc0306_c	-	ABC-2 type transport system ATP-binding protein
307	 59.20	0	352687..353382	+	231	56750316	-	syc0307_d	-	cAMP/cGMP binding protein
308	 56.34	0	353747..354676	-	309	56750317	ntcB	syc0308_c	-	nitrate assimilation transcriptional activator
309	 59.05	0	354667..355716	-	349	56750318	nirB	syc0309_c	-	nitrite reductase related protein
310	 55.56	0	356003..357541	+	512	56750319	nirA	syc0310_d	-	ferredoxin-nitrite reductase
311	 55.86	0	357606..358937	+	443	56750320	nrtA	syc0311_d	-	ABC-type nitrate/nitrite transport system substrate-binding protein
312	 53.45	0	358994..359833	+	279	56750321	nrtB	syc0312_d	-	ABC-type nitrate/nitrite transport system permease protein
313	 59.09	0	359848..361827	+	659	56750322	nrtC	syc0313_d	-	ABC-type nitrate/nitrite transport system ATP-binding protein
314	 57.70	0	361837..362661	+	274	56750323	nrtD	syc0314_d	-	ABC-type nitrate/nitrite transport system ATP-binding protein
315	 57.72	0	362859..365048	+	729	56750324	narB	syc0315_d	-	ferredoxin-nitrate reductase
316	 55.81	0	365563..366087	-	174	56750325	-	syc0316_c	-	hypothetical protein
317	 41.52	-2	366332..367015	+	227	56750326	-	syc0317_d	-	hypothetical protein
318	 58.33	0	367316..367855	+	179	56750327	petC	syc0318_d	-	cytochrome b6-f complex iron-sulfur subunit
55.98	MEAN

4.05	STD DEV
