IslandPath Analysis: Synechococcus elongatus PCC 6301

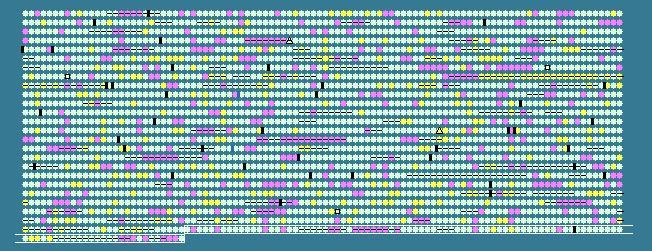

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2428	 54.96	0	2585328..2585891	-	187	56752436	-	syc2427_c	-	hypothetical protein
2429	 50.23	-1	2586086..2586961	-	291	56752437	-	syc2428_c	-	potassium channel protein
2430	 55.25	0	2587019..2587666	-	215	56752438	-	syc2429_c	-	nitroreductase
2431	 55.62	0	2587765..2588262	+	165	56752439	-	syc2430_d	-	hypothetical protein
2432	 54.32	0	2588969..2591131	+	720	56752440	katG	syc2431_d	-	catalase/peroxidase
2433	 49.74	-1	2591818..2592201	+	127	56752441	-	syc2432_d	-	hypothetical protein
2434	 54.64	0	2592314..2593510	+	398	56752442	gldA	syc2433_d	-	glycerol dehydrogenase
2435	 55.58	0	2593617..2595257	-	546	56752443	-	syc2434_c	-	Fe-S oxidoreductase
2436	 57.16	0	2595254..2596000	-	248	56752444	rffM	syc2435_c	-	UDP-N-acetyl-D-mannosaminuronic acid transferase
2437	 56.14	0	2596103..2599342	+	1079	56752445	-	syc2436_d	-	phosphorylase kinase alpha subunit
2438	 55.37	0	2599545..2600261	-	238	56752446	-	syc2437_c	-	rubrerythrin
2439	 56.44	0	2600411..2600860	+	149	56752447	-	syc2438_d	-	transcription regulator
2440	 57.11	0	2600863..2601783	-	306	56752448	-	syc2439_c	-	hypothetical protein
2441	 51.31	-1	2601979..2602701	-	240	56752449	-	syc2440_c	-	hypothetical protein
2442	 57.93	0	2602974..2603717	-	247	56752450	rnc	syc2441_c	-	ribonuclease III
2443	 56.54	0	2604232..2605080	-	282	56752451	-	syc2442_c	-	hypothetical protein
2444	 51.74	-1	2605176..2606696	-	506	56752452	-	syc2443_c	-	hypothetical protein
2445	 55.28	0	2606799..2607869	-	356	56752453	-	syc2444_c	-	hypothetical protein
2446	 54.35	0	2608635..2609186	-	183	56752454	-	syc2445_c	-	hypothetical protein
2447	 56.23	0	2609273..2609914	-	213	56752455	-	syc2446_c	-	ABC transporter ATP-binding protein
2448	 58.43	0	2610098..2610364	-	88	56752456	-	syc2447_c	-	hypothetical protein
2449	 57.32	0	2610565..2611623	+	352	56752457	psbDII	syc2448_d	-	photosystem II reaction center D2 protein
2450	 53.92	0	2612036..2612443	+	135	56752458	phhB	syc2449_d	-	pterin-4-alpha-carbinolamine dehydratase
2451	 52.98	0	2612515..2614224	+	569	56752459	somB	syc2450_d	-	porin
2452	 52.05	0	2614449..2616056	+	535	56752460	somA	syc2451_d	-	porin
2453	 48.68	-1	2616218..2616673	+	151	56752461	-	syc2452_d	-	hypothetical protein
2454	 55.52	0	2616888..2617892	+	334	56752462	cysM	syc2453_d	-	cysteine synthase
2455	 54.84	0	2617979..2618587	+	202	56752463	-	syc2454_d	-	hypothetical protein
2456	 46.82	-2	2618706..2619365	-	219	56752464	-	syc2455_c	-	putative monovalent cation/H+ antiporter subunit B
2457	 43.30	-2	2619362..2619943	-	193	56752465	-	syc2456_c	-	hypothetical protein
2458	 44.90	-2	2619936..2620229	-	97	56752466	-	syc2457_c	-	hypothetical protein
2459	 41.86	-2	2620226..2620483	-	85	56752467	-	syc2458_c	-	hypothetical protein
2460	 43.17	-2	2620863..2622305	-	480	56752468	ndhD2	syc2459_c	-	putative monovalent cation/H+ antiporter subunit D
2461	 43.45	-2	2622302..2622637	-	111	56752469	-	syc2460_c	-	putative monovalent cation/H+ antiporter subunit C
2462	 54.55	0	2623057..2624178	-	373	56752470	sbtA	syc2461_c	-	sodium-dependent bicarbonate transporter
2463	 46.98	-2	2624941..2625255	+	104	56752471	-	syc2462_d	-	hypothetical protein
2464	 59.06	0	2625366..2627561	-	731	56752472	-	syc2463_c	-	hypothetical protein
2465	 56.85	0	2627639..2628076	-	145	56752473	cytM	syc2464_c	-	cytochrome CytM
2466	 58.33	0	2628261..2628308	+	15	56752474	petG	syc2465_d	-	cytochrome b6-f complex subunit V (PetG)
2467	 59.46	0	2628419..2628973	-	184	56752475	-	syc2466_c	-	hypothetical protein
2468	 57.03	0	2628970..2629623	-	217	56752476	hisH	syc2467_c	-	imidazole glycerol phosphate synthase subunit HisH
2469	 58.81	0	2629830..2631395	+	521	56752477	-	syc2468_d	-	hypothetical protein
2470	 56.64	0	2631674..2632102	-	142	56752478	-	syc2469_c	-	hypothetical protein
2471	 58.25	0	2632099..2633607	-	502	56752479	murE	syc2470_c	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
2472	 56.18	0	2633632..2633898	-	88	56752480	-	syc2471_c	-	hypothetical protein
2473	 59.44	0	2633889..2634137	-	82	56752481	-	syc2472_c	-	hypothetical protein
2474	 58.29	0	2634211..2634819	+	202	56752482	rpsD	syc2473_d	-	30S ribosomal protein S4
2475	 53.36	0	2635770..2637122	+	450	56752483	cmpA	syc2474_d	-	substrate-binding protein
2476	 51.02	-1	2637178..2638014	+	278	56752484	cmpB	syc2475_d	-	permease protein
2477	 56.33	0	2638043..2640034	+	663	56752485	cmpC	syc2476_d	-	ATP-binding protein
2478	 54.12	0	2640059..2640895	+	278	56752486	cmpD	syc2477_d	-	ATP-binding protein
2479	 59.82	0	2641163..2641732	+	189	56752487	-	syc2478_d	-	hypothetical protein
2480	 58.21	0	2641739..2642578	+	279	56752488	mazG	syc2479_d	-	nucleoside triphosphate pyrophosphohydrolase
2481	 56.16	0	2642607..2643320	-	237	56752489	-	syc2480_c	-	hypothetical protein
2482	 59.66	0	2643348..2643875	-	175	56752490	-	syc2481_c	-	hypothetical protein
2483	 56.40	0	2643872..2644777	-	301	56752491	argB	syc2482_c	-	acetylglutamate kinase
2484	 57.22	0	2644770..2645330	-	186	56752492	-	syc2483_c	-	hypothetical protein
2485	 54.00	0	2645856..2646155	-	99	56752493	petF	syc2484_c	-	ferredoxin petF-like protein
2486	 58.44	0	2646404..2647303	-	299	56752494	prmA	syc2485_c	-	ribosomal protein L11 methyltransferase
2487	 58.87	0	2647303..2648943	-	546	56752495	serA	syc2486_c	-	D-3-phosphoglycerate dehydrogenase
2488	 59.16	0	2648955..2649527	+	190	56752496	-	syc2487_d	-	hypothetical protein
2489	 56.92	0	2649528..2650307	+	259	56752497	-	syc2488_d	-	hypothetical protein
2490	 49.46	-1	2650555..2651943	+	462	56752498	-	syc2489_d	-	hypothetical protein
2491	 56.86	0	2652064..2653215	-	383	56752499	leuB	syc2490_c	-	3-isopropylmalate dehydrogenase
2492	 52.76	0	2653322..2653738	-	138	56752500	-	syc2491_c	-	hypothetical protein
2493	 59.14	0	2654621..2655523	-	300	56752501	lipA	syc2492_c	-	lipoyl synthase
2494	 57.99	0	2655709..2656434	-	241	56752502	-	syc2493_c	-	hypothetical protein
2495	 57.73	0	2656554..2657627	+	357	56752503	trmU	syc2494_d	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
2496	 56.03	0	2657624..2658403	-	259	56752504	sigF1	syc2495_c	-	RNA polymerase sigma factor SigF
2497	 56.39	0	2658692..2659129	-	145	56752505	-	syc2496_c	-	hypothetical protein
2498	 57.26	0	2659169..2660614	-	481	56752506	zds	syc2497_c	-	zeta-carotene desaturase
2499	 57.82	0	2660757..2661965	+	402	56752507	dxr	syc2498_d	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
2500	 59.33	0	2661975..2662574	+	199	56752508	-	syc2499_d	-	pseudouridine synthase
2501	 58.13	0	2662544..2663515	+	323	56752509	-	syc2500_d	-	protein phosphatase
2502	 61.88	+1	2663549..2664196	-	215	56752510	-	syc2501_c	-	phosphoglycerate mutase
2503	 60.12	+1	2664168..2665541	-	457	56752511	-	syc2502_c	-	two-component sensor histidine kinase
2504	 55.89	0	2665852..2668152	+	766	56752512	pcrA	syc2503_d	-	ATP-dependent helicase PcrA
2505	 60.15	+1	2668201..2669505	-	434	56752513	hisD	syc2504_c	-	histidinol dehydrogenase
2506	 56.90	0	2669711..2670007	+	98	56752514	rpsT	syc2505_d	-	30S ribosomal protein S20
2507	 59.02	0	2670074..2670871	+	265	56752515	tatD	syc2506_d	-	Mg-dependent DNase
2508	 57.49	0	2670954..2674256	+	1100	56752516	rpoB	syc2507_d	-	DNA-directed RNA polymerase subunit beta
2509	 55.31	0	2674375..2676249	+	624	56752517	rpoC1	syc2508_d	-	DNA-directed RNA polymerase subunit gamma
2510	 57.39	0	2676319..2680275	+	1318	56752518	rpoC2	syc2509_d	-	DNA-directed RNA polymerase subunit beta'
2511	 54.92	0	2680632..2681738	+	368	56752519	typA	syc2510_d	-	N-terminus of GTP-binding protein TypA-like protein
2512	 56.05	0	2681747..2682424	+	225	56752520	typA	syc2511_d	-	C-terminus of GTP-binding protein TypA-like protein
2513	 56.06	0	2682511..2683302	+	263	56752521	-	syc2512_d	-	hypothetical protein
2514	 57.25	0	2683467..2685983	+	838	56752522	-	syc2513_d	-	nitrogen assimilation regulatory protein
2515	 56.97	0	2686041..2686370	-	109	56752523	ycf49	syc2514_c	-	hypothetical protein
2516	 58.73	0	2686428..2687447	+	339	56752524	-	syc2515_d	-	hypothetical protein
2517	 50.23	-1	2687507..2687932	-	141	56752525	-	syc2516_c	-	molybdenum-pterin binding protein
2518	 49.26	-1	2688023..2688838	+	271	56752526	modA	syc2517_d	-	molybdate-binding periplasmic protein
2519	 50.75	-1	2688835..2689500	+	221	56752527	-	syc2518_d	-	ATP-binding protein of molybdate ABC transporter
2520	 53.54	0	2689556..2690317	+	253	56752528	sdhB	syc2519_d	-	succinate dehydrogenase/fumarate reductase iron-sulfur subunit
2521	 44.02	-2	2690440..2692647	+	735	56752529	-	syc2520_d	-	hypothetical protein
2522	 55.56	0	2692684..2693169	+	161	56752530	rbcX	syc2521_d	-	Rubisco chaperonin
2523	 57.71	0	2693159..2693839	+	226	56752531	-	syc2522_d	-	amidotransferase
2524	 40.44	-2	2694226..2694591	+	121	56752532	-	syc2523_d	-	hypothetical protein
2525	 44.55	-2	2694741..2695043	-	100	56752533	-	syc2524_c	-	hypothetical protein
2526	 44.30	-2	2695081..2695791	-	236	56752534	-	syc2525_c	-	hypothetical protein
2527	 55.48	0	2695881..138	-	170	56752535	isiB	syc0001_c	-	flavodoxin FldA
55.98	MEAN

4.05	STD DEV
