IslandPath Analysis: Synechococcus elongatus PCC 6301

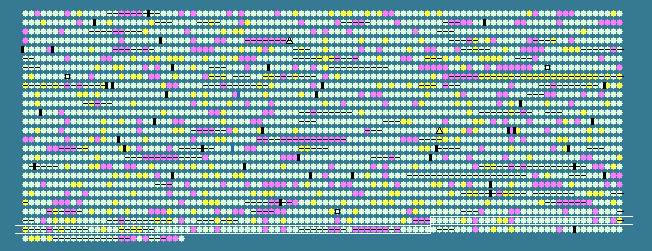

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2369	 58.67	0	2520018..2521568	-	516	56752377	-	syc2368_c	-	carotene isomerase
2370	 54.33	0	2521822..2522907	+	361	56752378	sbpA	syc2369_d	-	sulfate transport system substrate-binding protein
2371	 54.75	0	2523134..2523838	+	234	56752379	-	syc2370_d	-	phycocyanin alpha phycocyanobilin lyase related protein NblB
2372	 53.97	0	2524658..2525098	-	146	56752380	-	syc2371_c	-	hypothetical protein
2373	 57.77	0	2525254..2526681	+	475	56752381	icd	syc2372_d	-	isocitrate dehydrogenase
2374	 59.95	0	2526712..2528022	+	436	56752382	glcE	syc2373_d	-	glycolate oxidase subunit GlcE
2375	 53.21	0	2528019..2529326	+	435	56752383	glcF	syc2374_d	-	glycolate oxidase subunit (Fe-S) protein
2376	 51.36	-1	2529395..2533111	+	1238	56752384	-	syc2375_d	-	hypothetical protein
2377	 58.41	0	2533147..2533800	+	217	56752385	upp	syc2376_d	-	uracil phosphoribosyltransferase
2378	 57.13	0	2533818..2534834	-	338	56752386	metX	syc2377_c	-	hypothetical protein
2379	 57.84	0	2534831..2535691	-	286	56752387	-	syc2378_c	-	hydrocarbon oxygenase MocD
2380	 60.38	+1	2535832..2536197	-	121	56752388	-	syc2379_c	-	hypothetical protein
2381	 61.26	+1	2536203..2536775	-	190	56752389	-	syc2380_c	-	hypothetical protein
2382	 51.95	0	2536772..2537002	-	76	56752390	rpoZ	syc2381_c	-	DNA-directed RNA polymerase subunit omega
2383	 57.91	0	2537161..2538702	+	513	56752391	-	syc2382_d	-	hypothetical protein
2384	 53.70	0	2538824..2540851	-	675	56752392	opdA	syc2383_c	-	oligopeptidase A
2385	 56.94	0	2540986..2541417	-	143	56752393	-	syc2384_c	-	hypothetical protein
2386	 55.95	0	2541624..2543816	-	730	56752394	-	syc2385_c	-	hypothetical protein
2387	 55.83	0	2543985..2544104	-	39	56752395	psbI	syc2386_c	-	photosystem II reaction center I protein I
2388	 59.26	0	2544217..2545026	-	269	56752396	-	syc2387_c	-	hypothetical protein
2389	 56.82	0	2545063..2548110	+	1015	56752397	ams1	syc2388_d	-	alpha-mannosidase
2390	 56.61	0	2548561..2549097	-	178	56752398	-	syc2389_c	-	hypothetical protein
2391	 53.54	0	2549201..2550145	+	314	56752399	wcaG	syc2390_d	-	GDP-fucose synthetase NAD dependent epimerase/dehydratase
2392	 59.43	0	2550192..2551586	+	464	56752400	-	syc2391_d	-	multi-drug efflux transporter
2393	 55.85	0	2551622..2551963	-	113	56752401	-	syc2392_c	-	hypothetical protein
2394	 52.84	0	2552158..2552439	+	93	56752402	-	syc2393_d	-	hypothetical protein
2395	 58.93	0	2552589..2553338	+	249	56752403	-	syc2394_d	-	hypothetical protein
2396	 47.85	-2	2553413..2554411	-	332	56752404	-	syc2395_c	-	hypothetical protein
2397	 58.48	0	2554544..2557120	-	858	56752405	gyrA	syc2396_c	-	DNA gyrase A subunit
2398	 53.98	0	2557231..2557632	+	133	56752406	divK	syc2397_d	-	two-component system response regulator
2399	 47.26	-2	2557721..2558632	+	303	56752407	-	syc2398_d	-	mrr restriction system protein
2400	 61.41	+1	2558735..2559286	-	183	56752408	-	syc2399_c	-	hypothetical protein
2401	 60.00	0	2559295..2559894	-	199	56752409	-	syc2400_c	-	hypothetical protein
2402	 56.59	0	2560173..2561135	-	320	56752410	-	syc2401_c	-	putative thiosulfate sulfurtransferase
2403	 57.96	0	2561277..2562137	-	286	56752411	cysW	syc2402_c	-	sulfate transport system permease protein
2404	 57.79	0	2562137..2563003	-	288	56752412	cysU	syc2403_c	-	sulfate transport system permease protein
2405	 51.66	-1	2563003..2564028	-	341	56752413	sbpA	syc2404_c	-	sulfate transport system substrate-binding protein
2406	 52.73	0	2564188..2565048	-	286	56752414	cysW	syc2405_c	-	sulfate transport system permease protein
2407	 61.19	+1	2565094..2565714	-	206	56752415	cysR	syc2406_c	-	transcriptional regulator CRP family protein
2408	 54.07	0	2565742..2565987	-	81	56752416	-	syc2407_c	-	hypothetical protein
2409	 57.59	0	2566011..2566847	-	278	56752417	cysT	syc2408_c	-	sulfate transport system permease protein
2410	 54.13	0	2566922..2567974	-	350	56752418	sbpA	syc2409_c	-	sulfate transport system substrate-binding protein
2411	 54.30	0	2568174..2569208	+	344	56752419	cysA	syc2410_d	-	sulfate transport system ATP-binding protein
2412	 54.28	0	2569460..2569798	-	112	56752420	psbW	syc2411_c	-	photosystem II reaction center protein Psb28
2413	 56.17	0	2569897..2570439	+	180	56752421	-	syc2412_d	-	hypothetical protein
2414	 60.02	0	2570453..2571550	+	365	56752422	-	syc2413_d	-	hypothetical protein
2415	 59.17	0	2571581..2572234	+	217	56752423	-	syc2414_d	-	hypothetical protein
2416	 55.97	0	2572284..2572769	+	161	56752424	-	syc2415_d	-	hypothetical protein
2417	 59.94	0	2572884..2573195	+	103	56752425	-	syc2416_d	-	hypothetical protein
2418	 59.16	0	2573196..2573861	+	221	56752426	-	syc2417_d	-	hypothetical protein
2419	 60.06	+1	2573817..2574542	-	241	56752427	vanY	syc2418_c	-	putative carboxypeptidase
2420	 59.48	0	2574603..2575214	-	203	56752428	kdpC	syc2419_c	-	potassium-transporting ATPase C chain
2421	 57.77	0	2575365..2577455	-	696	56752429	kdpB	syc2420_c	-	potassium-transporting ATPase subunit B
2422	 59.37	0	2577498..2579168	-	556	56752430	kdpA	syc2421_c	-	potassium-transporting ATPase subunit A
2423	 59.20	0	2579694..2581085	-	463	56752431	murD	syc2422_c	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
2424	 56.31	0	2581191..2581895	+	234	56752432	-	syc2423_d	-	hypothetical protein
2425	 58.60	0	2581946..2583061	-	371	56752433	-	syc2424_c	-	oxidoreductase
2426	 56.04	0	2583236..2583649	+	137	56752434	-	syc2425_d	-	hypothetical protein
2427	 57.48	0	2583803..2585239	+	478	56752435	cysS	syc2426_d	-	cysteinyl-tRNA synthetase
2428	 54.96	0	2585328..2585891	-	187	56752436	-	syc2427_c	-	hypothetical protein
2429	 50.23	-1	2586086..2586961	-	291	56752437	-	syc2428_c	-	potassium channel protein
2430	 55.25	0	2587019..2587666	-	215	56752438	-	syc2429_c	-	nitroreductase
2431	 55.62	0	2587765..2588262	+	165	56752439	-	syc2430_d	-	hypothetical protein
2432	 54.32	0	2588969..2591131	+	720	56752440	katG	syc2431_d	-	catalase/peroxidase
2433	 49.74	-1	2591818..2592201	+	127	56752441	-	syc2432_d	-	hypothetical protein
2434	 54.64	0	2592314..2593510	+	398	56752442	gldA	syc2433_d	-	glycerol dehydrogenase
2435	 55.58	0	2593617..2595257	-	546	56752443	-	syc2434_c	-	Fe-S oxidoreductase
2436	 57.16	0	2595254..2596000	-	248	56752444	rffM	syc2435_c	-	UDP-N-acetyl-D-mannosaminuronic acid transferase
2437	 56.14	0	2596103..2599342	+	1079	56752445	-	syc2436_d	-	phosphorylase kinase alpha subunit
2438	 55.37	0	2599545..2600261	-	238	56752446	-	syc2437_c	-	rubrerythrin
2439	 56.44	0	2600411..2600860	+	149	56752447	-	syc2438_d	-	transcription regulator
2440	 57.11	0	2600863..2601783	-	306	56752448	-	syc2439_c	-	hypothetical protein
2441	 51.31	-1	2601979..2602701	-	240	56752449	-	syc2440_c	-	hypothetical protein
2442	 57.93	0	2602974..2603717	-	247	56752450	rnc	syc2441_c	-	ribonuclease III
2443	 56.54	0	2604232..2605080	-	282	56752451	-	syc2442_c	-	hypothetical protein
2444	 51.74	-1	2605176..2606696	-	506	56752452	-	syc2443_c	-	hypothetical protein
2445	 55.28	0	2606799..2607869	-	356	56752453	-	syc2444_c	-	hypothetical protein
2446	 54.35	0	2608635..2609186	-	183	56752454	-	syc2445_c	-	hypothetical protein
2447	 56.23	0	2609273..2609914	-	213	56752455	-	syc2446_c	-	ABC transporter ATP-binding protein
2448	 58.43	0	2610098..2610364	-	88	56752456	-	syc2447_c	-	hypothetical protein
2449	 57.32	0	2610565..2611623	+	352	56752457	psbDII	syc2448_d	-	photosystem II reaction center D2 protein
2450	 53.92	0	2612036..2612443	+	135	56752458	phhB	syc2449_d	-	pterin-4-alpha-carbinolamine dehydratase
2451	 52.98	0	2612515..2614224	+	569	56752459	somB	syc2450_d	-	porin
2452	 52.05	0	2614449..2616056	+	535	56752460	somA	syc2451_d	-	porin
2453	 48.68	-1	2616218..2616673	+	151	56752461	-	syc2452_d	-	hypothetical protein
2454	 55.52	0	2616888..2617892	+	334	56752462	cysM	syc2453_d	-	cysteine synthase
2455	 54.84	0	2617979..2618587	+	202	56752463	-	syc2454_d	-	hypothetical protein
2456	 46.82	-2	2618706..2619365	-	219	56752464	-	syc2455_c	-	putative monovalent cation/H+ antiporter subunit B
2457	 43.30	-2	2619362..2619943	-	193	56752465	-	syc2456_c	-	hypothetical protein
2458	 44.90	-2	2619936..2620229	-	97	56752466	-	syc2457_c	-	hypothetical protein
2459	 41.86	-2	2620226..2620483	-	85	56752467	-	syc2458_c	-	hypothetical protein
2460	 43.17	-2	2620863..2622305	-	480	56752468	ndhD2	syc2459_c	-	putative monovalent cation/H+ antiporter subunit D
2461	 43.45	-2	2622302..2622637	-	111	56752469	-	syc2460_c	-	putative monovalent cation/H+ antiporter subunit C
2462	 54.55	0	2623057..2624178	-	373	56752470	sbtA	syc2461_c	-	sodium-dependent bicarbonate transporter
2463	 46.98	-2	2624941..2625255	+	104	56752471	-	syc2462_d	-	hypothetical protein
2464	 59.06	0	2625366..2627561	-	731	56752472	-	syc2463_c	-	hypothetical protein
2465	 56.85	0	2627639..2628076	-	145	56752473	cytM	syc2464_c	-	cytochrome CytM
2466	 58.33	0	2628261..2628308	+	15	56752474	petG	syc2465_d	-	cytochrome b6-f complex subunit V (PetG)
2467	 59.46	0	2628419..2628973	-	184	56752475	-	syc2466_c	-	hypothetical protein
2468	 57.03	0	2628970..2629623	-	217	56752476	hisH	syc2467_c	-	imidazole glycerol phosphate synthase subunit HisH
55.98	MEAN

4.05	STD DEV
