IslandPath Analysis: Synechococcus elongatus PCC 6301

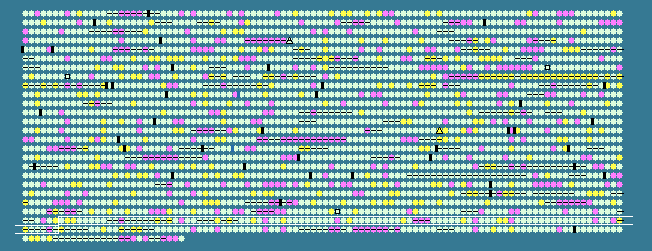

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2307	 58.18	0	2462322..2462804	+	160	56752315	nifU	syc2306_d	-	nitrogen fixation protein NifU and related protein
2308	 59.66	0	2462801..2463328	+	175	56752316	ycf51	syc2307_d	-	hypothetical protein
2309	 61.70	+1	2463321..2463743	+	140	56752317	-	syc2308_d	-	hypothetical protein
2310	 54.35	0	2463740..2464567	-	275	56752318	sigF2	syc2309_c	-	RNA polymerase sigma factor SigF
2311	 57.53	0	2464881..2467748	-	955	56752319	-	syc2310_c	-	hypothetical protein
2312	 55.99	0	2467930..2469222	+	430	56752320	thrC	syc2311_d	-	threonine synthase
2313	 53.99	0	2469308..2469583	+	91	56752321	-	syc2312_d	-	hypothetical protein
2314	 57.56	0	2469666..2471291	-	541	56752322	mutL	syc2313_c	-	DNA mismatch repair protein
2315	 57.44	0	2471365..2473131	-	588	56752323	recN	syc2314_c	-	DNA replication and repair protein RecN
2316	 56.88	0	2473173..2475041	+	622	56752324	-	syc2315_d	-	hypothetical protein
2317	 48.95	-1	2475053..2476006	-	317	56752325	-	syc2316_c	-	hypothetical protein
2318	 56.83	0	2476401..2477366	-	321	56752326	-	syc2317_c	-	phosphate starvation-induced protein
2319	 54.60	0	2477493..2477666	-	57	56752327	rpsU	syc2318_c	-	30S ribosomal protein S21
2320	 58.64	0	2477726..2477887	-	53	56752328	-	syc2319_c	-	hypothetical protein
2321	 57.43	0	2478047..2478295	-	82	56752329	rpsP	syc2320_c	-	30S ribosomal protein S16
2322	 58.28	0	2478399..2479889	-	496	56752330	ftsY	syc2321_c	-	signal recognition particle receptor
2323	 59.94	0	2479974..2480300	+	108	56752331	-	syc2322_d	-	hypothetical protein
2324	 53.23	0	2480257..2480643	-	128	56752332	-	syc2323_c	-	hypothetical protein
2325	 62.01	+1	2480643..2481458	-	271	56752333	-	syc2324_c	-	hypothetical protein
2326	 57.47	0	2481561..2482973	+	470	56752334	cydA	syc2325_d	-	cytochrome oxidase d subunit I
2327	 48.35	-1	2483022..2484053	+	343	56752335	cydB	syc2326_d	-	cytochrome oxidase d subunit II
2328	 57.33	0	2484074..2484748	+	224	56752336	-	syc2327_d	-	hypothetical protein
2329	 56.37	0	2484821..2485189	-	122	56752337	-	syc2328_c	-	hypothetical protein
2330	 58.00	0	2485205..2486023	-	272	56752338	-	syc2329_c	-	inositol monophosphate family protein
2331	 59.28	0	2486148..2487473	-	441	56752339	-	syc2330_c	-	hypothetical protein
2332	 56.79	0	2487520..2489250	-	576	56752340	-	syc2331_c	-	hypothetical protein
2333	 60.99	+1	2489431..2490522	-	363	56752341	ald	syc2332_c	-	alanine dehydrogenase
2334	 59.06	0	2490631..2490801	+	56	56752342	-	syc2333_d	-	CAB/ELIP/HLIP-related protein
2335	 59.66	0	2490813..2491868	+	351	56752343	-	syc2334_d	-	hypothetical protein
2336	 58.85	0	2492115..2492306	-	63	56752344	-	syc2335_c	-	hypothetical protein
2337	 59.08	0	2492739..2494556	+	605	56752345	-	syc2336_d	-	hypothetical protein
2338	 58.17	0	2494553..2494705	+	50	56752346	-	syc2337_d	-	hypothetical protein
2339	 61.72	+1	2494696..2495160	+	154	56752347	-	syc2338_d	-	hypothetical protein
2340	 57.10	0	2495280..2496032	+	250	56752348	-	syc2339_d	-	hypothetical protein
2341	 48.53	-1	2496272..2496475	+	67	56752349	-	syc2340_d	-	hypothetical protein
2342	 55.04	0	2496518..2496904	+	128	56752350	ycf35	syc2341_d	-	hypothetical protein
2343	 57.51	0	2496904..2497296	+	130	56752351	-	syc2342_d	-	4Fe-4S ferredoxin
2344	 59.97	0	2497299..2498060	+	253	56752352	-	syc2343_d	-	hypothetical protein
2345	 55.61	0	2498088..2499272	+	394	56752353	-	syc2344_d	-	hypothetical protein
2346	 54.21	0	2499488..2500450	+	320	56752354	rpoD2	syc2345_d	-	group2 RNA polymerase sigma factor RpoD2
2347	 57.17	0	2500750..2501202	+	150	56752355	-	syc2346_d	-	hypothetical protein
2348	 54.01	0	2501217..2501627	-	136	56752356	-	syc2347_c	-	hypothetical protein
2349	 56.29	0	2501774..2502958	-	394	56752357	ndhH	syc2348_c	-	NAD(P)H-quinone oxidoreductase subunit H
2350	 54.80	0	2503217..2504236	-	339	56752358	gap2	syc2349_c	-	glyceraldehyde-3-phosphate dehydrogenase
2351	 57.13	0	2504515..2505951	+	478	56752359	murC	syc2350_d	-	UDP-N-acetylmuramate--L-alanine ligase
2352	 56.40	0	2505962..2506867	+	301	56752360	murB	syc2351_d	-	UDP-N-acetylenolpyruvoylglucosamine reductase
2353	 50.57	-1	2506908..2507081	-	57	56752361	-	syc2352_c	-	mercuric resistance operon regulatory protein
2354	 56.59	0	2507378..2508637	-	419	56752362	nifS	syc2353_c	-	cysteine desulfurase
2355	 59.59	0	2508647..2509975	-	442	56752363	-	syc2354_c	-	hypothetical protein
2356	 55.09	0	2509975..2510760	-	261	56752364	ycf16	syc2355_c	-	ABC transporter ATP-binding protein
2357	 56.46	0	2510806..2512245	-	479	56752365	-	syc2356_c	-	cysteine desulfurase activator complex subunit SufB
2358	 57.02	0	2512293..2512655	-	120	56752366	ftrC	syc2357_c	-	ferredoxin-thioredoxin reductase catalytic chain
2359	 58.45	0	2512831..2513475	+	214	56752367	-	syc2358_d	-	hypothetical protein
2360	 55.23	0	2513472..2513882	+	136	56752368	-	syc2359_d	-	hypothetical protein
2361	 56.38	0	2513879..2514364	+	161	56752369	-	syc2360_d	-	hypothetical protein
2362	 58.50	0	2514410..2514997	-	195	56752370	-	syc2361_c	-	hypothetical protein
2363	 58.46	0	2515045..2516202	-	385	56752371	kdpD	syc2362_c	-	potassium-transporting ATPase D chain
2364	 61.66	+1	2516163..2516681	-	172	56752372	-	syc2363_c	-	hypothetical protein
2365	 56.87	0	2516831..2517412	+	193	56752373	-	syc2364_d	-	hypothetical protein
2366	 52.44	0	2517440..2517931	+	163	56752374	lspA	syc2365_d	-	lipoprotein signal peptidase
2367	 51.24	-1	2517983..2519434	-	483	56752375	-	syc2366_c	-	hypothetical protein
2368	 45.31	-2	2519664..2519972	+	102	56752376	-	syc2367_d	-	hypothetical protein
2369	 58.67	0	2520018..2521568	-	516	56752377	-	syc2368_c	-	carotene isomerase
2370	 54.33	0	2521822..2522907	+	361	56752378	sbpA	syc2369_d	-	sulfate transport system substrate-binding protein
2371	 54.75	0	2523134..2523838	+	234	56752379	-	syc2370_d	-	phycocyanin alpha phycocyanobilin lyase related protein NblB
2372	 53.97	0	2524658..2525098	-	146	56752380	-	syc2371_c	-	hypothetical protein
2373	 57.77	0	2525254..2526681	+	475	56752381	icd	syc2372_d	-	isocitrate dehydrogenase
2374	 59.95	0	2526712..2528022	+	436	56752382	glcE	syc2373_d	-	glycolate oxidase subunit GlcE
2375	 53.21	0	2528019..2529326	+	435	56752383	glcF	syc2374_d	-	glycolate oxidase subunit (Fe-S) protein
2376	 51.36	-1	2529395..2533111	+	1238	56752384	-	syc2375_d	-	hypothetical protein
2377	 58.41	0	2533147..2533800	+	217	56752385	upp	syc2376_d	-	uracil phosphoribosyltransferase
2378	 57.13	0	2533818..2534834	-	338	56752386	metX	syc2377_c	-	hypothetical protein
2379	 57.84	0	2534831..2535691	-	286	56752387	-	syc2378_c	-	hydrocarbon oxygenase MocD
2380	 60.38	+1	2535832..2536197	-	121	56752388	-	syc2379_c	-	hypothetical protein
2381	 61.26	+1	2536203..2536775	-	190	56752389	-	syc2380_c	-	hypothetical protein
2382	 51.95	0	2536772..2537002	-	76	56752390	rpoZ	syc2381_c	-	DNA-directed RNA polymerase subunit omega
2383	 57.91	0	2537161..2538702	+	513	56752391	-	syc2382_d	-	hypothetical protein
2384	 53.70	0	2538824..2540851	-	675	56752392	opdA	syc2383_c	-	oligopeptidase A
2385	 56.94	0	2540986..2541417	-	143	56752393	-	syc2384_c	-	hypothetical protein
2386	 55.95	0	2541624..2543816	-	730	56752394	-	syc2385_c	-	hypothetical protein
2387	 55.83	0	2543985..2544104	-	39	56752395	psbI	syc2386_c	-	photosystem II reaction center I protein I
2388	 59.26	0	2544217..2545026	-	269	56752396	-	syc2387_c	-	hypothetical protein
2389	 56.82	0	2545063..2548110	+	1015	56752397	ams1	syc2388_d	-	alpha-mannosidase
2390	 56.61	0	2548561..2549097	-	178	56752398	-	syc2389_c	-	hypothetical protein
2391	 53.54	0	2549201..2550145	+	314	56752399	wcaG	syc2390_d	-	GDP-fucose synthetase NAD dependent epimerase/dehydratase
2392	 59.43	0	2550192..2551586	+	464	56752400	-	syc2391_d	-	multi-drug efflux transporter
2393	 55.85	0	2551622..2551963	-	113	56752401	-	syc2392_c	-	hypothetical protein
2394	 52.84	0	2552158..2552439	+	93	56752402	-	syc2393_d	-	hypothetical protein
2395	 58.93	0	2552589..2553338	+	249	56752403	-	syc2394_d	-	hypothetical protein
2396	 47.85	-2	2553413..2554411	-	332	56752404	-	syc2395_c	-	hypothetical protein
2397	 58.48	0	2554544..2557120	-	858	56752405	gyrA	syc2396_c	-	DNA gyrase A subunit
2398	 53.98	0	2557231..2557632	+	133	56752406	divK	syc2397_d	-	two-component system response regulator
2399	 47.26	-2	2557721..2558632	+	303	56752407	-	syc2398_d	-	mrr restriction system protein
2400	 61.41	+1	2558735..2559286	-	183	56752408	-	syc2399_c	-	hypothetical protein
2401	 60.00	0	2559295..2559894	-	199	56752409	-	syc2400_c	-	hypothetical protein
2402	 56.59	0	2560173..2561135	-	320	56752410	-	syc2401_c	-	putative thiosulfate sulfurtransferase
2403	 57.96	0	2561277..2562137	-	286	56752411	cysW	syc2402_c	-	sulfate transport system permease protein
2404	 57.79	0	2562137..2563003	-	288	56752412	cysU	syc2403_c	-	sulfate transport system permease protein
2405	 51.66	-1	2563003..2564028	-	341	56752413	sbpA	syc2404_c	-	sulfate transport system substrate-binding protein
2406	 52.73	0	2564188..2565048	-	286	56752414	cysW	syc2405_c	-	sulfate transport system permease protein
55.98	MEAN

4.05	STD DEV
