IslandPath Analysis: Synechococcus elongatus PCC 6301

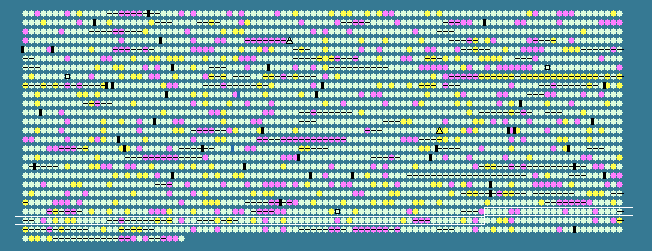

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2278	 55.38	0	2425248..2425628	+	126	56752286	-	syc2277_d	-	two-component response regulator
2279	 56.22	0	2425794..2428607	+	937	56752287	-	syc2278_d	-	two-component system sensory histidine kinase
2280	 58.41	0	2428600..2429835	+	411	56752288	-	syc2279_d	-	two-component response regulator
2281	 58.33	0	2429759..2430574	+	271	56752289	-	syc2280_d	-	hypothetical protein
2282	 46.58	-2	2430701..2432617	+	638	56752290	htpG	syc2281_d	-	heat shock protein 90
2283	 41.55	-2	2432957..2436070	-	1037	56752291	-	syc2282_c	-	hypothetical protein
2284	 54.02	0	2436341..2438095	-	584	56752292	dfa3	syc2283_c	-	flavoprotein
2285	 57.63	0	2438311..2440026	-	571	56752293	dfa1	syc2284_c	-	flavoprotein
2286	 55.91	0	2440092..2440835	+	247	56752294	-	syc2285_d	-	pantothenate kinase
2287	 56.15	0	2440808..2441254	-	148	56752295	mutT	syc2286_c	-	mutator MutT-like protein
2288	 54.85	0	2441310..2441783	-	157	56752296	bcp	syc2287_c	-	bacterioferritin comigratory protein
2289	 56.79	0	2441798..2442577	+	259	56752297	-	syc2288_d	-	hypothetical protein
2290	 56.03	0	2442645..2443208	+	187	56752298	-	syc2289_d	-	hypothetical protein
2291	 51.39	-1	2443269..2443700	+	143	56752299	-	syc2290_d	-	transcription regulator
2292	 56.69	0	2443906..2445528	+	540	56752300	-	syc2291_d	-	hypothetical protein
2293	 56.07	0	2445643..2446359	-	238	56752301	-	syc2292_c	-	hypothetical protein
2294	 58.67	0	2446596..2447045	-	149	56752302	-	syc2293_c	-	hypothetical protein
2295	 56.52	0	2447080..2448153	-	357	56752303	hypE	syc2294_c	-	hydrogenase expression/formation protein HypE
2296	 46.09	-2	2448561..2449187	-	208	56752304	-	syc2295_c	-	hypothetical protein
2297	 58.80	0	2449645..2450178	-	177	56752305	-	syc2296_c	-	hypothetical protein
2298	 57.14	0	2450302..2450595	+	97	56752306	-	syc2297_d	-	hypothetical protein
2299	 55.70	0	2450608..2451072	+	154	56752307	smpB	syc2298_d	-	SsrA-binding protein
2300	 59.02	0	2451105..2452268	-	387	161621811	-	syc2299_c	-	succinyldiaminopimelate transaminase
2301	 55.46	0	2452288..2452635	-	115	56752309	trxA	syc2300_c	-	thioredoxin
2302	 56.88	0	2452781..2453761	-	326	56752310	hemB	syc2301_c	-	delta-aminolevulinic acid dehydratase
2303	 54.94	0	2453985..2455220	+	411	56752311	-	syc2302_d	-	hypothetical protein
2304	 45.70	-2	2455241..2455879	-	212	56752312	mbpA	syc2303_c	-	adenine-specific DNA methylase
2305	 59.33	0	2456039..2457019	-	326	56752313	dnaJ	syc2304_c	-	DnaJ protein
2306	 59.59	0	2457141..2461847	-	1568	56752314	-	syc2305_c	-	hypothetical protein
2307	 58.18	0	2462322..2462804	+	160	56752315	nifU	syc2306_d	-	nitrogen fixation protein NifU and related protein
2308	 59.66	0	2462801..2463328	+	175	56752316	ycf51	syc2307_d	-	hypothetical protein
2309	 61.70	+1	2463321..2463743	+	140	56752317	-	syc2308_d	-	hypothetical protein
2310	 54.35	0	2463740..2464567	-	275	56752318	sigF2	syc2309_c	-	RNA polymerase sigma factor SigF
2311	 57.53	0	2464881..2467748	-	955	56752319	-	syc2310_c	-	hypothetical protein
2312	 55.99	0	2467930..2469222	+	430	56752320	thrC	syc2311_d	-	threonine synthase
2313	 53.99	0	2469308..2469583	+	91	56752321	-	syc2312_d	-	hypothetical protein
2314	 57.56	0	2469666..2471291	-	541	56752322	mutL	syc2313_c	-	DNA mismatch repair protein
2315	 57.44	0	2471365..2473131	-	588	56752323	recN	syc2314_c	-	DNA replication and repair protein RecN
2316	 56.88	0	2473173..2475041	+	622	56752324	-	syc2315_d	-	hypothetical protein
2317	 48.95	-1	2475053..2476006	-	317	56752325	-	syc2316_c	-	hypothetical protein
2318	 56.83	0	2476401..2477366	-	321	56752326	-	syc2317_c	-	phosphate starvation-induced protein
2319	 54.60	0	2477493..2477666	-	57	56752327	rpsU	syc2318_c	-	30S ribosomal protein S21
2320	 58.64	0	2477726..2477887	-	53	56752328	-	syc2319_c	-	hypothetical protein
2321	 57.43	0	2478047..2478295	-	82	56752329	rpsP	syc2320_c	-	30S ribosomal protein S16
2322	 58.28	0	2478399..2479889	-	496	56752330	ftsY	syc2321_c	-	signal recognition particle receptor
2323	 59.94	0	2479974..2480300	+	108	56752331	-	syc2322_d	-	hypothetical protein
2324	 53.23	0	2480257..2480643	-	128	56752332	-	syc2323_c	-	hypothetical protein
2325	 62.01	+1	2480643..2481458	-	271	56752333	-	syc2324_c	-	hypothetical protein
2326	 57.47	0	2481561..2482973	+	470	56752334	cydA	syc2325_d	-	cytochrome oxidase d subunit I
2327	 48.35	-1	2483022..2484053	+	343	56752335	cydB	syc2326_d	-	cytochrome oxidase d subunit II
2328	 57.33	0	2484074..2484748	+	224	56752336	-	syc2327_d	-	hypothetical protein
2329	 56.37	0	2484821..2485189	-	122	56752337	-	syc2328_c	-	hypothetical protein
2330	 58.00	0	2485205..2486023	-	272	56752338	-	syc2329_c	-	inositol monophosphate family protein
2331	 59.28	0	2486148..2487473	-	441	56752339	-	syc2330_c	-	hypothetical protein
2332	 56.79	0	2487520..2489250	-	576	56752340	-	syc2331_c	-	hypothetical protein
2333	 60.99	+1	2489431..2490522	-	363	56752341	ald	syc2332_c	-	alanine dehydrogenase
2334	 59.06	0	2490631..2490801	+	56	56752342	-	syc2333_d	-	CAB/ELIP/HLIP-related protein
2335	 59.66	0	2490813..2491868	+	351	56752343	-	syc2334_d	-	hypothetical protein
2336	 58.85	0	2492115..2492306	-	63	56752344	-	syc2335_c	-	hypothetical protein
2337	 59.08	0	2492739..2494556	+	605	56752345	-	syc2336_d	-	hypothetical protein
2338	 58.17	0	2494553..2494705	+	50	56752346	-	syc2337_d	-	hypothetical protein
2339	 61.72	+1	2494696..2495160	+	154	56752347	-	syc2338_d	-	hypothetical protein
2340	 57.10	0	2495280..2496032	+	250	56752348	-	syc2339_d	-	hypothetical protein
2341	 48.53	-1	2496272..2496475	+	67	56752349	-	syc2340_d	-	hypothetical protein
2342	 55.04	0	2496518..2496904	+	128	56752350	ycf35	syc2341_d	-	hypothetical protein
2343	 57.51	0	2496904..2497296	+	130	56752351	-	syc2342_d	-	4Fe-4S ferredoxin
2344	 59.97	0	2497299..2498060	+	253	56752352	-	syc2343_d	-	hypothetical protein
2345	 55.61	0	2498088..2499272	+	394	56752353	-	syc2344_d	-	hypothetical protein
2346	 54.21	0	2499488..2500450	+	320	56752354	rpoD2	syc2345_d	-	group2 RNA polymerase sigma factor RpoD2
2347	 57.17	0	2500750..2501202	+	150	56752355	-	syc2346_d	-	hypothetical protein
2348	 54.01	0	2501217..2501627	-	136	56752356	-	syc2347_c	-	hypothetical protein
2349	 56.29	0	2501774..2502958	-	394	56752357	ndhH	syc2348_c	-	NAD(P)H-quinone oxidoreductase subunit H
2350	 54.80	0	2503217..2504236	-	339	56752358	gap2	syc2349_c	-	glyceraldehyde-3-phosphate dehydrogenase
2351	 57.13	0	2504515..2505951	+	478	56752359	murC	syc2350_d	-	UDP-N-acetylmuramate--L-alanine ligase
2352	 56.40	0	2505962..2506867	+	301	56752360	murB	syc2351_d	-	UDP-N-acetylenolpyruvoylglucosamine reductase
2353	 50.57	-1	2506908..2507081	-	57	56752361	-	syc2352_c	-	mercuric resistance operon regulatory protein
2354	 56.59	0	2507378..2508637	-	419	56752362	nifS	syc2353_c	-	cysteine desulfurase
2355	 59.59	0	2508647..2509975	-	442	56752363	-	syc2354_c	-	hypothetical protein
2356	 55.09	0	2509975..2510760	-	261	56752364	ycf16	syc2355_c	-	ABC transporter ATP-binding protein
2357	 56.46	0	2510806..2512245	-	479	56752365	-	syc2356_c	-	cysteine desulfurase activator complex subunit SufB
2358	 57.02	0	2512293..2512655	-	120	56752366	ftrC	syc2357_c	-	ferredoxin-thioredoxin reductase catalytic chain
2359	 58.45	0	2512831..2513475	+	214	56752367	-	syc2358_d	-	hypothetical protein
2360	 55.23	0	2513472..2513882	+	136	56752368	-	syc2359_d	-	hypothetical protein
2361	 56.38	0	2513879..2514364	+	161	56752369	-	syc2360_d	-	hypothetical protein
2362	 58.50	0	2514410..2514997	-	195	56752370	-	syc2361_c	-	hypothetical protein
2363	 58.46	0	2515045..2516202	-	385	56752371	kdpD	syc2362_c	-	potassium-transporting ATPase D chain
2364	 61.66	+1	2516163..2516681	-	172	56752372	-	syc2363_c	-	hypothetical protein
2365	 56.87	0	2516831..2517412	+	193	56752373	-	syc2364_d	-	hypothetical protein
2366	 52.44	0	2517440..2517931	+	163	56752374	lspA	syc2365_d	-	lipoprotein signal peptidase
2367	 51.24	-1	2517983..2519434	-	483	56752375	-	syc2366_c	-	hypothetical protein
2368	 45.31	-2	2519664..2519972	+	102	56752376	-	syc2367_d	-	hypothetical protein
2369	 58.67	0	2520018..2521568	-	516	56752377	-	syc2368_c	-	carotene isomerase
2370	 54.33	0	2521822..2522907	+	361	56752378	sbpA	syc2369_d	-	sulfate transport system substrate-binding protein
2371	 54.75	0	2523134..2523838	+	234	56752379	-	syc2370_d	-	phycocyanin alpha phycocyanobilin lyase related protein NblB
2372	 53.97	0	2524658..2525098	-	146	56752380	-	syc2371_c	-	hypothetical protein
2373	 57.77	0	2525254..2526681	+	475	56752381	icd	syc2372_d	-	isocitrate dehydrogenase
2374	 59.95	0	2526712..2528022	+	436	56752382	glcE	syc2373_d	-	glycolate oxidase subunit GlcE
2375	 53.21	0	2528019..2529326	+	435	56752383	glcF	syc2374_d	-	glycolate oxidase subunit (Fe-S) protein
2376	 51.36	-1	2529395..2533111	+	1238	56752384	-	syc2375_d	-	hypothetical protein
2377	 58.41	0	2533147..2533800	+	217	56752385	upp	syc2376_d	-	uracil phosphoribosyltransferase
55.98	MEAN

4.05	STD DEV
