IslandPathversion 1.0

IslandPath Analysis: Synechococcus elongatus PCC 6301

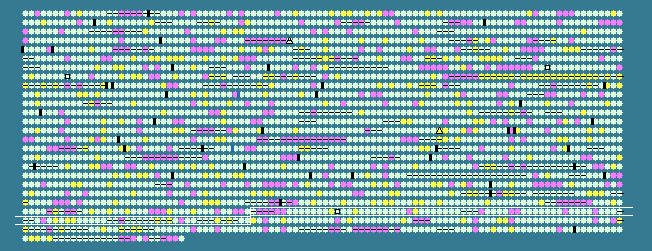

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2239	 54.24	0	2391220..2391726	-	168	56752247	cumB	syc2238_c	-	putative cytidine and deoxycytidylate deaminase
2240	 47.41	-2	2391797..2393167	-	456	56752248	cobB	syc2239_c	-	cobyrinic acid a,c-diamide synthase
2241	 47.38	-2	2393171..2394871	-	566	56752249	cobJ	syc2240_c	-	precorrin methylase
2242	 47.66	-2	2394868..2395572	-	234	56752250	cobI	syc2241_c	-	precorrin-2 C20-methyltransferase
2243	 48.73	-1	2395569..2396198	-	209	56752251	cobH	syc2242_c	-	precorrin-8X methylmutase
2244	 45.63	-2	2396223..2397686	-	487	56752252	-	syc2243_c	-	ferredoxin-nitrite reductase-like protein
2245	 59.27	0	2397951..2399180	+	409	56752253	cobL	syc2244_d	-	precorrin-6y c515-methyltransferase
2246	 52.55	0	2399234..2400430	-	398	56752254	rpoD5	syc2245_c	-	RNA polymerase sigma factor SigC
2247	 57.09	0	2401214..2402278	+	354	56752255	asd	syc2246_d	-	aspartate-semialdehyde dehydrogenase
2248	 58.11	0	2402295..2403194	+	299	56752256	dapA	syc2247_d	-	dihydrodipicolinate synthase
2249	 56.99	0	2403243..2405072	+	609	56752257	-	syc2248_d	-	hydrolase
2250	 53.95	0	2405171..2405398	-	75	56752258	-	syc2249_c	-	hypothetical protein
2251	 58.48	0	2405492..2406016	+	174	56752259	-	syc2250_d	-	7-cyano-7-deazaguanine reductase
2252	 60.00	0	2406016..2406825	+	269	56752260	-	syc2251_d	-	hypothetical protein
2253	 54.06	0	2406837..2408105	-	422	56752261	-	syc2252_c	-	transposase
2254	 59.14	0	2408205..2409572	+	455	56752262	murF	syc2253_d	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2 6-diaminopimelate--D-alanyl-D-alanine ligase
2255	 57.17	0	2409615..2410130	+	171	56752263	-	syc2254_d	-	hypothetical protein
2256	 60.05	+1	2410216..2410956	+	246	56752264	-	syc2255_d	-	hypothetical protein
2257	 57.89	0	2411093..2412619	+	508	56752265	chlB	syc2256_d	-	light-independent protochlorophyllide reductase subunit B
2258	 55.36	0	2412676..2413020	+	114	56752266	-	syc2257_d	-	hypothetical protein
2259	 59.17	0	2413033..2413392	+	119	56752267	-	syc2258_d	-	hypothetical protein
2260	 57.74	0	2413393..2414019	-	208	56752268	-	syc2259_c	-	hypothetical protein
2261	 59.26	0	2414062..2414520	-	152	56752269	-	syc2260_c	-	hypothetical protein
2262	 54.81	0	2414520..2415278	-	252	56752270	-	syc2261_c	-	hypothetical protein
2263	 53.78	0	2415449..2415898	+	149	56752271	-	syc2262_d	-	hypothetical protein
2264	 58.16	0	2416031..2417194	+	387	56752272	guaB	syc2263_d	-	inositol-5-monophosphate dehydrogenase
2265	 48.77	-1	2417500..2417823	+	107	56752273	trxA	syc2264_d	-	thioredoxin
2266	 61.74	+1	2418075..2418845	-	256	56752274	hisA	syc2265_c	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
2267	 58.53	0	2418879..2419136	-	85	56752275	-	syc2266_c	-	hypothetical protein
2268	 57.86	0	2419137..2419772	-	211	56752276	-	syc2267_c	-	hypothetical protein
2269	 58.07	0	2419887..2420828	+	313	56752277	-	syc2268_d	-	mRNA-binding protein
2270	 58.38	0	2420825..2421343	-	172	56752278	pgsA	syc2269_c	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
2271	 58.28	0	2421420..2421884	+	154	56752279	-	syc2270_d	-	hypothetical protein
2272	 57.66	0	2421885..2422550	+	221	56752280	nblB	syc2271_d	-	phycocyanin alpha phycocyanobilin lyase related protein
2273	 55.74	0	2422547..2422729	-	60	56752281	-	syc2272_c	-	hypothetical protein
2274	 52.78	0	2422787..2423146	-	119	56752282	-	syc2273_c	-	hypothetical protein
2275	 56.10	0	2423250..2424044	+	264	56752283	-	syc2274_d	-	hypothetical protein
2276	 52.99	0	2424121..2424705	-	194	56752284	-	syc2275_c	-	hypothetical protein
2277	 49.37	-1	2424843..2425160	+	105	56752285	-	syc2276_d	-	hypothetical protein
2278	 55.38	0	2425248..2425628	+	126	56752286	-	syc2277_d	-	two-component response regulator
2279	 56.22	0	2425794..2428607	+	937	56752287	-	syc2278_d	-	two-component system sensory histidine kinase
2280	 58.41	0	2428600..2429835	+	411	56752288	-	syc2279_d	-	two-component response regulator
2281	 58.33	0	2429759..2430574	+	271	56752289	-	syc2280_d	-	hypothetical protein
2282	 46.58	-2	2430701..2432617	+	638	56752290	htpG	syc2281_d	-	heat shock protein 90
2283	 41.55	-2	2432957..2436070	-	1037	56752291	-	syc2282_c	-	hypothetical protein
2284	 54.02	0	2436341..2438095	-	584	56752292	dfa3	syc2283_c	-	flavoprotein
2285	 57.63	0	2438311..2440026	-	571	56752293	dfa1	syc2284_c	-	flavoprotein
2286	 55.91	0	2440092..2440835	+	247	56752294	-	syc2285_d	-	pantothenate kinase
2287	 56.15	0	2440808..2441254	-	148	56752295	mutT	syc2286_c	-	mutator MutT-like protein
2288	 54.85	0	2441310..2441783	-	157	56752296	bcp	syc2287_c	-	bacterioferritin comigratory protein
2289	 56.79	0	2441798..2442577	+	259	56752297	-	syc2288_d	-	hypothetical protein
2290	 56.03	0	2442645..2443208	+	187	56752298	-	syc2289_d	-	hypothetical protein
2291	 51.39	-1	2443269..2443700	+	143	56752299	-	syc2290_d	-	transcription regulator
2292	 56.69	0	2443906..2445528	+	540	56752300	-	syc2291_d	-	hypothetical protein
2293	 56.07	0	2445643..2446359	-	238	56752301	-	syc2292_c	-	hypothetical protein
2294	 58.67	0	2446596..2447045	-	149	56752302	-	syc2293_c	-	hypothetical protein
2295	 56.52	0	2447080..2448153	-	357	56752303	hypE	syc2294_c	-	hydrogenase expression/formation protein HypE
2296	 46.09	-2	2448561..2449187	-	208	56752304	-	syc2295_c	-	hypothetical protein
2297	 58.80	0	2449645..2450178	-	177	56752305	-	syc2296_c	-	hypothetical protein
2298	 57.14	0	2450302..2450595	+	97	56752306	-	syc2297_d	-	hypothetical protein
2299	 55.70	0	2450608..2451072	+	154	56752307	smpB	syc2298_d	-	SsrA-binding protein
2300	 59.02	0	2451105..2452268	-	387	161621811	-	syc2299_c	-	succinyldiaminopimelate transaminase
2301	 55.46	0	2452288..2452635	-	115	56752309	trxA	syc2300_c	-	thioredoxin
2302	 56.88	0	2452781..2453761	-	326	56752310	hemB	syc2301_c	-	delta-aminolevulinic acid dehydratase
2303	 54.94	0	2453985..2455220	+	411	56752311	-	syc2302_d	-	hypothetical protein
2304	 45.70	-2	2455241..2455879	-	212	56752312	mbpA	syc2303_c	-	adenine-specific DNA methylase
2305	 59.33	0	2456039..2457019	-	326	56752313	dnaJ	syc2304_c	-	DnaJ protein
2306	 59.59	0	2457141..2461847	-	1568	56752314	-	syc2305_c	-	hypothetical protein
2307	 58.18	0	2462322..2462804	+	160	56752315	nifU	syc2306_d	-	nitrogen fixation protein NifU and related protein
2308	 59.66	0	2462801..2463328	+	175	56752316	ycf51	syc2307_d	-	hypothetical protein
2309	 61.70	+1	2463321..2463743	+	140	56752317	-	syc2308_d	-	hypothetical protein
2310	 54.35	0	2463740..2464567	-	275	56752318	sigF2	syc2309_c	-	RNA polymerase sigma factor SigF
2311	 57.53	0	2464881..2467748	-	955	56752319	-	syc2310_c	-	hypothetical protein
2312	 55.99	0	2467930..2469222	+	430	56752320	thrC	syc2311_d	-	threonine synthase
2313	 53.99	0	2469308..2469583	+	91	56752321	-	syc2312_d	-	hypothetical protein
2314	 57.56	0	2469666..2471291	-	541	56752322	mutL	syc2313_c	-	DNA mismatch repair protein
2315	 57.44	0	2471365..2473131	-	588	56752323	recN	syc2314_c	-	DNA replication and repair protein RecN
2316	 56.88	0	2473173..2475041	+	622	56752324	-	syc2315_d	-	hypothetical protein
2317	 48.95	-1	2475053..2476006	-	317	56752325	-	syc2316_c	-	hypothetical protein
2318	 56.83	0	2476401..2477366	-	321	56752326	-	syc2317_c	-	phosphate starvation-induced protein
2319	 54.60	0	2477493..2477666	-	57	56752327	rpsU	syc2318_c	-	30S ribosomal protein S21
2320	 58.64	0	2477726..2477887	-	53	56752328	-	syc2319_c	-	hypothetical protein
2321	 57.43	0	2478047..2478295	-	82	56752329	rpsP	syc2320_c	-	30S ribosomal protein S16
2322	 58.28	0	2478399..2479889	-	496	56752330	ftsY	syc2321_c	-	signal recognition particle receptor
2323	 59.94	0	2479974..2480300	+	108	56752331	-	syc2322_d	-	hypothetical protein
2324	 53.23	0	2480257..2480643	-	128	56752332	-	syc2323_c	-	hypothetical protein
2325	 62.01	+1	2480643..2481458	-	271	56752333	-	syc2324_c	-	hypothetical protein
2326	 57.47	0	2481561..2482973	+	470	56752334	cydA	syc2325_d	-	cytochrome oxidase d subunit I
2327	 48.35	-1	2483022..2484053	+	343	56752335	cydB	syc2326_d	-	cytochrome oxidase d subunit II
2328	 57.33	0	2484074..2484748	+	224	56752336	-	syc2327_d	-	hypothetical protein
2329	 56.37	0	2484821..2485189	-	122	56752337	-	syc2328_c	-	hypothetical protein
2330	 58.00	0	2485205..2486023	-	272	56752338	-	syc2329_c	-	inositol monophosphate family protein
2331	 59.28	0	2486148..2487473	-	441	56752339	-	syc2330_c	-	hypothetical protein
2332	 56.79	0	2487520..2489250	-	576	56752340	-	syc2331_c	-	hypothetical protein
2333	 60.99	+1	2489431..2490522	-	363	56752341	ald	syc2332_c	-	alanine dehydrogenase
2334	 59.06	0	2490631..2490801	+	56	56752342	-	syc2333_d	-	CAB/ELIP/HLIP-related protein
2335	 59.66	0	2490813..2491868	+	351	56752343	-	syc2334_d	-	hypothetical protein
2336	 58.85	0	2492115..2492306	-	63	56752344	-	syc2335_c	-	hypothetical protein
2337	 59.08	0	2492739..2494556	+	605	56752345	-	syc2336_d	-	hypothetical protein
2338	 58.17	0	2494553..2494705	+	50	56752346	-	syc2337_d	-	hypothetical protein
55.98	MEAN

4.05	STD DEV
