IslandPath Analysis: Synechococcus elongatus PCC 6301

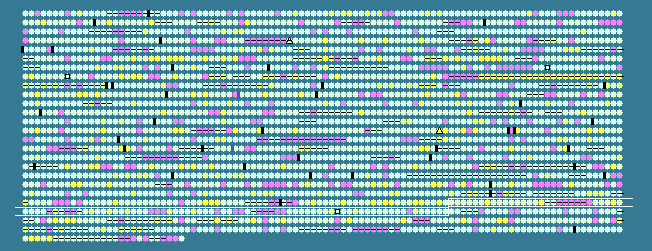

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2172	 57.84	0	2317141..2317797	+	218	56752180	sigG	syc2171_d	-	RNA polymerase sigma factor RpoE
2173	 58.08	0	2317881..2318381	+	166	56752181	-	syc2172_d	-	hypothetical protein
2174	 59.16	0	2318382..2318834	-	150	56752182	-	syc2173_c	-	hypothetical protein
2175	 57.20	0	2318844..2321441	+	865	56752183	leuS	syc2174_d	-	leucyl-tRNA synthetase
2176	 56.69	0	2321711..2322472	+	253	56752184	-	syc2175_d	-	hypothetical protein
2177	 58.57	0	2322437..2323387	-	316	56752185	-	syc2176_c	-	UDP-glucose:tetrahydrobiopterin glucosyltransferase
2178	 60.18	+1	2323577..2324671	-	364	56752186	-	syc2177_c	-	permease of the drug/metabolite transporter
2179	 56.58	0	2324759..2325571	+	270	56752187	sppA	syc2178_d	-	protease IV
2180	 58.27	0	2325628..2326020	+	130	56752188	aroH	syc2179_d	-	chorismate mutase
2181	 57.30	0	2326188..2326646	-	152	56752189	-	syc2180_c	-	hypothetical protein
2182	 57.03	0	2326682..2327065	-	127	56752190	-	syc2181_c	-	hypothetical protein
2183	 53.33	0	2327222..2327311	-	29	56752191	psaM	syc2182_c	-	photosystem I reaction center subunit XII
2184	 57.19	0	2327435..2328109	+	224	56752192	phoU	syc2183_d	-	phosphate transport system regulatory protein
2185	 57.41	0	2328427..2330673	+	748	56752193	zam	syc2184_d	-	protein conferring resistance to acetazolamide Zam
2186	 59.00	0	2330670..2331308	+	212	56752194	ubiX	syc2185_d	-	aromatic acid decarboxylase
2187	 61.14	+1	2331311..2331907	+	198	56752195	-	syc2186_d	-	hypothetical protein
2188	 55.40	0	2331968..2332402	+	144	56752196	-	syc2187_d	-	hypothetical protein
2189	 52.55	0	2332556..2333632	+	358	56752197	ycf59	syc2188_d	-	magnesium-protoporphyrin IX monomethyl ester cyclase
2190	 50.74	-1	2333796..2334536	+	246	56752198	-	syc2189_d	-	hypothetical protein
2191	 50.45	-1	2334551..2337553	+	1000	56752199	hlyB	syc2190_d	-	toxin secretion ABC transporter ATP-binding protein
2192	 46.46	-2	2337595..2338920	+	441	56752200	hlyD	syc2191_d	-	hemolysin secretion protein
2193	 42.09	-2	2338936..2340066	+	376	56752201	-	syc2192_d	-	hypothetical protein
2194	 44.51	-2	2340071..2341117	+	348	56752202	-	syc2193_d	-	putative glycosyltransferase
2195	 43.49	-2	2341210..2343591	+	793	56752203	-	syc2194_d	-	putative glycosyltransferase
2196	 53.44	0	2343636..2344217	-	193	56752204	dcd	syc2195_c	-	deoxycytidine triphosphate deaminase
2197	 55.05	0	2344235..2344759	+	174	56752205	-	syc2196_d	-	hypothetical protein
2198	 59.06	0	2344821..2346227	+	468	56752206	leuC	syc2197_d	-	isopropylmalate isomerase large subunit
2199	 60.04	+1	2346228..2347118	+	296	56752207	-	syc2198_d	-	putative transcripton factor DevT-like protein
2200	 59.21	0	2347148..2348395	+	415	56752208	argJ	syc2199_d	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
2201	 56.46	0	2348467..2349279	-	270	56752209	-	syc2200_c	-	hypothetical protein
2202	 58.98	0	2349450..2350529	+	359	56752210	natC	syc2201_d	-	ABC-type Nat permease for neutral amino acids
2203	 57.55	0	2350594..2351295	+	233	56752211	natA	syc2202_d	-	component of ABC transporter for natural amino acids
2204	 54.94	0	2351271..2352080	-	269	56752212	-	syc2203_c	-	hypothetical protein
2205	 46.52	-2	2352077..2352637	-	186	56752213	-	syc2204_c	-	hypothetical protein
2206	 59.76	0	2352795..2353301	-	168	56752214	-	syc2205_c	-	hypothetical protein
2207	 52.51	0	2353467..2355062	+	531	56752215	-	syc2206_d	-	hypothetical protein
2208	 47.26	-2	2355158..2356198	-	346	56752216	-	syc2207_c	-	hypothetical protein
2209	 48.65	-1	2356233..2357525	-	430	56752217	-	syc2208_c	-	mannosyltransferase
2210	 55.64	0	2357578..2359509	-	643	56752218	recJ	syc2209_c	-	single-stranded DNA-specific exonuclease
2211	 57.94	0	2359638..2360405	+	255	56752219	-	syc2210_d	-	CbbY family protein
2212	 60.73	+1	2360402..2360923	+	173	56752220	-	syc2211_d	-	cytidyltransferase
2213	 57.64	0	2360923..2361642	+	239	56752221	ycf53	syc2212_d	-	hypothetical protein
2214	 54.99	0	2361825..2362235	+	136	56752222	psbU	syc2213_d	-	photosystem II complex extrinsic protein precursor U
2215	 60.07	+1	2362368..2363975	+	535	56752223	nadB	syc2214_d	-	L-aspartate oxidase
2216	 56.12	0	2364462..2365400	+	312	56752224	moxR	syc2215_d	-	MoxR protein
2217	 57.00	0	2365397..2366389	+	330	56752225	-	syc2216_d	-	hypothetical protein
2218	 59.73	0	2366386..2368389	+	667	56752226	-	syc2217_d	-	transglutaminase family protein
2219	 57.11	0	2368439..2368846	+	135	56752227	-	syc2218_d	-	hypothetical protein
2220	 59.46	0	2368948..2370348	+	466	56752228	-	syc2219_d	-	hypothetical protein
2221	 54.35	0	2370425..2370895	+	156	56752229	-	syc2220_d	-	tRNA/rRNA methyltransferase
2222	 45.37	-2	2370973..2371653	-	226	56752230	-	syc2221_c	-	two-component response regulator
2223	 41.06	-2	2371650..2373098	-	482	56752231	-	syc2222_c	-	two-component sensor histidine kinase
2224	 42.32	-2	2373208..2373741	-	177	56752232	-	syc2223_c	-	hypothetical protein
2225	 60.05	+1	2374235..2375518	+	427	56752233	-	syc2224_d	-	hypothetical protein
2226	 58.92	0	2375515..2378769	+	1084	56752234	-	syc2225_d	-	cation efflux system protein
2227	 58.10	0	2378796..2379227	-	143	56752235	-	syc2226_c	-	hypothetical protein
2228	 58.50	0	2379231..2380148	-	305	56752236	-	syc2227_c	-	deoxyribodipyrimidine photolyase
2229	 61.19	+1	2380241..2380660	+	139	56752237	-	syc2228_d	-	hypothetical protein
2230	 59.17	0	2380657..2381577	-	306	56752238	ppnK	syc2229_c	-	inorganic polyphosphate/ATP-NAD kinase
2231	 59.11	0	2381854..2382462	-	202	56752239	-	syc2230_c	-	hypothetical protein
2232	 59.18	0	2382468..2383349	-	293	56752240	hemG	syc2231_c	-	protoporphyrinogen IX oxidase
2233	 52.25	0	2383362..2384381	-	339	56752241	-	syc2232_c	-	hypothetical protein
2234	 57.82	0	2384445..2385710	+	421	56752242	natB	syc2233_d	-	periplasmic binding protein of ABC transporter for natural amino acids
2235	 54.38	0	2385868..2386575	+	235	56752243	ycf29	syc2234_d	-	two-component response regulator
2236	 48.00	-1	2386564..2389317	-	917	56752244	-	syc2235_c	-	hypothetical protein
2237	 51.74	-1	2389441..2390157	-	238	56752245	ho1	syc2236_c	-	heme oxygenase
2238	 55.33	0	2390325..2391215	+	296	56752246	mmsB	syc2237_d	-	3-hydroxyacid dehydrogenase
2239	 54.24	0	2391220..2391726	-	168	56752247	cumB	syc2238_c	-	putative cytidine and deoxycytidylate deaminase
2240	 47.41	-2	2391797..2393167	-	456	56752248	cobB	syc2239_c	-	cobyrinic acid a,c-diamide synthase
2241	 47.38	-2	2393171..2394871	-	566	56752249	cobJ	syc2240_c	-	precorrin methylase
2242	 47.66	-2	2394868..2395572	-	234	56752250	cobI	syc2241_c	-	precorrin-2 C20-methyltransferase
2243	 48.73	-1	2395569..2396198	-	209	56752251	cobH	syc2242_c	-	precorrin-8X methylmutase
2244	 45.63	-2	2396223..2397686	-	487	56752252	-	syc2243_c	-	ferredoxin-nitrite reductase-like protein
2245	 59.27	0	2397951..2399180	+	409	56752253	cobL	syc2244_d	-	precorrin-6y c515-methyltransferase
2246	 52.55	0	2399234..2400430	-	398	56752254	rpoD5	syc2245_c	-	RNA polymerase sigma factor SigC
2247	 57.09	0	2401214..2402278	+	354	56752255	asd	syc2246_d	-	aspartate-semialdehyde dehydrogenase
2248	 58.11	0	2402295..2403194	+	299	56752256	dapA	syc2247_d	-	dihydrodipicolinate synthase
2249	 56.99	0	2403243..2405072	+	609	56752257	-	syc2248_d	-	hydrolase
2250	 53.95	0	2405171..2405398	-	75	56752258	-	syc2249_c	-	hypothetical protein
2251	 58.48	0	2405492..2406016	+	174	56752259	-	syc2250_d	-	7-cyano-7-deazaguanine reductase
2252	 60.00	0	2406016..2406825	+	269	56752260	-	syc2251_d	-	hypothetical protein
2253	 54.06	0	2406837..2408105	-	422	56752261	-	syc2252_c	-	transposase
2254	 59.14	0	2408205..2409572	+	455	56752262	murF	syc2253_d	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2 6-diaminopimelate--D-alanyl-D-alanine ligase
2255	 57.17	0	2409615..2410130	+	171	56752263	-	syc2254_d	-	hypothetical protein
2256	 60.05	+1	2410216..2410956	+	246	56752264	-	syc2255_d	-	hypothetical protein
2257	 57.89	0	2411093..2412619	+	508	56752265	chlB	syc2256_d	-	light-independent protochlorophyllide reductase subunit B
2258	 55.36	0	2412676..2413020	+	114	56752266	-	syc2257_d	-	hypothetical protein
2259	 59.17	0	2413033..2413392	+	119	56752267	-	syc2258_d	-	hypothetical protein
2260	 57.74	0	2413393..2414019	-	208	56752268	-	syc2259_c	-	hypothetical protein
2261	 59.26	0	2414062..2414520	-	152	56752269	-	syc2260_c	-	hypothetical protein
2262	 54.81	0	2414520..2415278	-	252	56752270	-	syc2261_c	-	hypothetical protein
2263	 53.78	0	2415449..2415898	+	149	56752271	-	syc2262_d	-	hypothetical protein
2264	 58.16	0	2416031..2417194	+	387	56752272	guaB	syc2263_d	-	inositol-5-monophosphate dehydrogenase
2265	 48.77	-1	2417500..2417823	+	107	56752273	trxA	syc2264_d	-	thioredoxin
2266	 61.74	+1	2418075..2418845	-	256	56752274	hisA	syc2265_c	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
2267	 58.53	0	2418879..2419136	-	85	56752275	-	syc2266_c	-	hypothetical protein
2268	 57.86	0	2419137..2419772	-	211	56752276	-	syc2267_c	-	hypothetical protein
2269	 58.07	0	2419887..2420828	+	313	56752277	-	syc2268_d	-	mRNA-binding protein
2270	 58.38	0	2420825..2421343	-	172	56752278	pgsA	syc2269_c	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
2271	 58.28	0	2421420..2421884	+	154	56752279	-	syc2270_d	-	hypothetical protein
55.98	MEAN

4.05	STD DEV
