IslandPathversion 1.0

IslandPath Analysis: Synechococcus elongatus PCC 6301

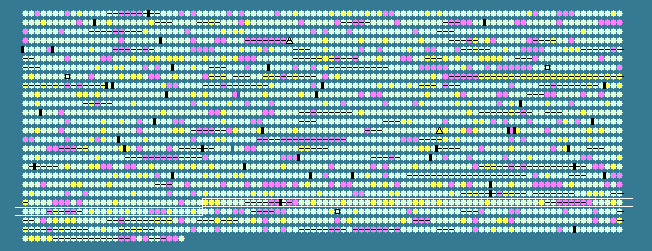

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2131	 60.14	+1	2279658..2281358	-	566	56752139	ppx	syc2130_c	-	exopolyphosphatase
2132	 61.16	+1	2281566..2282273	+	235	56752140	ubiA	syc2131_d	-	prenyltransferase
2133	 59.87	0	2282270..2283166	+	298	56752141	-	syc2132_d	-	hypothetical protein
2134	 52.85	0	2283466..2283588	-	40	56752142	psbY	syc2133_c	-	photosystem II PsbY protein
2135	 59.38	0	2283635..2284183	-	182	56752143	-	syc2134_c	-	ferripyochelin binding protein
2136	 56.02	0	2284341..2284847	+	168	56752144	-	syc2135_d	-	hypothetical protein
2137	 56.07	0	2284895..2286697	-	600	56752145	proS	syc2136_c	-	prolyl-tRNA synthetase
2138	 58.06	0	2286904..2287275	+	123	56752146	-	syc2137_d	-	hypothetical protein
2139	 56.62	0	2287366..2287803	+	145	56752147	-	syc2138_d	-	hypothetical protein
2140	 57.19	0	2287924..2288841	-	305	56752148	accD	syc2139_c	-	acetyl-CoA carboxylase subunit beta
2141	 55.82	0	2289214..2290854	+	546	161621812	pyrG	syc2140_d	-	CTP synthetase
2142	 52.45	0	2290858..2291244	+	128	56752150	-	syc2141_d	-	hypothetical protein
2143	 50.29	-1	2291297..2291638	-	113	56752151	-	syc2142_c	-	hypothetical protein
2144	 57.30	0	2291847..2292209	-	120	56752152	-	syc2143_c	-	hypothetical protein
2145	 44.84	-2	2292398..2292649	-	83	56752153	-	syc2144_c	-	hypothetical protein
2146	 48.87	-1	2292726..2293034	-	102	56752154	-	syc2145_c	-	hypothetical protein
2147	 56.10	0	2293098..2293343	-	81	56752155	-	syc2146_c	-	hypothetical protein
2148	 57.37	0	2293497..2294948	+	483	56752156	-	syc2147_d	-	hypothetical protein
2149	 60.00	0	2295065..2295544	+	159	56752157	-	syc2148_d	-	hypothetical protein
2150	 53.93	0	2295608..2297539	+	643	56752158	uvrC	syc2149_d	-	excinuclease ABC subunit C
2151	 56.95	0	2297620..2298648	-	342	56752159	pdhA	syc2150_c	-	pyruvate dehydrogenase E1 component alpha subunit
2152	 58.81	0	2298999..2300894	+	631	56752160	-	syc2151_d	-	cell division protein Ftn2-like protein
2153	 55.19	0	2300940..2301392	-	150	56752161	-	syc2152_c	-	bacterioferritin comigratory protein
2154	 61.20	+1	2301460..2302227	-	255	56752162	-	syc2153_c	-	hypothetical protein
2155	 58.97	0	2302417..2303676	-	419	56752163	-	syc2154_c	-	putative membrane transporter
2156	 57.41	0	2303673..2304698	-	341	56752164	gap1	syc2155_c	-	glyceraldehyde 3-phosphate dehydrogenase
2157	 57.63	0	2304762..2305823	+	353	56752165	-	syc2156_d	-	multidrug-efflux transporter
2158	 56.14	0	2305910..2306650	+	246	56752166	msrA	syc2157_d	-	peptide methionine sulfoxide reductase
2159	 60.08	+1	2306769..2307011	+	80	56752167	-	syc2158_d	-	hypothetical protein
2160	 59.19	0	2307017..2307805	+	262	56752168	pilD	syc2159_d	-	prepilin peptidase / N-methyltransferase
2161	 61.04	+1	2308047..2309504	-	485	56752169	dacB	syc2160_c	-	D-alanyl-D-alanine carboxypeptidase
2162	 61.13	+1	2309402..2310448	-	348	56752170	-	syc2161_c	-	isopentenyl pyrophosphate isomerase
2163	 56.93	0	2310457..2310990	-	177	56752171	-	syc2162_c	-	hypothetical protein
2164	 56.29	0	2311212..2311982	-	256	56752172	-	syc2163_c	-	serine/threonine protein phosphatase
2165	 59.41	0	2311989..2312732	-	247	56752173	-	syc2164_c	-	hypothetical protein
2166	 62.10	+1	2312744..2313904	-	386	56752174	nifS	syc2165_c	-	cysteine desulfurase
2167	 60.91	+1	2313958..2314200	-	80	56752175	-	syc2166_c	-	hypothetical protein
2168	 57.89	0	2314213..2315055	-	280	56752176	dapF	syc2167_c	-	diaminopimelate epimerase
2169	 57.48	0	2315097..2315390	+	97	56752177	-	syc2168_d	-	hypothetical protein
2170	 59.86	0	2315454..2316305	+	283	56752178	-	syc2169_d	-	peptidase
2171	 58.15	0	2316281..2316832	+	183	56752179	-	syc2170_d	-	hypothetical protein
2172	 57.84	0	2317141..2317797	+	218	56752180	sigG	syc2171_d	-	RNA polymerase sigma factor RpoE
2173	 58.08	0	2317881..2318381	+	166	56752181	-	syc2172_d	-	hypothetical protein
2174	 59.16	0	2318382..2318834	-	150	56752182	-	syc2173_c	-	hypothetical protein
2175	 57.20	0	2318844..2321441	+	865	56752183	leuS	syc2174_d	-	leucyl-tRNA synthetase
2176	 56.69	0	2321711..2322472	+	253	56752184	-	syc2175_d	-	hypothetical protein
2177	 58.57	0	2322437..2323387	-	316	56752185	-	syc2176_c	-	UDP-glucose:tetrahydrobiopterin glucosyltransferase
2178	 60.18	+1	2323577..2324671	-	364	56752186	-	syc2177_c	-	permease of the drug/metabolite transporter
2179	 56.58	0	2324759..2325571	+	270	56752187	sppA	syc2178_d	-	protease IV
2180	 58.27	0	2325628..2326020	+	130	56752188	aroH	syc2179_d	-	chorismate mutase
2181	 57.30	0	2326188..2326646	-	152	56752189	-	syc2180_c	-	hypothetical protein
2182	 57.03	0	2326682..2327065	-	127	56752190	-	syc2181_c	-	hypothetical protein
2183	 53.33	0	2327222..2327311	-	29	56752191	psaM	syc2182_c	-	photosystem I reaction center subunit XII
2184	 57.19	0	2327435..2328109	+	224	56752192	phoU	syc2183_d	-	phosphate transport system regulatory protein
2185	 57.41	0	2328427..2330673	+	748	56752193	zam	syc2184_d	-	protein conferring resistance to acetazolamide Zam
2186	 59.00	0	2330670..2331308	+	212	56752194	ubiX	syc2185_d	-	aromatic acid decarboxylase
2187	 61.14	+1	2331311..2331907	+	198	56752195	-	syc2186_d	-	hypothetical protein
2188	 55.40	0	2331968..2332402	+	144	56752196	-	syc2187_d	-	hypothetical protein
2189	 52.55	0	2332556..2333632	+	358	56752197	ycf59	syc2188_d	-	magnesium-protoporphyrin IX monomethyl ester cyclase
2190	 50.74	-1	2333796..2334536	+	246	56752198	-	syc2189_d	-	hypothetical protein
2191	 50.45	-1	2334551..2337553	+	1000	56752199	hlyB	syc2190_d	-	toxin secretion ABC transporter ATP-binding protein
2192	 46.46	-2	2337595..2338920	+	441	56752200	hlyD	syc2191_d	-	hemolysin secretion protein
2193	 42.09	-2	2338936..2340066	+	376	56752201	-	syc2192_d	-	hypothetical protein
2194	 44.51	-2	2340071..2341117	+	348	56752202	-	syc2193_d	-	putative glycosyltransferase
2195	 43.49	-2	2341210..2343591	+	793	56752203	-	syc2194_d	-	putative glycosyltransferase
2196	 53.44	0	2343636..2344217	-	193	56752204	dcd	syc2195_c	-	deoxycytidine triphosphate deaminase
2197	 55.05	0	2344235..2344759	+	174	56752205	-	syc2196_d	-	hypothetical protein
2198	 59.06	0	2344821..2346227	+	468	56752206	leuC	syc2197_d	-	isopropylmalate isomerase large subunit
2199	 60.04	+1	2346228..2347118	+	296	56752207	-	syc2198_d	-	putative transcripton factor DevT-like protein
2200	 59.21	0	2347148..2348395	+	415	56752208	argJ	syc2199_d	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
2201	 56.46	0	2348467..2349279	-	270	56752209	-	syc2200_c	-	hypothetical protein
2202	 58.98	0	2349450..2350529	+	359	56752210	natC	syc2201_d	-	ABC-type Nat permease for neutral amino acids
2203	 57.55	0	2350594..2351295	+	233	56752211	natA	syc2202_d	-	component of ABC transporter for natural amino acids
2204	 54.94	0	2351271..2352080	-	269	56752212	-	syc2203_c	-	hypothetical protein
2205	 46.52	-2	2352077..2352637	-	186	56752213	-	syc2204_c	-	hypothetical protein
2206	 59.76	0	2352795..2353301	-	168	56752214	-	syc2205_c	-	hypothetical protein
2207	 52.51	0	2353467..2355062	+	531	56752215	-	syc2206_d	-	hypothetical protein
2208	 47.26	-2	2355158..2356198	-	346	56752216	-	syc2207_c	-	hypothetical protein
2209	 48.65	-1	2356233..2357525	-	430	56752217	-	syc2208_c	-	mannosyltransferase
2210	 55.64	0	2357578..2359509	-	643	56752218	recJ	syc2209_c	-	single-stranded DNA-specific exonuclease
2211	 57.94	0	2359638..2360405	+	255	56752219	-	syc2210_d	-	CbbY family protein
2212	 60.73	+1	2360402..2360923	+	173	56752220	-	syc2211_d	-	cytidyltransferase
2213	 57.64	0	2360923..2361642	+	239	56752221	ycf53	syc2212_d	-	hypothetical protein
2214	 54.99	0	2361825..2362235	+	136	56752222	psbU	syc2213_d	-	photosystem II complex extrinsic protein precursor U
2215	 60.07	+1	2362368..2363975	+	535	56752223	nadB	syc2214_d	-	L-aspartate oxidase
2216	 56.12	0	2364462..2365400	+	312	56752224	moxR	syc2215_d	-	MoxR protein
2217	 57.00	0	2365397..2366389	+	330	56752225	-	syc2216_d	-	hypothetical protein
2218	 59.73	0	2366386..2368389	+	667	56752226	-	syc2217_d	-	transglutaminase family protein
2219	 57.11	0	2368439..2368846	+	135	56752227	-	syc2218_d	-	hypothetical protein
2220	 59.46	0	2368948..2370348	+	466	56752228	-	syc2219_d	-	hypothetical protein
2221	 54.35	0	2370425..2370895	+	156	56752229	-	syc2220_d	-	tRNA/rRNA methyltransferase
2222	 45.37	-2	2370973..2371653	-	226	56752230	-	syc2221_c	-	two-component response regulator
2223	 41.06	-2	2371650..2373098	-	482	56752231	-	syc2222_c	-	two-component sensor histidine kinase
2224	 42.32	-2	2373208..2373741	-	177	56752232	-	syc2223_c	-	hypothetical protein
2225	 60.05	+1	2374235..2375518	+	427	56752233	-	syc2224_d	-	hypothetical protein
2226	 58.92	0	2375515..2378769	+	1084	56752234	-	syc2225_d	-	cation efflux system protein
2227	 58.10	0	2378796..2379227	-	143	56752235	-	syc2226_c	-	hypothetical protein
2228	 58.50	0	2379231..2380148	-	305	56752236	-	syc2227_c	-	deoxyribodipyrimidine photolyase
2229	 61.19	+1	2380241..2380660	+	139	56752237	-	syc2228_d	-	hypothetical protein
2230	 59.17	0	2380657..2381577	-	306	56752238	ppnK	syc2229_c	-	inorganic polyphosphate/ATP-NAD kinase
55.98	MEAN

4.05	STD DEV
