IslandPath Analysis: Synechococcus elongatus PCC 6301

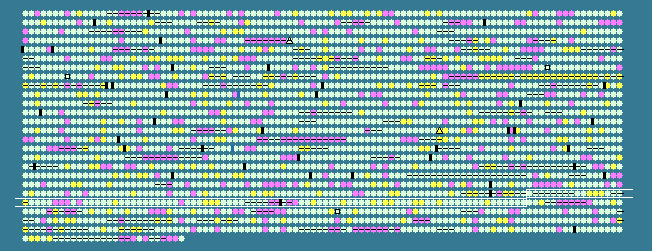

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2085	 58.97	0	2235639..2236820	+	393	56752093	ycf56	syc2084_d	-	ribonuclease Z
2086	 54.01	0	2236890..2237537	+	215	56752094	psbV	syc2085_d	-	cytochrome c-550
2087	 58.14	0	2237897..2240665	-	922	56752095	-	syc2086_c	-	hypothetical protein
2088	 56.61	0	2240677..2241183	-	168	56752096	-	syc2087_c	-	hypothetical protein
2089	 53.29	0	2241249..2241749	+	166	56752097	coaD	syc2088_d	-	phosphopantetheine adenylyltransferase
2090	 58.66	0	2241746..2242432	+	228	56752098	-	syc2089_d	-	hypothetical protein
2091	 57.30	0	2242581..2243402	-	273	56752099	-	syc2090_c	-	hypothetical protein
2092	 54.99	0	2243412..2244002	-	196	56752100	sigI	syc2091_c	-	RNA polymerase sigma factor
2093	 59.38	0	2244224..2244937	-	237	56752101	-	syc2092_c	-	hypothetical protein
2094	 59.33	0	2244985..2245434	-	149	56752102	-	syc2093_c	-	hypothetical protein
2095	 62.31	+1	2245547..2245867	+	106	56752103	-	syc2094_d	-	hypothetical protein
2096	 60.27	+1	2245855..2246682	+	275	56752104	minC	syc2095_d	-	septum formation inhibitor
2097	 59.56	0	2246850..2249072	+	740	56752105	-	syc2096_d	-	penicillin-binding protein
2098	 56.25	0	2249295..2249582	+	95	56752106	rbp2	syc2097_d	-	RRM type RNA-binding protein
2099	 56.29	0	2249887..2250474	-	195	56752107	-	syc2098_c	-	hypothetical protein
2100	 54.79	0	2250660..2250878	+	72	56752108	hliA	syc2099_d	-	high light-inducible protein
2101	 59.54	0	2251063..2251413	+	116	56752109	-	syc2100_d	-	hypothetical protein
2102	 55.19	0	2251469..2252104	+	211	56752110	hisIE	syc2101_d	-	bifunctional phosphoribosyl-AMP cyclohydrolase/phosphoribosyl-ATP pyrophosphatase protein
2103	 58.02	0	2252134..2252850	-	238	56752111	masA	syc2102_c	-	putative enolase-phosphatase E-1s
2104	 57.17	0	2252856..2253476	-	206	56752112	-	syc2103_c	-	hypothetical protein
2105	 56.26	0	2253596..2254642	+	348	56752113	eIF2BA	syc2104_d	-	translation initiation factor eIF-2B alpha subunit
2106	 49.25	-1	2254709..2255110	+	133	56752114	-	syc2105_d	-	hypothetical protein
2107	 51.28	-1	2255503..2256165	+	220	56752115	-	syc2106_d	-	hypothetical protein
2108	 49.12	-1	2256212..2257123	+	303	56752116	-	syc2107_d	-	cation efflux system protein
2109	 53.35	0	2257173..2258306	+	377	56752117	-	syc2108_d	-	hypothetical protein
2110	 47.94	-1	2258897..2259211	-	104	56752118	-	syc2109_c	-	hypothetical protein
2111	 57.82	0	2259377..2260699	+	440	56752119	pqqL	syc2110_d	-	processing protease
2112	 56.94	0	2260692..2261585	+	297	56752120	-	syc2111_d	-	hypothetical protein
2113	 56.53	0	2261618..2262544	-	308	56752121	pys	syc2112_c	-	phytoene synthase
2114	 54.95	0	2262625..2264049	-	474	56752122	pds	syc2113_c	-	phytoene dehydrogenase
2115	 53.15	0	2264199..2264531	+	110	56752123	-	syc2114_d	-	hypothetical protein
2116	 59.61	0	2264531..2265139	+	202	56752124	-	syc2115_d	-	hypothetical protein
2117	 57.27	0	2265136..2266125	-	329	56752125	rbcR	syc2116_c	-	LysR family transcriptional regulator
2118	 57.22	0	2266294..2266833	+	179	56752126	-	syc2117_d	-	hypothetical protein
2119	 53.87	0	2267051..2267386	+	111	56752127	trxA	syc2118_d	-	thioredoxin
2120	 58.26	0	2267467..2269464	+	665	56752128	ndhF	syc2119_d	-	NAD(P)H-quinone oxidoreductase subunit F
2121	 57.01	0	2269634..2271238	+	534	56752129	ndhD	syc2120_d	-	NAD(P)H-quinone oxidoreductase subunit 4
2122	 53.67	0	2271268..2271621	+	117	56752130	-	syc2121_d	-	hypothetical protein
2123	 57.59	0	2271807..2272643	+	278	56752131	-	syc2122_d	-	hypothetical protein
2124	 53.33	0	2272711..2273880	+	389	56752132	-	syc2123_d	-	mannose-1-phosphate guanyltransferase
2125	 58.85	0	2273974..2274741	+	255	56752133	-	syc2124_d	-	hypothetical protein
2126	 57.91	0	2274807..2275994	+	395	56752134	ama	syc2125_d	-	N-acyl-L-amino acid amidohydrolase
2127	 50.53	-1	2276181..2276558	-	125	56752135	-	syc2126_c	-	hypothetical protein
2128	 55.19	0	2276994..2278352	-	452	56752136	-	syc2127_c	-	hypothetical protein
2129	 54.81	0	2278399..2279292	-	297	56752137	uppP	syc2128_c	-	undecaprenyl pyrophosphate phosphatase
2130	 56.20	0	2279367..2279624	-	85	56752138	-	syc2129_c	-	hypothetical protein
2131	 60.14	+1	2279658..2281358	-	566	56752139	ppx	syc2130_c	-	exopolyphosphatase
2132	 61.16	+1	2281566..2282273	+	235	56752140	ubiA	syc2131_d	-	prenyltransferase
2133	 59.87	0	2282270..2283166	+	298	56752141	-	syc2132_d	-	hypothetical protein
2134	 52.85	0	2283466..2283588	-	40	56752142	psbY	syc2133_c	-	photosystem II PsbY protein
2135	 59.38	0	2283635..2284183	-	182	56752143	-	syc2134_c	-	ferripyochelin binding protein
2136	 56.02	0	2284341..2284847	+	168	56752144	-	syc2135_d	-	hypothetical protein
2137	 56.07	0	2284895..2286697	-	600	56752145	proS	syc2136_c	-	prolyl-tRNA synthetase
2138	 58.06	0	2286904..2287275	+	123	56752146	-	syc2137_d	-	hypothetical protein
2139	 56.62	0	2287366..2287803	+	145	56752147	-	syc2138_d	-	hypothetical protein
2140	 57.19	0	2287924..2288841	-	305	56752148	accD	syc2139_c	-	acetyl-CoA carboxylase subunit beta
2141	 55.82	0	2289214..2290854	+	546	161621812	pyrG	syc2140_d	-	CTP synthetase
2142	 52.45	0	2290858..2291244	+	128	56752150	-	syc2141_d	-	hypothetical protein
2143	 50.29	-1	2291297..2291638	-	113	56752151	-	syc2142_c	-	hypothetical protein
2144	 57.30	0	2291847..2292209	-	120	56752152	-	syc2143_c	-	hypothetical protein
2145	 44.84	-2	2292398..2292649	-	83	56752153	-	syc2144_c	-	hypothetical protein
2146	 48.87	-1	2292726..2293034	-	102	56752154	-	syc2145_c	-	hypothetical protein
2147	 56.10	0	2293098..2293343	-	81	56752155	-	syc2146_c	-	hypothetical protein
2148	 57.37	0	2293497..2294948	+	483	56752156	-	syc2147_d	-	hypothetical protein
2149	 60.00	0	2295065..2295544	+	159	56752157	-	syc2148_d	-	hypothetical protein
2150	 53.93	0	2295608..2297539	+	643	56752158	uvrC	syc2149_d	-	excinuclease ABC subunit C
2151	 56.95	0	2297620..2298648	-	342	56752159	pdhA	syc2150_c	-	pyruvate dehydrogenase E1 component alpha subunit
2152	 58.81	0	2298999..2300894	+	631	56752160	-	syc2151_d	-	cell division protein Ftn2-like protein
2153	 55.19	0	2300940..2301392	-	150	56752161	-	syc2152_c	-	bacterioferritin comigratory protein
2154	 61.20	+1	2301460..2302227	-	255	56752162	-	syc2153_c	-	hypothetical protein
2155	 58.97	0	2302417..2303676	-	419	56752163	-	syc2154_c	-	putative membrane transporter
2156	 57.41	0	2303673..2304698	-	341	56752164	gap1	syc2155_c	-	glyceraldehyde 3-phosphate dehydrogenase
2157	 57.63	0	2304762..2305823	+	353	56752165	-	syc2156_d	-	multidrug-efflux transporter
2158	 56.14	0	2305910..2306650	+	246	56752166	msrA	syc2157_d	-	peptide methionine sulfoxide reductase
2159	 60.08	+1	2306769..2307011	+	80	56752167	-	syc2158_d	-	hypothetical protein
2160	 59.19	0	2307017..2307805	+	262	56752168	pilD	syc2159_d	-	prepilin peptidase / N-methyltransferase
2161	 61.04	+1	2308047..2309504	-	485	56752169	dacB	syc2160_c	-	D-alanyl-D-alanine carboxypeptidase
2162	 61.13	+1	2309402..2310448	-	348	56752170	-	syc2161_c	-	isopentenyl pyrophosphate isomerase
2163	 56.93	0	2310457..2310990	-	177	56752171	-	syc2162_c	-	hypothetical protein
2164	 56.29	0	2311212..2311982	-	256	56752172	-	syc2163_c	-	serine/threonine protein phosphatase
2165	 59.41	0	2311989..2312732	-	247	56752173	-	syc2164_c	-	hypothetical protein
2166	 62.10	+1	2312744..2313904	-	386	56752174	nifS	syc2165_c	-	cysteine desulfurase
2167	 60.91	+1	2313958..2314200	-	80	56752175	-	syc2166_c	-	hypothetical protein
2168	 57.89	0	2314213..2315055	-	280	56752176	dapF	syc2167_c	-	diaminopimelate epimerase
2169	 57.48	0	2315097..2315390	+	97	56752177	-	syc2168_d	-	hypothetical protein
2170	 59.86	0	2315454..2316305	+	283	56752178	-	syc2169_d	-	peptidase
2171	 58.15	0	2316281..2316832	+	183	56752179	-	syc2170_d	-	hypothetical protein
2172	 57.84	0	2317141..2317797	+	218	56752180	sigG	syc2171_d	-	RNA polymerase sigma factor RpoE
2173	 58.08	0	2317881..2318381	+	166	56752181	-	syc2172_d	-	hypothetical protein
2174	 59.16	0	2318382..2318834	-	150	56752182	-	syc2173_c	-	hypothetical protein
2175	 57.20	0	2318844..2321441	+	865	56752183	leuS	syc2174_d	-	leucyl-tRNA synthetase
2176	 56.69	0	2321711..2322472	+	253	56752184	-	syc2175_d	-	hypothetical protein
2177	 58.57	0	2322437..2323387	-	316	56752185	-	syc2176_c	-	UDP-glucose:tetrahydrobiopterin glucosyltransferase
2178	 60.18	+1	2323577..2324671	-	364	56752186	-	syc2177_c	-	permease of the drug/metabolite transporter
2179	 56.58	0	2324759..2325571	+	270	56752187	sppA	syc2178_d	-	protease IV
2180	 58.27	0	2325628..2326020	+	130	56752188	aroH	syc2179_d	-	chorismate mutase
2181	 57.30	0	2326188..2326646	-	152	56752189	-	syc2180_c	-	hypothetical protein
2182	 57.03	0	2326682..2327065	-	127	56752190	-	syc2181_c	-	hypothetical protein
2183	 53.33	0	2327222..2327311	-	29	56752191	psaM	syc2182_c	-	photosystem I reaction center subunit XII
2184	 57.19	0	2327435..2328109	+	224	56752192	phoU	syc2183_d	-	phosphate transport system regulatory protein
55.98	MEAN

4.05	STD DEV
