IslandPathversion 1.0

IslandPath Analysis: Synechococcus elongatus PCC 6301

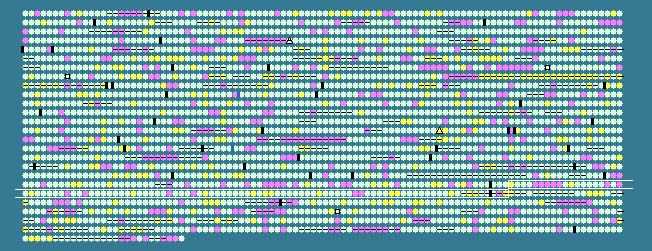

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1982	 61.50	+1	2124098..2125006	-	302	56751990	xylR	syc1981_c	-	xylose repressor
1983	 59.04	0	2125131..2126114	+	327	56751991	fmt	syc1982_d	-	methionyl-tRNA formyltransferase
1984	 54.84	0	2126115..2127890	-	591	56751992	-	syc1983_c	-	ATP-binding protein of ABC transporter
1985	 53.66	0	2127945..2128313	-	122	56751993	-	syc1984_c	-	hypothetical protein
1986	 49.05	-1	2128577..2128945	+	122	56751994	-	syc1985_d	-	hypothetical protein
1987	 50.25	-1	2128980..2130167	+	395	56751995	cynA	syc1986_d	-	sulfonate/nitrate transport system substrate-binding protein
1988	 48.86	-1	2130177..2130968	+	263	56751996	cynB	syc1987_d	-	sulfonate/nitrate transport system permease protein
1989	 52.41	0	2130972..2131841	+	289	56751997	cynD	syc1988_d	-	sulfonate/nitrate transport system ATP-binding protein
1990	 46.94	-2	2131852..2132292	+	146	56751998	cynS	syc1989_d	-	cyanate hydratase
1991	 58.52	0	2132509..2132913	+	134	56751999	-	syc1990_d	-	hypothetical protein
1992	 61.25	+1	2132956..2133195	-	79	56752000	-	syc1991_c	-	NAD-reducing hydrogenase gamma
1993	 57.29	0	2133207..2134091	-	294	56752001	rfbA	syc1992_c	-	glucose-1-phosphate thymidylyltransferase
1994	 52.51	0	2134088..2135161	-	357	56752002	rfbB	syc1993_c	-	dTDP-glucose 4,6-dehydratase
1995	 54.83	0	2135158..2136027	-	289	56752003	rfbD	syc1994_c	-	dTDP-6-deoxy-L-mannose-dehydrogenase
1996	 55.43	0	2136024..2136575	-	183	56752004	rfbC	syc1995_c	-	dTDP-4-dehydrorhamnose 3,5-epimerase
1997	 57.61	0	2136635..2137561	+	308	56752005	-	syc1996_d	-	hypothetical protein
1998	 48.57	-1	2137571..2139565	-	664	56752006	-	syc1997_c	-	hypothetical protein
1999	 54.17	0	2139794..2140177	-	127	56752007	-	syc1998_c	-	hypothetical protein
2000	 50.25	-1	2140422..2140823	-	133	56752008	-	syc1999_c	-	hypothetical protein
2001	 57.93	0	2140870..2142162	-	430	56752009	cupA	syc2000_c	-	protein involved in low CO2-inducible high affinity CO2 uptake
2002	 59.86	0	2142211..2143752	-	513	56752010	ndhD3	syc2001_c	-	NADH dehydrogenase subunit 4
2003	 59.27	0	2143764..2145602	-	612	56752011	ndhF3	syc2002_c	-	NAD(P)H-quinone oxidoreductase subunit F
2004	 59.28	0	2145853..2147151	-	432	56752012	thrA	syc2003_c	-	homoserine dehydrogenase
2005	 53.88	0	2147447..2148361	+	304	56752013	-	syc2004_d	-	hypothetical protein
2006	 56.51	0	2148716..2149030	-	104	56752014	-	syc2005_c	-	hypothetical protein
2007	 58.85	0	2149116..2149883	-	255	56752015	hisF	syc2006_c	-	imidazole glycerol phosphate synthase subunit HisF
2008	 52.24	0	2150041..2150241	+	66	56752016	-	syc2007_d	-	hypothetical protein
2009	 56.45	0	2150273..2151349	+	358	56752017	-	syc2008_d	-	anion transporting ATPase
2010	 53.42	0	2151506..2152381	+	291	56752018	chlG	syc2009_d	-	bacteriochlorophyll/chlorophyll a synthase
2011	 47.92	-1	2152436..2153107	-	223	56752019	-	syc2010_c	-	hypothetical protein
2012	 58.37	0	2153457..2155445	+	662	56752020	fus	syc2011_d	-	elongation factor G
2013	 55.52	0	2155525..2156475	+	316	56752021	wcaA	syc2012_d	-	glycosyl transferase
2014	 54.45	0	2156604..2158994	-	796	56752022	-	syc2013_c	-	putative phosphoketolase
2015	 58.06	0	2159436..2160458	+	340	56752023	ackA	syc2014_d	-	acetate kinase
2016	 57.43	0	2160467..2161105	+	212	56752024	-	syc2015_d	-	phosphoglycerate mutase
2017	 58.99	0	2161482..2161898	-	138	56752025	-	syc2016_c	-	hypothetical protein
2018	 56.32	0	2161965..2163017	-	350	56752026	-	syc2017_c	-	ribosome-associated GTPase
2019	 60.71	+1	2163014..2163265	-	83	56752027	-	syc2018_c	-	hypothetical protein
2020	 57.38	0	2163262..2164392	-	376	56752028	dnaJ	syc2019_c	-	DnaJ protein
2021	 54.83	0	2164534..2166501	-	655	56752029	dnaK	syc2020_c	-	molecular chaperone DnaK
2022	 55.66	0	2166606..2167250	-	214	56752030	grpE	syc2021_c	-	heat shock protein GrpE
2023	 57.02	0	2167506..2169506	+	666	56752031	pilB	syc2022_d	-	type IV pilus assembly protein PilB
2024	 52.53	0	2169577..2170665	+	362	56752032	pilT1	syc2023_d	-	twitching motility protein PilT
2025	 48.99	-1	2170690..2171922	+	410	56752033	pilC	syc2024_d	-	type IV pilus assembly protein PilC
2026	 58.20	0	2171928..2172482	+	184	56752034	-	syc2025_d	-	hypothetical protein
2027	 59.05	0	2172447..2173694	-	415	56752035	-	syc2026_c	-	hypothetical protein
2028	 56.59	0	2173721..2174752	+	343	56752036	-	syc2027_d	-	tRNA-dihydrouridine synthase A
2029	 44.10	-2	2174816..2175103	+	95	56752037	-	syc2028_d	-	hypothetical protein
2030	 57.58	0	2175227..2176228	-	333	161621813	pheS	syc2029_c	-	phenylalanyl-tRNA synthetase subunit alpha
2031	 60.23	+1	2176364..2177140	+	258	56752039	surE	syc2030_d	-	stationary phase survival protein SurE
2032	 57.52	0	2177211..2178446	+	411	56752040	crtL	syc2031_d	-	lycopene cyclase
2033	 52.59	0	2178568..2178837	+	89	56752041	-	syc2032_d	-	hypothetical protein
2034	 58.56	0	2178862..2179527	+	221	56752042	-	syc2033_d	-	hypothetical protein
2035	 58.10	0	2179693..2180334	+	213	56752043	-	syc2034_d	-	hypothetical protein
2036	 59.12	0	2180470..2181264	+	264	56752044	proC	syc2035_d	-	pyrroline-5-carboxylate reductase
2037	 57.35	0	2181274..2181906	-	210	56752045	-	syc2036_c	-	hypothetical protein
2038	 55.83	0	2182046..2182285	-	79	56752046	-	syc2037_c	-	hypothetical protein
2039	 59.84	0	2182488..2183732	-	414	56752047	ubiH	syc2038_c	-	2-octaprenyl-6-methoxyphenyl hydroxylase
2040	 57.52	0	2183858..2184775	+	305	56752048	-	syc2039_d	-	hypothetical protein
2041	 59.52	0	2184772..2186703	-	643	56752049	-	syc2040_c	-	peptidase
2042	 60.71	+1	2186845..2187717	+	290	56752050	-	syc2041_d	-	oligopeptides ABC transporter permease protein
2043	 58.42	0	2187728..2189170	+	480	56752051	-	syc2042_d	-	hypothetical protein
2044	 56.59	0	2189340..2190629	-	429	56752052	-	syc2043_c	-	hypothetical protein
2045	 56.50	0	2190994..2193285	+	763	56752053	psaA	syc2044_d	-	photosystem I P700 chlorophyll a apoprotein A1
2046	 57.10	0	2193305..2195509	+	734	56752054	psaB	syc2045_d	-	photosystem I P700 chlorophyll a apoprotein A2
2047	 58.42	0	2195659..2198520	-	953	56752055	gcvP	syc2046_c	-	glycine dehydrogenase
2048	 56.41	0	2198579..2198968	-	129	56752056	gcvH	syc2047_c	-	glycine cleavage system protein H
2049	 59.05	0	2199393..2202896	+	1167	56752057	-	syc2048_d	-	chromosome segregation protein SMC1
2050	 59.76	0	2203040..2204053	+	337	56752058	-	syc2049_d	-	hypothetical protein
2051	 55.24	0	2204358..2204777	+	139	56752059	-	syc2050_d	-	S-adenosylmethionine decarboxylase proenzyme
2052	 55.05	0	2204894..2205220	+	108	56752060	-	syc2051_d	-	hypothetical protein
2053	 58.27	0	2205227..2205631	-	134	56752061	-	syc2052_c	-	hypothetical protein
2054	 58.80	0	2205628..2206848	-	406	56752062	-	syc2053_c	-	virulence factor MviN homolog.
2055	 55.98	0	2206896..2207606	+	236	56752063	sfsA	syc2054_d	-	sugar fermentation stimulation protein A
2056	 51.05	-1	2207690..2208496	+	268	56752064	-	syc2055_d	-	hypothetical protein
2057	 46.32	-2	2208970..2209662	+	230	56752065	-	syc2056_d	-	transcription regulator
2058	 57.21	0	2209866..2210510	+	214	56752066	-	syc2057_d	-	hypothetical protein
2059	 56.11	0	2210485..2211507	+	340	56752067	-	syc2058_d	-	hypothetical protein
2060	 57.69	0	2211511..2212212	+	233	56752068	-	syc2059_d	-	hypothetical protein
2061	 59.29	0	2212179..2212544	+	121	56752069	-	syc2060_d	-	hypothetical protein
2062	 59.68	0	2212521..2213636	-	371	56752070	-	syc2061_c	-	hypothetical protein
2063	 59.60	0	2214008..2214700	-	230	56752071	-	syc2062_c	-	hypothetical protein
2064	 57.34	0	2214722..2215933	-	403	56752072	norA	syc2063_c	-	multidrug-efflux transporter quinolene resistance protein NorA
2065	 58.42	0	2216026..2216607	+	193	56752073	-	syc2064_d	-	hypothetical protein
2066	 55.38	0	2216730..2217482	+	250	56752074	cpcG	syc2065_d	-	phycobilisome rod-core linker polypeptide
2067	 58.85	0	2217645..2219231	-	528	56752075	pgi	syc2066_c	-	glucose-6-phosphate isomerase
2068	 57.16	0	2219354..2220415	-	353	56752076	rfbW	syc2067_c	-	glycosyltransferase
2069	 56.59	0	2220430..2221173	-	247	56752077	-	syc2068_c	-	glycosly transferase
2070	 55.98	0	2221176..2222579	-	467	56752078	-	syc2069_c	-	glycosyltransferase
2071	 57.55	0	2222582..2223667	-	361	56752079	rfaG	syc2070_c	-	glycosyltransferase
2072	 59.56	0	2223772..2224644	+	290	56752080	-	syc2071_d	-	hypothetical protein
2073	 54.55	0	2224809..2225270	+	153	56752081	-	syc2072_d	-	hypothetical protein
2074	 56.64	0	2225327..2226652	+	441	56752082	nusA	syc2073_d	-	transcription elongation factor NusA
2075	 60.88	+1	2226649..2226942	+	97	56752083	-	syc2074_d	-	hypothetical protein
2076	 59.72	0	2227093..2230185	+	1030	56752084	infB	syc2075_d	-	translation initiation factor IF-2
2077	 56.55	0	2230268..2231137	+	289	56752085	-	syc2076_d	-	hypothetical protein
2078	 56.10	0	2231201..2231446	-	81	56752086	-	syc2077_c	-	hypothetical protein
2079	 58.50	0	2231660..2231953	-	97	56752087	-	syc2078_c	-	hypothetical protein
2080	 52.50	0	2232108..2232227	+	39	56752088	psbX	syc2079_d	-	photosystem II PsbX protein
2081	 60.43	+1	2232345..2233178	+	277	56752089	ycf66	syc2080_d	-	hypothetical protein
55.98	MEAN

4.05	STD DEV
