IslandPath Analysis: Synechococcus elongatus PCC 6301

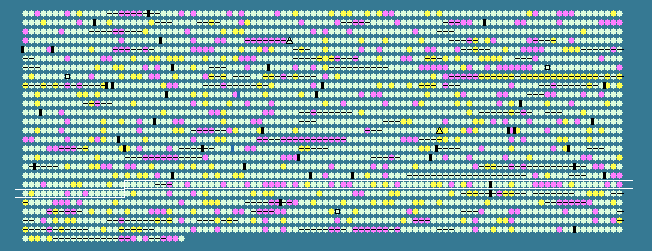

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1918	 53.22	0	2058635..2058976	+	113	56751926	-	syc1917_d	-	hypothetical protein
1919	 58.81	0	2058997..2059950	-	317	56751927	natD	syc1918_c	-	integral membrane protein of the ABC-type Nat permease for neutral amino acids NatD
1920	 58.20	0	2059934..2061079	+	381	56751928	-	syc1919_d	-	hypothetical protein
1921	 53.41	0	2061183..2062283	+	366	56751929	idiA	syc1920_d	-	iron(III) transport system substrate-binding protein
1922	 56.19	0	2062526..2063155	-	209	56751930	-	syc1921_c	-	hypothetical protein
1923	 56.86	0	2063252..2063812	-	186	56751931	-	syc1922_c	-	hypothetical protein
1924	 57.85	0	2063809..2064069	-	86	56751932	-	syc1923_c	-	hypothetical protein
1925	 51.41	-1	2064304..2064834	+	176	56751933	dpsA	syc1924_d	-	starvation induced DNA binding protein
1926	 57.30	0	2065033..2065491	-	152	56751934	fur	syc1925_c	-	ferric uptake regulation protein
1927	 57.41	0	2065547..2065870	+	107	56751935	-	syc1926_d	-	hypothetical protein
1928	 51.87	-1	2065965..2068349	-	794	56751936	pcrA	syc1927_c	-	ATP-dependent helicase PcrA
1929	 54.53	0	2068562..2069014	+	150	56751937	-	syc1928_d	-	hypothetical protein
1930	 56.72	0	2069173..2069544	+	123	56751938	-	syc1929_d	-	hypothetical protein
1931	 54.86	0	2069661..2070041	+	126	56751939	-	syc1930_d	-	hypothetical protein
1932	 58.87	0	2070038..2071423	-	461	56751940	-	syc1931_c	-	cell death suppressor protein Lls1-like protein
1933	 54.55	0	2071505..2072032	-	175	56751941	-	syc1932_c	-	hypothetical protein
1934	 44.60	-2	2072494..2073150	-	218	56751942	-	syc1933_c	-	hypothetical protein
1935	 59.11	0	2073163..2074392	-	409	56751943	spt	syc1934_c	-	alanine--glyoxylate aminotransferase
1936	 58.74	0	2074379..2075311	-	310	56751944	-	syc1935_c	-	hypothetical protein
1937	 58.82	0	2075401..2075910	-	169	56751945	apcF	syc1936_c	-	phycobilisome core component
1938	 51.23	-1	2075946..2076230	+	94	56751946	-	syc1937_d	-	hypothetical protein
1939	 56.12	0	2076304..2077725	+	473	56751947	glnA	syc1938_d	-	glutamate--ammonia ligase
1940	 55.35	0	2077803..2078297	+	164	56751948	-	syc1939_d	-	hypothetical protein
1941	 50.48	-1	2079387..2080646	+	419	56751949	-	syc1940_d	-	hypothetical protein
1942	 44.08	-2	2080676..2082889	+	737	56751950	-	syc1941_d	-	UDP-glucose-beta-D-glucan glucosyltransferase
1943	 46.55	-2	2083008..2084051	-	347	56751951	-	syc1942_c	-	hydrolase
1944	 51.80	-1	2084273..2085133	-	286	56751952	ycf38	syc1943_c	-	ABC-2 type transport system permease protein
1945	 57.77	0	2085185..2086207	-	340	56751953	-	syc1944_c	-	ABC transporter ATP-binding protein
1946	 51.82	-1	2086304..2086714	-	136	56751954	-	syc1945_c	-	hypothetical protein
1947	 58.63	0	2087174..2088007	+	277	56751955	-	syc1946_d	-	hypothetical protein
1948	 59.71	0	2088013..2088501	+	162	56751956	-	syc1947_d	-	hypothetical protein
1949	 59.46	0	2088860..2090122	-	420	56751957	trpB	syc1948_c	-	tryptophan synthase subunit beta
1950	 59.06	0	2090116..2090562	+	148	56751958	sui1	syc1949_d	-	translation initiation factor Sui1
1951	 53.98	0	2090535..2090999	-	154	56751959	-	syc1950_c	-	hypothetical protein
1952	 45.20	-2	2091378..2091731	-	117	56751960	-	syc1951_c	-	hypothetical protein
1953	 56.48	0	2092288..2092719	-	143	56751961	-	syc1952_c	-	cytidine deaminase
1954	 40.36	-2	2092817..2093428	-	203	56751962	-	syc1953_c	-	glutathione S-transferase
1955	 35.28	-2	2094071..2095096	-	341	56751963	-	syc1954_c	-	hypothetical protein
1956	 58.57	0	2096467..2100453	-	1328	56751964	chlH	syc1955_c	-	magnesium chelatase
1957	 58.52	0	2100743..2101564	+	273	56751965	dapB	syc1956_d	-	dihydrodipicolinate reductase
1958	 59.36	0	2101574..2102257	+	227	56751966	-	syc1957_d	-	hypothetical protein
1959	 60.76	+1	2102322..2103371	+	349	56751967	amiA	syc1958_d	-	N-acetylmuramoyl-L-alanine amidase
1960	 58.88	0	2103509..2104060	+	183	56751968	-	syc1959_d	-	hypothetical protein
1961	 61.13	+1	2104063..2105490	-	475	56751969	-	syc1960_c	-	phosphoglucomutase and phosphomannomutase
1962	 58.95	0	2105775..2107847	+	690	56751970	slt	syc1961_d	-	soluble lytic transglycosylase
1963	 46.67	-2	2107880..2108464	-	194	56751971	-	syc1962_c	-	hypothetical protein
1964	 53.58	0	2108472..2108876	-	134	56751972	-	syc1963_c	-	iron-sulfur cluster binding protein
1965	 56.08	0	2108949..2109524	+	191	56751973	trxA	syc1964_d	-	thioredoxin
1966	 53.85	0	2109684..2109878	-	64	56751974	nblA	syc1965_c	-	phycobilisome degradation protein NblA
1967	 58.27	0	2110226..2110630	+	134	56751975	-	syc1966_d	-	hypothetical protein
1968	 58.71	0	2110627..2111028	-	133	56751976	-	syc1967_c	-	hypothetical protein
1969	 61.42	+1	2111151..2112122	+	323	56751977	bcp	syc1968_d	-	acetylpolyamine aminohydolase
1970	 61.70	+1	2112183..2113229	+	348	56751978	trpD	syc1969_d	-	anthranilate phosphoribosyltransferase
1971	 58.08	0	2113295..2114470	+	391	56751979	carA	syc1970_d	-	carbamoyl phosphate synthase small subunit
1972	 50.38	-1	2114521..2114913	+	130	56751980	-	syc1971_d	-	anti-sigma f factor antagonist
1973	 59.00	0	2115033..2115332	+	99	56751981	-	syc1972_d	-	hypothetical protein
1974	 60.77	+1	2115374..2116933	+	519	56751982	-	syc1973_d	-	tRNA/rRNA methyltransferase
1975	 52.08	0	2117049..2117336	+	95	56751983	-	syc1974_d	-	hypothetical protein
1976	 56.25	0	2117436..2118875	+	479	56751984	gatA	syc1975_d	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
1977	 57.84	0	2118880..2119740	+	286	56751985	-	syc1976_d	-	hypothetical protein
1978	 56.14	0	2119902..2120756	+	284	56751986	-	syc1977_d	-	hypothetical protein
1979	 56.58	0	2121040..2122239	-	399	56751987	sasA	syc1978_c	-	adaptive-response sensory kinase
1980	 55.62	0	2122305..2123300	-	331	56751988	kprS	syc1979_c	-	ribose-phosphate pyrophosphokinase
1981	 57.46	0	2123529..2124071	+	180	56751989	-	syc1980_d	-	hypothetical protein
1982	 61.50	+1	2124098..2125006	-	302	56751990	xylR	syc1981_c	-	xylose repressor
1983	 59.04	0	2125131..2126114	+	327	56751991	fmt	syc1982_d	-	methionyl-tRNA formyltransferase
1984	 54.84	0	2126115..2127890	-	591	56751992	-	syc1983_c	-	ATP-binding protein of ABC transporter
1985	 53.66	0	2127945..2128313	-	122	56751993	-	syc1984_c	-	hypothetical protein
1986	 49.05	-1	2128577..2128945	+	122	56751994	-	syc1985_d	-	hypothetical protein
1987	 50.25	-1	2128980..2130167	+	395	56751995	cynA	syc1986_d	-	sulfonate/nitrate transport system substrate-binding protein
1988	 48.86	-1	2130177..2130968	+	263	56751996	cynB	syc1987_d	-	sulfonate/nitrate transport system permease protein
1989	 52.41	0	2130972..2131841	+	289	56751997	cynD	syc1988_d	-	sulfonate/nitrate transport system ATP-binding protein
1990	 46.94	-2	2131852..2132292	+	146	56751998	cynS	syc1989_d	-	cyanate hydratase
1991	 58.52	0	2132509..2132913	+	134	56751999	-	syc1990_d	-	hypothetical protein
1992	 61.25	+1	2132956..2133195	-	79	56752000	-	syc1991_c	-	NAD-reducing hydrogenase gamma
1993	 57.29	0	2133207..2134091	-	294	56752001	rfbA	syc1992_c	-	glucose-1-phosphate thymidylyltransferase
1994	 52.51	0	2134088..2135161	-	357	56752002	rfbB	syc1993_c	-	dTDP-glucose 4,6-dehydratase
1995	 54.83	0	2135158..2136027	-	289	56752003	rfbD	syc1994_c	-	dTDP-6-deoxy-L-mannose-dehydrogenase
1996	 55.43	0	2136024..2136575	-	183	56752004	rfbC	syc1995_c	-	dTDP-4-dehydrorhamnose 3,5-epimerase
1997	 57.61	0	2136635..2137561	+	308	56752005	-	syc1996_d	-	hypothetical protein
1998	 48.57	-1	2137571..2139565	-	664	56752006	-	syc1997_c	-	hypothetical protein
1999	 54.17	0	2139794..2140177	-	127	56752007	-	syc1998_c	-	hypothetical protein
2000	 50.25	-1	2140422..2140823	-	133	56752008	-	syc1999_c	-	hypothetical protein
2001	 57.93	0	2140870..2142162	-	430	56752009	cupA	syc2000_c	-	protein involved in low CO2-inducible high affinity CO2 uptake
2002	 59.86	0	2142211..2143752	-	513	56752010	ndhD3	syc2001_c	-	NADH dehydrogenase subunit 4
2003	 59.27	0	2143764..2145602	-	612	56752011	ndhF3	syc2002_c	-	NAD(P)H-quinone oxidoreductase subunit F
2004	 59.28	0	2145853..2147151	-	432	56752012	thrA	syc2003_c	-	homoserine dehydrogenase
2005	 53.88	0	2147447..2148361	+	304	56752013	-	syc2004_d	-	hypothetical protein
2006	 56.51	0	2148716..2149030	-	104	56752014	-	syc2005_c	-	hypothetical protein
2007	 58.85	0	2149116..2149883	-	255	56752015	hisF	syc2006_c	-	imidazole glycerol phosphate synthase subunit HisF
2008	 52.24	0	2150041..2150241	+	66	56752016	-	syc2007_d	-	hypothetical protein
2009	 56.45	0	2150273..2151349	+	358	56752017	-	syc2008_d	-	anion transporting ATPase
2010	 53.42	0	2151506..2152381	+	291	56752018	chlG	syc2009_d	-	bacteriochlorophyll/chlorophyll a synthase
2011	 47.92	-1	2152436..2153107	-	223	56752019	-	syc2010_c	-	hypothetical protein
2012	 58.37	0	2153457..2155445	+	662	56752020	fus	syc2011_d	-	elongation factor G
2013	 55.52	0	2155525..2156475	+	316	56752021	wcaA	syc2012_d	-	glycosyl transferase
2014	 54.45	0	2156604..2158994	-	796	56752022	-	syc2013_c	-	putative phosphoketolase
2015	 58.06	0	2159436..2160458	+	340	56752023	ackA	syc2014_d	-	acetate kinase
2016	 57.43	0	2160467..2161105	+	212	56752024	-	syc2015_d	-	phosphoglycerate mutase
2017	 58.99	0	2161482..2161898	-	138	56752025	-	syc2016_c	-	hypothetical protein
55.98	MEAN

4.05	STD DEV
