IslandPath Analysis: Synechococcus elongatus PCC 6301

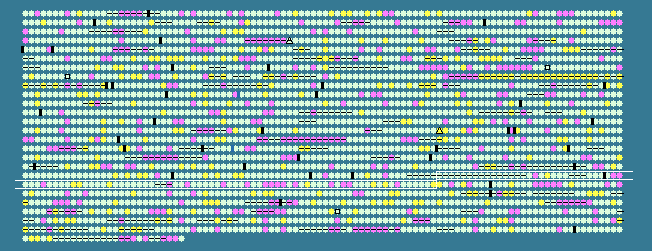

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1870	 54.71	0	2020049..2020324	+	91	56751878	rpsS	syc1869_d	-	30S ribosomal protein S19
1871	 58.19	0	2020343..2020696	+	117	56751879	rplV	syc1870_d	-	50S ribosomal protein L22
1872	 56.60	0	2020721..2021455	+	244	56751880	rpsC	syc1871_d	-	30S ribosomal protein S3
1873	 58.28	0	2021464..2021892	+	142	56751881	rplP	syc1872_d	-	50S ribosomal protein L16
1874	 53.33	0	2021895..2022089	+	64	56751882	rpmC	syc1873_d	-	50S ribosomal protein L29
1875	 57.83	0	2022124..2022372	+	82	56751883	rpsQ	syc1874_d	-	30S ribosomal protein S17
1876	 55.46	0	2022384..2022749	+	121	56751884	rplN	syc1875_d	-	50S ribosomal protein L14
1877	 53.22	0	2022749..2023090	+	113	56751885	rplX	syc1876_d	-	50S ribosomal protein L24
1878	 55.93	0	2023133..2023672	+	179	56751886	rplE	syc1877_d	-	50S ribosomal protein L5
1879	 58.21	0	2023700..2024101	+	133	56751887	rpsH	syc1878_d	-	30S ribosomal protein S8
1880	 56.85	0	2024138..2024677	+	179	56751888	rplF	syc1879_d	-	50S ribosomal protein L6
1881	 59.23	0	2024677..2025039	+	120	56751889	rplR	syc1880_d	-	50S ribosomal protein L18
1882	 57.27	0	2025043..2025585	+	180	56751890	rpsE	syc1881_d	-	30S ribosomal protein S5
1883	 57.88	0	2025623..2026066	+	147	56751891	rplO	syc1882_d	-	50S ribosomal protein L15
1884	 55.53	0	2026188..2027507	+	439	56751892	secY	syc1883_d	-	preprotein translocase subunit SecY
1885	 56.68	0	2027507..2028067	+	186	56751893	adk	syc1884_d	-	adenylate kinase
1886	 49.12	-1	2028141..2028254	+	37	56751894	rpmJ	syc1885_d	-	50S ribosomal protein L36
1887	 58.73	0	2028409..2028786	+	125	56751895	rpsM	syc1886_d	-	30S ribosomal protein S13
1888	 59.80	0	2028856..2029248	+	130	56751896	rps11	syc1887_d	-	30S ribosomal protein S11
1889	 57.63	0	2029294..2030223	+	309	56751897	rpoA	syc1888_d	-	DNA-directed RNA polymerase subunit alpha
1890	 56.70	0	2030259..2030609	+	116	56751898	rplQ	syc1889_d	-	50S ribosomal protein L17
1891	 57.74	0	2030612..2031496	+	294	56751899	truA	syc1890_d	-	tRNA pseudouridine synthase A
1892	 54.61	0	2031512..2031967	+	151	56751900	rplM	syc1891_d	-	50S ribosomal protein L13
1893	 59.07	0	2031967..2032374	+	135	56751901	rpsI	syc1892_d	-	30S ribosomal protein S9
1894	 54.70	0	2032405..2032638	+	77	56751902	rpmE	syc1893_d	-	50S ribosomal protein L31
1895	 53.93	0	2032740..2033846	+	368	56751903	prfA	syc1894_d	-	peptide chain release factor 1
1896	 53.61	0	2033860..2034357	-	165	56751904	mrcA	syc1895_c	-	restriction endonuclease
1897	 57.49	0	2034482..2035702	+	406	56751905	alr	syc1896_d	-	alanine racemase
1898	 54.47	0	2035952..2036443	+	163	56751906	-	syc1897_d	-	hypothetical protein
1899	 47.65	-2	2036501..2039113	+	870	56751907	dnaE	syc1898_d	-	DNA polymerase III subunit alpha
1900	 50.13	-1	2039099..2040229	-	376	56751908	-	syc1899_c	-	hypothetical protein
1901	 55.44	0	2040243..2041355	-	370	56751909	-	syc1900_c	-	gamma-glutamyl kinase
1902	 56.07	0	2041484..2042125	+	213	56751910	-	syc1901_d	-	hypothetical protein
1903	 59.31	0	2042129..2043976	+	615	56751911	cya2	syc1902_d	-	guanylyl cyclase
1904	 51.49	-1	2044028..2044396	+	122	56751912	-	syc1903_d	-	hypothetical protein
1905	 56.03	0	2044375..2046057	+	560	56751913	-	syc1904_d	-	hypothetical protein
1906	 53.42	0	2046129..2047736	-	535	56751914	-	syc1905_c	-	hypothetical protein
1907	 56.83	0	2047876..2048607	+	243	56751915	-	syc1906_d	-	hypothetical protein
1908	 54.37	0	2048673..2049095	-	140	56751916	-	syc1907_c	-	hypothetical protein
1909	 60.47	+1	2049496..2050899	+	467	56751917	menF	syc1908_d	-	menaquinone-specific isochorismate synthase
1910	 60.99	+1	2050928..2051332	+	134	56751918	-	syc1909_d	-	hypothetical protein
1911	 58.36	0	2051320..2052957	-	545	56751919	-	syc1910_c	-	Na+/H+-exchanging protein
1912	 55.06	0	2053223..2053627	-	134	56751920	-	syc1911_c	-	hypothetical protein
1913	 59.30	0	2053712..2054512	-	266	56751921	-	syc1912_c	-	hypothetical protein
1914	 57.63	0	2054689..2055474	+	261	56751922	rnhA	syc1913_d	-	ribonuclease H
1915	 59.95	0	2055905..2057050	+	381	56751923	-	syc1914_d	-	hypothetical protein
1916	 55.71	0	2057103..2057540	+	145	56751924	-	syc1915_d	-	bacterioferritin comigratory protein
1917	 57.27	0	2057671..2058585	+	304	56751925	-	syc1916_d	-	putative lipid kinase
1918	 53.22	0	2058635..2058976	+	113	56751926	-	syc1917_d	-	hypothetical protein
1919	 58.81	0	2058997..2059950	-	317	56751927	natD	syc1918_c	-	integral membrane protein of the ABC-type Nat permease for neutral amino acids NatD
1920	 58.20	0	2059934..2061079	+	381	56751928	-	syc1919_d	-	hypothetical protein
1921	 53.41	0	2061183..2062283	+	366	56751929	idiA	syc1920_d	-	iron(III) transport system substrate-binding protein
1922	 56.19	0	2062526..2063155	-	209	56751930	-	syc1921_c	-	hypothetical protein
1923	 56.86	0	2063252..2063812	-	186	56751931	-	syc1922_c	-	hypothetical protein
1924	 57.85	0	2063809..2064069	-	86	56751932	-	syc1923_c	-	hypothetical protein
1925	 51.41	-1	2064304..2064834	+	176	56751933	dpsA	syc1924_d	-	starvation induced DNA binding protein
1926	 57.30	0	2065033..2065491	-	152	56751934	fur	syc1925_c	-	ferric uptake regulation protein
1927	 57.41	0	2065547..2065870	+	107	56751935	-	syc1926_d	-	hypothetical protein
1928	 51.87	-1	2065965..2068349	-	794	56751936	pcrA	syc1927_c	-	ATP-dependent helicase PcrA
1929	 54.53	0	2068562..2069014	+	150	56751937	-	syc1928_d	-	hypothetical protein
1930	 56.72	0	2069173..2069544	+	123	56751938	-	syc1929_d	-	hypothetical protein
1931	 54.86	0	2069661..2070041	+	126	56751939	-	syc1930_d	-	hypothetical protein
1932	 58.87	0	2070038..2071423	-	461	56751940	-	syc1931_c	-	cell death suppressor protein Lls1-like protein
1933	 54.55	0	2071505..2072032	-	175	56751941	-	syc1932_c	-	hypothetical protein
1934	 44.60	-2	2072494..2073150	-	218	56751942	-	syc1933_c	-	hypothetical protein
1935	 59.11	0	2073163..2074392	-	409	56751943	spt	syc1934_c	-	alanine--glyoxylate aminotransferase
1936	 58.74	0	2074379..2075311	-	310	56751944	-	syc1935_c	-	hypothetical protein
1937	 58.82	0	2075401..2075910	-	169	56751945	apcF	syc1936_c	-	phycobilisome core component
1938	 51.23	-1	2075946..2076230	+	94	56751946	-	syc1937_d	-	hypothetical protein
1939	 56.12	0	2076304..2077725	+	473	56751947	glnA	syc1938_d	-	glutamate--ammonia ligase
1940	 55.35	0	2077803..2078297	+	164	56751948	-	syc1939_d	-	hypothetical protein
1941	 50.48	-1	2079387..2080646	+	419	56751949	-	syc1940_d	-	hypothetical protein
1942	 44.08	-2	2080676..2082889	+	737	56751950	-	syc1941_d	-	UDP-glucose-beta-D-glucan glucosyltransferase
1943	 46.55	-2	2083008..2084051	-	347	56751951	-	syc1942_c	-	hydrolase
1944	 51.80	-1	2084273..2085133	-	286	56751952	ycf38	syc1943_c	-	ABC-2 type transport system permease protein
1945	 57.77	0	2085185..2086207	-	340	56751953	-	syc1944_c	-	ABC transporter ATP-binding protein
1946	 51.82	-1	2086304..2086714	-	136	56751954	-	syc1945_c	-	hypothetical protein
1947	 58.63	0	2087174..2088007	+	277	56751955	-	syc1946_d	-	hypothetical protein
1948	 59.71	0	2088013..2088501	+	162	56751956	-	syc1947_d	-	hypothetical protein
1949	 59.46	0	2088860..2090122	-	420	56751957	trpB	syc1948_c	-	tryptophan synthase subunit beta
1950	 59.06	0	2090116..2090562	+	148	56751958	sui1	syc1949_d	-	translation initiation factor Sui1
1951	 53.98	0	2090535..2090999	-	154	56751959	-	syc1950_c	-	hypothetical protein
1952	 45.20	-2	2091378..2091731	-	117	56751960	-	syc1951_c	-	hypothetical protein
1953	 56.48	0	2092288..2092719	-	143	56751961	-	syc1952_c	-	cytidine deaminase
1954	 40.36	-2	2092817..2093428	-	203	56751962	-	syc1953_c	-	glutathione S-transferase
1955	 35.28	-2	2094071..2095096	-	341	56751963	-	syc1954_c	-	hypothetical protein
1956	 58.57	0	2096467..2100453	-	1328	56751964	chlH	syc1955_c	-	magnesium chelatase
1957	 58.52	0	2100743..2101564	+	273	56751965	dapB	syc1956_d	-	dihydrodipicolinate reductase
1958	 59.36	0	2101574..2102257	+	227	56751966	-	syc1957_d	-	hypothetical protein
1959	 60.76	+1	2102322..2103371	+	349	56751967	amiA	syc1958_d	-	N-acetylmuramoyl-L-alanine amidase
1960	 58.88	0	2103509..2104060	+	183	56751968	-	syc1959_d	-	hypothetical protein
1961	 61.13	+1	2104063..2105490	-	475	56751969	-	syc1960_c	-	phosphoglucomutase and phosphomannomutase
1962	 58.95	0	2105775..2107847	+	690	56751970	slt	syc1961_d	-	soluble lytic transglycosylase
1963	 46.67	-2	2107880..2108464	-	194	56751971	-	syc1962_c	-	hypothetical protein
1964	 53.58	0	2108472..2108876	-	134	56751972	-	syc1963_c	-	iron-sulfur cluster binding protein
1965	 56.08	0	2108949..2109524	+	191	56751973	trxA	syc1964_d	-	thioredoxin
1966	 53.85	0	2109684..2109878	-	64	56751974	nblA	syc1965_c	-	phycobilisome degradation protein NblA
1967	 58.27	0	2110226..2110630	+	134	56751975	-	syc1966_d	-	hypothetical protein
1968	 58.71	0	2110627..2111028	-	133	56751976	-	syc1967_c	-	hypothetical protein
1969	 61.42	+1	2111151..2112122	+	323	56751977	bcp	syc1968_d	-	acetylpolyamine aminohydolase
55.98	MEAN

4.05	STD DEV
