IslandPath Analysis: Synechococcus elongatus PCC 6301

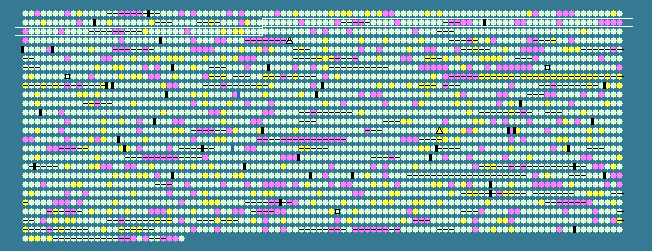

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
141	 57.30	0	154366..155091	+	241	56750150	-	syc0141_d	-	ATP-binding protein of ABC transporter
142	 56.22	0	155104..155859	-	251	56750151	-	syc0142_c	-	hypothetical protein
143	 56.89	0	155983..156432	+	149	56750152	-	syc0143_d	-	hypothetical protein
144	 59.04	0	156442..157149	+	235	56750153	-	syc0144_d	-	hypothetical protein
145	 55.02	0	157229..158851	+	540	56750154	leuA	syc0145_d	-	2-isopropylmalate synthase
146	 56.79	0	158931..159953	-	340	56750155	-	syc0146_c	-	iron transport system substrate-binding protein
147	 41.67	-2	160245..160880	-	211	56750156	-	syc0147_c	-	membrane-associated protein
148	 56.56	0	161112..162743	-	543	56750157	futB	syc0148_c	-	iron(III) ABC transporter permease protein
149	 57.99	0	162891..163997	+	368	56750158	-	syc0149_d	-	iron(III)-transport ATP-binding protein
150	 59.09	0	164013..164540	-	175	56750159	-	syc0150_c	-	hypothetical protein
151	 58.84	0	164716..165405	+	229	56750160	-	syc0151_d	-	two-component response regulator
152	 57.89	0	165535..166206	+	223	56750161	-	syc0152_d	-	hydroxyacylglutathione hydrolase
153	 47.30	-2	166223..167482	-	419	56750162	-	syc0153_c	-	hypothetical protein
154	 53.44	0	167695..168072	+	125	56750163	-	syc0154_d	-	hypothetical protein
155	 53.83	0	168423..169544	+	373	56750164	-	syc0155_d	-	endo-1-beta-xylanase
156	 46.68	-2	169477..170712	+	411	56750165	-	syc0156_d	-	hypothetical protein
157	 42.96	-2	170730..172952	+	740	56750166	-	syc0157_d	-	UDP-glucose-beta-D-glucan glucosyltransferase
158	 53.10	0	173280..174650	-	456	56750167	-	syc0158_c	-	hypothetical protein
159	 53.49	0	174799..175056	+	85	56750168	-	syc0159_d	-	hypothetical protein
160	 54.05	0	175074..175493	-	139	56750169	-	syc0160_c	-	hypothetical protein
161	 55.90	0	175490..177253	-	587	56750170	-	syc0161_c	-	hypothetical protein
162	 55.63	0	177381..178295	-	304	56750171	-	syc0162_c	-	histone deacetylase/AcuC/AphA family protein
163	 49.26	-1	178817..182884	+	1355	56750172	-	syc0163_d	-	alkaline phosphatase
164	 56.40	0	183108..184646	-	512	56750173	comM	syc0164_c	-	competence protein ComM-like protein
165	 54.26	0	184692..185078	+	128	56750174	-	syc0165_d	-	protein kinase C inhibitor
166	 56.51	0	185180..186262	+	360	56750175	psbAII	syc0166_d	-	photosystem II D1 protein
167	 58.54	0	186428..187141	-	237	56750176	-	syc0167_c	-	carbonic anhydrase
168	 57.49	0	187120..187947	-	275	56750177	-	syc0168_c	-	hypothetical protein
169	 57.58	0	188040..189173	+	377	56750178	-	syc0169_d	-	hypothetical protein
170	 55.29	0	189261..189515	+	84	56750179	-	syc0170_d	-	hypothetical protein
171	 55.31	0	189517..190203	-	228	56750180	-	syc0171_c	-	hypothetical protein
172	 51.27	-1	190489..191001	+	170	56750181	ppa	syc0172_d	-	inorganic pyrophosphatase
173	 45.72	-2	191088..193226	-	712	56750182	-	syc0173_c	-	hypothetical protein
174	 48.32	-1	194189..194575	-	128	56750183	-	syc0174_c	-	ABC transporter
175	 51.86	-1	194583..196115	-	510	56750184	-	syc0175_c	-	ABC transporter ATP binding protein
176	 54.26	0	196197..197921	-	574	56750185	-	syc0176_c	-	high affinity sulfate transporter
177	 56.68	0	197964..199325	-	453	56750186	accC	syc0177_c	-	acetyl-CoA carboxylase biotin carboxylase subunit
178	 57.57	0	199633..200874	+	413	56750187	-	syc0178_d	-	hypothetical protein
179	 53.46	0	200921..203215	-	764	56750188	-	syc0179_c	-	GTP pyrophosphokinase
180	 57.70	0	203660..204094	+	144	56750189	-	syc0180_d	-	hypothetical protein
181	 57.47	0	204294..204815	+	173	56750190	-	syc0181_d	-	hypothetical protein
182	 58.15	0	204886..206517	+	543	56750191	rluA	syc0182_d	-	ribosomal large subunit pseudouridine synthase D
183	 48.71	-1	206818..207513	+	231	56750192	-	syc0183_d	-	hydrogenase accessory protein
184	 51.25	-1	207668..211240	-	1190	56750193	metH	syc0184_c	-	5-methyltetrahydrofolate--homocysteine methyltransferase
185	 56.76	0	211273..212595	+	440	56750194	-	syc0185_d	-	cation transporter
186	 57.67	0	212963..213562	-	199	56750195	recR	syc0186_c	-	recombination protein RecR
187	 57.44	0	213808..214143	-	111	56750196	-	syc0187_c	-	hypothetical protein
188	 57.75	0	214171..215538	-	455	56750197	-	syc0188_c	-	cytochrome P450
189	 55.70	0	215597..216508	+	303	56750198	menA	syc0189_d	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
190	 50.57	-1	216650..217438	+	262	56750199	-	syc0190_d	-	hypothetical protein
191	 53.48	0	217697..218113	-	138	56750200	-	syc0191_c	-	hypothetical protein
192	 54.94	0	218643..219128	-	161	56750201	-	syc0192_c	-	hypothetical protein
193	 53.17	0	219212..219715	-	167	56750202	-	syc0193_c	-	hypothetical protein
194	 56.83	0	219748..221058	-	436	56750203	-	syc0194_c	-	transcription regulator
195	 55.39	0	221301..222506	+	401	56750204	-	syc0195_d	-	hypothetical protein
196	 54.55	0	222922..223713	+	263	56750205	-	syc0196_d	-	hypothetical protein
197	 44.17	-2	224030..225940	+	636	56750206	-	syc0197_d	-	hypothetical protein
198	 49.80	-1	225956..229453	+	1165	56750207	phy	syc0198_d	-	phytochrome
199	 48.90	-1	229450..229905	+	151	56750208	-	syc0199_d	-	CheY family two-component response regulator
200	 45.05	-2	229902..232691	+	929	56750209	-	syc0200_d	-	two-component response regulator
201	 52.30	0	232717..234213	-	498	56750210	-	syc0201_c	-	putative export protein
202	 58.00	0	234720..235388	-	222	56750211	-	syc0202_c	-	hypothetical protein
203	 58.24	0	235638..237608	-	656	56750212	-	syc0203_c	-	acetyl-CoA synthetase
204	 58.68	0	237614..238414	+	266	56750213	-	syc0204_d	-	hypothetical protein
205	 56.33	0	238747..239433	+	228	56750214	-	syc0205_d	-	hypothetical protein
206	 55.42	0	239786..240781	+	331	56750215	ldhA	syc0206_d	-	D-lactate dehydrogenase
207	 50.96	-1	240875..241186	-	103	56750216	ndhE	syc0207_c	-	NADH dehydrogenase subunit K
208	 54.46	0	241205..241810	-	201	56750217	ndhG	syc0208_c	-	NADH dehydrogenase subunit J
209	 55.99	0	241814..242422	-	202	56750218	ndhI	syc0209_c	-	NADH dehydrogenase subunit I
210	 56.66	0	242465..243583	-	372	56750219	ndhA	syc0210_c	-	NADH dehydrogenase subunit H
211	 55.77	0	243798..244889	-	363	56750220	-	syc0211_c	-	GDP-mannose 46-dehydratase
212	 55.38	0	244959..245924	-	321	56750221	-	syc0212_c	-	hypothetical protein
213	 55.09	0	246161..246739	+	192	56750222	def	syc0213_d	-	peptide deformylase
214	 55.90	0	246827..247021	+	64	56750223	-	syc0214_d	-	hypothetical protein
215	 57.16	0	247086..247937	+	283	56750224	-	syc0215_d	-	hypothetical protein
216	 52.17	0	248085..252395	-	1436	56750225	-	syc0216_c	-	hypothetical protein
217	 51.52	-1	252457..252621	-	54	56750226	-	syc0217_c	-	hypothetical protein
218	 52.64	0	252614..253540	-	308	56750227	-	syc0218_c	-	hypothetical protein
219	 57.11	0	253830..254624	-	264	56750228	-	syc0219_c	-	branched-chain amino acid aminotransferase
220	 58.23	0	254621..256018	-	465	56750229	trpE	syc0220_c	-	anthranilate synthetase alpha-subunit
221	 60.34	+1	256015..256710	-	231	56750230	-	syc0221_c	-	transcription regulator
222	 57.65	0	256710..257330	-	206	56750231	-	syc0222_c	-	hypothetical protein
223	 56.50	0	257335..257511	-	58	56750232	-	syc0223_c	-	CAB/ELIP/HLIP superfamily protein
224	 57.14	0	257726..258292	-	188	56750233	-	syc0224_c	-	hypothetical protein
225	 57.42	0	258295..258921	-	208	56750234	-	syc0225_c	-	hypothetical protein
226	 56.23	0	259241..259633	-	130	56750235	-	syc0226_c	-	hypothetical protein
227	 58.58	0	260107..263568	-	1153	56750236	-	syc0227_c	-	transcription-repair coupling factor
228	 52.06	0	263649..265010	-	453	56750237	dnaB	syc0228_c	-	replicative DNA helicase
229	 57.07	0	265212..267971	+	919	56750238	-	syc0229_d	-	putative helicase
230	 57.50	0	268003..268722	-	239	56750239	fpg	syc0230_c	-	formamidopyrimidine-DNA glycosylase
231	 55.70	0	268960..269187	-	75	56750240	psaE	syc0231_c	-	photosystem I reaction center subunit IV
232	 58.33	0	269367..270386	+	339	56750241	-	syc0232_d	-	hypothetical protein
233	 56.43	0	270504..271460	+	318	56750242	-	syc0233_d	-	hypothetical protein
234	 60.19	+1	271427..271966	-	179	56750243	-	syc0234_c	-	pyrimidine regulatory protein PyrR
235	 56.69	0	272032..272883	-	283	56750244	mntB	syc0235_c	-	manganese transport system membrane protein MntB
236	 59.49	0	272890..273627	-	245	56750245	mntA	syc0236_c	-	manganese transport system ATP-binding protein MntA
237	 60.69	+1	273686..274723	+	345	56750246	mntC	syc0237_d	-	Mn transporter MntC
238	 58.17	0	274817..276217	+	466	56750247	-	syc0238_d	-	tRNA (uracil-5-)-methyltransferase Gid
239	 56.53	0	276383..278266	+	627	56750248	ftsH	syc0239_d	-	ATP-dependent Zn protease
240	 57.17	0	278367..280166	-	599	56750249	aspS	syc0240_c	-	aspartyl-tRNA synthetase
55.98	MEAN

4.05	STD DEV
