IslandPathversion 1.0

IslandPath Analysis: Synechococcus elongatus PCC 6301

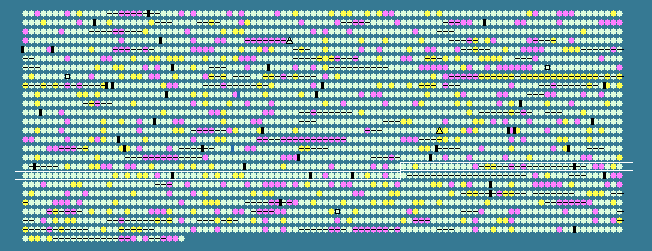

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1764	 57.20	0	1907785..1909146	-	453	56751772	engA	syc1763_c	-	GTP-binding protein EngA
1765	 57.61	0	1909180..1910217	-	345	56751773	rfaE	syc1764_c	-	ADP-heptose synthase
1766	 61.33	+1	1910261..1911178	-	305	56751774	-	syc1765_c	-	hypothetical protein
1767	 58.65	0	1911471..1912430	+	319	56751775	-	syc1766_d	-	hypothetical protein
1768	 57.32	0	1913198..1914106	+	302	56751776	fbpI	syc1767_d	-	fructose-1,6-bisphosphatase
1769	 56.45	0	1914153..1915688	+	511	56751777	zwf	syc1768_d	-	glucose-6-phosphate 1-dehydrogenase
1770	 57.40	0	1915728..1917065	+	445	56751778	opcA	syc1769_d	-	glucose 6-phosphate dehydrogenase assembly protein
1771	 54.45	0	1917176..1917658	-	160	56751779	petD	syc1770_c	-	cytochrome b6-f complex subunit IV
1772	 53.40	0	1917755..1918402	-	215	56751780	petB	syc1771_c	-	cytochrome b6
1773	 57.43	0	1918613..1919836	+	407	56751781	ctpA	syc1772_d	-	carboxyl-terminal processing protease
1774	 57.49	0	1919829..1921103	+	424	56751782	-	syc1773_d	-	hypothetical protein
1775	 58.33	0	1921100..1922191	-	363	56751783	-	syc1774_c	-	hypothetical protein
1776	 45.78	-2	1922259..1922732	+	157	56751784	-	syc1775_d	-	hypothetical protein
1777	 56.18	0	1922766..1923518	-	250	56751785	-	syc1776_c	-	hypothetical protein
1778	 60.32	+1	1924024..1924701	+	225	56751786	-	syc1777_d	-	hypothetical protein
1779	 59.67	0	1924688..1925659	-	323	56751787	gshB	syc1778_c	-	glutathione synthetase
1780	 57.20	0	1925656..1925919	-	87	56751788	grxC	syc1779_c	-	glutaredoxin
1781	 52.92	0	1926084..1926374	-	96	56751789	gatC	syc1780_c	-	glutamyl-tRNA(Gln) amidotransferase subunit C
1782	 52.49	0	1926386..1926907	-	173	56751790	ycf3	syc1781_c	-	photosystem I assembly protein Ycf3
1783	 55.21	0	1926945..1927232	-	95	56751791	-	syc1782_c	-	hypothetical protein
1784	 49.77	-1	1927401..1927619	-	72	56751792	-	syc1783_c	-	hypothetical protein
1785	 56.94	0	1927653..1928279	-	208	56751793	-	syc1784_c	-	hypothetical protein
1786	 59.00	0	1928452..1930824	+	790	56751794	ctaA	syc1785_d	-	copper transporting CPx-type ATPase CtaA
1787	 58.45	0	1931220..1931633	-	137	56751795	atpC	syc1786_c	-	F0F1 ATP synthase subunit epsilon
1788	 57.32	0	1931704..1933158	-	484	56751796	atpB	syc1787_c	-	F0F1 ATP synthase subunit beta
1789	 55.13	0	1933421..1933732	+	103	56751797	groES	syc1788_d	-	co-chaperonin GroES
1790	 56.94	0	1933780..1935414	+	544	56751798	groEL	syc1789_d	-	chaperonin GroEL
1791	 58.88	0	1935498..1936589	-	363	56751799	murG	syc1790_c	-	UDP-N-acetylglucosamine--N-acetylmuramyl- (pentapeptide) pyrophosphoryl -undecaprenol N-acetylglucosamine transferase
1792	 57.56	0	1936614..1937426	+	270	56751800	-	syc1791_d	-	hypothetical protein
1793	 57.77	0	1937970..1939250	+	426	56751801	-	syc1792_d	-	L-2-diaminobutyrate decarboxylase
1794	 53.30	0	1939316..1939921	+	201	56751802	tpx	syc1793_d	-	thioredoxin peroxidase
1795	 58.53	0	1940045..1941163	-	372	56751803	gcvT	syc1794_c	-	glycine cleavage system aminomethyltransferase T
1796	 38.77	-2	1941293..1942303	-	336	56751804	-	syc1795_c	-	hypothetical protein
1797	 50.07	-1	1943027..1943713	-	228	56751805	nblR	syc1796_c	-	two-component response regulator
1798	 53.38	0	1943758..1944675	-	305	56751806	ppnK	syc1797_c	-	inorganic polyphosphate/ATP-NAD kinase
1799	 59.85	0	1944775..1945566	-	263	56751807	folP	syc1798_c	-	dihydropteroate pyrophosphorylase
1800	 54.62	0	1945781..1946137	+	118	56751808	-	syc1799_d	-	hypothetical protein
1801	 59.39	0	1946624..1947118	-	164	56751809	-	syc1800_c	-	hypothetical protein
1802	 58.15	0	1947124..1947393	-	89	161621814	rpsO	syc1801_c	-	30S ribosomal protein S15
1803	 58.33	0	1947439..1948062	-	207	56751811	ruvA	syc1802_c	-	Holliday junction DNA helicase motor protein
1804	 56.62	0	1948307..1949500	+	397	56751812	tal	syc1803_d	-	transaldolase/EF-hand domain-containing protein
1805	 56.31	0	1949634..1950956	+	440	56751813	glnA	syc1804_d	-	glutamate--ammonia ligase
1806	 58.88	0	1950937..1952040	-	367	56751814	-	syc1805_c	-	hypothetical protein
1807	 56.51	0	1952040..1952876	-	278	56751815	-	syc1806_c	-	hypothetical protein
1808	 57.56	0	1952909..1953358	-	149	56751816	-	syc1807_c	-	hypothetical protein
1809	 58.59	0	1953363..1955627	-	754	56751817	-	syc1808_c	-	hypothetical protein
1810	 57.41	0	1955777..1956748	+	323	56751818	-	syc1809_d	-	hypothetical protein
1811	 58.78	0	1956763..1957497	+	244	56751819	-	syc1810_d	-	3-deoxy-manno-octulosonate cytidylyltransferase
1812	 57.54	0	1957479..1958333	+	284	56751820	ccmA	syc1811_d	-	2-dehydro-3-deoxyphosphooctonate aldolase
1813	 56.42	0	1958330..1958866	+	178	56751821	-	syc1812_d	-	hypothetical protein
1814	 58.67	0	1958908..1959882	+	324	56751822	-	syc1813_d	-	hypothetical protein
1815	 55.89	0	1959969..1961054	+	361	56751823	-	syc1814_d	-	hypothetical protein
1816	 59.81	0	1961180..1962259	+	359	56751824	gldA	syc1815_d	-	glycerol dehydrogenase
1817	 58.66	0	1962256..1963167	+	303	56751825	todF	syc1816_d	-	2-hydroxy-6-oxohepta-24-dienoate hydrolase
1818	 60.22	+1	1963174..1963980	-	268	56751826	-	syc1817_c	-	hypothetical protein
1819	 58.20	0	1964013..1965926	+	637	56751827	-	syc1818_d	-	two-component sensor histidine kinase
1820	 60.19	+1	1965874..1966830	-	318	56751828	-	syc1819_c	-	hypothetical protein
1821	 59.59	0	1966861..1967793	+	310	56751829	-	syc1820_d	-	hypothetical protein
1822	 55.20	0	1968002..1969414	-	470	56751830	amt1	syc1821_c	-	ammonium/methylammonium permease
1823	 50.33	-1	1969788..1971935	-	715	56751831	-	syc1822_c	-	hypothetical protein
1824	 56.31	0	1972129..1972437	+	102	56751832	-	syc1823_d	-	hypothetical protein
1825	 56.29	0	1972694..1973146	+	150	56751833	-	syc1824_d	-	hypothetical protein
1826	 59.44	0	1974032..1976065	-	677	56751834	chlD	syc1825_c	-	magnesium-chelatase subunit ChlD
1827	 57.55	0	1976108..1976875	-	255	56751835	-	syc1826_c	-	hypothetical protein
1828	 58.76	0	1976902..1977432	+	176	56751836	folK	syc1827_d	-	2-amino-4-hydroxy-6- hydroxymethyldihydropteridine pyrophosphokinase
1829	 52.54	0	1977432..1977983	+	183	56751837	-	syc1828_d	-	hypothetical protein
1830	 57.68	0	1978021..1979055	+	344	56751838	-	syc1829_d	-	glucanase
1831	 62.06	+1	1979084..1979821	+	245	56751839	-	syc1830_d	-	hypothetical protein
1832	 59.42	0	1979811..1980956	+	381	56751840	-	syc1831_d	-	hypothetical protein
1833	 60.35	+1	1981346..1982374	+	342	56751841	-	syc1832_d	-	periplasmic polyamine-binding protein of ABC transporter
1834	 59.10	0	1982404..1983699	-	431	56751842	proA	syc1833_c	-	gamma-glutamyl phosphate reductase
1835	 58.33	0	1984099..1984374	+	91	56751843	-	syc1834_d	-	transcriptional regulator
1836	 60.09	+1	1984487..1985794	+	435	56751844	hisS	syc1835_d	-	histidyl-tRNA synthetase
1837	 59.93	0	1985832..1987241	+	469	56751845	-	syc1836_d	-	hypothetical protein
1838	 57.31	0	1987238..1987579	+	113	56751846	-	syc1837_d	-	hypothetical protein
1839	 58.74	0	1987784..1988149	+	121	56751847	-	syc1838_d	-	hypothetical protein
1840	 59.20	0	1988180..1988728	-	182	56751848	rimM	syc1839_c	-	16S rRNA-processing protein
1841	 57.09	0	1988732..1990015	-	427	56751849	avtA	syc1840_c	-	valine--pyruvate transaminase
1842	 54.79	0	1990145..1990363	+	72	56751850	-	syc1841_d	-	hypothetical protein
1843	 54.05	0	1990413..1990967	+	184	56751851	-	syc1842_d	-	hypothetical protein
1844	 52.84	0	1991104..1991508	-	134	56751852	-	syc1843_c	-	hypothetical protein
1845	 57.76	0	1992271..1993629	+	452	56751853	-	syc1844_d	-	hypothetical protein
1846	 57.26	0	1993747..1994883	+	378	56751854	-	syc1845_d	-	hypothetical protein
1847	 57.02	0	1994940..1998101	+	1053	56751855	ppc	syc1846_d	-	phosphoenolpyruvate carboxylase
1848	 58.63	0	1998109..1998693	+	194	56751856	-	syc1847_d	-	hypothetical protein
1849	 57.65	0	1998790..1999953	+	387	56751857	recF	syc1848_d	-	recombination protein F
1850	 54.94	0	2000532..2000966	+	144	56751858	-	syc1849_d	-	S-adenosylmethionine decarboxylase proenzyme
1851	 50.72	-1	2001301..2001576	+	91	56751859	himA	syc1850_d	-	DNA binding protein HU
1852	 57.30	0	2002070..2004718	-	882	56751860	mutS	syc1851_c	-	DNA mismatch repair protein
1853	 57.76	0	2004888..2006291	-	467	56751861	-	syc1852_c	-	hypothetical protein
1854	 55.56	0	2006498..2006686	+	62	56751862	-	syc1853_d	-	photosystem II reaction center protein Z
1855	 58.97	0	2006696..2007241	+	181	56751863	ribH	syc1854_d	-	riboflavin synthase subunit beta
1856	 57.11	0	2007532..2008776	+	414	56751864	proA	syc1855_d	-	gamma-glutamyl phosphate reductase
1857	 58.51	0	2008783..2009775	+	330	56751865	-	syc1856_d	-	two-component sensor histidine kinase
1858	 60.14	+1	2009611..2010483	-	290	56751866	-	syc1857_c	-	hypothetical protein
1859	 57.06	0	2010538..2011068	-	176	56751867	ycf52	syc1858_c	-	hypothetical protein
1860	 54.84	0	2011238..2011753	+	171	56751868	-	syc1859_d	-	hypothetical protein
1861	 47.22	-2	2011961..2013400	+	479	56751869	glcP	syc1860_d	-	glucose transport protein
1862	 57.24	0	2013542..2013976	+	144	56751870	-	syc1861_d	-	hypothetical protein
1863	 57.84	0	2013985..2015649	+	554	56751871	-	syc1862_d	-	ABC transporter ATP-binding protein
55.98	MEAN

4.05	STD DEV
