IslandPathversion 1.0

IslandPath Analysis: Synechococcus elongatus PCC 6301

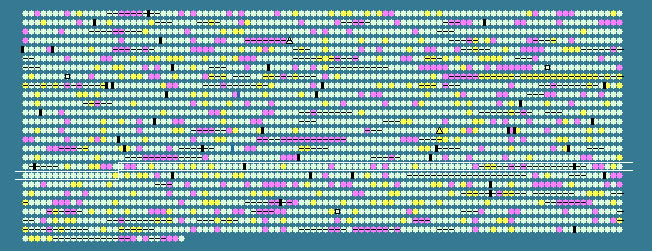

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1717	 57.41	0	1855563..1856426	+	287	56751725	-	syc1716_d	-	hypothetical protein
1718	 47.01	-2	1856696..1857865	+	389	56751726	-	syc1717_d	-	hypothetical protein
1719	 47.47	-2	1857909..1859924	+	671	56751727	-	syc1718_d	-	hypothetical protein
1720	 55.98	0	1859926..1861029	-	367	56751728	hypD	syc1719_c	-	hydrogenase isoenzyme formation protein HypD
1721	 59.14	0	1861031..1862053	-	340	56751729	-	syc1720_c	-	dihydroorotate dehydrogenase 2
1722	 60.07	+1	1862053..1865643	-	1196	56751730	nifJ	syc1721_c	-	pyruvate flavodoxin oxidoreductase
1723	 56.77	0	1865767..1866918	-	383	56751731	ycf81	syc1722_c	-	hypothetical protein
1724	 58.10	0	1866958..1868148	+	396	56751732	hemN	syc1723_d	-	coproporphyrinogen III oxidase
1725	 59.36	0	1868145..1868951	-	268	56751733	panB	syc1724_c	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
1726	 54.08	0	1869255..1869683	+	142	56751734	-	syc1725_d	-	hypothetical protein
1727	 59.60	0	1869668..1870459	-	263	56751735	thiD	syc1726_c	-	phosphomethylpyrimidine kinase
1728	 58.97	0	1870459..1871640	-	393	56751736	ftsZ	syc1727_c	-	cell division protein FtsZ
1729	 59.65	0	1871860..1872714	-	284	56751737	-	syc1728_c	-	hypothetical protein
1730	 53.77	0	1872733..1873143	-	136	56751738	-	syc1729_c	-	hypothetical protein
1731	 56.51	0	1873147..1874190	-	347	56751739	ddl	syc1730_c	-	D-alanyl-alanine synthetase A
1732	 59.97	0	1874222..1875580	-	452	56751740	-	syc1731_c	-	hypothetical protein
1733	 57.39	0	1875654..1876688	+	344	56751741	-	syc1732_d	-	hypothetical protein
1734	 58.19	0	1876691..1877740	+	349	56751742	-	syc1733_d	-	hypothetical protein
1735	 56.48	0	1877781..1878575	+	264	56751743	-	syc1734_d	-	UDP-N-acetylglucosamine acyltransferase
1736	 53.01	0	1878816..1881986	-	1056	56751744	acrF	syc1735_c	-	RND multidrug efflux transporter
1737	 52.70	0	1882007..1883137	-	376	56751745	-	syc1736_c	-	hypothetical protein
1738	 55.95	0	1883573..1884076	+	167	56751746	-	syc1737_d	-	hypothetical protein
1739	 57.09	0	1884518..1886188	-	556	56751747	prfC	syc1738_c	-	peptide chain release factor 3
1740	 56.60	0	1886260..1886865	+	201	56751748	-	syc1739_d	-	hypothetical protein
1741	 56.34	0	1886831..1887256	+	141	56751749	-	syc1740_d	-	hypothetical protein
1742	 57.41	0	1887273..1888244	-	323	56751750	sds	syc1741_c	-	solanesyl diphosphate synthase
1743	 58.97	0	1888288..1889157	-	289	56751751	murI	syc1742_c	-	glutamate racemase
1744	 59.61	0	1889170..1890204	-	344	56751752	amiA	syc1743_c	-	N-acetylmuramoyl-L-alanine amidase
1745	 57.12	0	1890254..1891636	-	460	56751753	-	syc1744_c	-	Na+/H+ antiporter
1746	 55.48	0	1891675..1892505	-	276	56751754	-	syc1745_c	-	nitrilase-like protein
1747	 58.92	0	1892581..1894026	+	481	56751755	-	syc1746_d	-	hypothetical protein
1748	 55.14	0	1894193..1894834	+	213	56751756	cysR	syc1747_d	-	transcriptional regulator CRP family protein
1749	 56.79	0	1894925..1895248	+	107	56751757	-	syc1748_d	-	hypothetical protein
1750	 57.90	0	1895301..1895825	+	174	56751758	-	syc1749_d	-	FKBP-type peptidyl-prolyl cis-trans isomerase
1751	 56.70	0	1895922..1896623	-	233	56751759	lipB	syc1750_c	-	lipoyltransferase
1752	 48.88	-1	1896829..1897452	+	207	56751760	lrtA	syc1751_d	-	light repressed protein A-like protein
1753	 57.61	0	1897509..1898756	-	415	56751761	-	syc1752_c	-	hypothetical protein
1754	 58.97	0	1898733..1899434	+	233	56751762	-	syc1753_d	-	hypothetical protein
1755	 54.77	0	1899447..1900640	-	397	56751763	pilT2	syc1754_c	-	twitching mobility protein
1756	 58.43	0	1900715..1901794	-	359	56751764	queA	syc1755_c	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
1757	 58.84	0	1901765..1902889	+	374	56751765	-	syc1756_d	-	hypothetical protein
1758	 58.68	0	1902886..1903686	-	266	56751766	hisB	syc1757_c	-	imidazoleglycerol-phosphate dehydratase
1759	 51.92	-1	1904101..1904439	+	112	56751767	ycf65	syc1758_d	-	hypothetical protein
1760	 59.39	0	1904486..1905529	-	347	56751768	-	syc1759_c	-	hypothetical protein
1761	 51.28	-1	1905889..1906005	+	38	56751769	psaI	syc1760_d	-	photosystem I reaction center subunit VIII
1762	 59.20	0	1906203..1906550	+	115	56751770	psaL	syc1761_d	-	photosystem I reaction center protein subunit XI
1763	 58.16	0	1906894..1907775	-	293	56751771	-	syc1762_c	-	hypothetical protein
1764	 57.20	0	1907785..1909146	-	453	56751772	engA	syc1763_c	-	GTP-binding protein EngA
1765	 57.61	0	1909180..1910217	-	345	56751773	rfaE	syc1764_c	-	ADP-heptose synthase
1766	 61.33	+1	1910261..1911178	-	305	56751774	-	syc1765_c	-	hypothetical protein
1767	 58.65	0	1911471..1912430	+	319	56751775	-	syc1766_d	-	hypothetical protein
1768	 57.32	0	1913198..1914106	+	302	56751776	fbpI	syc1767_d	-	fructose-1,6-bisphosphatase
1769	 56.45	0	1914153..1915688	+	511	56751777	zwf	syc1768_d	-	glucose-6-phosphate 1-dehydrogenase
1770	 57.40	0	1915728..1917065	+	445	56751778	opcA	syc1769_d	-	glucose 6-phosphate dehydrogenase assembly protein
1771	 54.45	0	1917176..1917658	-	160	56751779	petD	syc1770_c	-	cytochrome b6-f complex subunit IV
1772	 53.40	0	1917755..1918402	-	215	56751780	petB	syc1771_c	-	cytochrome b6
1773	 57.43	0	1918613..1919836	+	407	56751781	ctpA	syc1772_d	-	carboxyl-terminal processing protease
1774	 57.49	0	1919829..1921103	+	424	56751782	-	syc1773_d	-	hypothetical protein
1775	 58.33	0	1921100..1922191	-	363	56751783	-	syc1774_c	-	hypothetical protein
1776	 45.78	-2	1922259..1922732	+	157	56751784	-	syc1775_d	-	hypothetical protein
1777	 56.18	0	1922766..1923518	-	250	56751785	-	syc1776_c	-	hypothetical protein
1778	 60.32	+1	1924024..1924701	+	225	56751786	-	syc1777_d	-	hypothetical protein
1779	 59.67	0	1924688..1925659	-	323	56751787	gshB	syc1778_c	-	glutathione synthetase
1780	 57.20	0	1925656..1925919	-	87	56751788	grxC	syc1779_c	-	glutaredoxin
1781	 52.92	0	1926084..1926374	-	96	56751789	gatC	syc1780_c	-	glutamyl-tRNA(Gln) amidotransferase subunit C
1782	 52.49	0	1926386..1926907	-	173	56751790	ycf3	syc1781_c	-	photosystem I assembly protein Ycf3
1783	 55.21	0	1926945..1927232	-	95	56751791	-	syc1782_c	-	hypothetical protein
1784	 49.77	-1	1927401..1927619	-	72	56751792	-	syc1783_c	-	hypothetical protein
1785	 56.94	0	1927653..1928279	-	208	56751793	-	syc1784_c	-	hypothetical protein
1786	 59.00	0	1928452..1930824	+	790	56751794	ctaA	syc1785_d	-	copper transporting CPx-type ATPase CtaA
1787	 58.45	0	1931220..1931633	-	137	56751795	atpC	syc1786_c	-	F0F1 ATP synthase subunit epsilon
1788	 57.32	0	1931704..1933158	-	484	56751796	atpB	syc1787_c	-	F0F1 ATP synthase subunit beta
1789	 55.13	0	1933421..1933732	+	103	56751797	groES	syc1788_d	-	co-chaperonin GroES
1790	 56.94	0	1933780..1935414	+	544	56751798	groEL	syc1789_d	-	chaperonin GroEL
1791	 58.88	0	1935498..1936589	-	363	56751799	murG	syc1790_c	-	UDP-N-acetylglucosamine--N-acetylmuramyl- (pentapeptide) pyrophosphoryl -undecaprenol N-acetylglucosamine transferase
1792	 57.56	0	1936614..1937426	+	270	56751800	-	syc1791_d	-	hypothetical protein
1793	 57.77	0	1937970..1939250	+	426	56751801	-	syc1792_d	-	L-2-diaminobutyrate decarboxylase
1794	 53.30	0	1939316..1939921	+	201	56751802	tpx	syc1793_d	-	thioredoxin peroxidase
1795	 58.53	0	1940045..1941163	-	372	56751803	gcvT	syc1794_c	-	glycine cleavage system aminomethyltransferase T
1796	 38.77	-2	1941293..1942303	-	336	56751804	-	syc1795_c	-	hypothetical protein
1797	 50.07	-1	1943027..1943713	-	228	56751805	nblR	syc1796_c	-	two-component response regulator
1798	 53.38	0	1943758..1944675	-	305	56751806	ppnK	syc1797_c	-	inorganic polyphosphate/ATP-NAD kinase
1799	 59.85	0	1944775..1945566	-	263	56751807	folP	syc1798_c	-	dihydropteroate pyrophosphorylase
1800	 54.62	0	1945781..1946137	+	118	56751808	-	syc1799_d	-	hypothetical protein
1801	 59.39	0	1946624..1947118	-	164	56751809	-	syc1800_c	-	hypothetical protein
1802	 58.15	0	1947124..1947393	-	89	161621814	rpsO	syc1801_c	-	30S ribosomal protein S15
1803	 58.33	0	1947439..1948062	-	207	56751811	ruvA	syc1802_c	-	Holliday junction DNA helicase motor protein
1804	 56.62	0	1948307..1949500	+	397	56751812	tal	syc1803_d	-	transaldolase/EF-hand domain-containing protein
1805	 56.31	0	1949634..1950956	+	440	56751813	glnA	syc1804_d	-	glutamate--ammonia ligase
1806	 58.88	0	1950937..1952040	-	367	56751814	-	syc1805_c	-	hypothetical protein
1807	 56.51	0	1952040..1952876	-	278	56751815	-	syc1806_c	-	hypothetical protein
1808	 57.56	0	1952909..1953358	-	149	56751816	-	syc1807_c	-	hypothetical protein
1809	 58.59	0	1953363..1955627	-	754	56751817	-	syc1808_c	-	hypothetical protein
1810	 57.41	0	1955777..1956748	+	323	56751818	-	syc1809_d	-	hypothetical protein
1811	 58.78	0	1956763..1957497	+	244	56751819	-	syc1810_d	-	3-deoxy-manno-octulosonate cytidylyltransferase
1812	 57.54	0	1957479..1958333	+	284	56751820	ccmA	syc1811_d	-	2-dehydro-3-deoxyphosphooctonate aldolase
1813	 56.42	0	1958330..1958866	+	178	56751821	-	syc1812_d	-	hypothetical protein
1814	 58.67	0	1958908..1959882	+	324	56751822	-	syc1813_d	-	hypothetical protein
1815	 55.89	0	1959969..1961054	+	361	56751823	-	syc1814_d	-	hypothetical protein
1816	 59.81	0	1961180..1962259	+	359	56751824	gldA	syc1815_d	-	glycerol dehydrogenase
55.98	MEAN

4.05	STD DEV
