IslandPath Analysis: Synechococcus elongatus PCC 6301

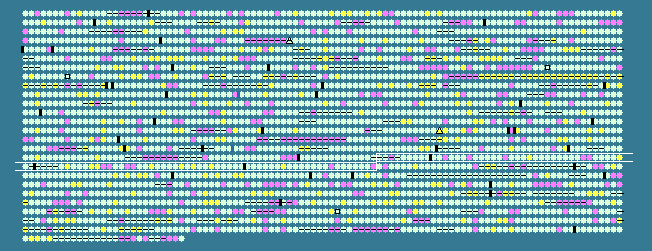

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1660	 54.05	0	1792713..1792934	-	73	56751668	-	syc1659_c	-	hypothetical protein
1661	 56.24	0	1793109..1793942	+	277	161621815	map	syc1660_d	-	methionine aminopeptidase
1662	 51.78	-1	1794095..1795108	+	337	56751670	sphX	syc1661_d	-	periplasmic phosphate-binding protein of ABC transporter
1663	 52.76	0	1795388..1796401	+	337	56751671	pstS	syc1662_d	-	phosphate transport system substrate-binding protein
1664	 52.89	0	1796520..1797419	+	299	56751672	pstC	syc1663_d	-	ABC-type phosphate transport system permease protein
1665	 56.25	0	1797419..1798330	+	303	56751673	pstA	syc1664_d	-	ABC-type phosphate transport system permease protein
1666	 54.34	0	1798378..1799172	+	264	56751674	pstB	syc1665_d	-	ABC-type phosphate transport ATP-binding protein
1667	 58.30	0	1799334..1801484	+	716	56751675	pnp	syc1666_d	-	polynucleotide phosphorylase/polyadenylase
1668	 54.42	0	1801757..1802752	-	331	56751676	crtR	syc1667_c	-	beta-carotene hydroxylase
1669	 56.62	0	1803155..1804588	+	477	56751677	-	syc1668_d	-	hypothetical protein
1670	 57.38	0	1804660..1807524	+	954	56751678	ileS	syc1669_d	-	isoleucyl-tRNA synthetase
1671	 50.25	-1	1807583..1808179	+	198	56751679	msrA	syc1670_d	-	peptide methionine sulfoxide reductase
1672	 53.78	0	1808223..1808843	-	206	56751680	-	syc1671_c	-	hypothetical protein
1673	 56.65	0	1808847..1809365	-	172	56751681	ilvH	syc1672_c	-	acetolactate synthase 3 regulatory subunit
1674	 58.96	0	1809382..1810302	-	306	56751682	-	syc1673_c	-	hypothetical protein
1675	 52.38	0	1810299..1810907	-	202	56751683	-	syc1674_c	-	hypothetical protein
1676	 58.08	0	1811046..1814738	+	1230	56751684	-	syc1675_d	-	hypothetical protein
1677	 58.12	0	1814915..1816060	+	381	56751685	-	syc1676_d	-	N2, N2-dimethylguanosine tRNA
1678	 57.91	0	1816099..1816749	+	216	56751686	exbB2	syc1677_d	-	biopolymer transport ExbB like protein
1679	 57.49	0	1816783..1817229	+	148	56751687	-	syc1678_d	-	biopolymer transport ExbD like protein
1680	 59.31	0	1817213..1818055	-	280	56751688	-	syc1679_c	-	thiosulfate sulfurtransferase
1681	 50.88	-1	1818134..1818247	+	37	56751689	petM	syc1680_d	-	cytochrome b6-f complex subunit PetM
1682	 56.70	0	1818366..1819328	+	320	56751690	ycf39	syc1681_d	-	chaperon-like protein for quinone binding in photosystem II
1683	 54.77	0	1819397..1820203	+	268	56751691	-	syc1682_d	-	hypothetical protein
1684	 57.65	0	1820252..1822159	+	635	56751692	gidA	syc1683_d	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
1685	 61.59	+1	1822183..1823049	+	288	56751693	-	syc1684_d	-	hypothetical protein
1686	 57.41	0	1823130..1824047	+	305	56751694	-	syc1685_d	-	hypothetical protein
1687	 58.10	0	1824078..1824812	-	244	56751695	cysE	syc1686_c	-	serine acetyltransferase
1688	 54.48	0	1824873..1825397	-	174	56751696	-	syc1687_c	-	hypothetical protein
1689	 59.21	0	1825510..1826394	+	294	56751697	lrrA	syc1688_d	-	transcriptional regulator
1690	 57.82	0	1826448..1827713	+	421	56751698	-	syc1689_d	-	multiple sugar transport system substrate-binding protein
1691	 57.94	0	1827820..1828587	+	255	56751699	srrA	syc1690_d	-	two-component response regulator for energy transfer from phycobilisomes to photosystems
1692	 57.43	0	1828657..1830171	+	504	56751700	lysS	syc1691_d	-	lysyl-tRNA synthetase
1693	 56.63	0	1830377..1831432	+	351	56751701	-	syc1692_d	-	hypothetical protein
1694	 45.26	-2	1831767..1832588	+	273	56751702	-	syc1693_d	-	erthyrocyte band 7 integral membrane protein
1695	 44.35	-2	1832606..1832977	-	123	56751703	-	syc1694_c	-	hypothetical protein
1696	 56.23	0	1833002..1834036	-	344	56751704	-	syc1695_c	-	hypothetical protein
1697	 58.50	0	1834222..1835556	+	444	56751705	purA	syc1696_d	-	adenylosuccinate synthetase
1698	 58.40	0	1835632..1836018	+	128	56751706	-	syc1697_d	-	hypothetical protein
1699	 57.20	0	1836089..1836901	-	270	56751707	-	syc1698_c	-	hypothetical protein
1700	 60.44	+1	1836837..1837976	-	379	56751708	-	syc1699_c	-	FAD dependent oxidoreductase
1701	 58.82	0	1838034..1838288	+	84	56751709	-	syc1700_d	-	hypothetical protein
1702	 58.70	0	1838480..1839220	-	246	56751710	-	syc1701_c	-	hypothetical protein
1703	 56.84	0	1839279..1839563	-	94	56751711	-	syc1702_c	-	hypothetical protein
1704	 57.82	0	1839872..1841002	-	376	56751712	-	syc1703_c	-	hypothetical protein
1705	 55.69	0	1841087..1841578	+	163	56751713	hspA	syc1704_d	-	molecular chaperon
1706	 58.29	0	1841711..1842868	+	385	56751714	-	syc1705_d	-	hypothetical protein
1707	 59.12	0	1842926..1844104	+	392	56751715	-	syc1706_d	-	hypothetical protein
1708	 59.56	0	1844111..1844560	+	149	56751716	-	syc1707_d	-	Holliday junction resolvase-like protein
1709	 54.73	0	1844566..1845093	+	175	56751717	-	syc1708_d	-	hypothetical protein
1710	 59.24	0	1845097..1845648	+	183	56751718	-	syc1709_d	-	hypothetical protein
1711	 53.17	0	1845887..1846138	+	83	56751719	-	syc1710_d	-	hypothetical protein
1712	 59.54	0	1846192..1847973	+	593	56751720	-	syc1711_d	-	Na+/H+ antiporter
1713	 60.24	+1	1847894..1849339	-	481	56751721	gltX	syc1712_c	-	glutamyl-tRNA synthetase
1714	 36.62	-2	1849522..1850982	-	486	56751722	-	syc1713_c	-	hypothetical protein
1715	 52.12	0	1851179..1851886	-	235	56751723	-	syc1714_c	-	oxidoreductase
1716	 58.90	0	1851905..1855561	-	1218	56751724	-	syc1715_c	-	hydantoinase / oxoprolinase
1717	 57.41	0	1855563..1856426	+	287	56751725	-	syc1716_d	-	hypothetical protein
1718	 47.01	-2	1856696..1857865	+	389	56751726	-	syc1717_d	-	hypothetical protein
1719	 47.47	-2	1857909..1859924	+	671	56751727	-	syc1718_d	-	hypothetical protein
1720	 55.98	0	1859926..1861029	-	367	56751728	hypD	syc1719_c	-	hydrogenase isoenzyme formation protein HypD
1721	 59.14	0	1861031..1862053	-	340	56751729	-	syc1720_c	-	dihydroorotate dehydrogenase 2
1722	 60.07	+1	1862053..1865643	-	1196	56751730	nifJ	syc1721_c	-	pyruvate flavodoxin oxidoreductase
1723	 56.77	0	1865767..1866918	-	383	56751731	ycf81	syc1722_c	-	hypothetical protein
1724	 58.10	0	1866958..1868148	+	396	56751732	hemN	syc1723_d	-	coproporphyrinogen III oxidase
1725	 59.36	0	1868145..1868951	-	268	56751733	panB	syc1724_c	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
1726	 54.08	0	1869255..1869683	+	142	56751734	-	syc1725_d	-	hypothetical protein
1727	 59.60	0	1869668..1870459	-	263	56751735	thiD	syc1726_c	-	phosphomethylpyrimidine kinase
1728	 58.97	0	1870459..1871640	-	393	56751736	ftsZ	syc1727_c	-	cell division protein FtsZ
1729	 59.65	0	1871860..1872714	-	284	56751737	-	syc1728_c	-	hypothetical protein
1730	 53.77	0	1872733..1873143	-	136	56751738	-	syc1729_c	-	hypothetical protein
1731	 56.51	0	1873147..1874190	-	347	56751739	ddl	syc1730_c	-	D-alanyl-alanine synthetase A
1732	 59.97	0	1874222..1875580	-	452	56751740	-	syc1731_c	-	hypothetical protein
1733	 57.39	0	1875654..1876688	+	344	56751741	-	syc1732_d	-	hypothetical protein
1734	 58.19	0	1876691..1877740	+	349	56751742	-	syc1733_d	-	hypothetical protein
1735	 56.48	0	1877781..1878575	+	264	56751743	-	syc1734_d	-	UDP-N-acetylglucosamine acyltransferase
1736	 53.01	0	1878816..1881986	-	1056	56751744	acrF	syc1735_c	-	RND multidrug efflux transporter
1737	 52.70	0	1882007..1883137	-	376	56751745	-	syc1736_c	-	hypothetical protein
1738	 55.95	0	1883573..1884076	+	167	56751746	-	syc1737_d	-	hypothetical protein
1739	 57.09	0	1884518..1886188	-	556	56751747	prfC	syc1738_c	-	peptide chain release factor 3
1740	 56.60	0	1886260..1886865	+	201	56751748	-	syc1739_d	-	hypothetical protein
1741	 56.34	0	1886831..1887256	+	141	56751749	-	syc1740_d	-	hypothetical protein
1742	 57.41	0	1887273..1888244	-	323	56751750	sds	syc1741_c	-	solanesyl diphosphate synthase
1743	 58.97	0	1888288..1889157	-	289	56751751	murI	syc1742_c	-	glutamate racemase
1744	 59.61	0	1889170..1890204	-	344	56751752	amiA	syc1743_c	-	N-acetylmuramoyl-L-alanine amidase
1745	 57.12	0	1890254..1891636	-	460	56751753	-	syc1744_c	-	Na+/H+ antiporter
1746	 55.48	0	1891675..1892505	-	276	56751754	-	syc1745_c	-	nitrilase-like protein
1747	 58.92	0	1892581..1894026	+	481	56751755	-	syc1746_d	-	hypothetical protein
1748	 55.14	0	1894193..1894834	+	213	56751756	cysR	syc1747_d	-	transcriptional regulator CRP family protein
1749	 56.79	0	1894925..1895248	+	107	56751757	-	syc1748_d	-	hypothetical protein
1750	 57.90	0	1895301..1895825	+	174	56751758	-	syc1749_d	-	FKBP-type peptidyl-prolyl cis-trans isomerase
1751	 56.70	0	1895922..1896623	-	233	56751759	lipB	syc1750_c	-	lipoyltransferase
1752	 48.88	-1	1896829..1897452	+	207	56751760	lrtA	syc1751_d	-	light repressed protein A-like protein
1753	 57.61	0	1897509..1898756	-	415	56751761	-	syc1752_c	-	hypothetical protein
1754	 58.97	0	1898733..1899434	+	233	56751762	-	syc1753_d	-	hypothetical protein
1755	 54.77	0	1899447..1900640	-	397	56751763	pilT2	syc1754_c	-	twitching mobility protein
1756	 58.43	0	1900715..1901794	-	359	56751764	queA	syc1755_c	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
1757	 58.84	0	1901765..1902889	+	374	56751765	-	syc1756_d	-	hypothetical protein
1758	 58.68	0	1902886..1903686	-	266	56751766	hisB	syc1757_c	-	imidazoleglycerol-phosphate dehydratase
1759	 51.92	-1	1904101..1904439	+	112	56751767	ycf65	syc1758_d	-	hypothetical protein
55.98	MEAN

4.05	STD DEV
