IslandPath Analysis: Synechococcus elongatus PCC 6301

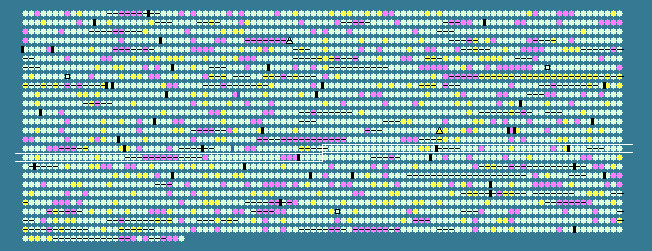

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1551	 56.33	0	1677750..1678310	-	186	56751559	-	syc1550_c	-	hypothetical protein
1552	 55.34	0	1678598..1679056	+	152	56751560	rplI	syc1551_d	-	50S ribosomal protein L9
1553	 58.10	0	1679102..1680268	-	388	56751561	nifS	syc1552_c	-	cysteine desulfurase NifS
1554	 58.00	0	1680399..1681148	+	249	56751562	hoxU	syc1553_d	-	bidirectional hydrogenase complex protein HoxU
1555	 57.84	0	1681136..1681690	+	184	56751563	hoxY	syc1554_d	-	NAD-reducing hydrogenase HoxS delta subunit
1556	 57.30	0	1681700..1683130	+	476	56751564	hoxH	syc1555_d	-	NAD-reducing hydrogenase HoxS beta subunit
1557	 57.30	0	1683139..1683597	+	152	56751565	-	syc1556_d	-	hypothetical protein
1558	 57.82	0	1683585..1683923	+	112	56751566	hypA	syc1557_d	-	hydrogenase expression/formation protein HypA
1559	 58.02	0	1683924..1684652	+	242	56751567	hypB	syc1558_d	-	hydrogenase isoenzyme formation protein HypB
1560	 58.50	0	1684724..1687036	+	770	56751568	hypF	syc1559_d	-	hydrogenase maturation protein HypF
1561	 58.54	0	1686984..1687229	+	81	56751569	hypC	syc1560_d	-	hydrogenase maturation protein HypC
1562	 57.26	0	1687226..1688299	-	357	56751570	-	syc1561_c	-	hypothetical protein
1563	 57.47	0	1688755..1689363	-	202	56751571	leuD	syc1562_c	-	isopropylmalate isomerase small subunit
1564	 55.45	0	1689461..1689781	-	106	56751572	-	syc1563_c	-	hypothetical protein
1565	 57.36	0	1689830..1690549	-	239	56751573	-	syc1564_c	-	hypothetical protein
1566	 55.98	0	1690626..1691804	-	392	56751574	aspC	syc1565_c	-	aspartate aminotransferase
1567	 59.74	0	1691918..1692307	+	129	56751575	-	syc1566_d	-	hypothetical protein
1568	 59.89	0	1692337..1693044	+	235	56751576	-	syc1567_d	-	DNA polymerase bacteriophage-type
1569	 54.89	0	1693061..1693408	+	115	56751577	petJ	syc1568_d	-	putative cytochrome C6-2
1570	 55.97	0	1694020..1694496	-	158	56751578	rplS	syc1569_c	-	50S ribosomal protein L19
1571	 58.01	0	1694488..1694949	+	153	56751579	-	syc1570_d	-	blue-copper-protein-like protein
1572	 56.76	0	1695130..1695684	+	184	56751580	-	syc1571_d	-	hypothetical protein
1573	 57.64	0	1695826..1696512	+	228	56751581	clpP	syc1572_d	-	ATP-dependent Clp protease-like protein
1574	 54.50	0	1696555..1697154	+	199	56751582	clpP	syc1573_d	-	ATP-dependent Clp protease proteolytic subunit
1575	 58.43	0	1697160..1697693	+	177	56751583	-	syc1574_d	-	DnaJ-class molecular chaperone
1576	 52.88	0	1697676..1700882	-	1068	56751584	-	syc1575_c	-	hypothetical protein
1577	 50.57	-1	1701075..1702391	+	438	56751585	-	syc1576_d	-	hypothetical protein
1578	 58.01	0	1702408..1702788	-	126	56751586	-	syc1577_c	-	hypothetical protein
1579	 58.33	0	1702849..1703796	+	315	56751587	-	syc1578_d	-	hypothetical protein
1580	 54.35	0	1703880..1704545	-	221	56751588	tsf	syc1579_c	-	elongation factor Ts
1581	 57.54	0	1704648..1705403	-	251	56751589	rpsB	syc1580_c	-	30S ribosomal protein S2
1582	 59.50	0	1706403..1707044	-	213	56751590	-	syc1581_c	-	hypothetical protein
1583	 58.60	0	1707068..1707910	-	280	56751591	-	syc1582_c	-	esterase
1584	 56.07	0	1707907..1709256	-	449	56751592	clpX	syc1583_c	-	ATP-dependent protease ATP-binding subunit
1585	 58.09	0	1709269..1709991	-	240	56751593	clpP	syc1584_c	-	ATP-dependent Clp protease proteolytic subunit
1586	 56.35	0	1710083..1711507	-	474	56751594	tig	syc1585_c	-	trigger factor
1587	 53.70	0	1711775..1714087	+	770	56751595	gpsA	syc1586_d	-	NAD+ dependent glycerol-3-phosphate dehydrogenase
1588	 52.88	0	1714096..1714806	+	236	56751596	-	syc1587_d	-	hypothetical protein
1589	 47.85	-2	1715080..1717593	+	837	56751597	-	syc1588_d	-	hypothetical protein
1590	 54.79	0	1717636..1719033	+	465	56751598	glgA	syc1589_d	-	glycogen synthase
1591	 61.80	+1	1719055..1719753	+	232	56751599	-	syc1590_d	-	hypothetical protein
1592	 58.47	0	1720325..1722592	+	755	56751600	-	syc1591_d	-	hypothetical protein
1593	 56.54	0	1722626..1723543	-	305	56751601	argF	syc1592_c	-	ornithine carbamoyltransferase
1594	 58.68	0	1723615..1724478	-	287	56751602	btpA	syc1593_c	-	photosystem I biogenesis protein BtpA
1595	 57.98	0	1724730..1726019	+	429	56751603	-	syc1594_d	-	hypothetical protein
1596	 59.33	0	1726025..1726528	+	167	56751604	-	syc1595_d	-	hypothetical protein
1597	 52.58	0	1726613..1726825	-	70	56751605	infA	syc1596_c	-	translation initiation factor IF-1
1598	 55.50	0	1726897..1727550	-	217	56751606	-	syc1597_c	-	hypothetical protein
1599	 58.06	0	1727560..1728756	-	398	56751607	ndbB	syc1598_c	-	type 2 NADH dehydrogenase
1600	 55.24	0	1728828..1729247	+	139	56751608	-	syc1599_d	-	hypothetical protein
1601	 56.94	0	1729287..1729985	+	232	56751609	cysH	syc1600_d	-	phosphoadenosine phosphosulfate reductase
1602	 56.62	0	1729998..1730654	-	218	56751610	-	syc1601_c	-	O-methyltransferase
1603	 59.49	0	1730643..1731116	+	157	56751611	-	syc1602_d	-	hypothetical protein
1604	 56.31	0	1731324..1732289	+	321	56751612	por	syc1603_d	-	protochlorophyllide oxidoreductase
1605	 55.98	0	1732540..1733784	+	414	56751613	-	syc1604_d	-	hypothetical protein
1606	 56.81	0	1733781..1734845	-	354	56751614	aroF	syc1605_c	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1607	 55.88	0	1735068..1735688	+	206	56751615	-	syc1606_d	-	hypothetical protein
1608	 58.54	0	1735729..1737069	+	446	56751616	-	syc1607_d	-	hypothetical protein
1609	 57.83	0	1737069..1738313	+	414	56751617	-	syc1608_d	-	flotillin
1610	 55.92	0	1738413..1738868	+	151	56751618	ndk	syc1609_d	-	nucleoside diphosphate kinase
1611	 58.00	0	1738898..1740097	+	399	56751619	livK	syc1610_d	-	branched-chain amino-acid ABC transport system periplasmic binding protein
1612	 58.17	0	1740097..1741038	+	313	56751620	livH	syc1611_d	-	integral membrane protein of the ABC-type Nat permease for neutral amino acids NatD
1613	 61.26	+1	1741042..1741965	+	307	56751621	livM	syc1612_d	-	branched-chain amino acid transport system permease protein
1614	 57.35	0	1741962..1742723	+	253	56751622	livG	syc1613_d	-	component of ABC transporter for natural amino acids
1615	 57.56	0	1742716..1743429	+	237	56751623	livF	syc1614_d	-	branched-chain amino acid ABC transporter ATP-binding protein
1616	 54.54	0	1743835..1745772	-	645	56751624	gyrB	syc1615_c	-	DNA gyrase subunit B
1617	 54.61	0	1745900..1746820	+	306	56751625	miaA	syc1616_d	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1618	 54.43	0	1746915..1747151	-	78	56751626	-	syc1617_c	-	hypothetical protein
1619	 56.98	0	1747273..1747881	-	202	56751627	-	syc1618_c	-	hypothetical protein
1620	 54.79	0	1747953..1748171	-	72	56751628	-	syc1619_c	-	hypothetical protein
1621	 47.94	-1	1748479..1750059	+	526	56751629	-	syc1620_d	-	hypothetical protein
1622	 50.65	-1	1750795..1751487	+	230	56751630	-	syc1621_d	-	hypothetical protein
1623	 46.32	-2	1751704..1753104	+	466	56751631	-	syc1622_d	-	hypothetical protein
1624	 49.07	-1	1753716..1754948	+	410	56751632	-	syc1623_d	-	hypothetical protein
1625	 40.31	-2	1754936..1755838	+	300	56751633	-	syc1624_d	-	hypothetical protein
1626	 46.38	-2	1755843..1756394	-	183	56751634	-	syc1625_c	-	pilin-like protein
1627	 55.73	0	1756910..1757284	+	124	56751635	psb28	syc1626_d	-	photosystem II reaction center W protein
1628	 57.41	0	1757300..1758196	+	298	56751636	-	syc1627_d	-	hypothetical protein
1629	 57.94	0	1758193..1758570	-	125	56751637	-	syc1628_c	-	hypothetical protein
1630	 56.82	0	1758668..1760068	-	466	56751638	argH	syc1629_c	-	argininosuccinate lyase
1631	 52.47	0	1760176..1760337	-	53	56751639	-	syc1630_c	-	hypothetical protein
1632	 58.68	0	1760393..1761781	-	462	56751640	-	syc1631_c	-	hypothetical protein
1633	 59.28	0	1761961..1763517	-	518	56751641	ffh	syc1632_c	-	signal recognition particle subunit SRP54
1634	 58.57	0	1763532..1764173	-	213	56751642	nusB	syc1633_c	-	transcription antitermination protein NusB
1635	 57.13	0	1764320..1765126	-	268	56751643	-	syc1634_c	-	hypothetical protein
1636	 56.29	0	1765311..1766081	-	256	56751644	-	syc1635_c	-	hypothetical protein
1637	 56.43	0	1766259..1768163	-	634	56751645	dnaK	syc1636_c	-	molecular chaperone DnaK
1638	 59.17	0	1768342..1769208	+	288	56751646	aroE	syc1637_d	-	shikimate 5-dehydrogenase
1639	 58.13	0	1769228..1769848	-	206	56751647	-	syc1638_c	-	two-component system response regulator
1640	 56.30	0	1770181..1770450	+	89	56751648	-	syc1639_d	-	hypothetical protein
1641	 59.08	0	1770619..1771317	+	232	56751649	-	syc1640_d	-	N-acetylmannosamine-6-phosphate 2-epimerase
1642	 56.30	0	1771414..1772667	+	417	161621816	metK	syc1641_d	-	S-adenosylmethionine synthetase
1643	 55.74	0	1772679..1773959	+	426	56751651	xylB	syc1642_d	-	sugar kinase
1644	 47.28	-2	1774048..1775481	+	477	56751652	-	syc1643_d	-	hypothetical protein
1645	 44.16	-2	1775604..1776878	+	424	56751653	-	syc1644_d	-	hypothetical protein
1646	 39.94	-2	1777075..1778163	-	362	56751654	-	syc1645_c	-	hypothetical protein
1647	 59.21	0	1778427..1780613	-	728	56751655	comE	syc1646_c	-	competence protein ComE
1648	 55.40	0	1780667..1781545	-	292	56751656	glyQ	syc1647_c	-	glycyl-tRNA synthetase subunit alpha
1649	 59.20	0	1781660..1782610	-	316	56751657	-	syc1648_c	-	hypothetical protein
1650	 59.24	0	1782617..1783249	-	210	56751658	-	syc1649_c	-	hypothetical protein
55.98	MEAN

4.05	STD DEV
