IslandPathversion 1.0

IslandPath Analysis: Synechococcus elongatus PCC 6301

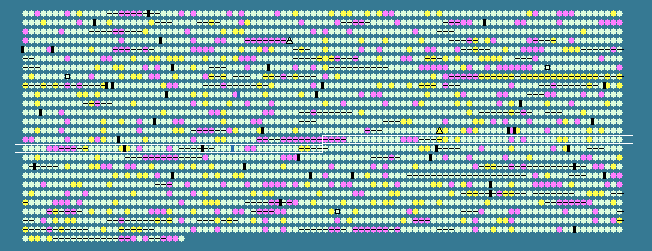

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1451	 46.67	-2	1570899..1571333	+	144	56751459	pilA	syc1450_d	-	a part of pilin polypeptide PilA
1452	 47.59	-2	1571522..1571956	+	144	56751460	pilA	syc1451_d	-	a part of pilin polypeptide PilA
1453	 51.33	-1	1572002..1574368	-	788	56751461	-	syc1452_c	-	hypothetical protein
1454	 51.64	-1	1574376..1575719	-	447	56751462	-	syc1453_c	-	hypothetical protein
1455	 52.80	0	1575956..1577311	-	451	56751463	-	syc1454_c	-	hypothetical protein
1456	 57.74	0	1577406..1579343	-	645	56751464	-	syc1455_c	-	hypothetical protein
1457	 59.02	0	1579387..1579752	+	121	56751465	-	syc1456_d	-	hypothetical protein
1458	 56.12	0	1579792..1580028	+	78	56751466	rpmB	syc1457_d	-	50S ribosomal protein L28
1459	 58.03	0	1580138..1581538	-	466	56751467	-	syc1458_c	-	transport protein
1460	 58.73	0	1581876..1582253	-	125	56751468	folB	syc1459_c	-	dihydroneopterin aldolase
1461	 56.85	0	1582338..1583753	-	471	56751469	gnd	syc1460_c	-	6-phosphogluconate dehydrogenase
1462	 56.81	0	1583928..1584404	-	158	56751470	mutT	syc1461_c	-	mutator MutT protein
1463	 54.48	0	1584757..1585683	-	308	56751471	-	syc1462_c	-	hypothetical protein
1464	 48.37	-1	1585761..1586525	+	254	56751472	-	syc1463_d	-	hypothetical protein
1465	 38.14	-2	1587377..1587709	+	110	56751473	-	syc1464_d	-	hypothetical protein
1466	 43.22	-2	1587681..1588034	+	117	56751474	-	syc1465_d	-	hypothetical protein
1467	 54.98	0	1588145..1589419	-	424	56751475	bioA	syc1466_c	-	N-acetylornithine aminotransferase
1468	 57.66	0	1589412..1590044	-	210	56751476	bioD	syc1467_c	-	dethiobiotin synthase
1469	 57.79	0	1590050..1590871	-	273	56751477	-	syc1468_c	-	hypothetical protein
1470	 59.48	0	1590868..1591521	-	217	56751478	-	syc1469_c	-	hypothetical protein
1471	 59.64	0	1591533..1592699	-	388	56751479	bioF	syc1470_c	-	7-keto-8-aminopelargonic acid synthetase
1472	 58.69	0	1592824..1593801	+	325	56751480	-	syc1471_d	-	hypothetical protein
1473	 60.31	+1	1593761..1595161	-	466	56751481	-	syc1472_c	-	hypothetical protein
1474	 58.44	0	1595512..1596702	+	396	56751482	-	syc1473_d	-	hypothetical protein
1475	 56.43	0	1596762..1597826	+	354	56751483	-	syc1474_d	-	H+/Ca2+ exchanger
1476	 58.13	0	1597798..1599003	+	401	56751484	-	syc1475_d	-	hypothetical protein
1477	 54.39	0	1599009..1599749	+	246	56751485	cobK	syc1476_d	-	cobalt-precorrin-6x reductase
1478	 59.04	0	1599791..1600393	-	200	56751486	-	syc1477_c	-	hypothetical protein
1479	 57.36	0	1600394..1602295	-	633	56751487	sir	syc1478_c	-	sulfite reductase subunit beta
1480	 58.44	0	1602491..1604677	+	728	56751488	glyS	syc1479_d	-	glycyl-tRNA synthetase subunit beta
1481	 56.21	0	1604690..1605253	+	187	56751489	eda	syc1480_d	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
1482	 49.23	-1	1605279..1605863	-	194	56751490	-	syc1481_c	-	hypothetical protein
1483	 54.61	0	1606635..1607306	+	223	56751491	-	syc1482_d	-	putative hydroxylase
1484	 45.22	-2	1607472..1607816	+	114	56751492	-	syc1483_d	-	hypothetical protein
1485	 52.54	0	1607855..1608562	-	235	56751493	-	syc1484_c	-	hypothetical protein
1486	 55.86	0	1608919..1609242	+	107	56751494	rpsF	syc1485_d	-	30S ribosomal protein S6
1487	 54.47	0	1609394..1609885	+	163	56751495	-	syc1486_d	-	hypothetical protein
1488	 58.05	0	1610005..1610631	+	208	56751496	-	syc1487_d	-	hypothetical protein
1489	 56.69	0	1610717..1611919	-	400	56751497	argG	syc1488_c	-	argininosuccinate synthase
1490	 59.88	0	1612024..1612347	+	107	56751498	-	syc1489_d	-	hypothetical protein
1491	 60.68	+1	1612344..1612694	+	116	56751499	-	syc1490_d	-	hypothetical protein
1492	 56.76	0	1612691..1613104	+	137	56751500	-	syc1491_d	-	hypothetical protein
1493	 56.08	0	1613177..1614772	+	531	56751501	-	syc1492_d	-	hypothetical protein
1494	 58.30	0	1614806..1616287	-	493	56751502	purF	syc1493_c	-	amidophosphoribosyltransferase
1495	 59.73	0	1616372..1618705	-	777	56751503	purL	syc1494_c	-	phosphoribosylformylglycinamidine synthase II
1496	 58.88	0	1618749..1619621	-	290	56751504	-	syc1495_c	-	RNA metabolism-related protein
1497	 57.03	0	1619646..1620818	-	390	56751505	dnaN	syc1496_c	-	DNA polymerase III subunit beta
1498	 53.41	0	1620916..1621737	+	273	56751506	cbbZp	syc1497_d	-	phosphoglycolate phosphatase
1499	 54.50	0	1621858..1622958	-	366	56751507	thrC	syc1498_c	-	threonine synthase
1500	 57.52	0	1623029..1623793	+	254	56751508	-	syc1499_d	-	hypothetical protein
1501	 57.01	0	1623878..1624633	+	251	56751509	cobA	syc1500_d	-	uroporphyrin-III C-methyltransferase
1502	 55.56	0	1624630..1625160	-	176	56751510	-	syc1501_c	-	hypothetical protein
1503	 54.94	0	1625362..1625796	-	144	56751511	-	syc1502_c	-	hypothetical protein
1504	 55.39	0	1625783..1626580	+	265	56751512	xthA	syc1503_d	-	exodeoxyribonuclease III
1505	 52.36	0	1626658..1628481	+	607	56751513	thrS	syc1504_d	-	threonyl-tRNA synthetase
1506	 47.64	-2	1628752..1629408	+	218	56751514	-	syc1505_d	-	hypothetical protein
1507	 43.20	-2	1629471..1630058	-	195	56751515	ctaE	syc1506_c	-	cytochrome c oxidase subunit III
1508	 49.14	-1	1630110..1631735	-	541	56751516	ctaD	syc1507_c	-	cytochrome c oxidase subunit I
1509	 52.22	0	1631795..1632742	-	315	56751517	ctaC	syc1508_c	-	cytochrome c oxidase subunit II
1510	 57.79	0	1632964..1633887	+	307	56751518	-	syc1509_d	-	hypothetical protein
1511	 61.02	+1	1633847..1634803	+	318	56751519	ctaB	syc1510_d	-	protoheme IX farnesyltransferase
1512	 55.37	0	1634947..1635300	+	117	56751520	-	syc1511_d	-	hypothetical protein
1513	 57.10	0	1635300..1636376	+	358	56751521	-	syc1512_d	-	hypothetical protein
1514	 55.42	0	1636373..1636852	-	159	56751522	-	syc1513_c	-	hypothetical protein
1515	 54.99	0	1636865..1637926	-	353	56751523	mviM	syc1514_c	-	oxidoreductase
1516	 56.39	0	1637978..1639408	-	476	56751524	-	syc1515_c	-	hypothetical protein
1517	 59.81	0	1639415..1640143	-	242	56751525	-	syc1516_c	-	hypothetical protein
1518	 61.08	+1	1640225..1640761	-	178	56751526	-	syc1517_c	-	hypothetical protein
1519	 58.13	0	1640861..1641469	+	202	56751527	pyrE	syc1518_d	-	orotate phosphoribosyltransferase
1520	 52.17	0	1641513..1642181	-	222	56751528	-	syc1519_c	-	hypothetical protein
1521	 54.65	0	1642178..1642693	-	171	56751529	-	syc1520_c	-	pilin-like protein
1522	 57.12	0	1642938..1643723	-	261	56751530	-	syc1521_c	-	2-phosphosulfolactate phosphatase
1523	 58.71	0	1643854..1645374	+	506	56751531	ubiD	syc1522_d	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase UbiD
1524	 56.25	0	1645393..1645920	+	175	56751532	-	syc1523_d	-	hypothetical protein
1525	 46.80	-2	1645994..1646431	-	145	56751533	-	syc1524_c	-	hypothetical protein
1526	 53.49	0	1646558..1647073	+	171	56751534	-	syc1525_d	-	hypothetical protein
1527	 55.56	0	1647081..1647845	-	254	56751535	csgA	syc1526_c	-	short chain dehydrogenase
1528	 56.40	0	1647855..1648487	-	210	56751536	-	syc1527_c	-	hypothetical protein
1529	 56.08	0	1648575..1649396	-	273	56751537	impA	syc1528_c	-	myo-inositol-1(or 4)-monophosphatase
1530	 57.45	0	1649400..1649768	-	122	56751538	petF	syc1529_c	-	ferredoxin petF-like protein
1531	 57.91	0	1650077..1652326	+	749	56751539	dnaK	syc1530_d	-	molecular chaperone DnaK
1532	 56.61	0	1652336..1653220	+	294	56751540	dnaJ	syc1531_d	-	DnaJ protein
1533	 54.43	0	1653220..1653693	+	157	56751541	-	syc1532_d	-	hypothetical protein
1534	 58.87	0	1653694..1654617	+	307	56751542	murQ	syc1533_d	-	N-acetylmuramic acid-6-phosphate etherase
1535	 57.56	0	1654652..1656277	+	541	56751543	-	syc1534_d	-	hypothetical protein
1536	 52.55	0	1661682..1662623	-	313	56751544	mntC	syc1535_c	-	ABC-type manganese transport system substrate-binding protein MntC
1537	 56.75	0	1662684..1663439	+	251	56751545	mntA	syc1536_d	-	ABC-type manganese transport system ATP-binding protein MntA
1538	 52.47	0	1663440..1664270	+	276	56751546	mntB	syc1537_d	-	ABC-type manganese transport system membrane protein MntB
1539	 44.03	-2	1664409..1664726	+	105	56751547	-	syc1538_d	-	hypothetical protein
1540	 57.61	0	1664807..1666684	-	625	56751548	-	syc1539_c	-	penicillin-binding protein
1541	 53.02	0	1666754..1667962	+	402	56751549	tyrS	syc1540_d	-	tyrosyl-tRNA synthetase
1542	 58.23	0	1667966..1668688	+	240	56751550	pyrF	syc1541_d	-	orotidine 5'-phosphate decarboxylase
1543	 59.28	0	1668685..1669158	+	157	56751551	-	syc1542_d	-	hypothetical protein
1544	 57.93	0	1669170..1670153	-	327	56751552	thiL	syc1543_c	-	thiamine monophosphate kinase
1545	 56.85	0	1670167..1671297	-	376	56751553	ppiB	syc1544_c	-	peptidyl-prolyl cis-trans isomerase
1546	 53.76	0	1671394..1671951	+	185	56751554	efp	syc1545_d	-	elongation factor P
1547	 60.38	+1	1671993..1672469	+	158	56751555	accB	syc1546_d	-	biotin carboxyl carrier protein of acetyl-CoA carboxylase
1548	 60.27	+1	1672435..1675437	-	1000	56751556	-	syc1547_c	-	hypothetical protein
1549	 58.90	0	1675484..1676719	-	411	56751557	-	syc1548_c	-	aluminum resistance protein
1550	 55.32	0	1676804..1677640	+	278	56751558	desC	syc1549_d	-	delta-9 acyl-lipid desaturase
55.98	MEAN

4.05	STD DEV
