IslandPath Analysis: Synechococcus elongatus PCC 6301

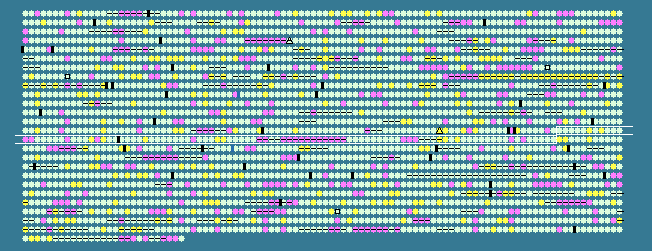

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1390	 54.84	0	1506736..1507251	+	171	56751398	-	syc1389_d	-	hypothetical protein
1391	 55.11	0	1507184..1507555	-	123	56751399	-	syc1390_c	-	hypothetical protein
1392	 54.84	0	1507594..1507686	-	30	56751400	petL	syc1391_c	-	cytochrome b6-f complex subunit PetL
1393	 58.63	0	1507742..1509196	-	484	56751401	phrA	syc1392_c	-	DNA photolyase
1394	 57.21	0	1509275..1510870	-	531	56751402	dnaK	syc1393_c	-	heat shock protein DnaK
1395	 59.86	0	1510935..1511492	-	185	56751403	-	syc1394_c	-	hypothetical protein
1396	 54.28	0	1511499..1512047	-	182	56751404	-	syc1395_c	-	DNA-binding stress protein
1397	 60.54	+1	1512066..1512326	-	86	56751405	-	syc1396_c	-	hypothetical protein
1398	 58.21	0	1512499..1513917	+	472	56751406	-	syc1397_d	-	hypothetical protein
1399	 56.99	0	1513930..1514508	+	192	56751407	nadD	syc1398_d	-	nicotinic acid mononucleotide adenylyltransferase
1400	 52.99	0	1514505..1516229	+	574	56751408	nadE	syc1399_d	-	NAD synthetase
1401	 51.39	-1	1516426..1517250	+	274	56751409	-	syc1400_d	-	hypothetical protein
1402	 50.53	-1	1517237..1517614	+	125	56751410	-	syc1401_d	-	hypothetical protein
1403	 52.66	0	1517645..1518208	-	187	56751411	-	syc1402_c	-	hypothetical protein
1404	 56.93	0	1518289..1519623	-	444	56751412	ndbA	syc1403_c	-	type 2 NADH dehydrogenase
1405	 56.86	0	1519794..1520354	+	186	56751413	-	syc1404_d	-	hypothetical protein
1406	 59.39	0	1520351..1520680	-	109	56751414	-	syc1405_c	-	hypothetical protein
1407	 57.98	0	1520796..1522580	+	594	56751415	pyk	syc1406_d	-	pyruvate kinase
1408	 52.37	0	1522716..1526507	+	1263	56751416	cobN	syc1407_d	-	cobaltochelatase
1409	 53.26	0	1526597..1527118	+	173	56751417	-	syc1408_d	-	hypothetical protein
1410	 57.47	0	1527543..1528292	+	249	56751418	rpaA	syc1409_d	-	two-component response regulator for energy transfer from phycobilisomes to photosystems
1411	 58.25	0	1528271..1529209	-	312	56751419	holB	syc1410_c	-	DNA polymerase III subunit delta'
1412	 62.17	+1	1529206..1529739	-	177	56751420	tmk	syc1411_c	-	thymidylate kinase
1413	 48.56	-1	1529952..1530299	+	115	56751421	-	syc1412_d	-	hypothetical protein
1414	 60.78	+1	1530556..1531167	+	203	56751422	ycf21	syc1413_d	-	hypothetical protein
1415	 56.30	0	1531164..1532147	-	327	56751423	-	syc1414_c	-	transcription factor
1416	 57.41	0	1532267..1533001	+	244	56751424	clcD	syc1415_d	-	carboxymethylenebutenolidase
1417	 57.95	0	1533613..1534335	-	240	56751425	-	syc1416_c	-	hypothetical protein
1418	 57.61	0	1534407..1535918	+	503	56751426	-	syc1417_d	-	hypothetical protein
1419	 55.97	0	1535927..1538011	+	694	56751427	glgX	syc1418_d	-	glycogen operon protein GlgX-like protein
1420	 53.15	0	1538054..1538704	+	216	56751428	-	syc1419_d	-	hypothetical protein
1421	 60.09	+1	1538965..1539603	-	212	56751429	-	syc1420_c	-	hypothetical protein
1422	 58.08	0	1539663..1539860	-	65	56751430	-	syc1421_c	-	hypothetical protein
1423	 56.96	0	1539870..1541651	-	593	56751431	mdlB	syc1422_c	-	ATP-binding protein of ABC transporter
1424	 57.14	0	1541687..1541896	+	69	56751432	-	syc1423_d	-	hypothetical protein
1425	 58.74	0	1542012..1543235	+	407	56751433	-	syc1424_d	-	ABC transporter permease
1426	 57.72	0	1543299..1543745	+	148	56751434	ycf41	syc1425_d	-	hypothetical protein
1427	 57.11	0	1543820..1544269	+	149	56751435	-	syc1426_d	-	hypothetical protein
1428	 53.77	0	1544266..1544955	-	229	56751436	-	syc1427_c	-	hypothetical protein
1429	 51.44	-1	1545031..1545792	-	253	56751437	-	syc1428_c	-	hypothetical protein
1430	 59.06	0	1545795..1547108	-	437	56751438	pepP	syc1429_c	-	aminopeptidase P
1431	 56.13	0	1547170..1547577	+	135	56751439	-	syc1430_d	-	hypothetical protein
1432	 56.14	0	1547687..1548883	+	398	56751440	lytB	syc1431_d	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
1433	 59.48	0	1548923..1549576	+	217	56751441	-	syc1432_d	-	hypothetical protein
1434	 59.58	0	1549744..1550943	+	399	56751442	degT	syc1433_d	-	pleiotropic regulatory protein
1435	 59.18	0	1550945..1551505	+	186	56751443	-	syc1434_d	-	hypothetical protein
1436	 58.91	0	1551939..1552892	+	317	56751444	-	syc1435_d	-	ATP-binding protein of ABC transporter
1437	 58.02	0	1552897..1553706	+	269	56751445	-	syc1436_d	-	ABC-2 type transport system permease protein
1438	 59.08	0	1553711..1555225	+	504	56751446	-	syc1437_d	-	hypothetical protein
1439	 53.15	0	1555342..1555896	+	184	56751447	infC	syc1438_d	-	translation initiation factor IF-3
1440	 52.38	0	1556177..1556617	+	146	56751448	-	syc1439_d	-	hypothetical protein
1441	 43.93	-2	1557641..1558414	+	257	56751449	rfbF	syc1440_d	-	glucose-1-phosphate cytidylyltransferase
1442	 54.11	0	1558411..1559517	+	368	56751450	rfbG	syc1441_d	-	CDP-glucose 4,6-dehydratase
1443	 52.75	0	1560037..1560582	+	181	56751451	rfbC	syc1442_d	-	dTDP-4-dehydrorhamnose 3,5-epimerase
1444	 48.58	-1	1560579..1561811	+	410	56751452	-	syc1443_d	-	putative C-3 methyl transferase
1445	 43.00	-2	1561815..1562942	+	375	56751453	rfbE	syc1444_d	-	perosamine synthetase
1446	 43.36	-2	1563693..1564460	+	255	56751454	-	syc1445_d	-	hypothetical protein
1447	 34.81	-2	1564531..1565679	+	382	56751455	-	syc1446_d	-	hypothetical protein
1448	 40.08	-2	1565853..1566371	+	172	56751456	-	syc1447_d	-	hypothetical protein
1449	 36.09	-2	1566358..1568277	+	639	56751457	-	syc1448_d	-	SPY protein
1450	 41.58	-2	1568267..1570813	-	848	56751458	-	syc1449_c	-	hypothetical protein
1451	 46.67	-2	1570899..1571333	+	144	56751459	pilA	syc1450_d	-	a part of pilin polypeptide PilA
1452	 47.59	-2	1571522..1571956	+	144	56751460	pilA	syc1451_d	-	a part of pilin polypeptide PilA
1453	 51.33	-1	1572002..1574368	-	788	56751461	-	syc1452_c	-	hypothetical protein
1454	 51.64	-1	1574376..1575719	-	447	56751462	-	syc1453_c	-	hypothetical protein
1455	 52.80	0	1575956..1577311	-	451	56751463	-	syc1454_c	-	hypothetical protein
1456	 57.74	0	1577406..1579343	-	645	56751464	-	syc1455_c	-	hypothetical protein
1457	 59.02	0	1579387..1579752	+	121	56751465	-	syc1456_d	-	hypothetical protein
1458	 56.12	0	1579792..1580028	+	78	56751466	rpmB	syc1457_d	-	50S ribosomal protein L28
1459	 58.03	0	1580138..1581538	-	466	56751467	-	syc1458_c	-	transport protein
1460	 58.73	0	1581876..1582253	-	125	56751468	folB	syc1459_c	-	dihydroneopterin aldolase
1461	 56.85	0	1582338..1583753	-	471	56751469	gnd	syc1460_c	-	6-phosphogluconate dehydrogenase
1462	 56.81	0	1583928..1584404	-	158	56751470	mutT	syc1461_c	-	mutator MutT protein
1463	 54.48	0	1584757..1585683	-	308	56751471	-	syc1462_c	-	hypothetical protein
1464	 48.37	-1	1585761..1586525	+	254	56751472	-	syc1463_d	-	hypothetical protein
1465	 38.14	-2	1587377..1587709	+	110	56751473	-	syc1464_d	-	hypothetical protein
1466	 43.22	-2	1587681..1588034	+	117	56751474	-	syc1465_d	-	hypothetical protein
1467	 54.98	0	1588145..1589419	-	424	56751475	bioA	syc1466_c	-	N-acetylornithine aminotransferase
1468	 57.66	0	1589412..1590044	-	210	56751476	bioD	syc1467_c	-	dethiobiotin synthase
1469	 57.79	0	1590050..1590871	-	273	56751477	-	syc1468_c	-	hypothetical protein
1470	 59.48	0	1590868..1591521	-	217	56751478	-	syc1469_c	-	hypothetical protein
1471	 59.64	0	1591533..1592699	-	388	56751479	bioF	syc1470_c	-	7-keto-8-aminopelargonic acid synthetase
1472	 58.69	0	1592824..1593801	+	325	56751480	-	syc1471_d	-	hypothetical protein
1473	 60.31	+1	1593761..1595161	-	466	56751481	-	syc1472_c	-	hypothetical protein
1474	 58.44	0	1595512..1596702	+	396	56751482	-	syc1473_d	-	hypothetical protein
1475	 56.43	0	1596762..1597826	+	354	56751483	-	syc1474_d	-	H+/Ca2+ exchanger
1476	 58.13	0	1597798..1599003	+	401	56751484	-	syc1475_d	-	hypothetical protein
1477	 54.39	0	1599009..1599749	+	246	56751485	cobK	syc1476_d	-	cobalt-precorrin-6x reductase
1478	 59.04	0	1599791..1600393	-	200	56751486	-	syc1477_c	-	hypothetical protein
1479	 57.36	0	1600394..1602295	-	633	56751487	sir	syc1478_c	-	sulfite reductase subunit beta
1480	 58.44	0	1602491..1604677	+	728	56751488	glyS	syc1479_d	-	glycyl-tRNA synthetase subunit beta
1481	 56.21	0	1604690..1605253	+	187	56751489	eda	syc1480_d	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
1482	 49.23	-1	1605279..1605863	-	194	56751490	-	syc1481_c	-	hypothetical protein
1483	 54.61	0	1606635..1607306	+	223	56751491	-	syc1482_d	-	putative hydroxylase
1484	 45.22	-2	1607472..1607816	+	114	56751492	-	syc1483_d	-	hypothetical protein
1485	 52.54	0	1607855..1608562	-	235	56751493	-	syc1484_c	-	hypothetical protein
1486	 55.86	0	1608919..1609242	+	107	56751494	rpsF	syc1485_d	-	30S ribosomal protein S6
1487	 54.47	0	1609394..1609885	+	163	56751495	-	syc1486_d	-	hypothetical protein
1488	 58.05	0	1610005..1610631	+	208	56751496	-	syc1487_d	-	hypothetical protein
1489	 56.69	0	1610717..1611919	-	400	56751497	argG	syc1488_c	-	argininosuccinate synthase
55.98	MEAN

4.05	STD DEV
