IslandPath Analysis: Synechococcus elongatus PCC 6301

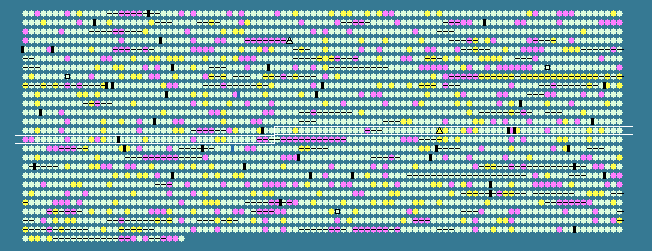

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1343	 54.76	0	1455916..1456335	-	139	56751351	-	syc1342_c	-	hypothetical protein
1344	 55.07	0	1456373..1457122	-	249	56751352	-	syc1343_c	-	hypothetical protein
1345	 56.13	0	1457128..1457478	-	116	56751353	-	syc1344_c	-	hypothetical protein
1346	 59.85	0	1457577..1458119	-	180	56751354	-	syc1345_c	-	hypothetical protein
1347	 56.41	0	1458222..1459157	-	311	56751355	era	syc1346_c	-	GTP-binding protein Era
1348	 57.01	0	1459251..1459685	+	144	56751356	-	syc1347_d	-	hypothetical protein
1349	 57.23	0	1459712..1460887	+	391	56751357	moeB	syc1348_d	-	hypothetical protein
1350	 57.80	0	1461323..1461841	+	172	56751358	-	syc1349_d	-	hypothetical protein
1351	 58.09	0	1462042..1463673	+	543	56751359	-	syc1350_d	-	phosphoglucomutase
1352	 59.22	0	1463926..1464543	-	205	56751360	-	syc1351_c	-	fibrillin
1353	 54.96	0	1464576..1464857	+	93	56751361	-	syc1352_d	-	hypothetical protein
1354	 58.54	0	1464863..1465969	+	368	56751362	mraY	syc1353_d	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
1355	 56.13	0	1465966..1468356	-	796	56751363	-	syc1354_c	-	two-component response regulator
1356	 56.91	0	1469148..1470131	+	327	56751364	-	syc1355_d	-	alphaalpha-trehalose-phosphate synthase
1357	 54.66	0	1470139..1470696	+	185	56751365	-	syc1356_d	-	ADA regulatory protein
1358	 51.59	-1	1470693..1472237	-	514	56751366	-	syc1357_c	-	hypothetical protein
1359	 53.45	0	1472392..1472724	+	110	56751367	-	syc1358_d	-	hypothetical protein
1360	 56.23	0	1473028..1473669	-	213	56751368	-	syc1359_c	-	hypothetical protein
1361	 58.64	0	1473842..1474165	+	107	56751369	-	syc1360_d	-	hypothetical protein
1362	 58.50	0	1474162..1474614	-	150	56751370	-	syc1361_c	-	hypothetical protein
1363	 56.27	0	1474899..1475879	+	326	56751371	pdhB	syc1362_d	-	pyruvate dehydrogenase E1 component beta subunit
1364	 58.57	0	1475916..1477310	+	464	56751372	secD	syc1363_d	-	preprotein translocase subunit SecD
1365	 55.56	0	1477320..1478264	+	314	56751373	secF	syc1364_d	-	preprotein translocase subunit SecF
1366	 57.14	0	1478251..1478649	+	132	56751374	-	syc1365_d	-	hypothetical protein
1367	 57.86	0	1478776..1480614	-	612	56751375	ilvB	syc1366_c	-	acetolactate synthase 3 catalytic subunit
1368	 58.37	0	1480864..1481466	-	200	56751376	-	syc1367_c	-	peptidase
1369	 57.90	0	1481604..1482767	-	387	56751377	hemH	syc1368_c	-	ferrochelatase
1370	 59.48	0	1482869..1484176	+	435	56751378	-	syc1369_d	-	phage integrase
1371	 59.75	0	1484231..1484866	+	211	56751379	rapQ	syc1370_d	-	methyltransferase
1372	 57.87	0	1484830..1486023	-	397	56751380	-	syc1371_c	-	hypothetical protein
1373	 58.10	0	1486128..1486967	-	279	56751381	-	syc1372_c	-	hypothetical protein
1374	 61.24	+1	1487112..1488161	+	349	56751382	-	syc1373_d	-	hypothetical protein
1375	 48.37	-1	1488387..1491212	+	941	56751383	-	syc1374_d	-	hypothetical protein
1376	 60.65	+1	1492005..1492436	-	143	56751384	-	syc1375_c	-	hypothetical protein
1377	 59.05	0	1492433..1493731	-	432	56751385	-	syc1376_c	-	hypothetical protein
1378	 56.05	0	1493824..1494492	-	222	56751386	ntcA	syc1377_c	-	2-oxoglutarate-dependent transcriptional activator
1379	 57.92	0	1494724..1495500	+	258	56751387	fabI	syc1378_d	-	enoyl-(acyl carrier protein) reductase
1380	 57.62	0	1495515..1496144	+	209	56751388	hisB	syc1379_d	-	imidazoleglycerol-phosphate dehydratase
1381	 58.50	0	1496213..1496812	+	199	56751389	-	syc1380_d	-	thiol methyltransferase 1
1382	 41.83	-2	1497474..1499051	+	525	56751390	-	syc1381_d	-	hypothetical protein
1383	 61.53	+1	1499643..1500869	+	408	56751391	-	syc1382_d	-	hypothetical protein
1384	 55.56	0	1500889..1501374	+	161	56751392	-	syc1383_d	-	hypothetical protein
1385	 59.32	0	1501590..1502147	+	185	56751393	-	syc1384_d	-	hypothetical protein
1386	 54.62	0	1502089..1502445	-	118	56751394	-	syc1385_c	-	hypothetical protein
1387	 56.77	0	1502455..1503939	-	494	56751395	gatB	syc1386_c	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
1388	 37.24	-2	1504160..1505491	-	443	56751396	-	syc1387_c	-	thiol methyltransferase 1
1389	 56.72	0	1505609..1506583	-	324	56751397	cscK	syc1388_c	-	fructokinase
1390	 54.84	0	1506736..1507251	+	171	56751398	-	syc1389_d	-	hypothetical protein
1391	 55.11	0	1507184..1507555	-	123	56751399	-	syc1390_c	-	hypothetical protein
1392	 54.84	0	1507594..1507686	-	30	56751400	petL	syc1391_c	-	cytochrome b6-f complex subunit PetL
1393	 58.63	0	1507742..1509196	-	484	56751401	phrA	syc1392_c	-	DNA photolyase
1394	 57.21	0	1509275..1510870	-	531	56751402	dnaK	syc1393_c	-	heat shock protein DnaK
1395	 59.86	0	1510935..1511492	-	185	56751403	-	syc1394_c	-	hypothetical protein
1396	 54.28	0	1511499..1512047	-	182	56751404	-	syc1395_c	-	DNA-binding stress protein
1397	 60.54	+1	1512066..1512326	-	86	56751405	-	syc1396_c	-	hypothetical protein
1398	 58.21	0	1512499..1513917	+	472	56751406	-	syc1397_d	-	hypothetical protein
1399	 56.99	0	1513930..1514508	+	192	56751407	nadD	syc1398_d	-	nicotinic acid mononucleotide adenylyltransferase
1400	 52.99	0	1514505..1516229	+	574	56751408	nadE	syc1399_d	-	NAD synthetase
1401	 51.39	-1	1516426..1517250	+	274	56751409	-	syc1400_d	-	hypothetical protein
1402	 50.53	-1	1517237..1517614	+	125	56751410	-	syc1401_d	-	hypothetical protein
1403	 52.66	0	1517645..1518208	-	187	56751411	-	syc1402_c	-	hypothetical protein
1404	 56.93	0	1518289..1519623	-	444	56751412	ndbA	syc1403_c	-	type 2 NADH dehydrogenase
1405	 56.86	0	1519794..1520354	+	186	56751413	-	syc1404_d	-	hypothetical protein
1406	 59.39	0	1520351..1520680	-	109	56751414	-	syc1405_c	-	hypothetical protein
1407	 57.98	0	1520796..1522580	+	594	56751415	pyk	syc1406_d	-	pyruvate kinase
1408	 52.37	0	1522716..1526507	+	1263	56751416	cobN	syc1407_d	-	cobaltochelatase
1409	 53.26	0	1526597..1527118	+	173	56751417	-	syc1408_d	-	hypothetical protein
1410	 57.47	0	1527543..1528292	+	249	56751418	rpaA	syc1409_d	-	two-component response regulator for energy transfer from phycobilisomes to photosystems
1411	 58.25	0	1528271..1529209	-	312	56751419	holB	syc1410_c	-	DNA polymerase III subunit delta'
1412	 62.17	+1	1529206..1529739	-	177	56751420	tmk	syc1411_c	-	thymidylate kinase
1413	 48.56	-1	1529952..1530299	+	115	56751421	-	syc1412_d	-	hypothetical protein
1414	 60.78	+1	1530556..1531167	+	203	56751422	ycf21	syc1413_d	-	hypothetical protein
1415	 56.30	0	1531164..1532147	-	327	56751423	-	syc1414_c	-	transcription factor
1416	 57.41	0	1532267..1533001	+	244	56751424	clcD	syc1415_d	-	carboxymethylenebutenolidase
1417	 57.95	0	1533613..1534335	-	240	56751425	-	syc1416_c	-	hypothetical protein
1418	 57.61	0	1534407..1535918	+	503	56751426	-	syc1417_d	-	hypothetical protein
1419	 55.97	0	1535927..1538011	+	694	56751427	glgX	syc1418_d	-	glycogen operon protein GlgX-like protein
1420	 53.15	0	1538054..1538704	+	216	56751428	-	syc1419_d	-	hypothetical protein
1421	 60.09	+1	1538965..1539603	-	212	56751429	-	syc1420_c	-	hypothetical protein
1422	 58.08	0	1539663..1539860	-	65	56751430	-	syc1421_c	-	hypothetical protein
1423	 56.96	0	1539870..1541651	-	593	56751431	mdlB	syc1422_c	-	ATP-binding protein of ABC transporter
1424	 57.14	0	1541687..1541896	+	69	56751432	-	syc1423_d	-	hypothetical protein
1425	 58.74	0	1542012..1543235	+	407	56751433	-	syc1424_d	-	ABC transporter permease
1426	 57.72	0	1543299..1543745	+	148	56751434	ycf41	syc1425_d	-	hypothetical protein
1427	 57.11	0	1543820..1544269	+	149	56751435	-	syc1426_d	-	hypothetical protein
1428	 53.77	0	1544266..1544955	-	229	56751436	-	syc1427_c	-	hypothetical protein
1429	 51.44	-1	1545031..1545792	-	253	56751437	-	syc1428_c	-	hypothetical protein
1430	 59.06	0	1545795..1547108	-	437	56751438	pepP	syc1429_c	-	aminopeptidase P
1431	 56.13	0	1547170..1547577	+	135	56751439	-	syc1430_d	-	hypothetical protein
1432	 56.14	0	1547687..1548883	+	398	56751440	lytB	syc1431_d	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
1433	 59.48	0	1548923..1549576	+	217	56751441	-	syc1432_d	-	hypothetical protein
1434	 59.58	0	1549744..1550943	+	399	56751442	degT	syc1433_d	-	pleiotropic regulatory protein
1435	 59.18	0	1550945..1551505	+	186	56751443	-	syc1434_d	-	hypothetical protein
1436	 58.91	0	1551939..1552892	+	317	56751444	-	syc1435_d	-	ATP-binding protein of ABC transporter
1437	 58.02	0	1552897..1553706	+	269	56751445	-	syc1436_d	-	ABC-2 type transport system permease protein
1438	 59.08	0	1553711..1555225	+	504	56751446	-	syc1437_d	-	hypothetical protein
1439	 53.15	0	1555342..1555896	+	184	56751447	infC	syc1438_d	-	translation initiation factor IF-3
1440	 52.38	0	1556177..1556617	+	146	56751448	-	syc1439_d	-	hypothetical protein
1441	 43.93	-2	1557641..1558414	+	257	56751449	rfbF	syc1440_d	-	glucose-1-phosphate cytidylyltransferase
1442	 54.11	0	1558411..1559517	+	368	56751450	rfbG	syc1441_d	-	CDP-glucose 4,6-dehydratase
55.98	MEAN

4.05	STD DEV
