IslandPathversion 1.0

IslandPath Analysis: Synechococcus elongatus PCC 6301

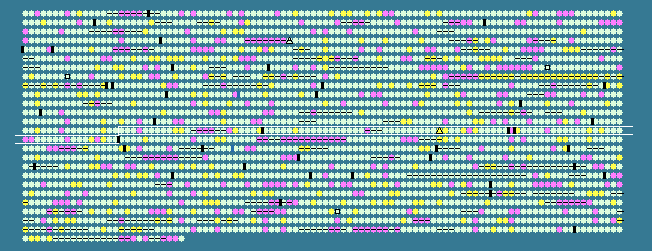

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1317	 56.41	0	1424825..1425253	-	142	56751325	-	syc1316_c	-	hypothetical protein
1318	 57.27	0	1425334..1428228	+	964	56751326	polA	syc1317_d	-	DNA polymerase I
1319	 56.44	0	1428412..1428636	+	74	56751327	-	syc1318_d	-	hypothetical protein
1320	 46.75	-2	1428697..1429173	+	158	56751328	ycf60	syc1319_d	-	hypothetical protein
1321	 58.83	0	1429263..1430411	-	382	56751329	-	syc1320_c	-	soluble hydrogenase 42 kD subunit DHSS
1322	 57.42	0	1430486..1431610	+	374	56751330	cbiD	syc1321_d	-	cobalt-precorrin-6A synthase
1323	 55.70	0	1431748..1433352	+	534	56751331	guaA	syc1322_d	-	bifunctional GMP synthase/glutamine amidotransferase protein
1324	 56.99	0	1433465..1435201	-	578	56751332	-	syc1323_c	-	hypothetical protein
1325	 54.79	0	1435422..1436465	+	347	56751333	-	syc1324_d	-	hypothetical protein
1326	 59.89	0	1436737..1438344	-	535	56751334	ggt	syc1325_c	-	gamma-glutamyltranspeptidase
1327	 60.71	+1	1438328..1439419	-	363	56751335	pit	syc1326_c	-	inorganic phosphate transporter
1328	 56.67	0	1439416..1439805	-	129	56751336	-	syc1327_c	-	hypothetical protein
1329	 55.51	0	1440002..1440727	+	241	56751337	-	syc1328_d	-	hypothetical protein
1330	 35.66	-2	1441091..1442464	+	457	56751338	-	syc1329_d	-	putative excinuclease ATPase subunit
1331	 35.28	-2	1442461..1443333	+	290	56751339	-	syc1330_d	-	hypothetical protein
1332	 49.14	-1	1443788..1444135	-	115	56751340	-	syc1331_c	-	protein secretion chaperonin CsaA
1333	 56.86	0	1444268..1445389	+	373	56751341	-	syc1332_d	-	ABC transporter ATP-binding protein
1334	 56.91	0	1445386..1446174	+	262	56751342	-	syc1333_d	-	hypothetical protein
1335	 51.74	-1	1446171..1446572	-	133	56751343	-	syc1334_c	-	hypothetical protein
1336	 60.75	+1	1446894..1447772	-	292	56751344	-	syc1335_c	-	tetrapyrrole methylase family protein
1337	 59.08	0	1447812..1448681	+	289	56751345	cysQ	syc1336_d	-	ammonium transport protein
1338	 57.02	0	1448968..1450086	-	372	56751346	cysM	syc1337_c	-	cysteine synthase A
1339	 55.52	0	1450536..1452707	-	723	56751347	glnN	syc1338_c	-	glutamine synthetase type III
1340	 61.76	+1	1453135..1453827	-	230	56751348	-	syc1339_c	-	hypothetical protein
1341	 58.39	0	1454447..1455400	-	317	56751349	-	syc1340_c	-	hypothetical protein
1342	 58.88	0	1455397..1455897	-	166	56751350	ycf36	syc1341_c	-	hypothetical protein
1343	 54.76	0	1455916..1456335	-	139	56751351	-	syc1342_c	-	hypothetical protein
1344	 55.07	0	1456373..1457122	-	249	56751352	-	syc1343_c	-	hypothetical protein
1345	 56.13	0	1457128..1457478	-	116	56751353	-	syc1344_c	-	hypothetical protein
1346	 59.85	0	1457577..1458119	-	180	56751354	-	syc1345_c	-	hypothetical protein
1347	 56.41	0	1458222..1459157	-	311	56751355	era	syc1346_c	-	GTP-binding protein Era
1348	 57.01	0	1459251..1459685	+	144	56751356	-	syc1347_d	-	hypothetical protein
1349	 57.23	0	1459712..1460887	+	391	56751357	moeB	syc1348_d	-	hypothetical protein
1350	 57.80	0	1461323..1461841	+	172	56751358	-	syc1349_d	-	hypothetical protein
1351	 58.09	0	1462042..1463673	+	543	56751359	-	syc1350_d	-	phosphoglucomutase
1352	 59.22	0	1463926..1464543	-	205	56751360	-	syc1351_c	-	fibrillin
1353	 54.96	0	1464576..1464857	+	93	56751361	-	syc1352_d	-	hypothetical protein
1354	 58.54	0	1464863..1465969	+	368	56751362	mraY	syc1353_d	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
1355	 56.13	0	1465966..1468356	-	796	56751363	-	syc1354_c	-	two-component response regulator
1356	 56.91	0	1469148..1470131	+	327	56751364	-	syc1355_d	-	alphaalpha-trehalose-phosphate synthase
1357	 54.66	0	1470139..1470696	+	185	56751365	-	syc1356_d	-	ADA regulatory protein
1358	 51.59	-1	1470693..1472237	-	514	56751366	-	syc1357_c	-	hypothetical protein
1359	 53.45	0	1472392..1472724	+	110	56751367	-	syc1358_d	-	hypothetical protein
1360	 56.23	0	1473028..1473669	-	213	56751368	-	syc1359_c	-	hypothetical protein
1361	 58.64	0	1473842..1474165	+	107	56751369	-	syc1360_d	-	hypothetical protein
1362	 58.50	0	1474162..1474614	-	150	56751370	-	syc1361_c	-	hypothetical protein
1363	 56.27	0	1474899..1475879	+	326	56751371	pdhB	syc1362_d	-	pyruvate dehydrogenase E1 component beta subunit
1364	 58.57	0	1475916..1477310	+	464	56751372	secD	syc1363_d	-	preprotein translocase subunit SecD
1365	 55.56	0	1477320..1478264	+	314	56751373	secF	syc1364_d	-	preprotein translocase subunit SecF
1366	 57.14	0	1478251..1478649	+	132	56751374	-	syc1365_d	-	hypothetical protein
1367	 57.86	0	1478776..1480614	-	612	56751375	ilvB	syc1366_c	-	acetolactate synthase 3 catalytic subunit
1368	 58.37	0	1480864..1481466	-	200	56751376	-	syc1367_c	-	peptidase
1369	 57.90	0	1481604..1482767	-	387	56751377	hemH	syc1368_c	-	ferrochelatase
1370	 59.48	0	1482869..1484176	+	435	56751378	-	syc1369_d	-	phage integrase
1371	 59.75	0	1484231..1484866	+	211	56751379	rapQ	syc1370_d	-	methyltransferase
1372	 57.87	0	1484830..1486023	-	397	56751380	-	syc1371_c	-	hypothetical protein
1373	 58.10	0	1486128..1486967	-	279	56751381	-	syc1372_c	-	hypothetical protein
1374	 61.24	+1	1487112..1488161	+	349	56751382	-	syc1373_d	-	hypothetical protein
1375	 48.37	-1	1488387..1491212	+	941	56751383	-	syc1374_d	-	hypothetical protein
1376	 60.65	+1	1492005..1492436	-	143	56751384	-	syc1375_c	-	hypothetical protein
1377	 59.05	0	1492433..1493731	-	432	56751385	-	syc1376_c	-	hypothetical protein
1378	 56.05	0	1493824..1494492	-	222	56751386	ntcA	syc1377_c	-	2-oxoglutarate-dependent transcriptional activator
1379	 57.92	0	1494724..1495500	+	258	56751387	fabI	syc1378_d	-	enoyl-(acyl carrier protein) reductase
1380	 57.62	0	1495515..1496144	+	209	56751388	hisB	syc1379_d	-	imidazoleglycerol-phosphate dehydratase
1381	 58.50	0	1496213..1496812	+	199	56751389	-	syc1380_d	-	thiol methyltransferase 1
1382	 41.83	-2	1497474..1499051	+	525	56751390	-	syc1381_d	-	hypothetical protein
1383	 61.53	+1	1499643..1500869	+	408	56751391	-	syc1382_d	-	hypothetical protein
1384	 55.56	0	1500889..1501374	+	161	56751392	-	syc1383_d	-	hypothetical protein
1385	 59.32	0	1501590..1502147	+	185	56751393	-	syc1384_d	-	hypothetical protein
1386	 54.62	0	1502089..1502445	-	118	56751394	-	syc1385_c	-	hypothetical protein
1387	 56.77	0	1502455..1503939	-	494	56751395	gatB	syc1386_c	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
1388	 37.24	-2	1504160..1505491	-	443	56751396	-	syc1387_c	-	thiol methyltransferase 1
1389	 56.72	0	1505609..1506583	-	324	56751397	cscK	syc1388_c	-	fructokinase
1390	 54.84	0	1506736..1507251	+	171	56751398	-	syc1389_d	-	hypothetical protein
1391	 55.11	0	1507184..1507555	-	123	56751399	-	syc1390_c	-	hypothetical protein
1392	 54.84	0	1507594..1507686	-	30	56751400	petL	syc1391_c	-	cytochrome b6-f complex subunit PetL
1393	 58.63	0	1507742..1509196	-	484	56751401	phrA	syc1392_c	-	DNA photolyase
1394	 57.21	0	1509275..1510870	-	531	56751402	dnaK	syc1393_c	-	heat shock protein DnaK
1395	 59.86	0	1510935..1511492	-	185	56751403	-	syc1394_c	-	hypothetical protein
1396	 54.28	0	1511499..1512047	-	182	56751404	-	syc1395_c	-	DNA-binding stress protein
1397	 60.54	+1	1512066..1512326	-	86	56751405	-	syc1396_c	-	hypothetical protein
1398	 58.21	0	1512499..1513917	+	472	56751406	-	syc1397_d	-	hypothetical protein
1399	 56.99	0	1513930..1514508	+	192	56751407	nadD	syc1398_d	-	nicotinic acid mononucleotide adenylyltransferase
1400	 52.99	0	1514505..1516229	+	574	56751408	nadE	syc1399_d	-	NAD synthetase
1401	 51.39	-1	1516426..1517250	+	274	56751409	-	syc1400_d	-	hypothetical protein
1402	 50.53	-1	1517237..1517614	+	125	56751410	-	syc1401_d	-	hypothetical protein
1403	 52.66	0	1517645..1518208	-	187	56751411	-	syc1402_c	-	hypothetical protein
1404	 56.93	0	1518289..1519623	-	444	56751412	ndbA	syc1403_c	-	type 2 NADH dehydrogenase
1405	 56.86	0	1519794..1520354	+	186	56751413	-	syc1404_d	-	hypothetical protein
1406	 59.39	0	1520351..1520680	-	109	56751414	-	syc1405_c	-	hypothetical protein
1407	 57.98	0	1520796..1522580	+	594	56751415	pyk	syc1406_d	-	pyruvate kinase
1408	 52.37	0	1522716..1526507	+	1263	56751416	cobN	syc1407_d	-	cobaltochelatase
1409	 53.26	0	1526597..1527118	+	173	56751417	-	syc1408_d	-	hypothetical protein
1410	 57.47	0	1527543..1528292	+	249	56751418	rpaA	syc1409_d	-	two-component response regulator for energy transfer from phycobilisomes to photosystems
1411	 58.25	0	1528271..1529209	-	312	56751419	holB	syc1410_c	-	DNA polymerase III subunit delta'
1412	 62.17	+1	1529206..1529739	-	177	56751420	tmk	syc1411_c	-	thymidylate kinase
1413	 48.56	-1	1529952..1530299	+	115	56751421	-	syc1412_d	-	hypothetical protein
1414	 60.78	+1	1530556..1531167	+	203	56751422	ycf21	syc1413_d	-	hypothetical protein
1415	 56.30	0	1531164..1532147	-	327	56751423	-	syc1414_c	-	transcription factor
1416	 57.41	0	1532267..1533001	+	244	56751424	clcD	syc1415_d	-	carboxymethylenebutenolidase
55.98	MEAN

4.05	STD DEV
