IslandPathversion 1.0

IslandPath Analysis: Synechococcus elongatus PCC 6301

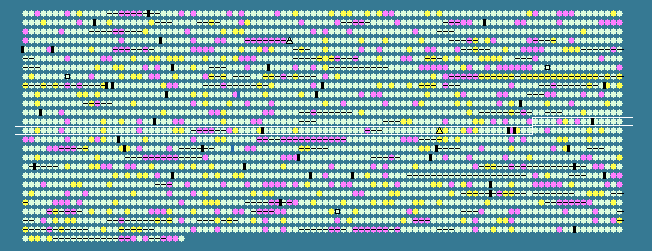

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1286	 55.56	0	1395341..1395601	-	86	56751294	-	syc1285_c	-	hypothetical protein
1287	 58.53	0	1395630..1396256	-	208	56751295	pth	syc1286_c	-	peptidyl-tRNA hydrolase
1288	 54.71	0	1396253..1396528	-	91	56751296	-	syc1287_c	-	hypothetical protein
1289	 55.39	0	1396622..1396825	-	67	56751297	psbH	syc1288_c	-	photosystem II reaction center protein H
1290	 49.65	-1	1396924..1397064	+	46	56751298	psbN	syc1289_d	-	photosystem II reaction center protein N
1291	 60.90	+1	1397487..1398353	-	288	56751299	-	syc1290_c	-	hypothetical protein
1292	 59.15	0	1398350..1399387	-	345	56751300	glk	syc1291_c	-	glucokinase
1293	 52.31	0	1399488..1400246	+	252	56751301	minD	syc1292_d	-	cell division inhibitor minD
1294	 59.19	0	1400249..1400569	+	106	56751302	-	syc1293_d	-	hypothetical protein
1295	 52.98	0	1400694..1400861	+	55	56751303	-	syc1294_d	-	hypothetical protein
1296	 56.60	0	1401014..1401778	-	254	56751304	-	syc1295_c	-	hypothetical protein
1297	 58.41	0	1401921..1402937	+	338	56751305	-	syc1296_d	-	putative zinc-binding oxidoreductase
1298	 56.15	0	1403072..1403461	+	129	56751306	-	syc1297_d	-	hypothetical protein
1299	 59.36	0	1403453..1404424	-	323	56751307	-	syc1298_c	-	hypothetical protein
1300	 54.21	0	1404696..1405241	+	181	56751308	-	syc1299_d	-	hypothetical protein
1301	 58.40	0	1405325..1406413	-	362	56751309	aroC	syc1300_c	-	chorismate synthase
1302	 59.01	0	1406500..1407975	-	491	56751310	cobQ	syc1301_c	-	cobyric acid synthase
1303	 60.78	+1	1407987..1408394	-	135	56751311	-	syc1302_c	-	hypothetical protein
1304	 57.89	0	1408434..1409060	+	208	56751312	maf	syc1303_d	-	Maf-like protein
1305	 58.19	0	1409057..1411828	-	923	56751313	-	syc1304_c	-	hypothetical protein
1306	 53.78	0	1412134..1413522	-	462	56751314	-	syc1305_c	-	putative nicotinate phosphoribosyltransferase
1307	 49.75	-1	1413670..1414686	-	338	56751315	-	syc1306_c	-	bifunctional nicotinamide mononucleotide adenylyltransferase/ADP-ribose pyrophosphatase
1308	 58.49	0	1414838..1415302	+	154	56751316	-	syc1307_d	-	hypothetical protein
1309	 58.36	0	1415295..1416401	+	368	56751317	ribD	syc1308_d	-	riboflavin biosynthesis protein RibD
1310	 57.88	0	1416926..1418245	+	439	56751318	ccoN	syc1309_d	-	cb-type cytochrome c oxidase subunit I
1311	 58.57	0	1418242..1418994	+	250	56751319	-	syc1310_d	-	hypothetical protein
1312	 57.17	0	1419058..1419531	+	157	56751320	-	syc1311_d	-	hypothetical protein
1313	 59.44	0	1419531..1420457	+	308	56751321	-	syc1312_d	-	hypothetical protein
1314	 59.50	0	1420454..1421890	+	478	56751322	ndbC	syc1313_d	-	type 2 NADH dehydrogenase
1315	 58.45	0	1422058..1423311	+	417	56751323	-	syc1314_d	-	hypothetical protein
1316	 57.89	0	1423308..1424789	+	493	56751324	-	syc1315_d	-	lignostilbene-alpha beta-dioxygenase
1317	 56.41	0	1424825..1425253	-	142	56751325	-	syc1316_c	-	hypothetical protein
1318	 57.27	0	1425334..1428228	+	964	56751326	polA	syc1317_d	-	DNA polymerase I
1319	 56.44	0	1428412..1428636	+	74	56751327	-	syc1318_d	-	hypothetical protein
1320	 46.75	-2	1428697..1429173	+	158	56751328	ycf60	syc1319_d	-	hypothetical protein
1321	 58.83	0	1429263..1430411	-	382	56751329	-	syc1320_c	-	soluble hydrogenase 42 kD subunit DHSS
1322	 57.42	0	1430486..1431610	+	374	56751330	cbiD	syc1321_d	-	cobalt-precorrin-6A synthase
1323	 55.70	0	1431748..1433352	+	534	56751331	guaA	syc1322_d	-	bifunctional GMP synthase/glutamine amidotransferase protein
1324	 56.99	0	1433465..1435201	-	578	56751332	-	syc1323_c	-	hypothetical protein
1325	 54.79	0	1435422..1436465	+	347	56751333	-	syc1324_d	-	hypothetical protein
1326	 59.89	0	1436737..1438344	-	535	56751334	ggt	syc1325_c	-	gamma-glutamyltranspeptidase
1327	 60.71	+1	1438328..1439419	-	363	56751335	pit	syc1326_c	-	inorganic phosphate transporter
1328	 56.67	0	1439416..1439805	-	129	56751336	-	syc1327_c	-	hypothetical protein
1329	 55.51	0	1440002..1440727	+	241	56751337	-	syc1328_d	-	hypothetical protein
1330	 35.66	-2	1441091..1442464	+	457	56751338	-	syc1329_d	-	putative excinuclease ATPase subunit
1331	 35.28	-2	1442461..1443333	+	290	56751339	-	syc1330_d	-	hypothetical protein
1332	 49.14	-1	1443788..1444135	-	115	56751340	-	syc1331_c	-	protein secretion chaperonin CsaA
1333	 56.86	0	1444268..1445389	+	373	56751341	-	syc1332_d	-	ABC transporter ATP-binding protein
1334	 56.91	0	1445386..1446174	+	262	56751342	-	syc1333_d	-	hypothetical protein
1335	 51.74	-1	1446171..1446572	-	133	56751343	-	syc1334_c	-	hypothetical protein
1336	 60.75	+1	1446894..1447772	-	292	56751344	-	syc1335_c	-	tetrapyrrole methylase family protein
1337	 59.08	0	1447812..1448681	+	289	56751345	cysQ	syc1336_d	-	ammonium transport protein
1338	 57.02	0	1448968..1450086	-	372	56751346	cysM	syc1337_c	-	cysteine synthase A
1339	 55.52	0	1450536..1452707	-	723	56751347	glnN	syc1338_c	-	glutamine synthetase type III
1340	 61.76	+1	1453135..1453827	-	230	56751348	-	syc1339_c	-	hypothetical protein
1341	 58.39	0	1454447..1455400	-	317	56751349	-	syc1340_c	-	hypothetical protein
1342	 58.88	0	1455397..1455897	-	166	56751350	ycf36	syc1341_c	-	hypothetical protein
1343	 54.76	0	1455916..1456335	-	139	56751351	-	syc1342_c	-	hypothetical protein
1344	 55.07	0	1456373..1457122	-	249	56751352	-	syc1343_c	-	hypothetical protein
1345	 56.13	0	1457128..1457478	-	116	56751353	-	syc1344_c	-	hypothetical protein
1346	 59.85	0	1457577..1458119	-	180	56751354	-	syc1345_c	-	hypothetical protein
1347	 56.41	0	1458222..1459157	-	311	56751355	era	syc1346_c	-	GTP-binding protein Era
1348	 57.01	0	1459251..1459685	+	144	56751356	-	syc1347_d	-	hypothetical protein
1349	 57.23	0	1459712..1460887	+	391	56751357	moeB	syc1348_d	-	hypothetical protein
1350	 57.80	0	1461323..1461841	+	172	56751358	-	syc1349_d	-	hypothetical protein
1351	 58.09	0	1462042..1463673	+	543	56751359	-	syc1350_d	-	phosphoglucomutase
1352	 59.22	0	1463926..1464543	-	205	56751360	-	syc1351_c	-	fibrillin
1353	 54.96	0	1464576..1464857	+	93	56751361	-	syc1352_d	-	hypothetical protein
1354	 58.54	0	1464863..1465969	+	368	56751362	mraY	syc1353_d	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
1355	 56.13	0	1465966..1468356	-	796	56751363	-	syc1354_c	-	two-component response regulator
1356	 56.91	0	1469148..1470131	+	327	56751364	-	syc1355_d	-	alphaalpha-trehalose-phosphate synthase
1357	 54.66	0	1470139..1470696	+	185	56751365	-	syc1356_d	-	ADA regulatory protein
1358	 51.59	-1	1470693..1472237	-	514	56751366	-	syc1357_c	-	hypothetical protein
1359	 53.45	0	1472392..1472724	+	110	56751367	-	syc1358_d	-	hypothetical protein
1360	 56.23	0	1473028..1473669	-	213	56751368	-	syc1359_c	-	hypothetical protein
1361	 58.64	0	1473842..1474165	+	107	56751369	-	syc1360_d	-	hypothetical protein
1362	 58.50	0	1474162..1474614	-	150	56751370	-	syc1361_c	-	hypothetical protein
1363	 56.27	0	1474899..1475879	+	326	56751371	pdhB	syc1362_d	-	pyruvate dehydrogenase E1 component beta subunit
1364	 58.57	0	1475916..1477310	+	464	56751372	secD	syc1363_d	-	preprotein translocase subunit SecD
1365	 55.56	0	1477320..1478264	+	314	56751373	secF	syc1364_d	-	preprotein translocase subunit SecF
1366	 57.14	0	1478251..1478649	+	132	56751374	-	syc1365_d	-	hypothetical protein
1367	 57.86	0	1478776..1480614	-	612	56751375	ilvB	syc1366_c	-	acetolactate synthase 3 catalytic subunit
1368	 58.37	0	1480864..1481466	-	200	56751376	-	syc1367_c	-	peptidase
1369	 57.90	0	1481604..1482767	-	387	56751377	hemH	syc1368_c	-	ferrochelatase
1370	 59.48	0	1482869..1484176	+	435	56751378	-	syc1369_d	-	phage integrase
1371	 59.75	0	1484231..1484866	+	211	56751379	rapQ	syc1370_d	-	methyltransferase
1372	 57.87	0	1484830..1486023	-	397	56751380	-	syc1371_c	-	hypothetical protein
1373	 58.10	0	1486128..1486967	-	279	56751381	-	syc1372_c	-	hypothetical protein
1374	 61.24	+1	1487112..1488161	+	349	56751382	-	syc1373_d	-	hypothetical protein
1375	 48.37	-1	1488387..1491212	+	941	56751383	-	syc1374_d	-	hypothetical protein
1376	 60.65	+1	1492005..1492436	-	143	56751384	-	syc1375_c	-	hypothetical protein
1377	 59.05	0	1492433..1493731	-	432	56751385	-	syc1376_c	-	hypothetical protein
1378	 56.05	0	1493824..1494492	-	222	56751386	ntcA	syc1377_c	-	2-oxoglutarate-dependent transcriptional activator
1379	 57.92	0	1494724..1495500	+	258	56751387	fabI	syc1378_d	-	enoyl-(acyl carrier protein) reductase
1380	 57.62	0	1495515..1496144	+	209	56751388	hisB	syc1379_d	-	imidazoleglycerol-phosphate dehydratase
1381	 58.50	0	1496213..1496812	+	199	56751389	-	syc1380_d	-	thiol methyltransferase 1
1382	 41.83	-2	1497474..1499051	+	525	56751390	-	syc1381_d	-	hypothetical protein
1383	 61.53	+1	1499643..1500869	+	408	56751391	-	syc1382_d	-	hypothetical protein
1384	 55.56	0	1500889..1501374	+	161	56751392	-	syc1383_d	-	hypothetical protein
1385	 59.32	0	1501590..1502147	+	185	56751393	-	syc1384_d	-	hypothetical protein
55.98	MEAN

4.05	STD DEV
