IslandPath Analysis: Synechococcus elongatus PCC 6301

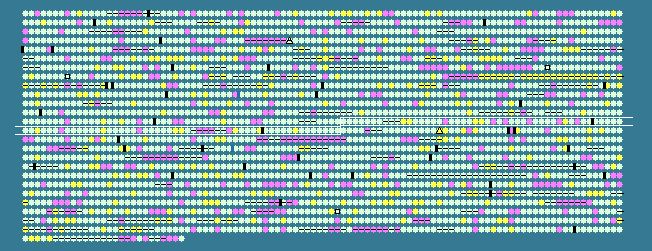

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1254	 56.35	0	1362403..1364922	+	839	56751262	clpC	syc1253_d	-	ATP-dependent Clp protease regulatory subunit ClpC
1255	 53.45	0	1365077..1365409	-	110	56751263	-	syc1254_c	-	hypothetical protein
1256	 52.61	0	1365549..1365989	-	146	56751264	-	syc1255_c	-	hypothetical protein
1257	 55.47	0	1366038..1366787	+	249	56751265	-	syc1256_d	-	hypothetical protein
1258	 55.94	0	1366854..1367981	-	375	56751266	ama	syc1257_c	-	N-acyl-L-amino acid amidohydrolase
1259	 54.06	0	1368041..1369381	+	446	56751267	-	syc1258_d	-	hypothetical protein
1260	 58.58	0	1369455..1372025	-	856	56751268	gyrA	syc1259_c	-	DNA gyrase subunit A
1261	 58.49	0	1372225..1372713	+	162	56751269	-	syc1260_d	-	hypothetical protein
1262	 56.58	0	1372748..1372975	+	75	56751270	cp12	syc1261_d	-	hypothetical protein
1263	 57.85	0	1373004..1373774	-	256	56751271	-	syc1262_c	-	hypothetical protein
1264	 59.83	0	1373778..1374245	-	155	56751272	-	syc1263_c	-	hypothetical protein
1265	 59.67	0	1374248..1375033	-	261	56751273	bgtA	syc1264_c	-	ABC-type permease for basic amino acids and glutamine
1266	 58.44	0	1375052..1376242	-	396	56751274	-	syc1265_c	-	permease protein of amino acid ABC transporter
1267	 58.33	0	1376244..1377383	-	379	56751275	bgtB	syc1266_c	-	ABC-type permease for basic amino acids and glutamine
1268	 55.19	0	1377384..1378463	-	359	56751276	-	syc1267_c	-	polar amino acid transport system substrate-binding proetin
1269	 56.69	0	1378655..1379716	+	353	56751277	gap1	syc1268_d	-	glyceraldehyde 3-phosphate dehydrogenase
1270	 56.73	0	1379728..1382262	+	844	56751278	glgP	syc1269_d	-	glycogen phosphorylase
1271	 52.08	0	1382362..1382505	+	47	56751279	hliC	syc1270_d	-	high light inducible polypeptide HliC
1272	 55.53	0	1382607..1383719	+	370	56751280	-	syc1271_d	-	sodium/calcium exchanger protein
1273	 57.68	0	1384031..1385398	-	455	56751281	-	syc1272_c	-	RNA methyltransferase
1274	 58.13	0	1385543..1386034	+	163	56751282	apcD	syc1273_d	-	allophycocyanin alpha-B chain
1275	 56.39	0	1386195..1386554	+	119	56751283	petJ	syc1274_d	-	cytochrome C6 soluble cytochrome f
1276	 61.34	+1	1386561..1387742	+	393	56751284	-	syc1275_d	-	hypothetical protein
1277	 60.28	+1	1387742..1388320	+	192	56751285	-	syc1276_d	-	hypothetical protein
1278	 53.52	0	1388328..1388867	-	179	56751286	-	syc1277_c	-	hypothetical protein
1279	 51.94	0	1389208..1389723	-	171	56751287	-	syc1278_c	-	hypothetical protein
1280	 57.60	0	1389735..1390727	+	330	56751288	-	syc1279_d	-	hypothetical protein
1281	 46.95	-2	1390831..1391256	+	141	56751289	-	syc1280_d	-	hypothetical protein
1282	 58.57	0	1391600..1392946	+	448	56751290	aroA	syc1281_d	-	3-phosphoshikimate 1-carboxyvinyltransferase
1283	 56.57	0	1392954..1393478	+	174	56751291	-	syc1282_d	-	putative acetyltransferase
1284	 58.26	0	1393576..1394622	+	348	56751292	-	syc1283_d	-	hypothetical protein
1285	 50.26	-1	1394664..1395236	-	190	56751293	-	syc1284_c	-	hypothetical protein
1286	 55.56	0	1395341..1395601	-	86	56751294	-	syc1285_c	-	hypothetical protein
1287	 58.53	0	1395630..1396256	-	208	56751295	pth	syc1286_c	-	peptidyl-tRNA hydrolase
1288	 54.71	0	1396253..1396528	-	91	56751296	-	syc1287_c	-	hypothetical protein
1289	 55.39	0	1396622..1396825	-	67	56751297	psbH	syc1288_c	-	photosystem II reaction center protein H
1290	 49.65	-1	1396924..1397064	+	46	56751298	psbN	syc1289_d	-	photosystem II reaction center protein N
1291	 60.90	+1	1397487..1398353	-	288	56751299	-	syc1290_c	-	hypothetical protein
1292	 59.15	0	1398350..1399387	-	345	56751300	glk	syc1291_c	-	glucokinase
1293	 52.31	0	1399488..1400246	+	252	56751301	minD	syc1292_d	-	cell division inhibitor minD
1294	 59.19	0	1400249..1400569	+	106	56751302	-	syc1293_d	-	hypothetical protein
1295	 52.98	0	1400694..1400861	+	55	56751303	-	syc1294_d	-	hypothetical protein
1296	 56.60	0	1401014..1401778	-	254	56751304	-	syc1295_c	-	hypothetical protein
1297	 58.41	0	1401921..1402937	+	338	56751305	-	syc1296_d	-	putative zinc-binding oxidoreductase
1298	 56.15	0	1403072..1403461	+	129	56751306	-	syc1297_d	-	hypothetical protein
1299	 59.36	0	1403453..1404424	-	323	56751307	-	syc1298_c	-	hypothetical protein
1300	 54.21	0	1404696..1405241	+	181	56751308	-	syc1299_d	-	hypothetical protein
1301	 58.40	0	1405325..1406413	-	362	56751309	aroC	syc1300_c	-	chorismate synthase
1302	 59.01	0	1406500..1407975	-	491	56751310	cobQ	syc1301_c	-	cobyric acid synthase
1303	 60.78	+1	1407987..1408394	-	135	56751311	-	syc1302_c	-	hypothetical protein
1304	 57.89	0	1408434..1409060	+	208	56751312	maf	syc1303_d	-	Maf-like protein
1305	 58.19	0	1409057..1411828	-	923	56751313	-	syc1304_c	-	hypothetical protein
1306	 53.78	0	1412134..1413522	-	462	56751314	-	syc1305_c	-	putative nicotinate phosphoribosyltransferase
1307	 49.75	-1	1413670..1414686	-	338	56751315	-	syc1306_c	-	bifunctional nicotinamide mononucleotide adenylyltransferase/ADP-ribose pyrophosphatase
1308	 58.49	0	1414838..1415302	+	154	56751316	-	syc1307_d	-	hypothetical protein
1309	 58.36	0	1415295..1416401	+	368	56751317	ribD	syc1308_d	-	riboflavin biosynthesis protein RibD
1310	 57.88	0	1416926..1418245	+	439	56751318	ccoN	syc1309_d	-	cb-type cytochrome c oxidase subunit I
1311	 58.57	0	1418242..1418994	+	250	56751319	-	syc1310_d	-	hypothetical protein
1312	 57.17	0	1419058..1419531	+	157	56751320	-	syc1311_d	-	hypothetical protein
1313	 59.44	0	1419531..1420457	+	308	56751321	-	syc1312_d	-	hypothetical protein
1314	 59.50	0	1420454..1421890	+	478	56751322	ndbC	syc1313_d	-	type 2 NADH dehydrogenase
1315	 58.45	0	1422058..1423311	+	417	56751323	-	syc1314_d	-	hypothetical protein
1316	 57.89	0	1423308..1424789	+	493	56751324	-	syc1315_d	-	lignostilbene-alpha beta-dioxygenase
1317	 56.41	0	1424825..1425253	-	142	56751325	-	syc1316_c	-	hypothetical protein
1318	 57.27	0	1425334..1428228	+	964	56751326	polA	syc1317_d	-	DNA polymerase I
1319	 56.44	0	1428412..1428636	+	74	56751327	-	syc1318_d	-	hypothetical protein
1320	 46.75	-2	1428697..1429173	+	158	56751328	ycf60	syc1319_d	-	hypothetical protein
1321	 58.83	0	1429263..1430411	-	382	56751329	-	syc1320_c	-	soluble hydrogenase 42 kD subunit DHSS
1322	 57.42	0	1430486..1431610	+	374	56751330	cbiD	syc1321_d	-	cobalt-precorrin-6A synthase
1323	 55.70	0	1431748..1433352	+	534	56751331	guaA	syc1322_d	-	bifunctional GMP synthase/glutamine amidotransferase protein
1324	 56.99	0	1433465..1435201	-	578	56751332	-	syc1323_c	-	hypothetical protein
1325	 54.79	0	1435422..1436465	+	347	56751333	-	syc1324_d	-	hypothetical protein
1326	 59.89	0	1436737..1438344	-	535	56751334	ggt	syc1325_c	-	gamma-glutamyltranspeptidase
1327	 60.71	+1	1438328..1439419	-	363	56751335	pit	syc1326_c	-	inorganic phosphate transporter
1328	 56.67	0	1439416..1439805	-	129	56751336	-	syc1327_c	-	hypothetical protein
1329	 55.51	0	1440002..1440727	+	241	56751337	-	syc1328_d	-	hypothetical protein
1330	 35.66	-2	1441091..1442464	+	457	56751338	-	syc1329_d	-	putative excinuclease ATPase subunit
1331	 35.28	-2	1442461..1443333	+	290	56751339	-	syc1330_d	-	hypothetical protein
1332	 49.14	-1	1443788..1444135	-	115	56751340	-	syc1331_c	-	protein secretion chaperonin CsaA
1333	 56.86	0	1444268..1445389	+	373	56751341	-	syc1332_d	-	ABC transporter ATP-binding protein
1334	 56.91	0	1445386..1446174	+	262	56751342	-	syc1333_d	-	hypothetical protein
1335	 51.74	-1	1446171..1446572	-	133	56751343	-	syc1334_c	-	hypothetical protein
1336	 60.75	+1	1446894..1447772	-	292	56751344	-	syc1335_c	-	tetrapyrrole methylase family protein
1337	 59.08	0	1447812..1448681	+	289	56751345	cysQ	syc1336_d	-	ammonium transport protein
1338	 57.02	0	1448968..1450086	-	372	56751346	cysM	syc1337_c	-	cysteine synthase A
1339	 55.52	0	1450536..1452707	-	723	56751347	glnN	syc1338_c	-	glutamine synthetase type III
1340	 61.76	+1	1453135..1453827	-	230	56751348	-	syc1339_c	-	hypothetical protein
1341	 58.39	0	1454447..1455400	-	317	56751349	-	syc1340_c	-	hypothetical protein
1342	 58.88	0	1455397..1455897	-	166	56751350	ycf36	syc1341_c	-	hypothetical protein
1343	 54.76	0	1455916..1456335	-	139	56751351	-	syc1342_c	-	hypothetical protein
1344	 55.07	0	1456373..1457122	-	249	56751352	-	syc1343_c	-	hypothetical protein
1345	 56.13	0	1457128..1457478	-	116	56751353	-	syc1344_c	-	hypothetical protein
1346	 59.85	0	1457577..1458119	-	180	56751354	-	syc1345_c	-	hypothetical protein
1347	 56.41	0	1458222..1459157	-	311	56751355	era	syc1346_c	-	GTP-binding protein Era
1348	 57.01	0	1459251..1459685	+	144	56751356	-	syc1347_d	-	hypothetical protein
1349	 57.23	0	1459712..1460887	+	391	56751357	moeB	syc1348_d	-	hypothetical protein
1350	 57.80	0	1461323..1461841	+	172	56751358	-	syc1349_d	-	hypothetical protein
1351	 58.09	0	1462042..1463673	+	543	56751359	-	syc1350_d	-	phosphoglucomutase
1352	 59.22	0	1463926..1464543	-	205	56751360	-	syc1351_c	-	fibrillin
1353	 54.96	0	1464576..1464857	+	93	56751361	-	syc1352_d	-	hypothetical protein
55.98	MEAN

4.05	STD DEV
