IslandPath Analysis: Synechococcus elongatus PCC 6301

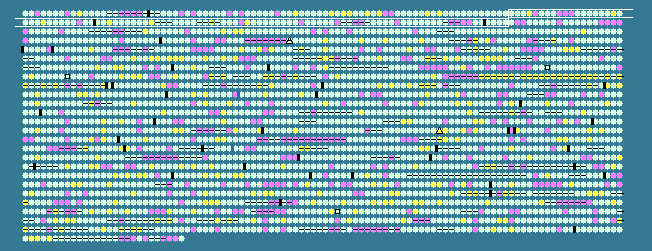

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
82	 53.35	0	94669..95892	-	407	56750092	-	syc0083_c	-	glycosyltransferase
83	 57.56	0	96039..96521	-	160	56750093	-	syc0084_c	-	hypothetical protein
84	 54.68	0	96525..96866	-	113	56750094	-	syc0085_c	-	hypothetical protein
85	 59.83	0	96857..97822	-	321	56750095	-	syc0086_c	-	hypothetical protein
86	 49.44	-1	98222..98941	+	239	56750096	-	syc0087_d	-	hypothetical protein
87	 54.05	0	99041..99682	+	213	56750097	-	syc0088_d	-	hypothetical protein
88	 56.55	0	99903..100238	+	111	56750098	petJ	syc0089_d	-	cytochrome c6
89	 59.44	0	100239..101138	+	299	56750099	-	syc0090_d	-	CytB protein
90	 50.39	-1	101233..101742	+	169	56750100	-	syc0091_d	-	hypothetical protein
91	 49.79	-1	102339..103061	+	240	56750101	-	syc0092_d	-	hypothetical protein
92	 46.11	-2	103083..103622	-	179	56750102	-	syc0093_c	-	hypothetical protein
93	 54.36	0	103793..105433	-	546	56750103	-	syc0094_c	-	porin; major outer membrane protein
94	 56.49	0	105655..106725	+	356	56750104	-	syc0095_d	-	Iron-regulated protein A precursor
95	 58.39	0	107195..108088	+	297	56750105	-	syc0096_d	-	thiol oxidoreductase
96	 56.59	0	108219..108476	+	85	56750106	-	syc0097_d	-	hypothetical protein
97	 58.62	0	108585..109205	+	206	56750107	-	syc0098_d	-	hypothetical protein
98	 58.20	0	109269..109835	+	188	56750108	-	syc0099_d	-	hypothetical protein
99	 61.80	+1	109815..110492	-	225	56750109	plsC	syc0100_c	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
100	 57.71	0	110461..111342	-	293	56750110	-	syc0101_c	-	acyl-carrier-protein S-malonyltransferase
101	 57.14	0	111396..112403	-	335	56750111	fabH	syc0102_c	-	3-oxoacyl-(acyl carrier protein) synthase III
102	 59.46	0	112473..113513	-	346	161621823	plsX	syc0103_c	-	putative glycerol-3-phosphate acyltransferase PlsX
103	 57.99	0	113664..114320	-	218	56750113	-	syc0104_c	-	two-component response regulator for energy transfer from phycobilisomes to photosystems
104	 59.71	0	114603..116039	+	478	56750114	radA	syc0105_d	-	DNA repair protein RadA
105	 55.63	0	116036..116497	-	153	56750115	-	syc0106_c	-	hypothetical protein
106	 57.30	0	116540..117340	-	266	56750116	pstB	syc0107_c	-	phosphate transport system ATP-binding protein
107	 58.90	0	117405..118472	+	355	56750117	lpxD	syc0108_d	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
108	 57.11	0	118492..119454	-	320	56750118	nadA	syc0109_c	-	quinolinate synthetase
109	 56.53	0	119490..120308	-	272	56750119	icfA	syc0110_c	-	carbonic anhydrase
110	 50.62	-1	120395..120874	+	159	56750120	-	syc0111_d	-	hypothetical protein
111	 52.69	0	120980..122095	+	371	56750121	-	syc0112_d	-	hypothetical protein
112	 55.87	0	122508..123581	-	357	56750122	-	syc0113_c	-	fructose-1,6-bisphosphate aldolase
113	 55.86	0	123965..124399	-	144	56750123	-	syc0114_c	-	hypothetical protein
114	 59.41	0	124647..125624	+	325	56750124	cobD	syc0115_d	-	cobalamin biosynthesis protein
115	 61.02	+1	125705..126625	+	306	56750125	thrB	syc0116_d	-	homoserine kinase
116	 55.43	0	126768..128369	+	533	56750126	ndhD	syc0117_d	-	NAD(P)H-quinone oxidoreductase subunit 4
117	 55.96	0	128508..129002	+	164	56750127	pmgA	syc0118_d	-	photomixotrophic growth related protein PmgA-like protein
118	 59.42	0	129131..129268	+	45	56750128	pmgA	syc0119_d	-	photomixotrophic growth related protein PmgA
119	 58.06	0	129234..129512	-	92	109150054	-	syc0120-da	-	hypothetical protein
120	 55.48	0	129593..130039	+	148	56750129	-	syc0120_d	-	hypothetical protein
121	 58.32	0	130075..131823	+	582	56750130	menD	syc0121_d	-	2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylic acid synthase/2-oxoglutarate decarboxylase
122	 60.33	+1	131944..132543	+	199	56750131	-	syc0122_d	-	hypothetical protein
123	 58.07	0	132757..133815	-	352	56750132	argC	syc0123_c	-	N-acetyl-gamma-glutamyl-phosphate reductase
124	 56.47	0	134088..135773	+	561	56750133	ribA	syc0124_d	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
125	 57.31	0	135812..136249	-	145	56750134	rot	syc0125_c	-	peptidyl-prolyl cis-trans isomerase
126	 53.26	0	136626..137483	+	285	56750135	-	syc0126_d	-	hypothetical protein
127	 58.15	0	137532..137942	+	136	56750136	-	syc0127_d	-	hypothetical protein
128	 56.99	0	138205..139392	-	395	56750137	purK	syc0128_c	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
129	 53.87	0	139494..139829	-	111	56750138	rbcS	syc0129_c	-	ribulose bisphosphate carboxylase small subunit
130	 57.58	0	139920..141338	-	472	56750139	rbcL	syc0130_c	-	ribulose bisophosphate carboxylase
131	 56.32	0	141729..142559	-	276	56750140	ccmO	syc0131_c	-	carbon dioxide concentrating mechanism protein CcmO
132	 59.67	0	142601..143086	-	161	56750141	ccmN	syc0132_c	-	carbon dioxide concentrating mechanism protein
133	 57.84	0	143122..144741	-	539	56750142	ccmM	syc0133_c	-	carbon dioxide concentrating mechanism protein CcmM
134	 54.33	0	144807..145106	-	99	56750143	ccmL	syc0134_c	-	carbon dioxide concentrating mechanism protein CcmL
135	 56.31	0	145253..145561	-	102	56750144	ccmK	syc0135_c	-	putative carboxysome assembly protein
136	 54.68	0	145891..147291	-	466	56750145	chlN	syc0136_c	-	light-independent protochlorophyllide reductase subunit N
137	 48.55	-1	147355..148215	-	286	56750146	chlL	syc0137_c	-	protochlorophyllide reductase iron-sulfur ATP-binding protein
138	 60.26	+1	148817..149800	-	327	56750147	-	syc0138_c	-	hypothetical protein
139	 57.13	0	149805..152456	-	883	56750148	topA	syc0139_c	-	DNA topoisomerase I
140	 54.66	0	152705..154270	+	521	56750149	ndhB	syc0140_d	-	NAD(P)H-quinone oxidoreductase subunit 2
141	 57.30	0	154366..155091	+	241	56750150	-	syc0141_d	-	ATP-binding protein of ABC transporter
142	 56.22	0	155104..155859	-	251	56750151	-	syc0142_c	-	hypothetical protein
143	 56.89	0	155983..156432	+	149	56750152	-	syc0143_d	-	hypothetical protein
144	 59.04	0	156442..157149	+	235	56750153	-	syc0144_d	-	hypothetical protein
145	 55.02	0	157229..158851	+	540	56750154	leuA	syc0145_d	-	2-isopropylmalate synthase
146	 56.79	0	158931..159953	-	340	56750155	-	syc0146_c	-	iron transport system substrate-binding protein
147	 41.67	-2	160245..160880	-	211	56750156	-	syc0147_c	-	membrane-associated protein
148	 56.56	0	161112..162743	-	543	56750157	futB	syc0148_c	-	iron(III) ABC transporter permease protein
149	 57.99	0	162891..163997	+	368	56750158	-	syc0149_d	-	iron(III)-transport ATP-binding protein
150	 59.09	0	164013..164540	-	175	56750159	-	syc0150_c	-	hypothetical protein
151	 58.84	0	164716..165405	+	229	56750160	-	syc0151_d	-	two-component response regulator
152	 57.89	0	165535..166206	+	223	56750161	-	syc0152_d	-	hydroxyacylglutathione hydrolase
153	 47.30	-2	166223..167482	-	419	56750162	-	syc0153_c	-	hypothetical protein
154	 53.44	0	167695..168072	+	125	56750163	-	syc0154_d	-	hypothetical protein
155	 53.83	0	168423..169544	+	373	56750164	-	syc0155_d	-	endo-1-beta-xylanase
156	 46.68	-2	169477..170712	+	411	56750165	-	syc0156_d	-	hypothetical protein
157	 42.96	-2	170730..172952	+	740	56750166	-	syc0157_d	-	UDP-glucose-beta-D-glucan glucosyltransferase
158	 53.10	0	173280..174650	-	456	56750167	-	syc0158_c	-	hypothetical protein
159	 53.49	0	174799..175056	+	85	56750168	-	syc0159_d	-	hypothetical protein
160	 54.05	0	175074..175493	-	139	56750169	-	syc0160_c	-	hypothetical protein
161	 55.90	0	175490..177253	-	587	56750170	-	syc0161_c	-	hypothetical protein
162	 55.63	0	177381..178295	-	304	56750171	-	syc0162_c	-	histone deacetylase/AcuC/AphA family protein
163	 49.26	-1	178817..182884	+	1355	56750172	-	syc0163_d	-	alkaline phosphatase
164	 56.40	0	183108..184646	-	512	56750173	comM	syc0164_c	-	competence protein ComM-like protein
165	 54.26	0	184692..185078	+	128	56750174	-	syc0165_d	-	protein kinase C inhibitor
166	 56.51	0	185180..186262	+	360	56750175	psbAII	syc0166_d	-	photosystem II D1 protein
167	 58.54	0	186428..187141	-	237	56750176	-	syc0167_c	-	carbonic anhydrase
168	 57.49	0	187120..187947	-	275	56750177	-	syc0168_c	-	hypothetical protein
169	 57.58	0	188040..189173	+	377	56750178	-	syc0169_d	-	hypothetical protein
170	 55.29	0	189261..189515	+	84	56750179	-	syc0170_d	-	hypothetical protein
171	 55.31	0	189517..190203	-	228	56750180	-	syc0171_c	-	hypothetical protein
172	 51.27	-1	190489..191001	+	170	56750181	ppa	syc0172_d	-	inorganic pyrophosphatase
173	 45.72	-2	191088..193226	-	712	56750182	-	syc0173_c	-	hypothetical protein
174	 48.32	-1	194189..194575	-	128	56750183	-	syc0174_c	-	ABC transporter
175	 51.86	-1	194583..196115	-	510	56750184	-	syc0175_c	-	ABC transporter ATP binding protein
176	 54.26	0	196197..197921	-	574	56750185	-	syc0176_c	-	high affinity sulfate transporter
177	 56.68	0	197964..199325	-	453	56750186	accC	syc0177_c	-	acetyl-CoA carboxylase biotin carboxylase subunit
178	 57.57	0	199633..200874	+	413	56750187	-	syc0178_d	-	hypothetical protein
179	 53.46	0	200921..203215	-	764	56750188	-	syc0179_c	-	GTP pyrophosphokinase
180	 57.70	0	203660..204094	+	144	56750189	-	syc0180_d	-	hypothetical protein
181	 57.47	0	204294..204815	+	173	56750190	-	syc0181_d	-	hypothetical protein
55.98	MEAN

4.05	STD DEV
