IslandPath Analysis: Synechococcus elongatus PCC 6301

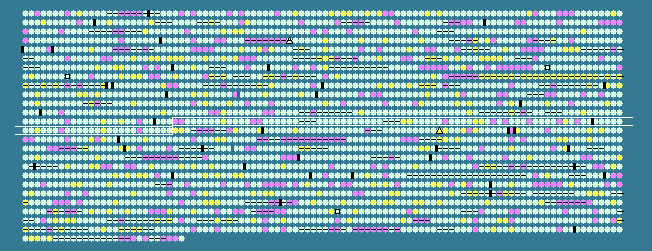

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 55.98 STD DEV: 4.05
Synechococcus elongatus PCC 6301, complete genome - 1..2696255
2527 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1226	 50.54	-1	1338292..1338750	-	152	56751234	-	syc1225_c	-	hypothetical protein
1227	 52.07	0	1339041..1339403	-	120	56751235	-	syc1226_c	-	hypothetical protein
1228	 56.73	0	1339488..1339829	-	113	56751236	ccmK	syc1227_c	-	carbon dioxide concentrating mechanism protein CcmK
1229	 52.75	0	1339874..1340182	-	102	56751237	ccmK	syc1228_c	-	carbon dioxide concentrating mechanism protein ccmK
1230	 57.41	0	1340260..1341264	+	334	56751238	-	syc1229_d	-	nitrogen regulation protein NifR3-like protein
1231	 57.53	0	1341365..1341550	-	61	56751239	gylA	syc1230_c	-	serine hydroxymethyltransferase
1232	 59.11	0	1341461..1342744	+	427	161621817	glyA	syc1231_d	-	serine hydroxymethyltransferase
1233	 58.66	0	1342767..1343840	+	357	56751241	-	syc1232_d	-	glycosyltransferase
1234	 59.72	0	1343850..1345115	+	421	56751242	cinA	syc1233_d	-	competence damage-inducible protein A
1235	 57.38	0	1345125..1346729	-	534	56751243	hoxF	syc1234_c	-	NADH dehydrogenase I chain F
1236	 57.43	0	1346729..1347226	-	165	56751244	-	syc1235_c	-	bidirectional hydrogenase complex protein HoxE
1237	 58.82	0	1347351..1349390	+	679	56751245	ligA	syc1236_d	-	NAD-dependent DNA ligase LigA
1238	 53.87	0	1349422..1350882	+	486	56751246	glcD	syc1237_d	-	glycolate oxidase subunit GlcD
1239	 42.34	-2	1350894..1351226	-	110	56751247	-	syc1238_c	-	hypothetical protein
1240	 42.18	-2	1351216..1351554	-	112	56751248	-	syc1239_c	-	hypothetical protein
1241	 55.08	0	1351592..1352221	-	209	56751249	-	syc1240_c	-	hypothetical protein
1242	 57.23	0	1352200..1352994	-	264	56751250	hemD	syc1241_c	-	porphyrin biosynthesis protein HemD
1243	 58.47	0	1352987..1353718	-	243	56751251	cobA	syc1242_c	-	uroporphyrin-III C-methyltransferase
1244	 58.33	0	1353715..1354926	-	403	56751252	-	syc1243_c	-	glycosyltransferase
1245	 58.75	0	1354948..1355907	+	319	56751253	-	syc1244_d	-	hypothetical protein
1246	 55.90	0	1355919..1356401	+	160	56751254	-	syc1245_d	-	hypothetical protein
1247	 58.44	0	1356398..1357126	-	242	56751255	gidB	syc1246_c	-	glucose-inhibited division protein B
1248	 59.35	0	1357658..1358245	+	195	56751256	dnaJ	syc1247_d	-	DnaJ protein
1249	 56.88	0	1358223..1358498	+	91	56751257	-	syc1248_d	-	hypothetical protein
1250	 55.95	0	1358511..1359266	-	251	56751258	uppS	syc1249_c	-	undecaprenyl pyrophosphate synthetase
1251	 54.07	0	1359263..1360183	-	306	56751259	-	syc1250_c	-	hypothetical protein
1252	 57.99	0	1360263..1361657	-	464	56751260	lysA	syc1251_c	-	diaminopimelate decarboxylase
1253	 59.00	0	1361705..1362304	+	199	56751261	rimI	syc1252_d	-	ribosomal-protein-alanine acetyltransferase
1254	 56.35	0	1362403..1364922	+	839	56751262	clpC	syc1253_d	-	ATP-dependent Clp protease regulatory subunit ClpC
1255	 53.45	0	1365077..1365409	-	110	56751263	-	syc1254_c	-	hypothetical protein
1256	 52.61	0	1365549..1365989	-	146	56751264	-	syc1255_c	-	hypothetical protein
1257	 55.47	0	1366038..1366787	+	249	56751265	-	syc1256_d	-	hypothetical protein
1258	 55.94	0	1366854..1367981	-	375	56751266	ama	syc1257_c	-	N-acyl-L-amino acid amidohydrolase
1259	 54.06	0	1368041..1369381	+	446	56751267	-	syc1258_d	-	hypothetical protein
1260	 58.58	0	1369455..1372025	-	856	56751268	gyrA	syc1259_c	-	DNA gyrase subunit A
1261	 58.49	0	1372225..1372713	+	162	56751269	-	syc1260_d	-	hypothetical protein
1262	 56.58	0	1372748..1372975	+	75	56751270	cp12	syc1261_d	-	hypothetical protein
1263	 57.85	0	1373004..1373774	-	256	56751271	-	syc1262_c	-	hypothetical protein
1264	 59.83	0	1373778..1374245	-	155	56751272	-	syc1263_c	-	hypothetical protein
1265	 59.67	0	1374248..1375033	-	261	56751273	bgtA	syc1264_c	-	ABC-type permease for basic amino acids and glutamine
1266	 58.44	0	1375052..1376242	-	396	56751274	-	syc1265_c	-	permease protein of amino acid ABC transporter
1267	 58.33	0	1376244..1377383	-	379	56751275	bgtB	syc1266_c	-	ABC-type permease for basic amino acids and glutamine
1268	 55.19	0	1377384..1378463	-	359	56751276	-	syc1267_c	-	polar amino acid transport system substrate-binding proetin
1269	 56.69	0	1378655..1379716	+	353	56751277	gap1	syc1268_d	-	glyceraldehyde 3-phosphate dehydrogenase
1270	 56.73	0	1379728..1382262	+	844	56751278	glgP	syc1269_d	-	glycogen phosphorylase
1271	 52.08	0	1382362..1382505	+	47	56751279	hliC	syc1270_d	-	high light inducible polypeptide HliC
1272	 55.53	0	1382607..1383719	+	370	56751280	-	syc1271_d	-	sodium/calcium exchanger protein
1273	 57.68	0	1384031..1385398	-	455	56751281	-	syc1272_c	-	RNA methyltransferase
1274	 58.13	0	1385543..1386034	+	163	56751282	apcD	syc1273_d	-	allophycocyanin alpha-B chain
1275	 56.39	0	1386195..1386554	+	119	56751283	petJ	syc1274_d	-	cytochrome C6 soluble cytochrome f
1276	 61.34	+1	1386561..1387742	+	393	56751284	-	syc1275_d	-	hypothetical protein
1277	 60.28	+1	1387742..1388320	+	192	56751285	-	syc1276_d	-	hypothetical protein
1278	 53.52	0	1388328..1388867	-	179	56751286	-	syc1277_c	-	hypothetical protein
1279	 51.94	0	1389208..1389723	-	171	56751287	-	syc1278_c	-	hypothetical protein
1280	 57.60	0	1389735..1390727	+	330	56751288	-	syc1279_d	-	hypothetical protein
1281	 46.95	-2	1390831..1391256	+	141	56751289	-	syc1280_d	-	hypothetical protein
1282	 58.57	0	1391600..1392946	+	448	56751290	aroA	syc1281_d	-	3-phosphoshikimate 1-carboxyvinyltransferase
1283	 56.57	0	1392954..1393478	+	174	56751291	-	syc1282_d	-	putative acetyltransferase
1284	 58.26	0	1393576..1394622	+	348	56751292	-	syc1283_d	-	hypothetical protein
1285	 50.26	-1	1394664..1395236	-	190	56751293	-	syc1284_c	-	hypothetical protein
1286	 55.56	0	1395341..1395601	-	86	56751294	-	syc1285_c	-	hypothetical protein
1287	 58.53	0	1395630..1396256	-	208	56751295	pth	syc1286_c	-	peptidyl-tRNA hydrolase
1288	 54.71	0	1396253..1396528	-	91	56751296	-	syc1287_c	-	hypothetical protein
1289	 55.39	0	1396622..1396825	-	67	56751297	psbH	syc1288_c	-	photosystem II reaction center protein H
1290	 49.65	-1	1396924..1397064	+	46	56751298	psbN	syc1289_d	-	photosystem II reaction center protein N
1291	 60.90	+1	1397487..1398353	-	288	56751299	-	syc1290_c	-	hypothetical protein
1292	 59.15	0	1398350..1399387	-	345	56751300	glk	syc1291_c	-	glucokinase
1293	 52.31	0	1399488..1400246	+	252	56751301	minD	syc1292_d	-	cell division inhibitor minD
1294	 59.19	0	1400249..1400569	+	106	56751302	-	syc1293_d	-	hypothetical protein
1295	 52.98	0	1400694..1400861	+	55	56751303	-	syc1294_d	-	hypothetical protein
1296	 56.60	0	1401014..1401778	-	254	56751304	-	syc1295_c	-	hypothetical protein
1297	 58.41	0	1401921..1402937	+	338	56751305	-	syc1296_d	-	putative zinc-binding oxidoreductase
1298	 56.15	0	1403072..1403461	+	129	56751306	-	syc1297_d	-	hypothetical protein
1299	 59.36	0	1403453..1404424	-	323	56751307	-	syc1298_c	-	hypothetical protein
1300	 54.21	0	1404696..1405241	+	181	56751308	-	syc1299_d	-	hypothetical protein
1301	 58.40	0	1405325..1406413	-	362	56751309	aroC	syc1300_c	-	chorismate synthase
1302	 59.01	0	1406500..1407975	-	491	56751310	cobQ	syc1301_c	-	cobyric acid synthase
1303	 60.78	+1	1407987..1408394	-	135	56751311	-	syc1302_c	-	hypothetical protein
1304	 57.89	0	1408434..1409060	+	208	56751312	maf	syc1303_d	-	Maf-like protein
1305	 58.19	0	1409057..1411828	-	923	56751313	-	syc1304_c	-	hypothetical protein
1306	 53.78	0	1412134..1413522	-	462	56751314	-	syc1305_c	-	putative nicotinate phosphoribosyltransferase
1307	 49.75	-1	1413670..1414686	-	338	56751315	-	syc1306_c	-	bifunctional nicotinamide mononucleotide adenylyltransferase/ADP-ribose pyrophosphatase
1308	 58.49	0	1414838..1415302	+	154	56751316	-	syc1307_d	-	hypothetical protein
1309	 58.36	0	1415295..1416401	+	368	56751317	ribD	syc1308_d	-	riboflavin biosynthesis protein RibD
1310	 57.88	0	1416926..1418245	+	439	56751318	ccoN	syc1309_d	-	cb-type cytochrome c oxidase subunit I
1311	 58.57	0	1418242..1418994	+	250	56751319	-	syc1310_d	-	hypothetical protein
1312	 57.17	0	1419058..1419531	+	157	56751320	-	syc1311_d	-	hypothetical protein
1313	 59.44	0	1419531..1420457	+	308	56751321	-	syc1312_d	-	hypothetical protein
1314	 59.50	0	1420454..1421890	+	478	56751322	ndbC	syc1313_d	-	type 2 NADH dehydrogenase
1315	 58.45	0	1422058..1423311	+	417	56751323	-	syc1314_d	-	hypothetical protein
1316	 57.89	0	1423308..1424789	+	493	56751324	-	syc1315_d	-	lignostilbene-alpha beta-dioxygenase
1317	 56.41	0	1424825..1425253	-	142	56751325	-	syc1316_c	-	hypothetical protein
1318	 57.27	0	1425334..1428228	+	964	56751326	polA	syc1317_d	-	DNA polymerase I
1319	 56.44	0	1428412..1428636	+	74	56751327	-	syc1318_d	-	hypothetical protein
1320	 46.75	-2	1428697..1429173	+	158	56751328	ycf60	syc1319_d	-	hypothetical protein
1321	 58.83	0	1429263..1430411	-	382	56751329	-	syc1320_c	-	soluble hydrogenase 42 kD subunit DHSS
1322	 57.42	0	1430486..1431610	+	374	56751330	cbiD	syc1321_d	-	cobalt-precorrin-6A synthase
1323	 55.70	0	1431748..1433352	+	534	56751331	guaA	syc1322_d	-	bifunctional GMP synthase/glutamine amidotransferase protein
1324	 56.99	0	1433465..1435201	-	578	56751332	-	syc1323_c	-	hypothetical protein
1325	 54.79	0	1435422..1436465	+	347	56751333	-	syc1324_d	-	hypothetical protein
55.98	MEAN

4.05	STD DEV
