IslandPath Analysis: Sulfurimonas denitrificans DSM 1251

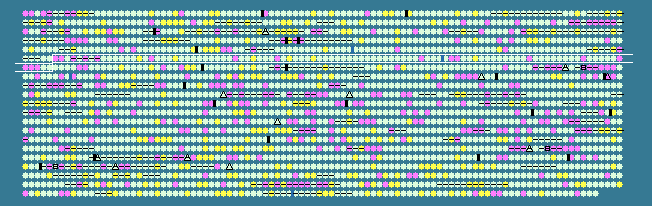

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.46 STD DEV: 3.28
Sulfurimonas denitrificans DSM 1251, complete genome - 1..2201561
2096 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
506	 28.75	-1	509836..511515	-	559	78776707	-	Suden_0507	-	hypothetical protein
507	 28.24	-1	511487..512173	-	228	78776708	-	Suden_0508	-	hypothetical protein
508	 36.96	0	512289..513362	+	357	78776709	-	Suden_0509	-	fructose-bisphosphate aldolase
509	 26.07	-2	513368..513670	-	100	78776710	-	Suden_0510	-	hypothetical protein
510	 33.05	0	513755..514462	+	235	78776711	-	Suden_0511	-	methyltransferase
511	 27.92	-1	514540..515223	+	227	78776712	-	Suden_0512	-	cyclic nucleotide-binding domain-containing protein
512	 33.56	0	515309..515752	+	147	78776713	-	Suden_0513	-	heat shock protein Hsp20
513	 30.28	-1	515763..516188	+	141	78776714	-	Suden_0514	-	heat shock protein Hsp20
514	 32.52	0	516234..516479	-	81	78776715	-	Suden_0515	-	hypothetical protein
515	 33.33	0	516514..517200	-	228	78776716	-	Suden_0516	-	endonuclease III/Nth
516	 32.61	0	517240..518073	+	277	78776717	-	Suden_0517	-	PpiC-type peptidyl-prolyl cis-trans isomerase
517	 37.32	0	518077..518928	+	283	78776718	-	Suden_0518	-	hypothetical protein
518	 37.46	0	518921..519598	-	225	78776719	-	Suden_0519	-	nitroreductase
519	 36.24	0	519743..522319	+	858	78776720	-	Suden_0520	-	AAA ATPase
520	 39.26	+1	522437..522571	+	44	78776721	-	Suden_0521	-	ribosomal protein L34
521	 31.67	0	522688..522927	+	79	78776722	-	Suden_0522	-	ribonuclease P protein
522	 30.43	-1	522905..523249	+	114	78776723	-	Suden_0523	-	hypothetical protein
523	 34.45	0	523234..524844	+	536	78776724	-	Suden_0524	-	putative inner membrane protein translocase component YidC
524	 32.14	0	524837..525841	+	334	78776725	-	Suden_0525	-	hypothetical protein
525	 37.66	0	525845..527185	+	446	78776726	trmE	Suden_0526	-	tRNA modification GTPase TrmE
526	 39.19	+1	527185..527577	+	130	78776727	-	Suden_0527	-	Holliday junction resolvase-like protein
527	 32.58	0	527560..529683	-	707	78776728	-	Suden_0528	-	diguanylate cyclase/phosphodiesterase
528	 35.63	0	529772..530425	-	217	78776729	-	Suden_0529	-	hypothetical protein
529	 33.91	0	530863..531552	-	229	78776730	-	Suden_0531	-	two component transcriptional regulator
530	 31.37	0	531549..532262	-	237	78776731	-	Suden_0532	-	histidine kinase
531	 34.54	0	532534..533031	-	165	78776732	-	Suden_0533	-	MarR family transcriptional regulator
532	 34.14	0	533126..534358	+	410	78776733	-	Suden_0534	-	Outer membrane efflux protein
533	 35.60	0	534359..535459	+	366	78776734	-	Suden_0535	-	secretion protein HlyD
534	 36.49	0	535461..538565	+	1034	78776735	-	Suden_0536	-	resistance-nodulation-cell division family transporter
535	 33.53	0	538770..540779	+	669	78776736	-	Suden_0537	-	N-6 DNA methylase
536	 29.65	-1	540797..541909	+	370	78776737	-	Suden_0538	-	hypothetical protein
537	 31.94	0	541922..543001	+	359	78776738	-	Suden_0539	-	hypothetical protein
538	 33.33	0	543096..543716	-	206	78776739	-	Suden_0540	-	hypothetical protein
539	 39.00	+1	543824..544846	+	340	78776740	-	Suden_0541	-	ketol-acid reductoisomerase
540	 33.64	0	544990..545952	-	320	78776741	-	Suden_0542	-	DNA polymerase III subunit delta
541	 36.21	0	545955..547904	-	649	78776742	-	Suden_0543	-	exoribonuclease II
542	 35.59	0	547909..548706	-	265	78776743	-	Suden_0544	-	putative signal transduction protein
543	 30.28	-1	548833..549159	+	108	78776744	-	Suden_0545	-	hypothetical protein
544	 35.05	0	549170..549694	+	174	78776745	-	Suden_0546	-	GreA/GreB family elongation factor
545	 40.38	+1	549766..551979	+	737	78776746	-	Suden_0547	-	phosphoribosylformylglycinamidine synthase II
546	 36.36	0	551976..552668	-	230	78776747	-	Suden_0548	-	MOSC
547	 36.35	0	552751..553710	-	319	78776748	-	Suden_0549	-	6-phosphofructokinase
548	 37.76	+1	553798..555333	+	511	78776749	purH	Suden_0550	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
549	 41.07	+2	555689..557716	-	675	78776750	-	Suden_0551	-	hypothetical protein
550	 34.04	0	557886..558740	+	284	78776751	-	Suden_0552	-	hypothetical protein
551	 34.05	0	558795..559916	-	373	78776752	-	Suden_0553	-	metallophosphoesterase
552	 37.92	+1	560033..560905	+	290	78776753	-	Suden_0554	-	heat shock protein DnaJ-like
553	 32.80	0	560909..561286	+	125	78776754	-	Suden_0555	-	MerR family transcriptional regulator
554	 37.83	+1	561437..562705	-	422	78776755	-	Suden_0556	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
555	 33.33	0	562793..563221	+	142	78776756	-	Suden_0557	-	hypothetical protein
556	 32.78	0	563214..563753	+	179	78776757	-	Suden_0558	-	hypothetical protein
557	 33.62	0	563747..564451	+	234	78776758	-	Suden_0559	-	exonuclease
558	 31.79	0	564507..564896	+	129	78776759	-	Suden_0560	-	hypothetical protein
559	 32.32	0	564886..565476	+	196	78776760	-	Suden_0561	-	hypothetical protein
560	 36.74	0	565522..566577	+	351	78776761	flgI	Suden_0562	-	flagellar basal body P-ring protein
561	 35.31	0	566577..566879	+	100	78776762	-	Suden_0563	-	hypothetical protein
562	 36.67	0	566973..567182	+	69	78776763	-	Suden_0564	-	hypothetical protein
563	 32.63	0	567213..567641	+	142	78776764	-	Suden_0565	-	hypothetical protein
564	 34.23	0	567643..569529	+	628	78776765	flgK	Suden_0566	-	flagellar hook-associated protein FlgK
565	 33.84	0	569537..570331	+	264	78776766	-	Suden_0567	-	binding-protein dependent transport system inner membrane protein
566	 33.86	0	570415..570984	+	189	78776767	-	Suden_0568	-	anthranilate synthase component II
567	 27.72	-2	570981..572174	+	397	78776768	-	Suden_0569	-	putative integral membrane protein
568	 36.03	0	572262..573596	+	444	78776769	-	Suden_0570	-	ATP-dependent citrate lyase beta subunit
569	 36.53	0	573606..575420	+	604	78776770	-	Suden_0571	-	ATP-dependent citrate lyase alpha subunit
570	 32.87	0	575563..576213	+	216	78776771	-	Suden_0572	-	N-terminal methylation
571	 35.54	0	582220..582807	+	195	78776772	-	Suden_0573	-	phosphoheptose isomerase
572	 30.18	-1	582814..583320	+	168	78776773	-	Suden_0574	-	D-alpha,beta-D-heptose 1,7-bisphosphate phosphatase
573	 30.45	-1	583323..583808	+	161	78776774	-	Suden_0575	-	asparaginase
574	 33.58	0	583783..586236	+	817	78776775	-	Suden_0576	-	copper-translocating P-type ATPase:heavy metal translocating P-type ATPase
575	 32.87	0	586239..586454	+	71	78776776	-	Suden_0577	-	cytochrome oxidase maturation protein cbb3-type
576	 39.65	+1	586490..586774	-	94	78776777	-	Suden_0578	-	cytochrome c-553
577	 32.74	0	586888..587898	+	336	78776778	-	Suden_0579	-	ADP-L-glycero-D-manno-heptose-6-epimerase
578	 36.61	0	587895..589328	+	477	78776779	-	Suden_0580	-	D-beta-D-heptose 1-phosphate adenylyltransferase / D-alpha,beta-D-heptose 7-phosphate 1-kinase
579	 34.38	0	589321..589893	+	190	78776780	-	Suden_0581	-	hypothetical protein
580	 37.63	0	589904..590881	-	325	78776781	-	Suden_0582	-	lipopolysaccharide heptosyltransferase II
581	 34.60	0	590878..592143	-	421	78776782	-	Suden_0583	-	hypothetical protein
582	 35.16	0	592181..592999	+	272	78776783	-	Suden_0584	-	DNA ligase
583	 35.60	0	592999..593967	+	322	78776784	-	Suden_0585	-	heptosyltransferase-like protein
584	 33.33	0	593968..594717	-	249	78776785	-	Suden_0586	-	glycosyl transferase family protein
585	 29.25	-1	594707..595441	-	244	78776786	-	Suden_0587	-	hypothetical protein
586	 35.60	0	595431..596534	-	367	78776787	-	Suden_0588	-	glycosyl transferase, group 1
587	 34.25	0	596531..597511	-	326	78776788	-	Suden_0589	-	lipopolysaccharide heptosyltransferase I
588	 32.93	0	597511..598254	-	247	78776789	-	Suden_0590	-	hexapaptide repeat-containing transferase
589	 36.33	0	598344..600044	+	566	78776790	-	Suden_0591	-	ABC transporter-related protein
590	 32.50	0	600064..601269	+	401	78776791	-	Suden_0592	-	polysaccharide biosynthesis protein CapD
591	 34.20	0	601256..602407	+	383	78776792	-	Suden_0593	-	DegT/DnrJ/EryC1/StrS aminotransferase
592	 32.99	0	602407..602982	+	191	78776793	-	Suden_0594	-	acetyl transferase
593	 34.83	0	602979..603980	+	333	78776794	-	Suden_0595	-	N-acetylneuraminate synthase
594	 28.12	-1	603977..604858	+	293	78776795	-	Suden_0596	-	hypothetical protein
595	 34.11	0	604855..606018	+	387	78776796	-	Suden_0597	-	UDP-N-acetylglucosamine 2-epimerase
596	 32.19	0	606021..607067	+	348	78776797	-	Suden_0598	-	nucleotidyl transferase
597	 31.38	0	607067..607783	+	238	78776798	-	Suden_0599	-	acylneuraminate cytidylyltransferase
598	 34.31	0	607783..608805	+	340	78776799	-	Suden_0600	-	oxidoreductase-like
599	 34.42	0	608789..610081	+	430	78776800	-	Suden_0601	-	glutamate-1-semialdehyde 2,1-aminomutase
600	 28.35	-1	610081..610863	+	260	78776801	-	Suden_0602	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
601	 29.83	-1	610863..611633	+	256	78776802	-	Suden_0603	-	flagellin modification protein A
602	 26.13	-2	611693..612664	+	323	78776803	-	Suden_0604	-	hypothetical protein
603	 25.87	-2	612687..613691	+	334	78776804	-	Suden_0605	-	hypothetical protein
604	 35.53	0	613769..615136	+	455	78776805	-	Suden_0606	-	coproporphyrinogen III oxidase
605	 36.21	0	615139..616422	+	427	78776806	-	Suden_0607	-	hypothetical protein
34.46	MEAN

3.28	STD DEV
