IslandPath Analysis: Sulfurimonas denitrificans DSM 1251

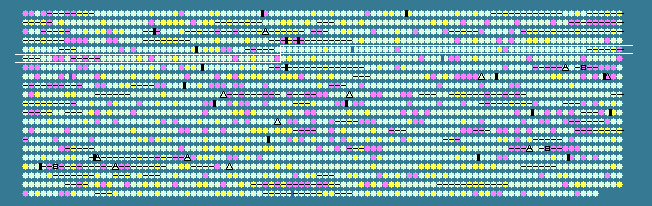

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.46 STD DEV: 3.28
Sulfurimonas denitrificans DSM 1251, complete genome - 1..2201561
2096 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
444	 31.67	0	444572..445294	+	240	78776645	-	Suden_0444	-	hypothetical protein
445	 32.63	0	445332..446045	+	237	78776646	-	Suden_0445	-	hypothetical protein
446	 33.60	0	446087..447214	+	375	78776647	-	Suden_0446	-	3-deoxy-D-manno-octulosonic-acid transferase
447	 36.19	0	447226..447960	+	244	78776648	-	Suden_0447	-	pseudouridine synthase
448	 34.17	0	447986..448225	+	79	78776649	-	Suden_0448	-	excinuclease ABC subunit C
449	 33.99	0	448210..448665	+	151	78776650	-	Suden_0449	-	hypothetical protein
450	 35.57	0	448746..450089	+	447	78776651	-	Suden_0450	-	Signal recognition particle protein
451	 40.26	+1	450211..450441	+	76	78776652	rpsP	Suden_0451	-	30S ribosomal protein S16
452	 37.08	0	450444..450683	+	79	78776653	-	Suden_0452	-	hypothetical protein
453	 32.78	0	450664..451203	+	179	78776654	-	Suden_0453	-	16S rRNA processing protein RimM
454	 33.91	0	451203..451898	+	231	78776655	trmD	Suden_0454	-	tRNA (guanine-N(1)-)-methyltransferase
455	 36.67	0	452021..452380	+	119	78776656	rplS	Suden_0455	-	50S ribosomal protein L19
456	 34.06	0	458483..459169	-	228	78776657	aat	Suden_0456	-	leucyl/phenylalanyl-tRNA--protein transferase
457	 34.62	0	459166..461343	-	725	78776658	-	Suden_0457	-	AAA ATPase
458	 31.67	0	461343..461642	-	99	78776659	-	Suden_0458	-	ATP-dependent Clp protease adaptor protein ClpS
459	 35.76	0	461871..463106	-	411	78776660	-	Suden_0459	-	O-acetylhomoserine aminocarboxypropyltransferase
460	 34.54	0	463202..463864	+	220	78776661	-	Suden_0460	-	dethiobiotin synthase
461	 36.64	0	463972..464847	+	291	78776662	pyrB	Suden_0461	-	aspartate carbamoyltransferase catalytic subunit
462	 33.65	0	464837..465775	+	312	78776663	-	Suden_0462	-	para-aminobenzoate synthase component I
463	 30.11	-1	465791..467188	+	465	78776664	-	Suden_0463	-	histidine kinase
464	 36.60	0	467241..468221	+	326	78776665	-	Suden_0464	-	transaldolase
465	 36.13	0	468354..468890	+	178	78776666	-	Suden_0465	-	50S ribosomal protein L25/general stress protein Ctc
466	 34.77	0	468894..469448	+	184	78776667	-	Suden_0466	-	peptidyl-tRNA hydrolase
467	 31.30	0	469479..470558	+	359	78776668	-	Suden_0467	-	permease YjgP/YjgQ
468	 35.31	0	470650..471861	+	403	78776669	-	Suden_0468	-	diaminopimelate decarboxylase
469	 34.23	0	471863..472639	+	258	78776670	-	Suden_0469	-	HAD family hydrolase
470	 35.53	0	472636..473727	+	363	78776671	-	Suden_0470	-	chorismate mutase, gamma, beta and epsilon
471	 32.60	0	473717..474811	+	364	78776672	-	Suden_0471	-	histidinol-phosphate aminotransferase
472	 35.98	0	474830..476530	+	566	78776673	fliF	Suden_0472	-	flagellar MS-ring protein
473	 36.64	0	476549..477577	+	342	78776674	fliG	Suden_0473	-	flagellar motor switch protein G
474	 34.09	0	477579..478373	+	264	78776675	fliH	Suden_0474	-	flagellar assembly protein H
475	 37.56	0	478383..480203	+	606	78776676	-	Suden_0475	-	1-deoxy-D-xylulose-5-phosphate synthase
476	 34.02	0	480195..480917	-	240	78776677	-	Suden_0476	-	hypothetical protein
477	 36.85	0	480946..483051	+	701	78776678	-	Suden_0477	-	hypothetical protein
478	 35.68	0	483139..485865	+	908	78776679	-	Suden_0478	-	hypothetical protein
479	 31.86	0	486513..487328	+	271	78776680	-	Suden_0480	-	hypothetical protein
480	 38.99	+1	487420..488604	+	394	78776681	-	Suden_0481	-	aminotransferase, class I and II
481	 27.00	-2	488647..488883	+	78	78776682	-	Suden_0482	-	hypothetical protein
482	 34.97	0	488873..489301	+	142	78776683	-	Suden_0483	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
483	 33.62	0	489556..490248	+	230	78776684	-	Suden_0484	-	putative dUTPase
484	 35.79	0	490250..490819	+	189	78776685	-	Suden_0485	-	ABC transporter-related protein
485	 35.62	0	490809..491201	-	130	78776686	-	Suden_0486	-	camphor resistance CrcB protein
486	 34.91	0	491167..491865	-	232	78776687	-	Suden_0487	-	phospholipid/glycerol acyltransferase
487	 31.06	-1	491843..492988	-	381	78776688	-	Suden_0488	-	hypothetical protein
488	 35.85	0	492985..493659	-	224	78776689	-	Suden_0489	-	phosphoribosylformylglycinamidine synthase subunit I
489	 34.98	0	493656..493898	-	80	78776690	-	Suden_0490	-	phosphoribosylformylglycinamidine synthetase PurS
490	 32.91	0	493930..494643	-	237	78776691	-	Suden_0491	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
491	 35.38	0	494645..495964	-	439	78776692	-	Suden_0492	-	peptidase S41A, C-terminal protease
492	 36.96	0	496106..496546	+	146	78776693	-	Suden_0493	-	hemerythrin HHE cation binding region
493	 34.03	0	496559..497857	+	432	78776694	-	Suden_0494	-	hypothetical protein
494	 33.72	0	497860..498375	+	171	78776695	-	Suden_0495	-	shikimate kinase
495	 32.85	0	498368..498784	+	138	78776696	-	Suden_0496	-	hypothetical protein
496	 37.97	+1	498788..500080	+	430	78776697	-	Suden_0497	-	histidinol dehydrogenase
497	 37.87	+1	500272..500910	+	212	78776698	-	Suden_0498	-	4Fe-4S ferredoxin, iron-sulfur binding
498	 36.67	0	500910..501809	+	299	78776699	-	Suden_0499	-	polysulphide reductase, NrfD
499	 39.07	+1	501822..505205	+	1127	78776700	-	Suden_0500	-	twin-arginine translocation pathway signal
500	 29.70	-1	505253..505747	-	164	78776701	-	Suden_0501	-	putative thioredoxin
501	 33.12	0	505848..506324	+	158	78776702	-	Suden_0502	-	hypothetical protein
502	 35.09	0	506345..507994	-	549	78776703	-	Suden_0503	-	phosphate transporter
503	 34.80	0	508067..508612	-	181	78776704	-	Suden_0504	-	peptidylprolyl isomerase
504	 35.79	0	508751..509035	-	94	78776705	-	Suden_0505	-	histone-like DNA-binding protein
505	 35.83	0	509370..509609	-	79	78776706	-	Suden_0506	-	hypothetical protein
506	 28.75	-1	509836..511515	-	559	78776707	-	Suden_0507	-	hypothetical protein
507	 28.24	-1	511487..512173	-	228	78776708	-	Suden_0508	-	hypothetical protein
508	 36.96	0	512289..513362	+	357	78776709	-	Suden_0509	-	fructose-bisphosphate aldolase
509	 26.07	-2	513368..513670	-	100	78776710	-	Suden_0510	-	hypothetical protein
510	 33.05	0	513755..514462	+	235	78776711	-	Suden_0511	-	methyltransferase
511	 27.92	-1	514540..515223	+	227	78776712	-	Suden_0512	-	cyclic nucleotide-binding domain-containing protein
512	 33.56	0	515309..515752	+	147	78776713	-	Suden_0513	-	heat shock protein Hsp20
513	 30.28	-1	515763..516188	+	141	78776714	-	Suden_0514	-	heat shock protein Hsp20
514	 32.52	0	516234..516479	-	81	78776715	-	Suden_0515	-	hypothetical protein
515	 33.33	0	516514..517200	-	228	78776716	-	Suden_0516	-	endonuclease III/Nth
516	 32.61	0	517240..518073	+	277	78776717	-	Suden_0517	-	PpiC-type peptidyl-prolyl cis-trans isomerase
517	 37.32	0	518077..518928	+	283	78776718	-	Suden_0518	-	hypothetical protein
518	 37.46	0	518921..519598	-	225	78776719	-	Suden_0519	-	nitroreductase
519	 36.24	0	519743..522319	+	858	78776720	-	Suden_0520	-	AAA ATPase
520	 39.26	+1	522437..522571	+	44	78776721	-	Suden_0521	-	ribosomal protein L34
521	 31.67	0	522688..522927	+	79	78776722	-	Suden_0522	-	ribonuclease P protein
522	 30.43	-1	522905..523249	+	114	78776723	-	Suden_0523	-	hypothetical protein
523	 34.45	0	523234..524844	+	536	78776724	-	Suden_0524	-	putative inner membrane protein translocase component YidC
524	 32.14	0	524837..525841	+	334	78776725	-	Suden_0525	-	hypothetical protein
525	 37.66	0	525845..527185	+	446	78776726	trmE	Suden_0526	-	tRNA modification GTPase TrmE
526	 39.19	+1	527185..527577	+	130	78776727	-	Suden_0527	-	Holliday junction resolvase-like protein
527	 32.58	0	527560..529683	-	707	78776728	-	Suden_0528	-	diguanylate cyclase/phosphodiesterase
528	 35.63	0	529772..530425	-	217	78776729	-	Suden_0529	-	hypothetical protein
529	 33.91	0	530863..531552	-	229	78776730	-	Suden_0531	-	two component transcriptional regulator
530	 31.37	0	531549..532262	-	237	78776731	-	Suden_0532	-	histidine kinase
531	 34.54	0	532534..533031	-	165	78776732	-	Suden_0533	-	MarR family transcriptional regulator
532	 34.14	0	533126..534358	+	410	78776733	-	Suden_0534	-	Outer membrane efflux protein
533	 35.60	0	534359..535459	+	366	78776734	-	Suden_0535	-	secretion protein HlyD
534	 36.49	0	535461..538565	+	1034	78776735	-	Suden_0536	-	resistance-nodulation-cell division family transporter
535	 33.53	0	538770..540779	+	669	78776736	-	Suden_0537	-	N-6 DNA methylase
536	 29.65	-1	540797..541909	+	370	78776737	-	Suden_0538	-	hypothetical protein
537	 31.94	0	541922..543001	+	359	78776738	-	Suden_0539	-	hypothetical protein
538	 33.33	0	543096..543716	-	206	78776739	-	Suden_0540	-	hypothetical protein
539	 39.00	+1	543824..544846	+	340	78776740	-	Suden_0541	-	ketol-acid reductoisomerase
540	 33.64	0	544990..545952	-	320	78776741	-	Suden_0542	-	DNA polymerase III subunit delta
541	 36.21	0	545955..547904	-	649	78776742	-	Suden_0543	-	exoribonuclease II
542	 35.59	0	547909..548706	-	265	78776743	-	Suden_0544	-	putative signal transduction protein
543	 30.28	-1	548833..549159	+	108	78776744	-	Suden_0545	-	hypothetical protein
34.46	MEAN

3.28	STD DEV
