IslandPath Analysis: Sulfurimonas denitrificans DSM 1251

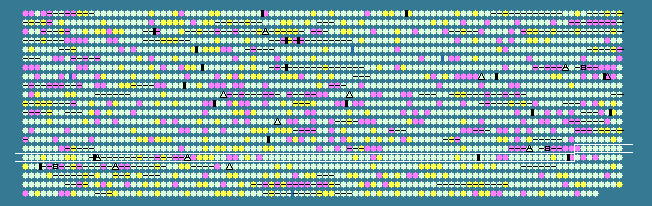

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.46 STD DEV: 3.28
Sulfurimonas denitrificans DSM 1251, complete genome - 1..2201561
2096 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1593	 25.86	-2	1676818..1678905	+	695	78777795	-	Suden_1598	-	hypothetical protein
1594	 34.82	0	1678895..1680571	-	558	78777796	-	Suden_1599	-	hypothetical protein
1595	 37.23	0	1680632..1681810	-	392	78777797	argJ	Suden_1600	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
1596	 34.74	0	1681803..1682939	-	378	78777798	-	Suden_1601	-	hypothetical protein
1597	 36.51	0	1682958..1683146	-	62	78777799	rpmB	Suden_1602	-	50S ribosomal protein L28
1598	 33.96	0	1683294..1684091	+	265	78777800	-	Suden_1603	-	putative signal transduction protein
1599	 32.33	0	1684088..1685482	+	464	78777801	-	Suden_1604	-	CheC, inhibitor of MCP methylation
1600	 36.92	0	1685526..1686167	+	213	78777802	-	Suden_1605	-	ribulose-phosphate 3-epimerase
1601	 36.92	0	1686170..1686754	+	194	78777803	-	Suden_1606	-	phosphoribosylanthranilate isomerase
1602	 34.08	0	1686761..1687561	+	266	78777804	-	Suden_1607	-	DNA polymerase III subunit epsilon
1603	 36.97	0	1687564..1688499	-	311	78777805	-	Suden_1608	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
1604	 40.48	+1	1688516..1689733	-	405	78777806	-	Suden_1609	-	3-oxoacyl-(acyl carrier protein) synthase II
1605	 33.70	0	1689834..1690106	-	90	78777807	-	Suden_1610	-	Acyl carrier protein (ACP)
1606	 31.99	0	1690229..1691566	-	445	78777808	-	Suden_1611	-	deoxyribodipyrimidine photolyase
1607	 35.55	0	1691574..1692521	-	315	78777809	-	Suden_1612	-	hypothetical protein
1608	 39.76	+1	1692563..1693309	-	248	78777810	fabG	Suden_1613	-	3-ketoacyl-(acyl-carrier-protein) reductase
1609	 38.48	+1	1693328..1694803	-	491	78777811	-	Suden_1614	-	phosphoglyceromutase
1610	 34.27	0	1694877..1695938	+	353	78777812	mraY	Suden_1615	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
1611	 36.57	0	1695938..1697143	+	401	78777813	murD	Suden_1616	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
1612	 32.08	0	1697140..1697697	+	185	78777814	-	Suden_1617	-	Formyl transferase-like
1613	 33.11	0	1698097..1698549	+	150	78777815	-	Suden_1618	-	Phage integrase
1614	 34.43	0	1698890..1699072	-	60	78777816	-	Suden_1619	-	hypothetical protein
1615	 31.56	0	1699121..1699459	-	112	78777817	-	Suden_1620	-	hypothetical protein
1616	 34.92	0	1699689..1701197	-	502	78777818	-	Suden_1621	-	hypothetical protein
1617	 36.45	0	1701208..1704546	-	1112	78777819	-	Suden_1622	-	exonuclease V subunit alpha
1618	 31.72	0	1704574..1705317	-	247	78777820	-	Suden_1623	-	Phage anti-repressor protein-like
1619	 33.96	0	1705556..1705873	-	105	78777821	-	Suden_1624	-	hypothetical protein
1620	 39.29	+1	1705882..1706637	-	251	78777822	-	Suden_1625	-	hypothetical protein
1621	 31.88	0	1706653..1707480	-	275	78777823	-	Suden_1626	-	hypothetical protein
1622	 37.32	0	1707615..1710395	-	926	78777824	-	Suden_1627	-	hypothetical protein
1623	 27.96	-1	1710399..1711124	-	241	78777825	-	Suden_1628	-	hypothetical protein
1624	 40.00	+1	1711290..1711784	-	164	78777826	-	Suden_1629	-	hypothetical protein
1625	 35.38	0	1712543..1713274	-	243	78777827	-	Suden_1630	-	hypothetical protein
1626	 30.86	-1	1713419..1713661	-	80	78777828	-	Suden_1631	-	hypothetical protein
1627	 24.05	-2	1713814..1714287	+	157	78777829	-	Suden_1632	-	hypothetical protein
1628	 36.50	0	1714292..1715398	-	368	78777830	-	Suden_1633	-	Phage integrase
1629	 24.44	-2	1715398..1715982	-	194	78777831	-	Suden_1634	-	hypothetical protein
1630	 39.04	+1	1716570..1717007	-	145	78777832	-	Suden_1635	-	cytosine deaminase
1631	 38.94	+1	1717576..1718502	+	308	78777833	-	Suden_1636	-	ribose-phosphate pyrophosphokinase
1632	 38.47	+1	1718516..1720306	+	596	78777834	-	Suden_1637	-	GTP-binding protein LepA
1633	 31.77	0	1720320..1720895	+	191	78777835	-	Suden_1638	-	transformation system protein
1634	 33.06	0	1720943..1722805	+	620	78777836	-	Suden_1639	-	Outer membrane cobalamin receptor protein-like
1635	 27.08	-2	1722806..1723237	+	143	78777837	-	Suden_1640	-	hypothetical protein
1636	 29.69	-1	1723231..1725153	+	640	78777838	-	Suden_1641	-	diguanylate cyclase/phosphodiesterase
1637	 33.28	0	1725137..1727134	-	665	78777839	-	Suden_1642	-	hypothetical protein
1638	 37.99	+1	1727315..1727872	+	185	78777840	-	Suden_1643	-	GrpE protein
1639	 37.31	0	1728033..1729919	+	628	78777841	-	Suden_1644	-	molecular chaperone DnaK
1640	 30.31	-1	1729990..1730982	+	330	78777842	-	Suden_1645	-	hypothetical protein
1641	 31.33	0	1731105..1732847	+	580	78777843	-	Suden_1646	-	diguanylate cyclase
1642	 34.38	0	1732864..1734006	-	380	78777844	-	Suden_1647	-	dihydropteroate synthase
1643	 32.86	0	1733996..1734625	-	209	78777845	-	Suden_1648	-	DNA polymerase III subunit delta'
1644	 36.61	0	1734612..1735160	-	182	78777846	-	Suden_1649	-	hypothetical protein
1645	 36.63	0	1735240..1736451	-	403	78777847	-	Suden_1650	-	aspartate kinase
1646	 33.97	0	1736452..1736922	-	156	78777848	-	Suden_1651	-	dinucleoside polyphosphate hydrolase
1647	 34.64	0	1737044..1737427	+	127	78777849	-	Suden_1652	-	putative PAS/PAC sensor protein
1648	 33.96	0	1737436..1738554	+	372	78777850	-	Suden_1653	-	methyl-accepting chemotaxis sensory transducer
1649	 34.76	0	1738626..1739678	+	350	78777851	-	Suden_1654	-	coproporphyrinogen III oxidase
1650	 32.16	0	1739731..1740156	+	141	78777852	-	Suden_1655	-	sec-independent translocase
1651	 35.18	0	1740149..1740961	+	270	78777853	-	Suden_1656	-	Sec-independent periplasmic protein translocase
1652	 36.05	0	1740963..1741991	+	342	78777854	queA	Suden_1657	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
1653	 35.91	0	1741986..1742762	-	258	78777855	-	Suden_1658	-	SMF protein
1654	 32.88	0	1742766..1743860	-	364	78777856	-	Suden_1659	-	hypothetical protein
1655	 35.75	0	1744060..1744473	+	137	78777857	rpsF	Suden_1660	-	30S ribosomal protein S6
1656	 38.54	+1	1744525..1745043	+	172	78777858	-	Suden_1661	-	single-strand DNA-binding protein
1657	 35.98	0	1745070..1745333	+	87	78777859	rpsR	Suden_1662	-	30S ribosomal protein S18
1658	 32.52	0	1745444..1747171	+	575	78777860	-	Suden_1663	-	hypothetical protein
1659	 28.66	-1	1747179..1747499	-	106	78777861	-	Suden_1664	-	hypothetical protein
1660	 40.54	+1	1747499..1748122	-	207	78777862	-	Suden_1665	-	phosphoserine phosphatase SerB
1661	 36.29	0	1748177..1749088	+	303	78777863	-	Suden_1666	-	methylenetetrahydrofolate reductase
1662	 37.02	0	1749101..1750348	+	415	78777864	-	Suden_1667	-	seryl-tRNA synthetase
1663	 33.03	0	1750399..1752738	+	779	78777865	-	Suden_1668	-	TPR repeat-containing protein
1664	 32.72	0	1752745..1753398	-	217	78777866	-	Suden_1669	-	putative phosphatidylserine decarboxylase
1665	 37.20	0	1753388..1755379	-	663	78777867	-	Suden_1670	-	peptidase M41, FtsH
1666	 32.49	0	1755382..1756215	-	277	78777868	prmA	Suden_1671	-	ribosomal protein L11 methyltransferase
1667	 37.87	+1	1756215..1756589	-	124	78777869	-	Suden_1672	-	response regulator receiver domain-containing protein
1668	 36.71	0	1756670..1757380	-	236	78777870	-	Suden_1673	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
1669	 36.22	0	1757377..1758000	-	207	78777871	hisH	Suden_1674	-	imidazole glycerol phosphate synthase subunit HisH
1670	 33.89	0	1757997..1758902	-	301	78777872	-	Suden_1675	-	hypothetical protein
1671	 31.20	0	1759022..1759912	+	296	78777873	-	Suden_1676	-	lipid A biosynthesis lauroyl acyltransferase
1672	 32.73	0	1759909..1760901	-	330	78777874	-	Suden_1677	-	hypothetical protein
1673	 38.66	+1	1760949..1761962	-	337	78777875	ruvB	Suden_1678	-	Holliday junction DNA helicase B
1674	 37.88	+1	1761971..1762762	-	263	78777876	panB	Suden_1679	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
1675	 31.36	0	1762839..1763243	+	134	78777877	-	Suden_1680	-	CheA signal transduction histidine kinase
1676	 32.39	0	1763240..1763980	+	246	78777878	-	Suden_1681	-	tryptophan synthase
1677	 31.05	-1	1764160..1764378	-	72	78777879	-	Suden_1682	-	hypothetical protein
1678	 35.09	0	1764381..1764608	-	75	78777880	-	Suden_1683	-	hypothetical protein
1679	 35.81	0	1764788..1765555	+	255	78777881	-	Suden_1684	-	gamma-glutamyl kinase
1680	 27.98	-1	1765594..1765836	-	80	78777882	-	Suden_1685	-	hypothetical protein
1681	 30.28	-1	1766058..1766483	+	141	78777883	-	Suden_1686	-	hypothetical protein
1682	 37.08	0	1766501..1767433	+	310	78777884	-	Suden_1687	-	S6 modification enzyme RimK
1683	 36.18	0	1767434..1768486	+	350	78777885	-	Suden_1688	-	succinylglutamate desuccinylase/aspartoacylase
1684	 35.17	0	1768489..1769520	+	343	78777886	-	Suden_1689	-	peptidase M42
1685	 31.03	-1	1769535..1770965	+	476	78777887	-	Suden_1690	-	MscS mechanosensitive ion channel
1686	 31.03	-1	1770982..1771764	+	260	78777888	-	Suden_1691	-	Mg2+ transporter protein, CorA-like
1687	 35.51	0	1772124..1772996	+	290	78777889	-	Suden_1692	-	radical SAM family protein
1688	 33.07	0	1772985..1773362	-	125	78777890	-	Suden_1693	-	hypothetical protein
1689	 37.97	+1	1773781..1775763	+	660	78777891	-	Suden_1694	-	excinuclease ABC subunit B
1690	 31.94	0	1775770..1776342	+	190	78777892	-	Suden_1695	-	integral membrane protein
1691	 36.86	0	1776356..1777942	-	528	78777893	-	Suden_1696	-	phosphoenolpyruvate carboxykinase
1692	 30.26	-1	1778597..1778824	-	75	78777894	-	Suden_1698	-	hypothetical protein
34.46	MEAN

3.28	STD DEV
